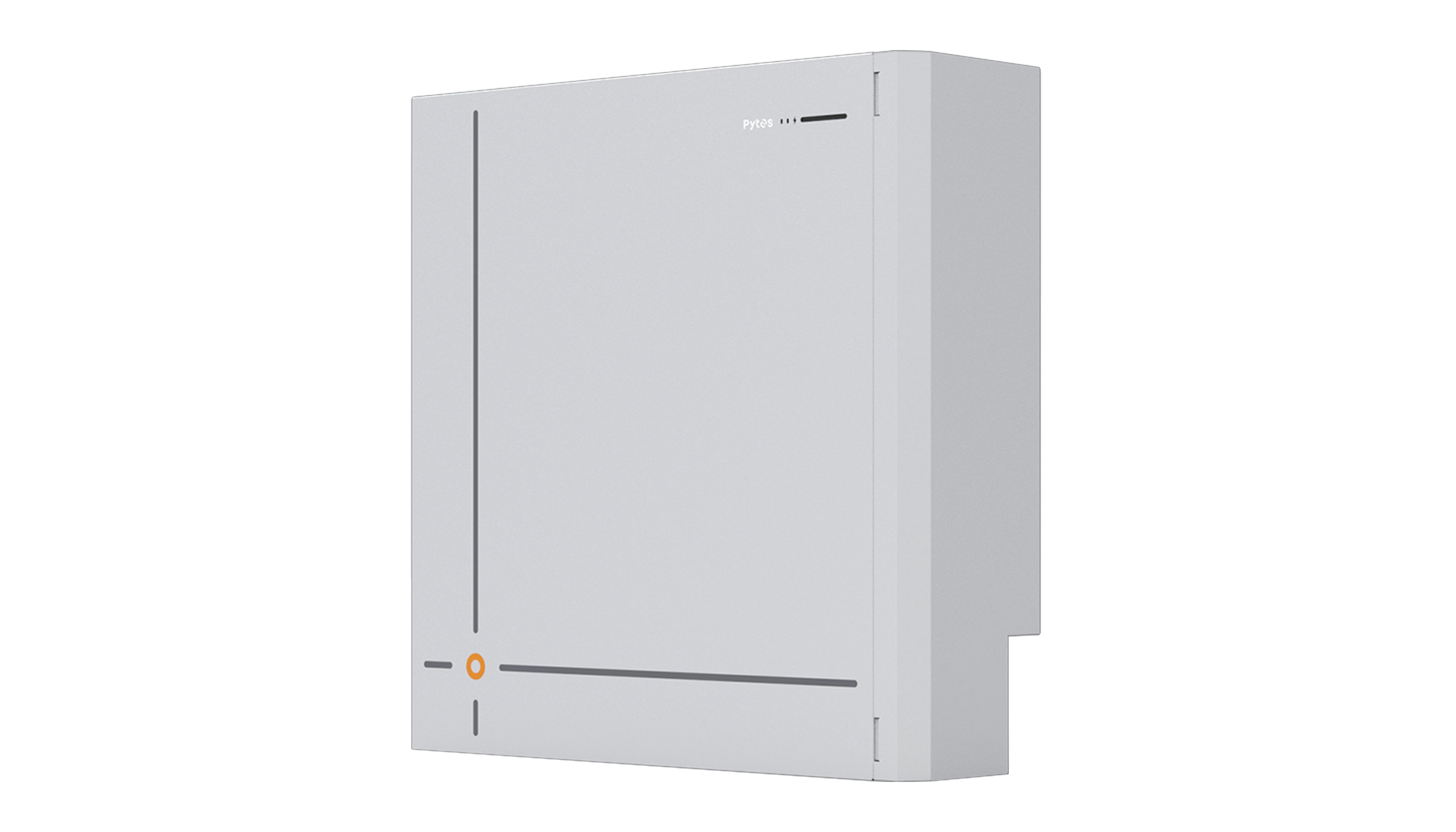

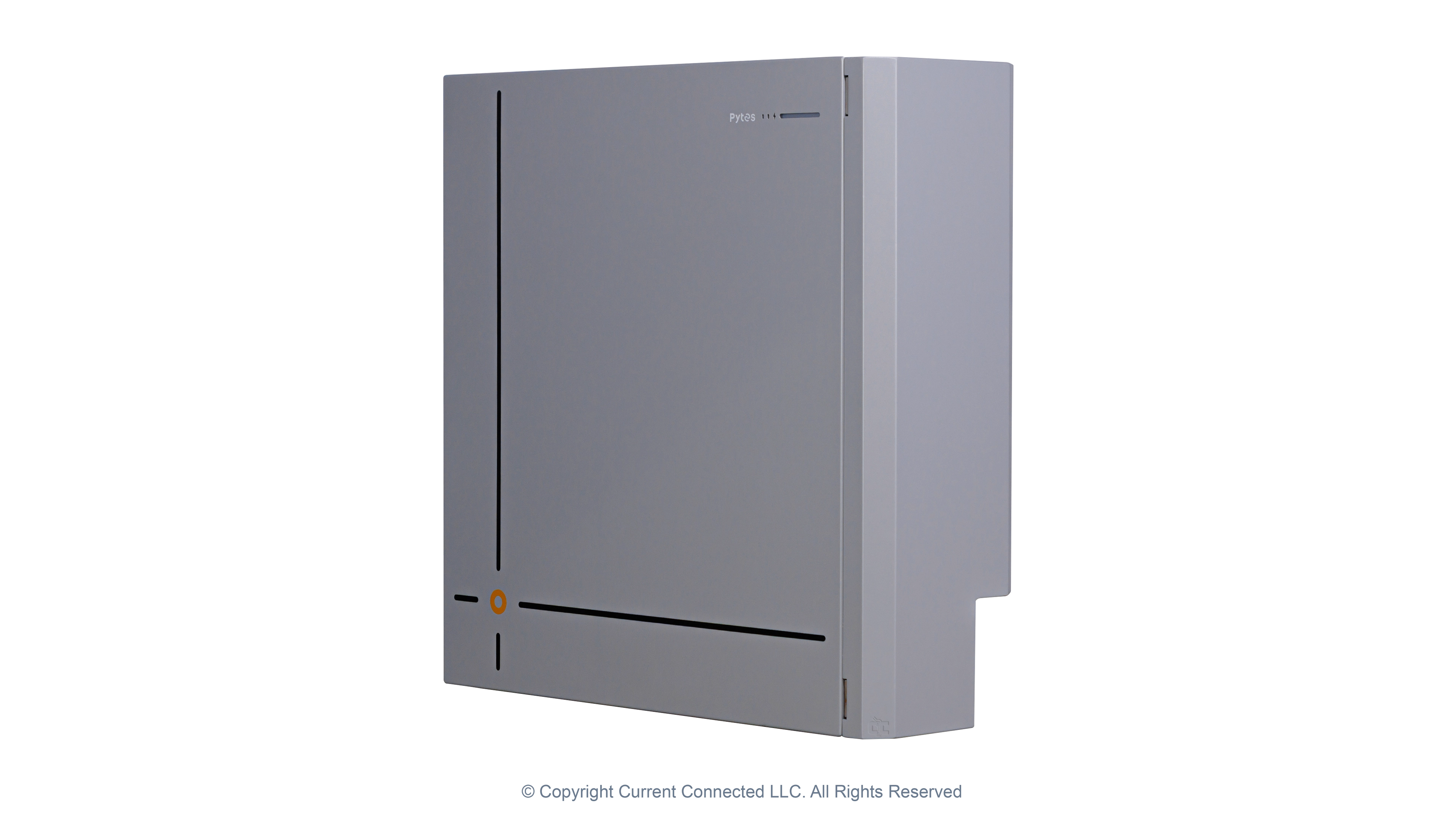

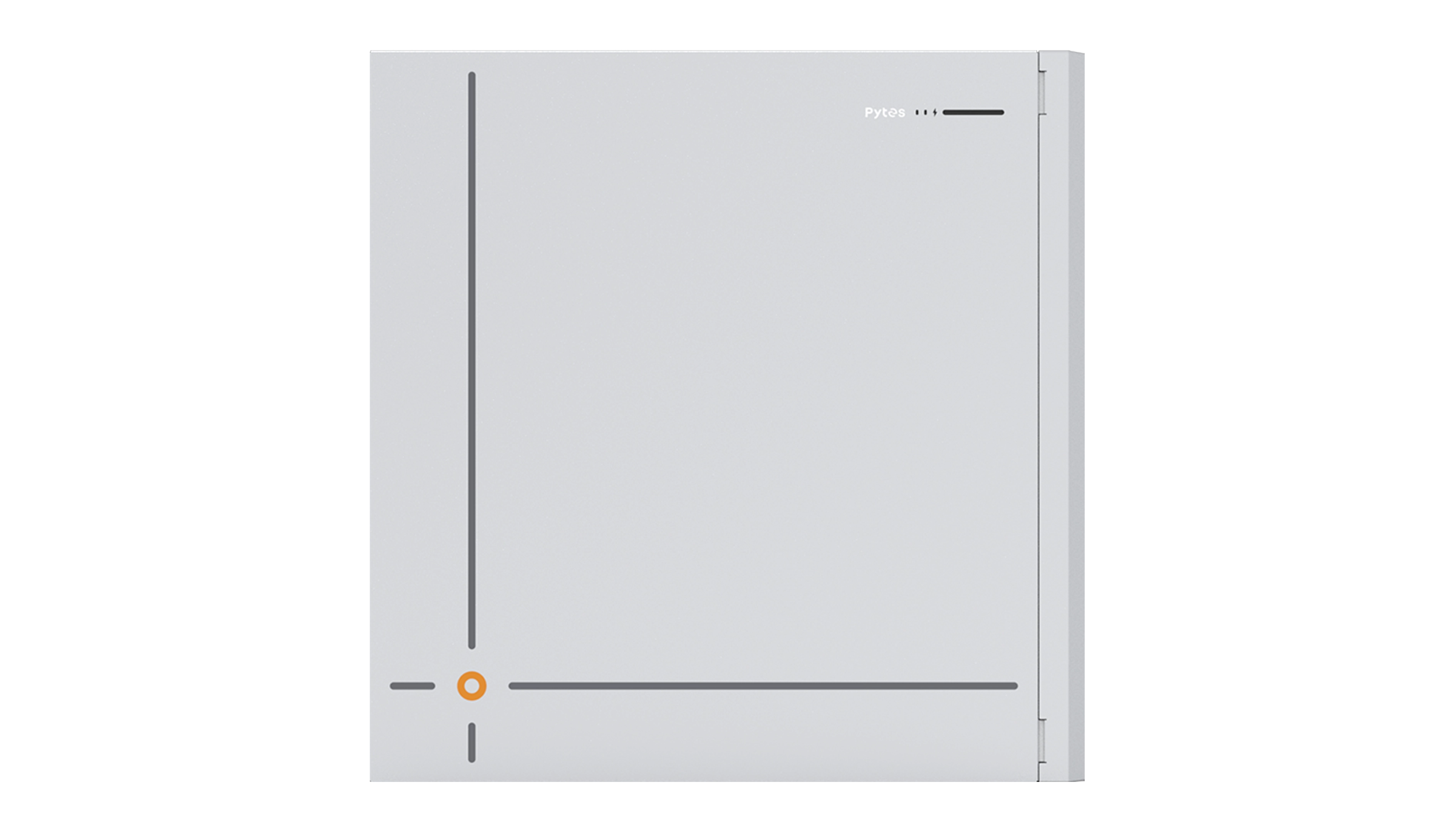

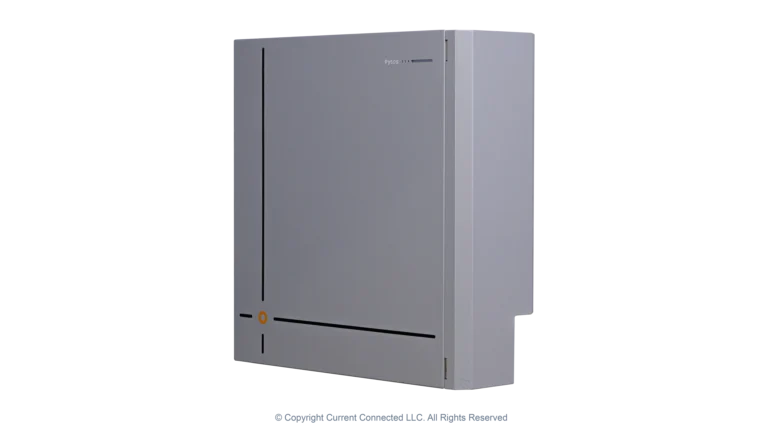

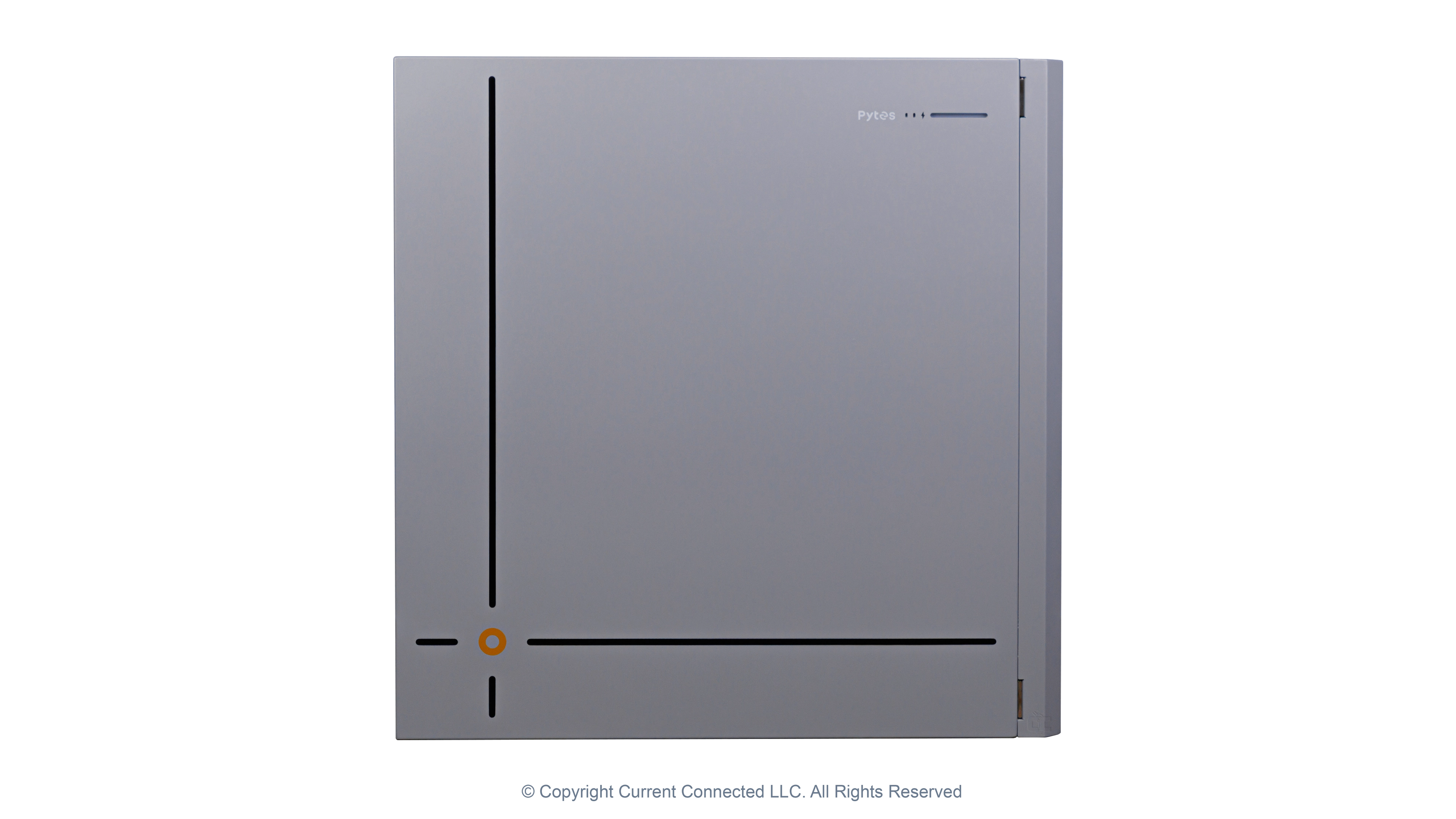

About the Pytes V16 Battery
The Pytes V16 is a 16kWh wall battery built for the spots most batteries can't go: an exterior wall near the coast, a humid shed, a garage that freezes in January. Its IP66 enclosure carries a C4-M corrosion rating, a heating film gets the cells ready to charge in winter, and an aerosol fire suppression module sits inside the cabinet from the factory.
Pytes built it around large 314Ah cells instead of stacks of 100Ah cells, which means fewer connections and a smaller footprint for the capacity. Up to 16 batteries run in parallel for 256kWh without a hub, so the bank grows with the house.
IP66 and C4-M Corrosion Resistance for Coastal and Humid Sites
IP66 seals the enclosure against dust and powerful water jets, and the C4-M corrosion rating suits coastal air, high humidity and sites with airborne pollutants. Pytes still asks for a shaded, sheltered spot out of direct sun, rain and snow, so an eave, carport or shed wall makes the best home for it. Keep it about 20 in (0.5 m) from the inverter, on a level surface if it stands on the floor, and away from standing water.
Weighing it against EG4's outdoor battery? Our Pytes V16 vs. EG4 WallMount 314Ah All Weather comparison lines the two up on cold charging, mounting, UL 9540 and warranty terms.
Self-Heating Film for Cold-Weather Charging
LFP cells can't take a charge below freezing, so the V16 carries a heating film. It switches on at 41°F (5°C) and runs until the pack reaches 59°F (15°C), giving the cells a buffer before they reach the 32°F (0°C) charging limit, and Pytes rates it for ambient temperatures down to -0.4°F (-18°C). The film runs only while solar, the grid or a generator is charging the battery, so stored energy stays available for your overnight loads.
On the hot side, the V16 accepts a charge up to 131°F (55°C) and discharges anywhere from -4°F to 131°F (-20°C to 55°C), which gives it headroom on a sun-warmed wall in the Southwest.
200A Continuous and 300A Surge for Well Pumps and Welders
Each battery delivers up to 200A (10.24kW) of continuous charge or discharge, with a 300A (15.36kW) peak for 15 seconds to start a well pump, an air compressor or a welder. Pytes recommends 125A (6.4kW) charging and 150A (7.68kW) discharging for everyday cycling, which leaves the 200A rating for heavy days.
Built-In Fire Suppression, UL 9540 Ed.3, CEC and SGIP
An aerosol fire suppression module comes built into the cabinet, and the ESS emergency shutdown input lets an external stop button, such as the IMO Rapid Shutdown Initiator, shut the system down. The V16's certifications cover UL 1973 for the battery and UL 9540 third edition (2023) for the energy storage system, plus UL 9540A, UL 9540B, CEC and SGIP for California incentive programs. Pytes' datasheet is on the Downloads tab for your permit package.
Sol-Ark, Victron and Closed-Loop Communication, Scaling to 256kWh

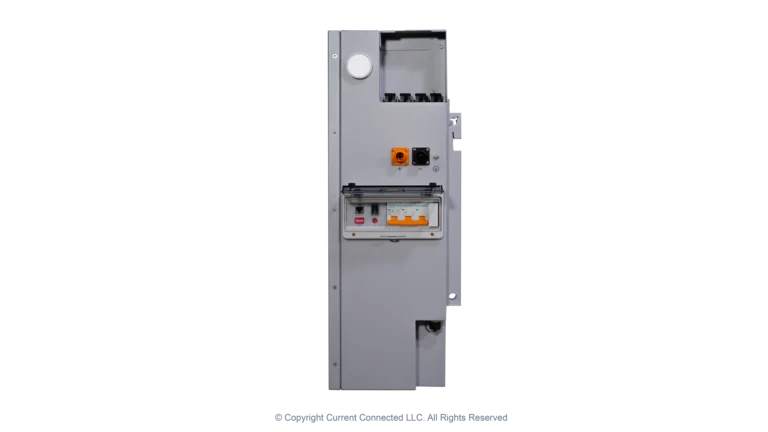

The V16 talks CAN, RS485 and RS232. Set the DIP switch on the primary battery to your inverter brand from Pytes' list, which covers Sol-Ark, Victron and more than 20 others. It pairs well with a Sol-Ark 18K-2P for whole-home backup, and Pytes' Victron configuration guide for Quattro and MultiPlus systems is on the Downloads tab.
Batteries land on common positive and negative busbars, with Cat6 cascading cables linking their communication ports, and 16 of them (256kWh) run in parallel without a hub. Remote monitoring runs through Pytes' LSW-5 WiFi dongle, sold separately.
Wall or Floor Mounting, Clearances and Plug-In Cables

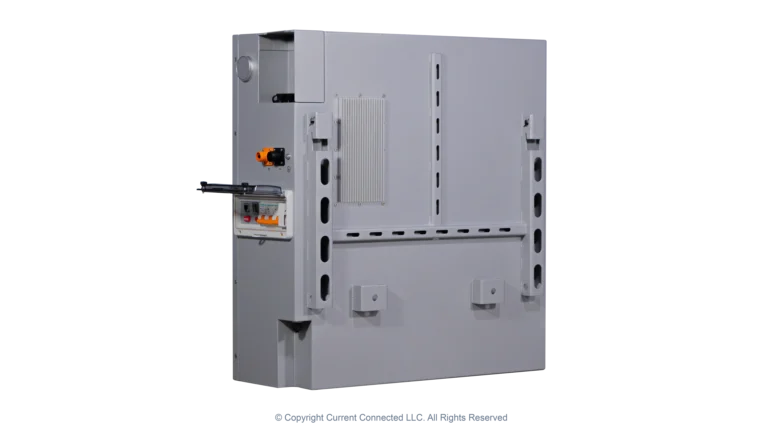

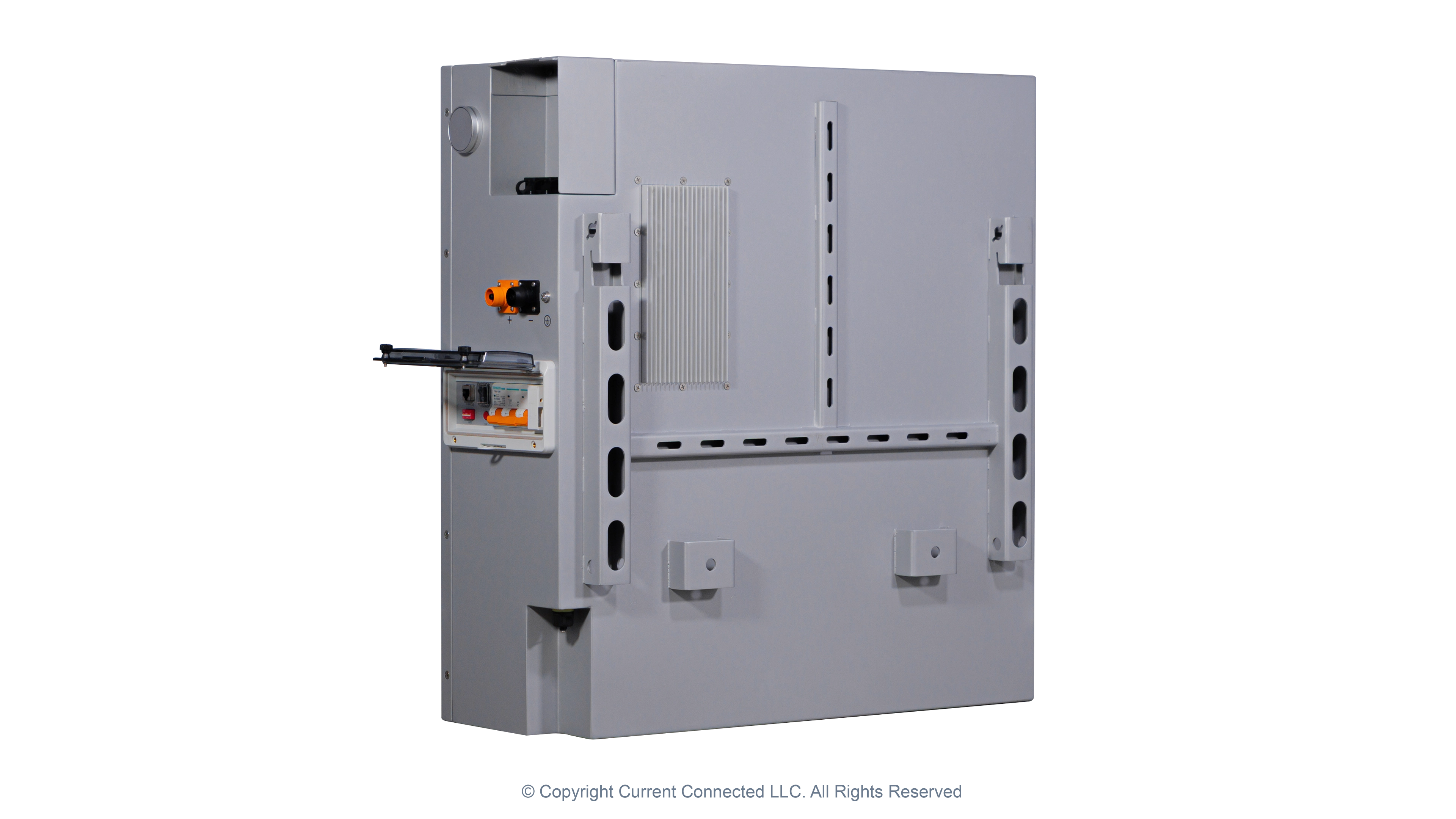

The V16 hangs upright on a wall bracket against a solid, non-combustible wall such as brick or concrete, and Pytes recommends two or more people for the 288 lb (130.5 kg) lift. Where the wall can't carry it, the Pytes floor mount base lets it stand on the ground instead.

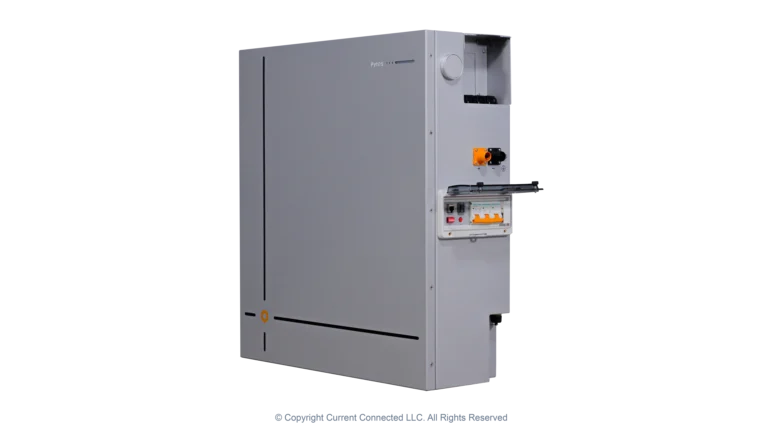

Each battery ships with 78.7 in (2 m) 2/0 AWG positive and negative cables, with Phoenix plug-in connectors at the battery and lugs on the far end, ready to land on a busbar or inverter. For longer runs, our custom battery cable builder makes cables to length from 6 AWG to 4/0 AWG.
Not sure how many batteries your system needs? Our team is happy to help with sizing.
