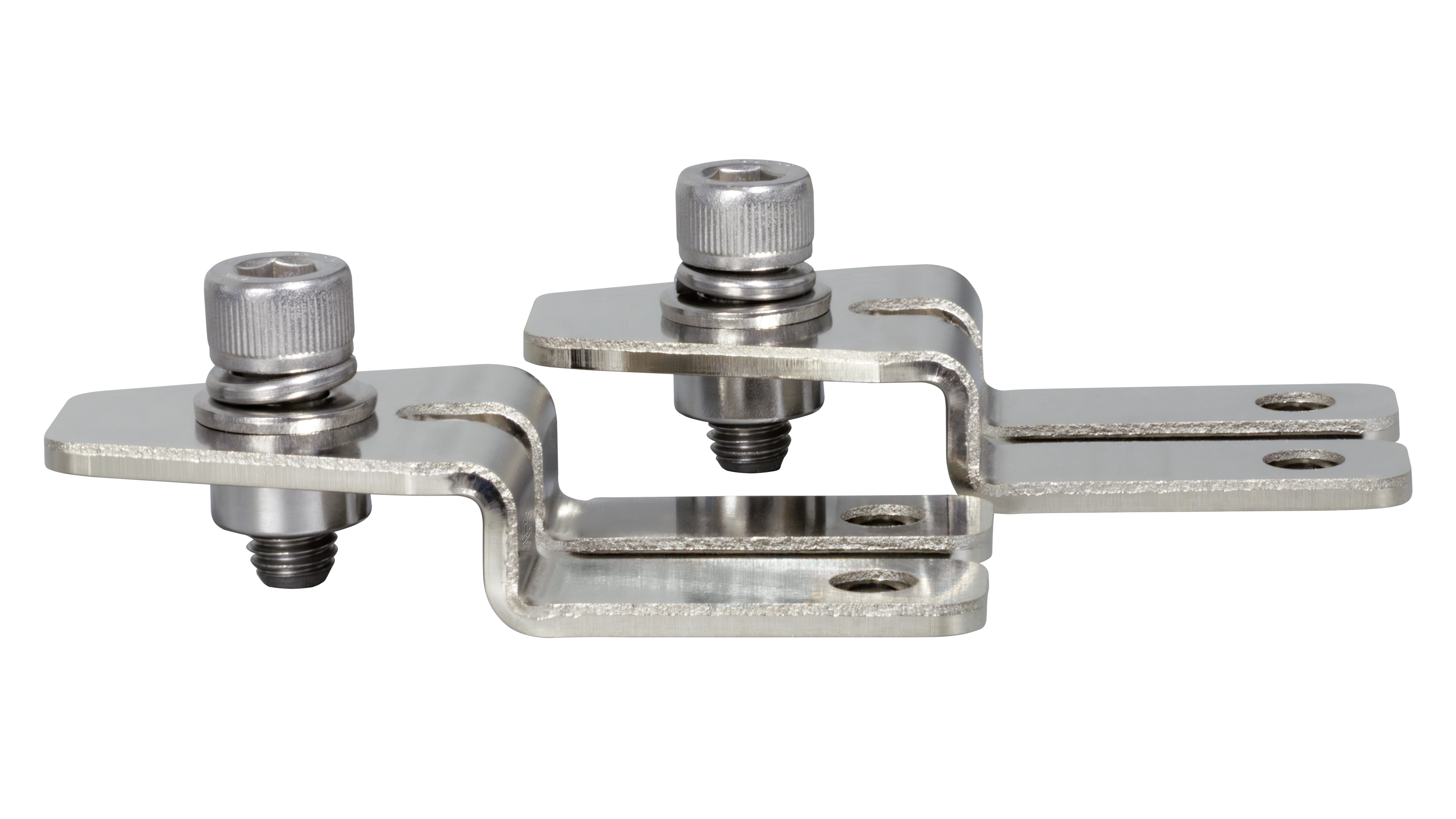

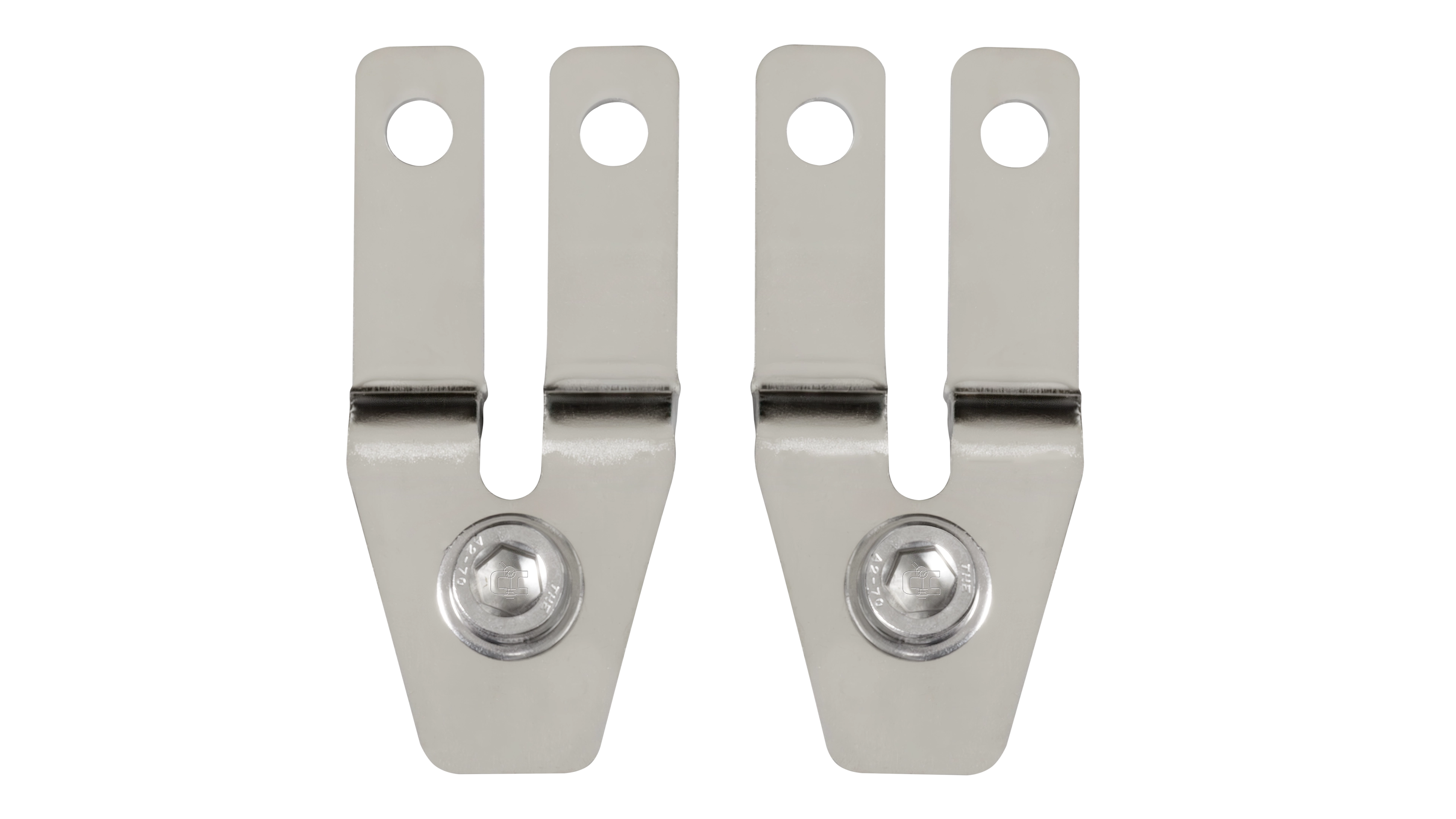

Pytes V-BusBar Pair for Sol-Ark 15K Hybrid Inverter Battery Connection, Consolidates Dual Terminals into Single Terminal Connection

SKU: PY-VBUSBAR

The v-BusBar for Sol-Ark 15k Inverters simplifies the wiring process of the DC battery input terminals on Sol-Ark 15k Hybrid Inverters.

Specifications:

  • Combines the two DC battery terminals of Sol-Ark 15K inverter for easy connection with a single 4/0AWG wire.
  • 5/16″ holes & 5/16″ bolt – use a 5/16″ terminal on your battery cables
  • Sold as a pair of two bus bars

$71.00

to check member price and detailed stock information.

1 units in stock ready to ship

Log in to see additional stock details

Description

The Sol-Ark 15k inverter has two sets of DC input connections rated for a maximum of 200A each. Since the inverter can draw up to 275A, using just one of these input connections would not allow the inverter to operate at full capacity without tripping a circuit breaker. This bus bar will split current equally across both of the input terminals ensuring that the input circuit breakers do not trip.

While it would be possible to run two sets of cables to the inverter from the battery bank, it is far easier and elegant to install this busbar to join the two input connections together inside the inverter. Once joined, one cable that is rated for the full 275A the inverter needs can then be ran to the battery bank.

Recommended Accessories:

Additional information

Weight 0.85 lbs
Dimensions 6 × 5 × 2 in
