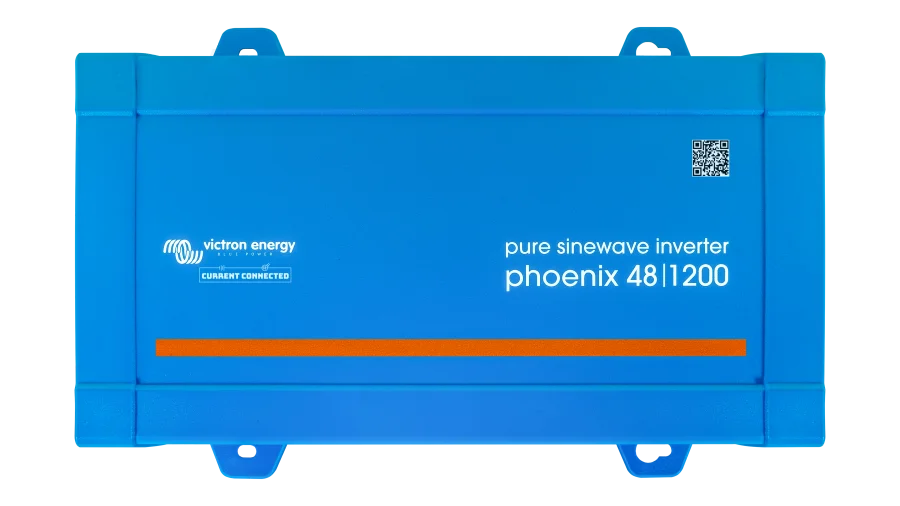

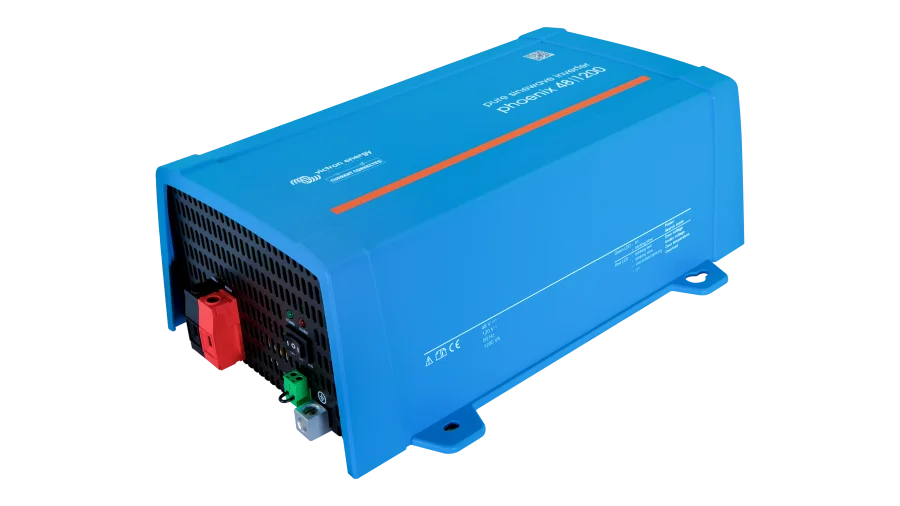

Victron Energy Inverter 48/1200 120V VE.Direct, NEMA 5-15R Receptacle

Victron Energy Inverter 48/1200 120V VE.Direct With NEMA 5-15R Receptacle

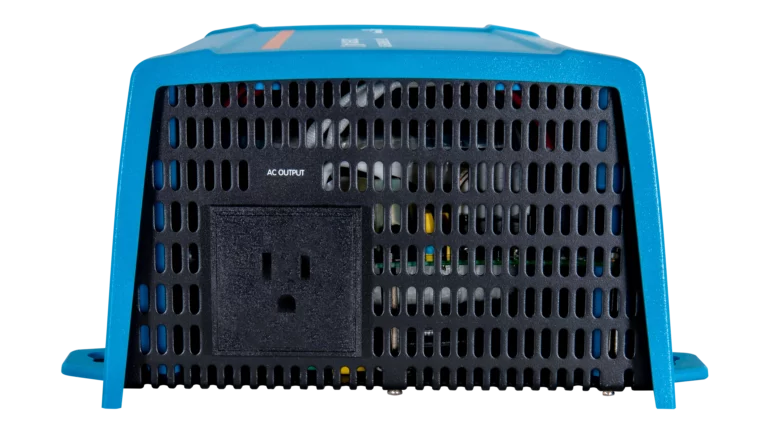

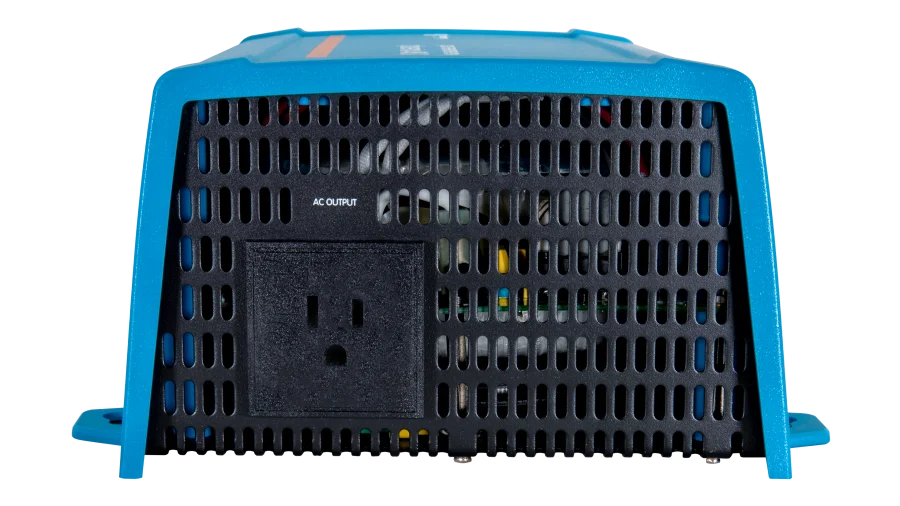

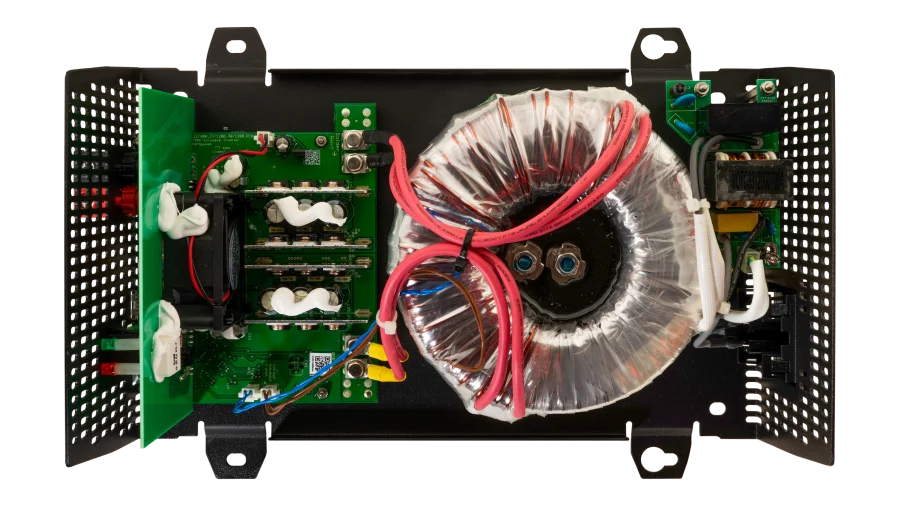

The Inverter 48/1200 gives 48V battery systems a compact, efficient source of 120V AC power at a single NEMA 5-15R receptacle. It replaces the previous-generation Victron Phoenix inverter at this size, with more continuous power in a lighter enclosure and better performance in high heat. It keeps Victron’s proven full-bridge and toroidal transformer topology. This Victron VE.Direct inverter suits cabins, workshops, remote equipment shelters, and backup circuits that need dependable plug-in power from an existing 48V bank.

Pure Sine Wave Power From a 48V Battery Bank

As a 48V pure sine wave inverter, the 48/1200 holds output within ±3% of 120V and ±0.1% of 60Hz. That gives electronics, chargers, and motor-driven tools a clean sine waveform. Running at 48V keeps DC current at roughly one-quarter of what a 12V inverter draws for the same load, which reduces cable size and voltage drop between the battery and inverter. Qualified installers can adjust output between 100V and 120V at 60Hz, or set a fixed 100V at 50Hz for equipment designed for 50Hz grids.

1200W Continuous Output With Start-Up Headroom

Victron rates this 1200W inverter at 1200W continuous at 77°F and 1100W at 104°F. Above 104°F, available output drops by about 0.7% per °F. It supplies 1300W for up to one hour from a cold start and peaks at 1600W for 15 seconds, giving pumps, motors, and power tools room to start. When a surge exceeds the trip level, the inverter lowers its output voltage to limit current rather than cutting power. If the overload persists, it shuts down, waits 30 seconds, and restarts. After three failed attempts, it stays off until someone cycles the switch.

ECO Mode Cuts Idle Battery Draw

With no load connected, the 48/1200 consumes 12W in normal operation. In ECO mode, it enters a search state when demand falls below the wake-up threshold, which defaults to 15W. It then checks for a load at intervals of a few seconds. Default idle consumption drops to about 3W, which saves roughly 216Wh per day on a system that sits unused. Select ECO mode with the front-panel ON/OFF/ECO switch. Wake-up power, search interval, and search duration adjust through VictronConnect, which helps when a small electronic or inductive load fails to wake the inverter.

VE.Direct Monitoring Through Add-On Accessories

The 48/1200 has no built-in Bluetooth. Its VE.Direct port provides the data connection, and the accessory you add determines how you reach it:

• VE.Direct Bluetooth Smart dongle: wireless VictronConnect access from a phone, tablet, or MacBook

• VE.Direct to USB interface: wired VictronConnect access from a computer

• VE.Direct cable: connection to a GX device such as the Cerbo GX or Ekrano GX, or to a GlobalLink 520, for remote monitoring on the VRM portal

Victron sells each accessory separately. Without one, the inverter runs on factory settings, and the front-panel switch and status LEDs handle operation. Once connected, VictronConnect displays load percentage, AC output voltage, battery voltage, operating state, and warnings, and it handles settings changes and firmware updates. The app does not push alerts while it runs in the background, so unattended systems benefit from GX and VRM monitoring.

Battery Protection and Remote On/Off Control

By default, the 48/1200 issues a low battery warning at 43.6V and shuts down at 37.2V. After a low-voltage shutdown, it restarts once the battery recovers above 43.6V, and it clears the alarm when it detects charging at 56V. Each threshold adjusts in VictronConnect to match your battery. Optional Dynamic Cutoff lowers the shutdown point under heavy current and raises it under light current to compensate for voltage sag. It matters most for OPzS (flooded lead-acid) and OPzV (valve-regulated lead-acid) batteries, less for GEL and AGM, and little for lithium. Victron advises against using it when other loads share the battery.

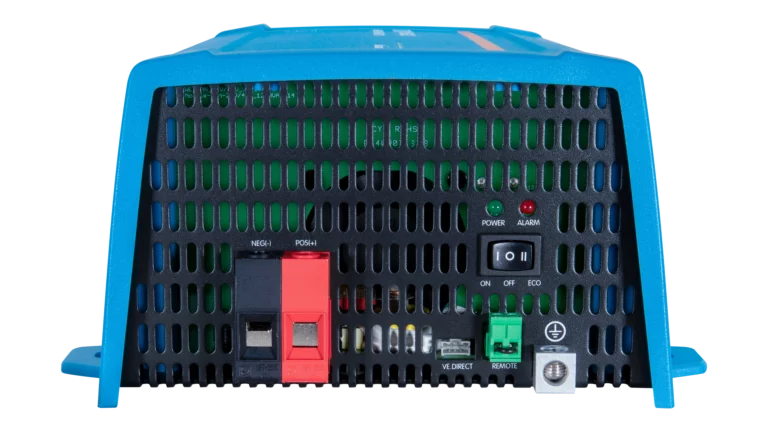

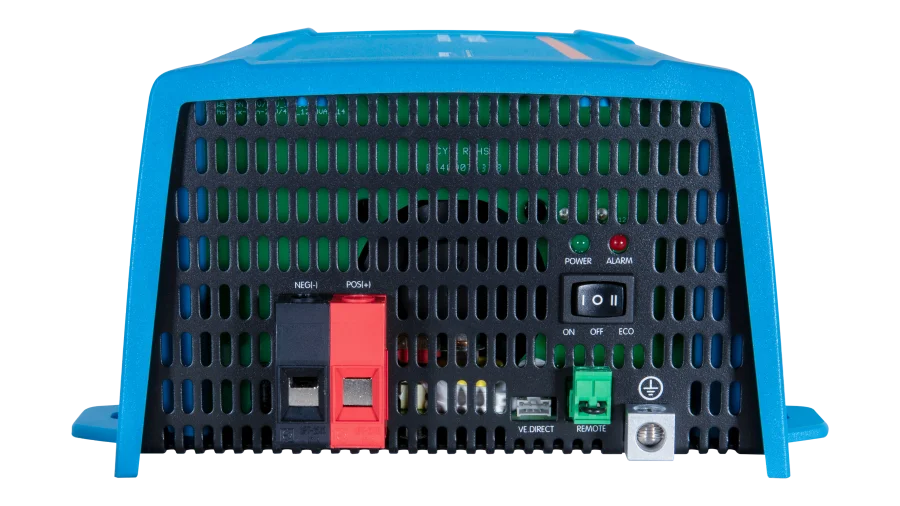

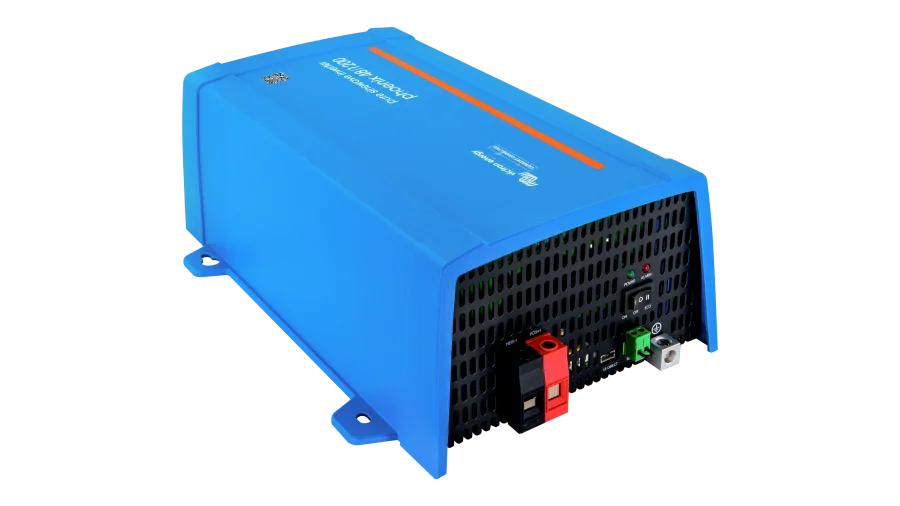

The two-pole remote connector accepts an external switch, the Inverter Control VE.Direct panel, a vehicle ignition signal, or a lithium battery BMS, so the battery system can shut the inverter down directly. Built-in protection covers output short circuit, overload, high and low battery voltage, high temperature, and excessive DC ripple. The front-panel LEDs identify each fault.

Installation Requirements for Qualified Installers

Victron specifies installation by a qualified electrician. Mount the inverter on a flat base surface for an IP21 rating, or on a wall with the fan at the bottom or in a horizontal orientation for IP20. Victron does not recommend ceiling or fan-up mounting. Leave 4in of clearance for airflow, and choose a dry, ventilated spot near the batteries but not above them.

On the DC side, Victron’s cable table converts to at least 8 AWG for runs up to 4.9ft and at least 6 AWG for runs from 4.9ft to 9.8ft. The terminals accept up to 4 AWG. Tighten connections to 18lb-in. An internal 50A fuse protects the inverter, and battery cable runs longer than 4.9ft need an added fuse or DC breaker near the battery. Victron recommends a minimum battery capacity of 30Ah, and reversed polarity damages the inverter.

Ground the chassis with a conductor at least half the cross-section of the battery cables. The AC output floats, isolated from the DC input and chassis. Installations that need a true neutral or a downstream GFCI require a neutral-to-ground bond, which a qualified installer makes at an internal connection point under the plastic cover. Do not connect the AC output to utility power or a generator.

Building the 48/1200 Into an Off-Grid Power System

The 48/1200 handles inverting only, so a complete off-grid power system also needs a charging source such as a solar charge controller or battery charger. It has no internal transfer switch. For automatic changeover to shore or generator power, add a Victron Filax2, which switches in under 20 milliseconds to keep computers running. Alternatively, choose an inverter/charger with a built-in transfer switch. In larger 48V systems, the 48/1200 can run small always-on loads such as routers and monitoring equipment so a larger inverter/charger can stay off.
