Victron 48V Mobile/ RV Kit
Configure Your System

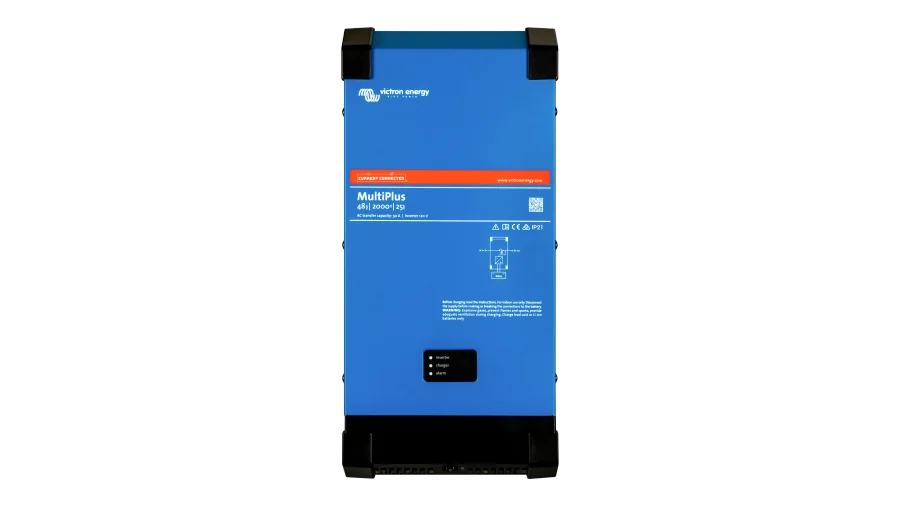

Inverter
RequiredThe inverter / charger is a combination unit that not only can turn the DC power generated by solar and stored in the battery bank into AC power, it can also convert power from external sources such as grid or generator to charge the batteries if the solar cannot keep up. The MultiPlus-II lineup from Victron has a reduced footprint from the legacy Quattro lineup, however, the Quattro's main advantage is that it has two AC inputs. Additional AC inputs are useful when you have multiple sources and want the system to automatically switch between them.
Choose Inverter*
Product Details
Victron Energy Phoenix 48V 1.2kVA 120V Inverter, NEMA 5-15R Receptacle
Embrace the future of power supply with the Victron 48V Phoenix Inverter. Unleash its full potential by leveraging its communication capabilities, configurability, and exceptional reliability. Whether you’re powering a residential system, running critical equipment, or exploring off-grid adventures, trust the Victron 48V Phoenix Inverter to deliver the performance you need.
Specifications:
- 48V DC battery voltage
- 120V 60Hz pure sine wave output
- Zero Load Power: 10W
- Operational Temperature Range: -40° to 150°F
- Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- In-and-output voltage, load percentage, and alarm monitoring
- Full-bridge PLUS toroidal transformer topology
- Short-circuit, overheat, and overload protected
- Advanced ECO Mode, configurable via Bluetooth Smart Dongle
- Programmable remote power on input
- 5-Year Manufacturer Warranty
- Weight: 16.3lbs
- Dimensions (H×W×D): 4.9×9.1×12.9in
| Need more than what's available? Tell us what you need and we can source it for you. |

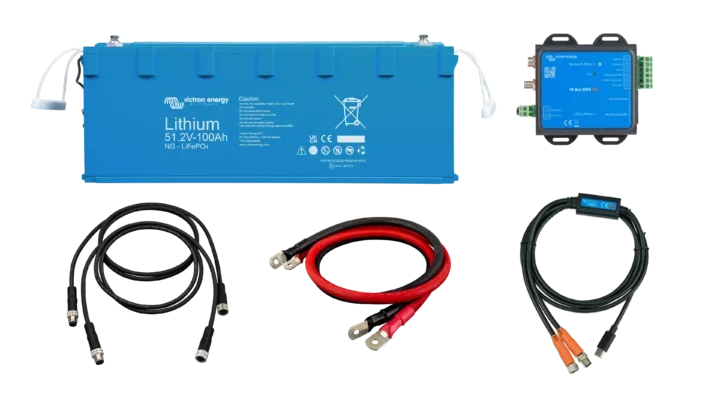

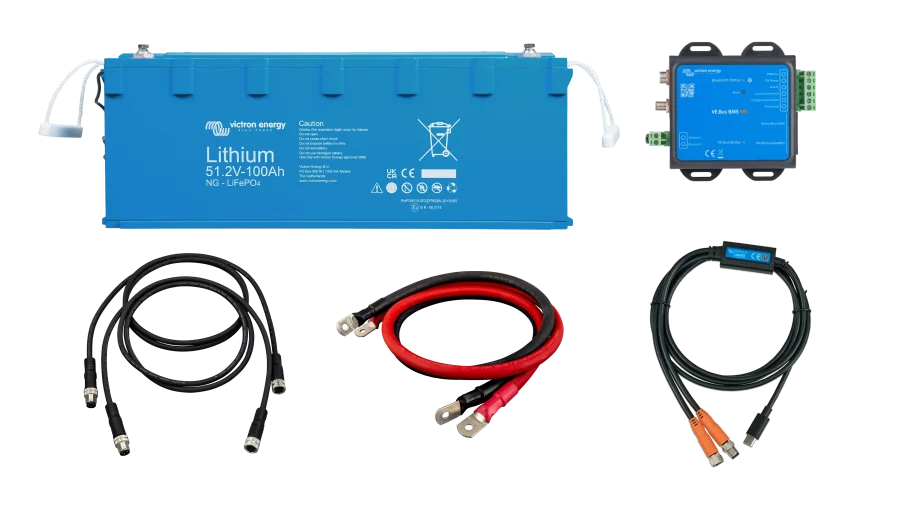

Battery Bank
RequiredChoose Battery Bank*
What's Included
Victron BMS Communication Cable, M8 Circular Connector, 3-Pole Cable for Connecting Victron Batteries to External Victron BMS
Please select an option above.
2/0 AWG Pure Copper Battery Cables - Red and Black - 5/16" Ring Terminal Lugs
Please select an option above.
GX System Controller
RequiredChoose GX System Controller*
About this kit
The Cerbo GX and GX Touch combination sets a new standard for professional-grade control, allowing you to take control and monitor your system with confidence and efficiency. The Cerbo-GX is a pi-based computer that connects to each component of your system and monitors every single aspect. With the data collected, a complete power-flow chart is sent out to the GX Touch display for you to view and scroll through the various data points. The Cerbo-GX also facilitates connecting the system to the internet via WiFi, Ethernet or 4G (accessory required), giving you full monitoring and control from anywhere in the world.
What's Included
Solar Charge Controller
OptionalChoose Solar Charge Controller
Product Details
Victron Energy SmartSolar MPPT 150V, MPPT 250V TR VE.Can Charge Controller for Lithium and Lead-Acid Batteries
The Victron SmartSolar MPPT VE.Can charge controller converts solar panel voltage to the optimal charging voltage for 12V, 24V, or 48V battery banks at up to 98% efficiency. Available in 150V and 250V maximum PV input configurations with 70A, 85A, or 100A charge current output, with VE.Can ports for daisy-chaining up to 25 units.
Features:
- PV Array Voltage Compatibility: 150V or 250V Voc
- Battery Bank Voltage Compatibility: 12V, 24V, 48V
- Charging Current: Ranging from 70A to 100A (model-dependent)
- Programmable for lead-acid, lithium, and other chemistries
- CAN bus ports for seamless unit synchronization and data transmission
- Bluetooth connectivity via the VictronConnect App
- Remote Monitoring: Victron Remote Management Portal (VRM) with internet connection or GlobalLink 520 for remote installations without internet access
- VE.Direct port for single-unit monitoring or streetlight control
- UL 1741 Listed
Recommended Accessories: SmartSolar Control Display or MPPT Control Display for enhanced monitoring and control
Loading options...
DC Distribution System
OptionalChoose DC Distribution System
What's Included
MidNite Solar MNEPV 15A-20A Circuit Breakers, 600Vdc Polarized Double Pole Breaker, DIN Rail Mount PV Breakers
Please select an option above.
Solar Charge Controller
OptionalNot sure how many you need? Contact our team so we can help you size your panels to fit your charge controller perfectly!
Choose Solar Charge Controller
