Victron 12V Mobile and RV Power System Kit, Complete with Inverter, Battery, Monitoring, and Solar Options

Name: Victron 12V Mobile and RV Power System Kit, Complete with Inverter, Battery, Monitoring, and Solar Options
Brand: Victron
Price: 2239.04 USD
Availability: BackOrder

Victron 12V Mobile Off-Grid Kit — Built for the Road, Ready for Anything

Whether you're outfitting a van build or upgrading your RV, this all-Victron 12V kit gives you everything you need for a complete, reliable off-grid power system — scalable from a compact setup to a high-capacity rig that handles the heaviest loads.

At the heart of the kit is a Victron inverter-charger, available in a range of sizes to match your power needs. Smaller builds get clean, efficient AC power without sacrificing precious space. Larger systems can step up to high-capacity options capable of running air conditioning, appliances, and power tools, all while accepting shore power or generator input as a pass-through or getting power from the batteries.

Monitor and control the whole system from your phone with the VictronConnect app, or access it remotely from anywhere in the world through Victron's VRM portal.

Every component in this kit is designed to work together out of the box — and built to keep working for decades on the road.

$2,239.04

Configure Your System

Inverter

Required

The inverter / charger is a combination unit that not only can turn the DC power generated by solar and stored in the battery bank into AC power, it can also convert power from external sources such as grid or generator to charge the batteries if the solar cannot keep up. The MultiPlus-II lineup from Victron has a reduced footprint from the legacy Quattro lineup, however, the Quattro's main advantage is that it has two AC inputs. Additional AC inputs are useful when you have multiple sources and want the system to automatically switch between them.

Choose Inverter*

Product Details

Victron Energy MultiPlus-II 12V 3kVA 120V AC Output Inverter, 120A Battery Charger, UL 458 & UL 1741 Inverter

Victron Energy 12V MultiPlus-II 3kVA 120V Inverter 120A Charger (UL). This is a Front view display of the inverter by Victron Energy with no background.

Specifications:

Continuous output: 2.4kW
Max. surge output: 5.5kW
AC input range: 90-140V
DC input range: 9.5-17.0V
AC output: 120V @ 50Hz/60Hz configurable
Weight: 42lbs
Dimensions (H×W×D): 22.76×10.91×5.83in
One AC input and two AC outputs
Split phase and three phase capability
PowerControl and PowerAssist option
Configurable with remote monitoring from any smart device
UL 1741 certified

$1,006.40

Qty:

Need more than what's available?
Tell us what you need and we can source it for you.

Component subtotal:

$1,006.40

Battery Bank

Required

Choose Battery Bank*

What's Included

Included

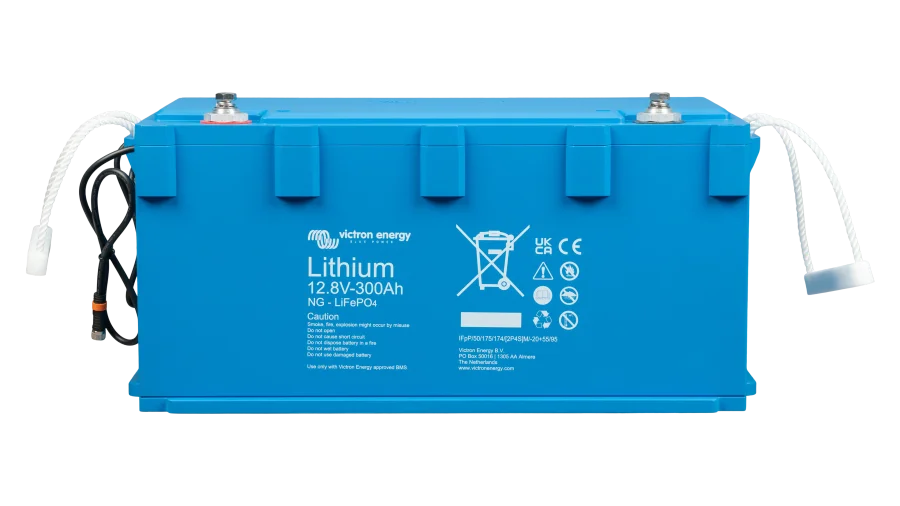

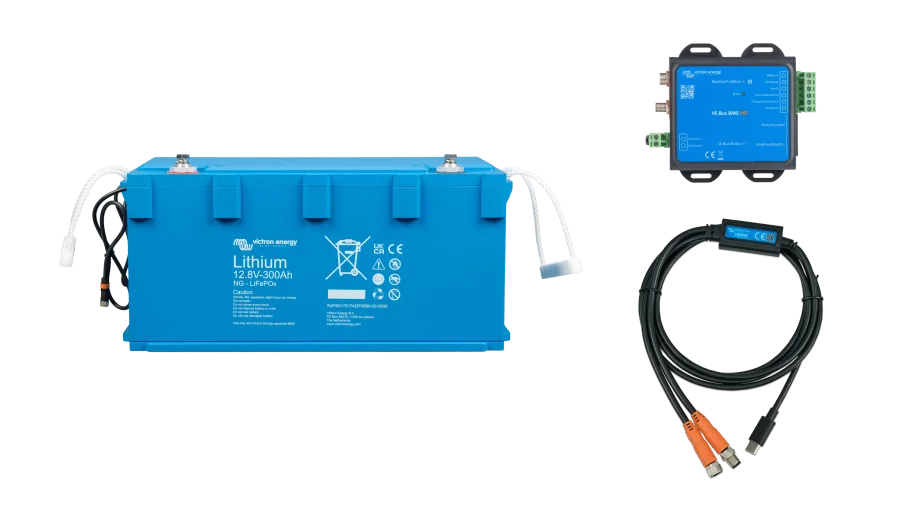

Victron Energy 12.8V Lithium NG LiFePO4 Battery, Available in 100Ah, 200Ah, or 300Ah Capacities, Stackable up to 50 Batteries

Capacity : 300Ah (3.84kWh)

$2,312.00

Qty:

Include this item

Victron VE.Bus BMS NG Battery Management System for Lithium NG Batteries with MultiPlus/Quattro Integration and Bluetooth Monitoring

$156.40

Qty:

Include this item

Victron Energy LiNGST Lithium NG Service Tool USB-C, Diagnostic and Monitoring Tool for Victron Batteries and BMS

$57.80

Qty:

Component subtotal:

$973.25

GX System Controller

Required

Choose GX System Controller*

About this kit

The Cerbo GX and GX Touch combination sets a new standard for professional-grade control, allowing you to take control and monitor your system with confidence and efficiency. The Cerbo-GX is a pi-based computer that connects to each component of your system and monitors every single aspect. With the data collected, a complete power-flow chart is sent out to the GX Touch display for you to view and scroll through the various data points. The Cerbo-GX also facilitates connecting the system to the internet via WiFi, Ethernet or 4G (accessory required), giving you full monitoring and control from anywhere in the world.

What's Included

Included

Victron Energy Cerbo GX MK2 System Controller and Monitor for 12V, 24V, and 48V Systems, Wi-Fi and Ethernet Compatible

$272.85

Included

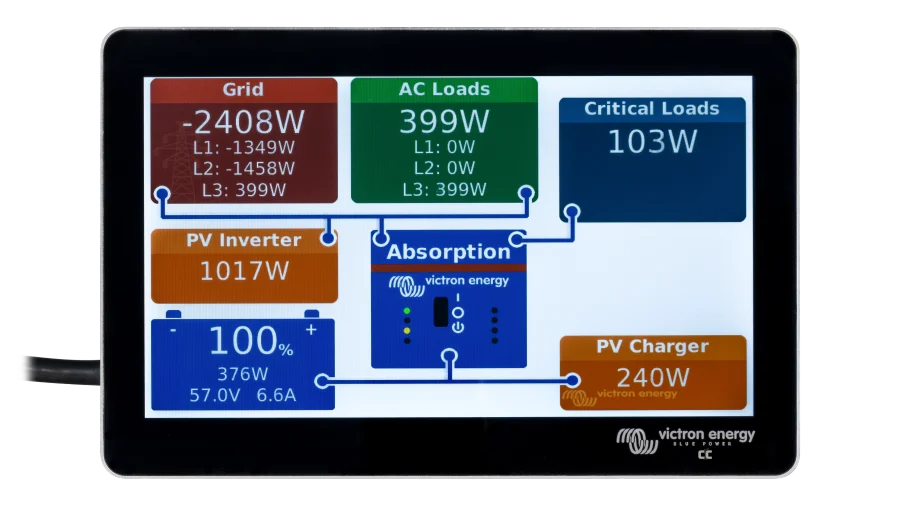

Victron Energy GX Touch 50, GX Touch 70 Display for Cerbo GX, 5in and 7in Options for Live Monitoring

Screen Size : 7 Inch

$323.85

Include this item

Victron Energy GX Touch Wall Mount Bracket, Mount for Victron GX Touch 50 and GX Touch 70 Displays for Cerbo GX

Screen Size : 7 Inch

$20.40

Include this item

RJ45 / CAT5e Cables - For VE.BUS, VE.CAN and BMS.CAN ports

Length : 6ft

$5.99

Qty:

Include this item

Victron Energy BMS-CAN Type-A Cable for Victron GX Device Communication with Lithium Batteries

Length : 6ft

$14.45

Qty:

Component subtotal:

$493.00

Solar Charge Controller

Optional

Choose Solar Charge Controller

Product Details

Victron Energy SmartSolar MPPT Charge Controller VE.Direct, 75V-250V Solar Input, 10A-70A Battery Charger

High quality photo of the four VE.Direct case styles. Photographed by Current Connected

Victron charge controllers maximize solar energy harvest with MPPT and convert power for battery charging. Multiple features protect the battery, including automatic switch capability between charge states and configurable settings to ensure consistent charging.

Specifications:
