EG4 BOSSBox Cable Kit, Battery to Inverter Communication and Power Cables for EG4 WallMount 280Ah Lithium Batteries
SKU: EG4BBSTARTKIT
Product Summary
These cables facilitate connection between one EG4 hybrid inverter and one EG4 280Ah WallMount battery. A BOSSBox purchase includes cables for one connection, and additional inverters require additional kits. Additional batteries require the EG4 battery paralleling kit.
Specifications:
- 4x 72-inch 2/0 AWG battery-to-inverter cables rated for 200A continuous (2x red, 2x black)
- 1x communication cable for closed-loop BMS monitoring and system integration
- Supports one connection from inverter to battery
Log in to check member price and detailed stock information.
Log in to see additional stock details
Current Connected is YOUR EG4 Electronics product specialist
The EG4 BOSSBox Cable Kit provides essential power and communication cables which connect the EG4 WallMount 280Ah batteries to the EG4 hybrid inverters when used with the BOSSBox enclosure. This cable set uses factory-specified cable lengths, eliminating guesswork and ensuring proper connections within the BOSSBox configuration.

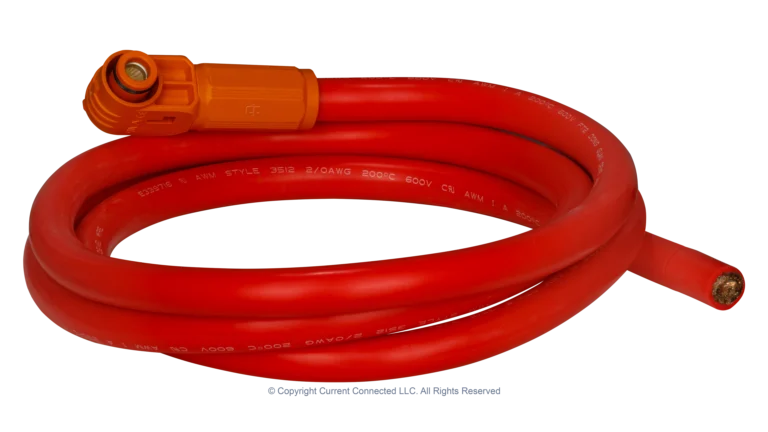

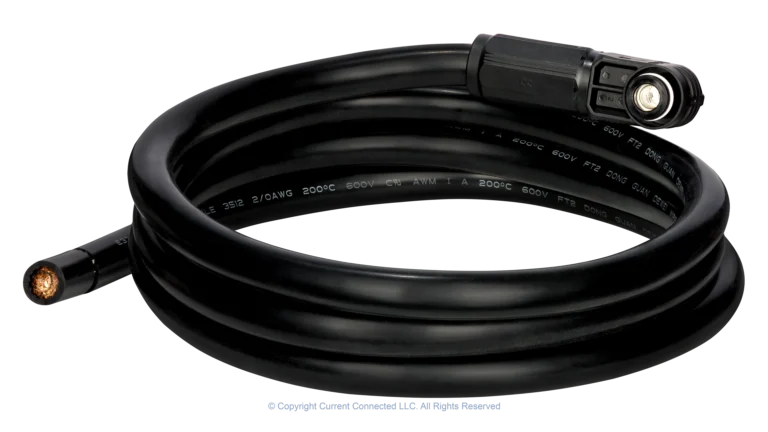

The kit includes four 2/0 AWG (70mm²) power cables, two red and two black. Each 72in cable is rated for 200A continuous power between the battery and the inverter. They route from the battery inside the BOSSBox enclosure to an externally mounted inverter, such as the 18kPV, 12kPV, FlexBOSS18, or FlexBOSS21.
Each cable features one weatherproof Degson quick connect terminal end and one raw end. The Degson connectors provide a simple connection without complicated tools. Line up the cable with the matching terminal on the weatherproof battery and push to connect. The connection is secure, vibration resistant, and suited for outdoor use.
The raw end makes it possible to connect to nearly any compatible inverter. Attach lugs for inverters that cannot accept raw wire. 3/0 AWG lugs ensure the thick cable fits snug while allowing all strands to slide in with ease for a secure connection.
All cables meet NEC (National Electrical Code) requirements for battery interconnections, and they can handle maximum surge currents with less than 2% voltage drop under full load conditions.

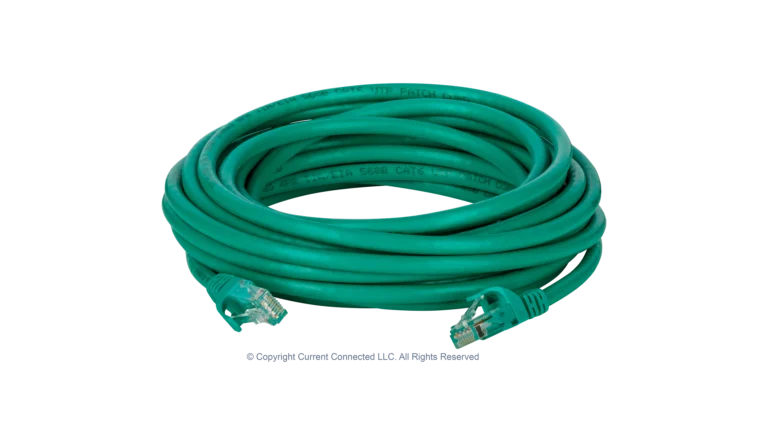

The communication cable enables closed loop BMS (Battery Management System) integration. This makes it possible to monitor the battery in real time, report the SOC (State of Charge %), and coordinate the charging and discharging between the batteries and compatible EG4 inverters. It’s possible to use both RS485 and CAN protocols. These are standards for system integration, and they enable remote monitoring options.
Important: A BOSSBox purchase includes cables for one inverter and one battery. Every additional inverter requires one additional cable kit. Systems with multiple batteries need the EG4 paralleling kit to parallel all units.
Choose the EG4 BOSSBox Cable Kit to simplify wiring in a BOSSBox with multiple inverters.
