Description

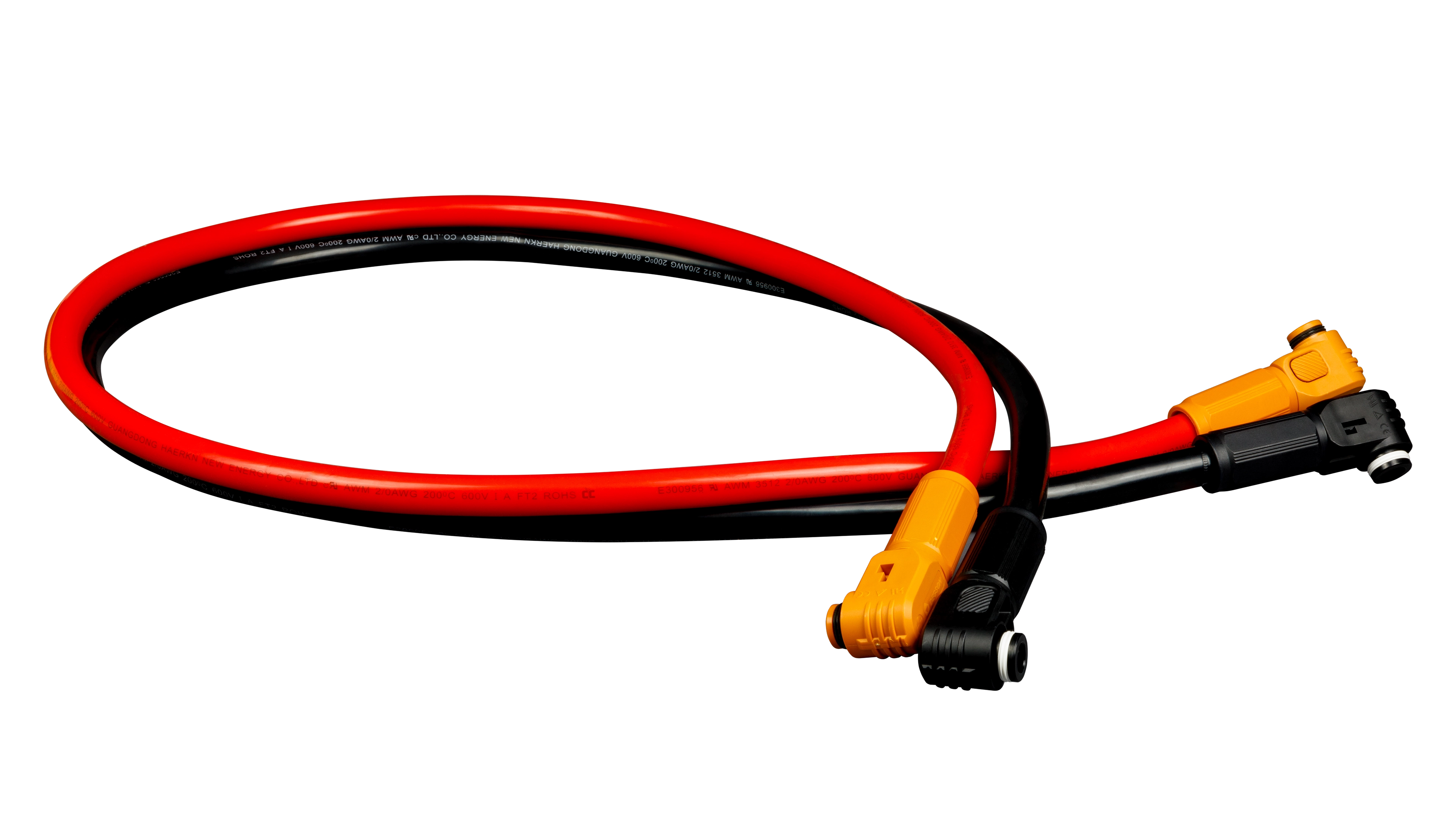

This is a kit containing one pre-assembled positive connection cable, one pre-assembled negative connection cable, and a communication cable. There are options to buy only the positive or only the negative cable for the 280Ah and 314Ah EG4 WallMount batteries as well. The Degson quick connectors on both ends eliminate the need to install separate EG4 WallMount Battery Cable Connectors.
Expand a system comprised of EG4 WallMount batteries with a cable kit. It contains everything needed to connect an additional battery in parallel with closed-loop communication. Installation does not require tools, and the cables can be removed by pushing the release button on the side of the connector.
There is no chance of accidentally making a reverse polarity connection or short circuit between batteries. The black cable can only connect to the negative terminals and the red cable can only connect to the positive terminals.
The conductors are flexible, resist extreme temperatures, and withstand UV exposure because they are made with fine-strand tinned copper and are insulated with 200°C high-temperature silicone.
Choose between four selections. The 280Ah selections have 2/0 AWG cable and the proper connectors for the 280Ah EG4 Outdoor WallMount, the 280Ah EG4 Indoor WallMount, or the 314Ah EG4 Indoor WallMount batteries. Choose between a set of positive, negative, and communication cables or individual positive or negative cables. The 100Ah set has 4 AWG cable and proper connectors for the 100Ah EG4 Indoor WallMount batteries, and it includes positive, negative, and communication cables.
