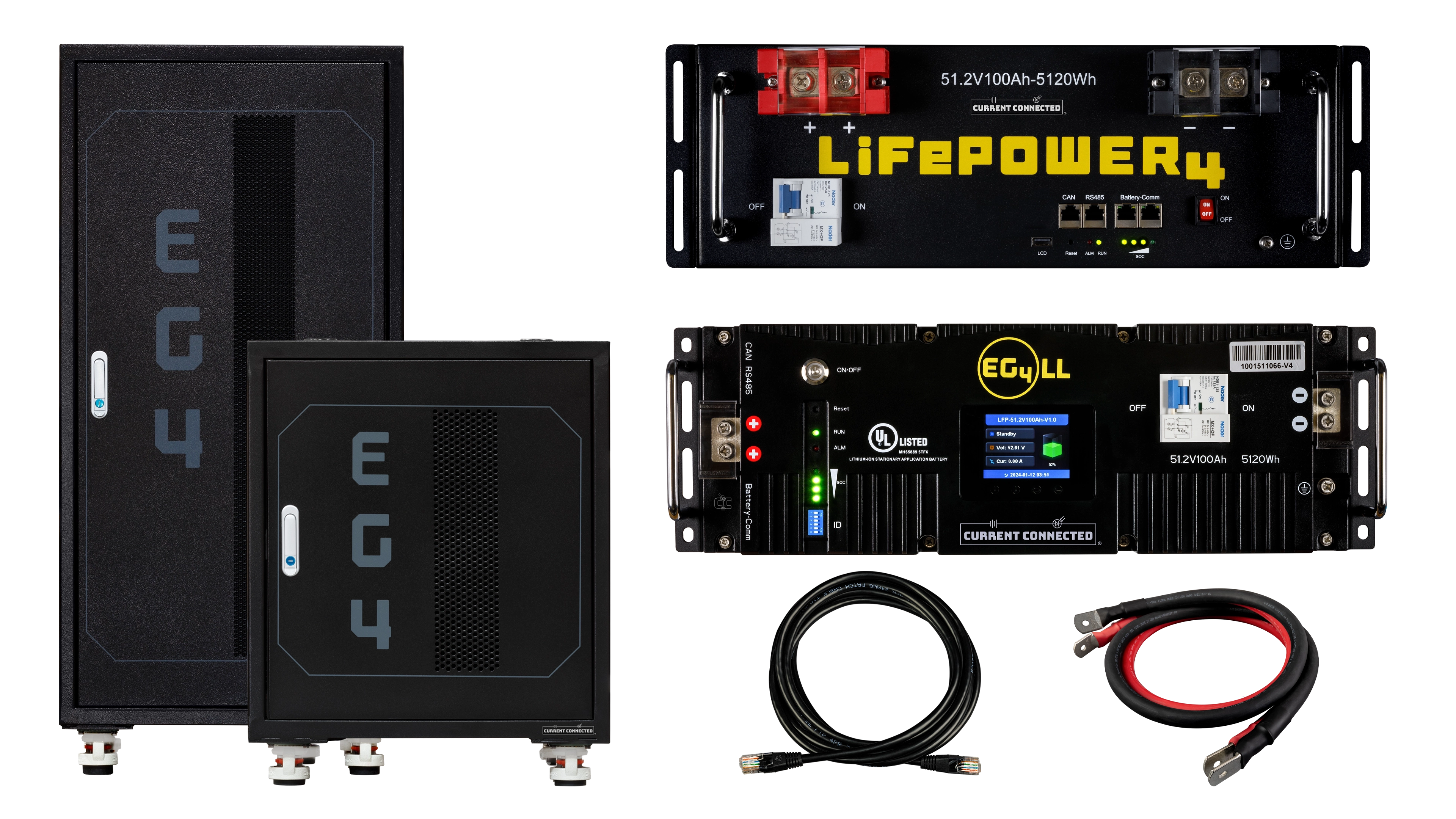

EG4 48V Battery Starter Kit, Choose Between LL-S or LifePower4 and Server Rack of Choice, Up to 30.72kWh of Battery Power


SKU: EG4LL-6KIT48-1

Product Summary

The EG4 Battery Starter Kit is perfect for a system geared towards expansion. First, choose between the LL-S or LifePower4 lithium batteries and choose your quantity. Next, choose between a 3-slot rack or a 6-slot rack. Both are easily expandable, have pre-installed busbars for paralleling, and have wheel attachments for arranging the best use of space for your system.

For the 3-slot rack, we've pre-selected 2/0 AWG cable to connect the rack to the inverter. For the 6-slot rack, we've pre-selected 4/0 AWG cable to connect the rack to the inverter. Those wire sizes are appropriate for a full cabinet, so there's no need to change cable if you start with 1 battery or fill the whole rack.

Lastly, there is an optional communication cable. This would make the run from your leader battery to the inverter or communication system, or to go between racks for larger expansion.

$1,899.91

Log in to check member price and detailed stock information.

$1,899.91

Configure Your System

Batteries

Required

Choose between the EG4 LL-S or the EG4 LifePower4 V2 lithium batteries! Each stores 5.12kWh of energy, but the LL-S includes a screen to view internal battery information, like cell voltages, state of charge, and alarms.

Choose Batteries*

Product Details

EG4 LL-S V2 48V 100Ah 5.12kWh LiFePO4 Server Rack Battery, UL 1973 and UL 9540A Listed

Batteries

Specifications:

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Kilowatt-hour(s): 5.12kWh
  • Operating Power Consumption: <25mA
  • Terminal Size: M6 (1/4″)
  • Temperature Protection
  • Cell & Module Voltage Protection
  • Short Circuit Protection: (>250A <0.1mS)
  • PC Monitoring Software Included
  • Lifetime firmware updates
  • Entire Battery UL Rated (UL 1973 and UL 9540A)
  • EMP Hardened (Both old and new units)
  • Weight: 99.6lbs
  • Dimensions (H×W×D): 19×17.4×6.1in
$1,429.99
Need more than what's available?
Tell us what you need and we can source it for you.
Component subtotal:
$1,429.99

Server Rack Cabinet

Required

Choose between the 3-slot server rack or 6-slot server rack cabinet by EG4. Either option includes pre-installed busbars that allow for paralleling batteries, wheels that assist with moving the rack, and keys to the lockable cabinet door to keep unwanted users out.

Choose Server Rack Cabinet*

Product Details

EG4 3-Slot Enclosed Battery Rack for Server Rack Batteries, Welded & Pre-Assembled Battery Storage

Server Rack Cabinet

The EG4 3-slot enclosed battery rack is a pre-assembled, welded steel cabinet that holds up to three server rack batteries in a compact, secure enclosure. Ships fully assembled with 300A busbars, protective covers, and removable casters.

Specifications:

  • Holds up to 3 standard 19-inch server rack batteries
  • Heavy-duty welded steel with black powder-coated finish
  • Included 300A busbars with protective covers
  • Lockable, vented front door for security and passive airflow
  • Top and side cable routing knockouts
  • Removable casters with adjustable leveling feet
  • Dimensions: 23.6 x 26.8 x 26.5 in
  • Weight (empty): 94 lbs
$433.99
Need more than what's available?
Tell us what you need and we can source it for you.
Component subtotal:
$433.99

2/0 AWG Battery Cables

Required

Depending on which rack you selected, you will see either 2/0 AWG or 4/0 AWG cables here - each is selected for carrying the current of a full cabinet of batteries. You'll connect these cables from the rack to the inverter or other system component, like a busbar or charge controller.
Even if you start small with one or two batteries, it's safe to use the same cables when the rack is full.

Choose 2/0 AWG Battery Cables*

Product Details

2/0 AWG Pure Copper Battery Cables - Red and Black - 5/16" Ring Terminal Lugs

2/0 AWG Battery Cables
  • Set includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Other gauges, and completely customizable lug and length options available through our custom cable builder

Loading options...

4/0 AWG Battery Cables

Required

Depending on which rack you selected, you will see either 2/0 AWG or 4/0 AWG cables here - each is selected for carrying the current of a full cabinet of batteries. You'll connect these cables from the rack to the inverter or other system component, like a busbar or charge controller.
Even if you start small with one or two batteries, it's safe to use the same cables when the rack is full.

Choose 4/0 AWG Battery Cables*

Product Details

4/0 AWG Pure Copper Battery Cables - Red and Black - 5/16" Ring Terminal Lugs

4/0 AWG Cables
  • Set includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Other gauges, and completely customizable lug and length options available through our custom cable builder

Loading options...

Communication Cable

Required

This cable connects the batteries to the inverter, charge controller, or another bank of batteries for closed loop communication.
For some systems, the inverter comes with a cable to connect to the battery bank, or you can opt to run without communication. In that case, you can de-select this cable next to the price.

Choose Communication Cable*

Product Details

RJ45/CAT5e Ethernet Patch Cables from 1ft to 25ft, Communication and Data Cables for Energy Systems

Communication Cable

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with Victron VE.Bus / VE.Can products

Loading options...
