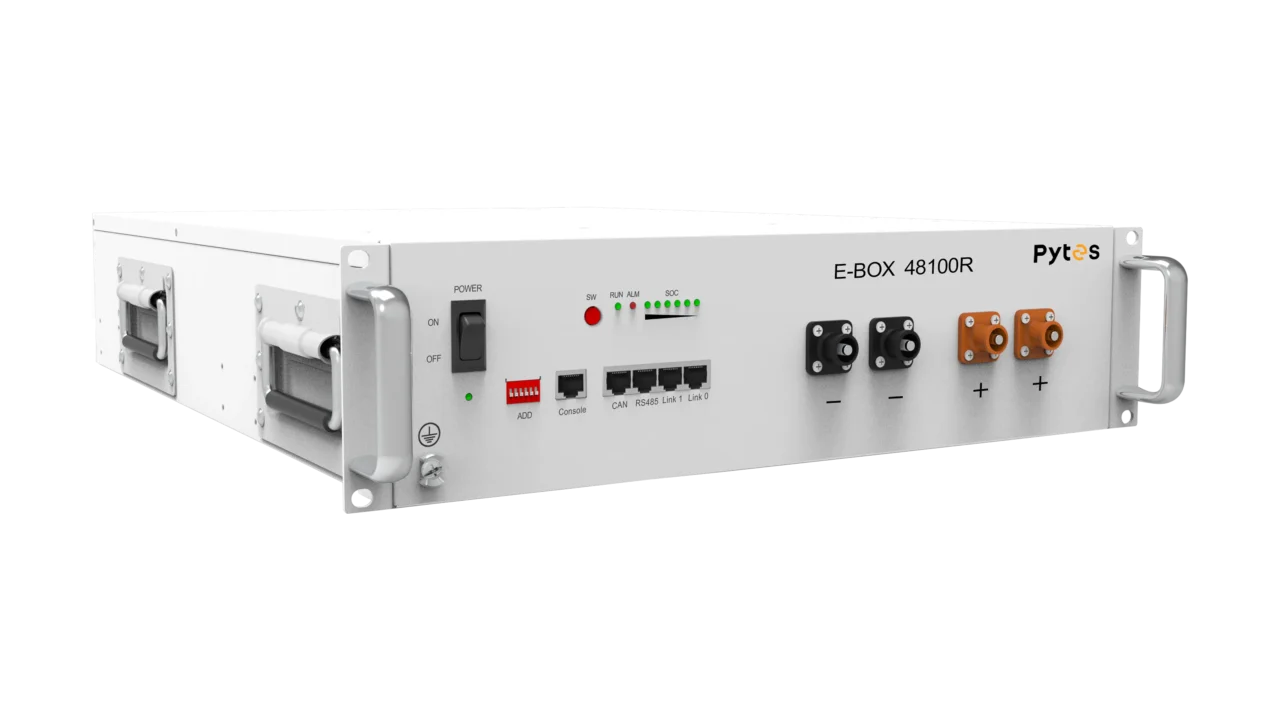

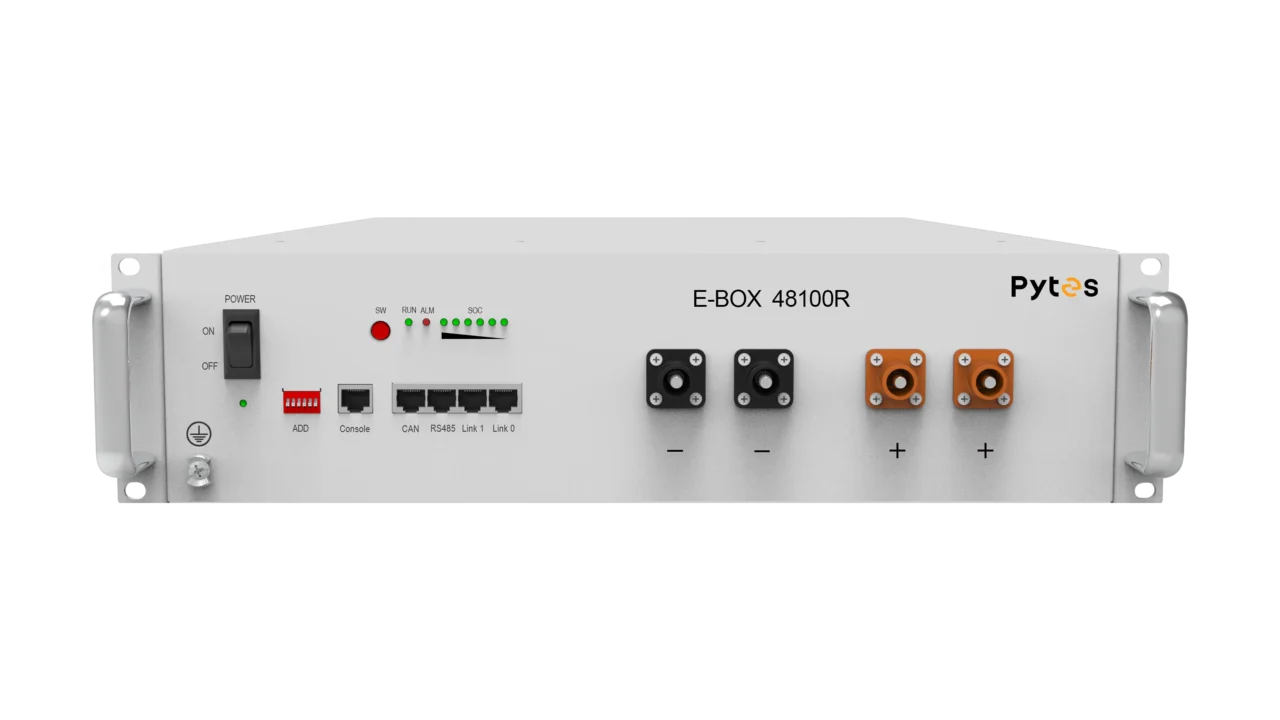

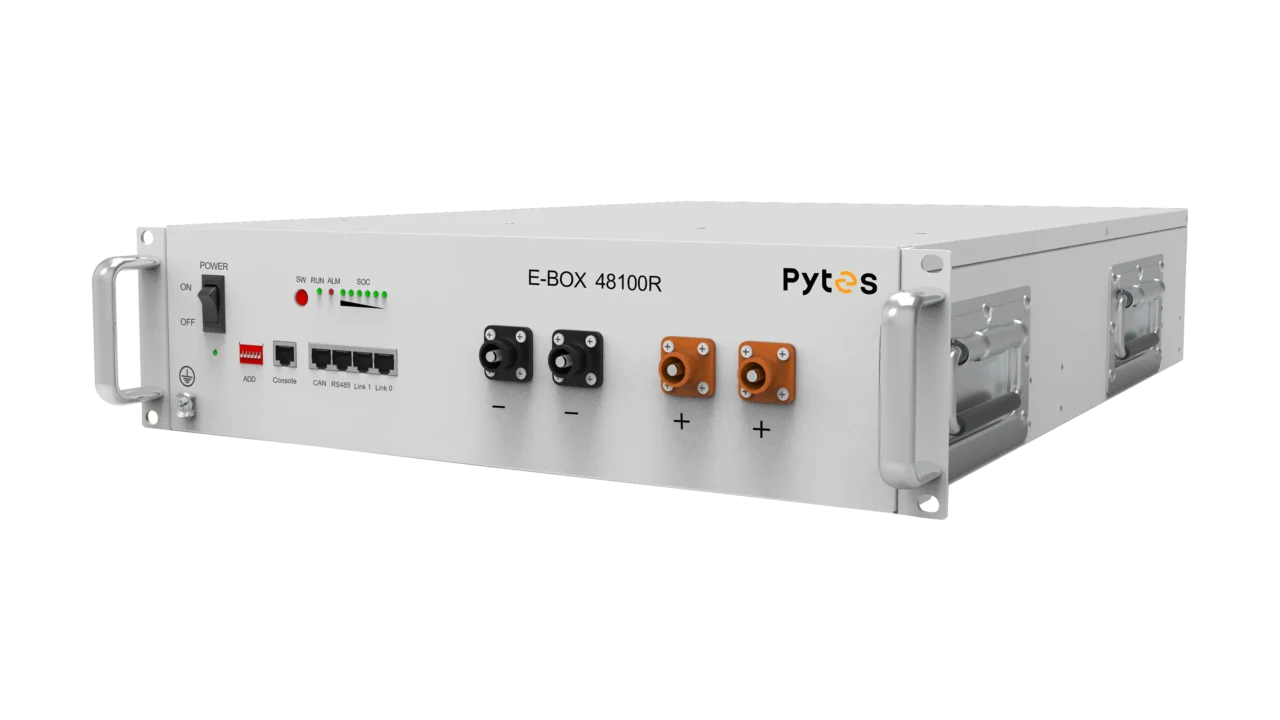

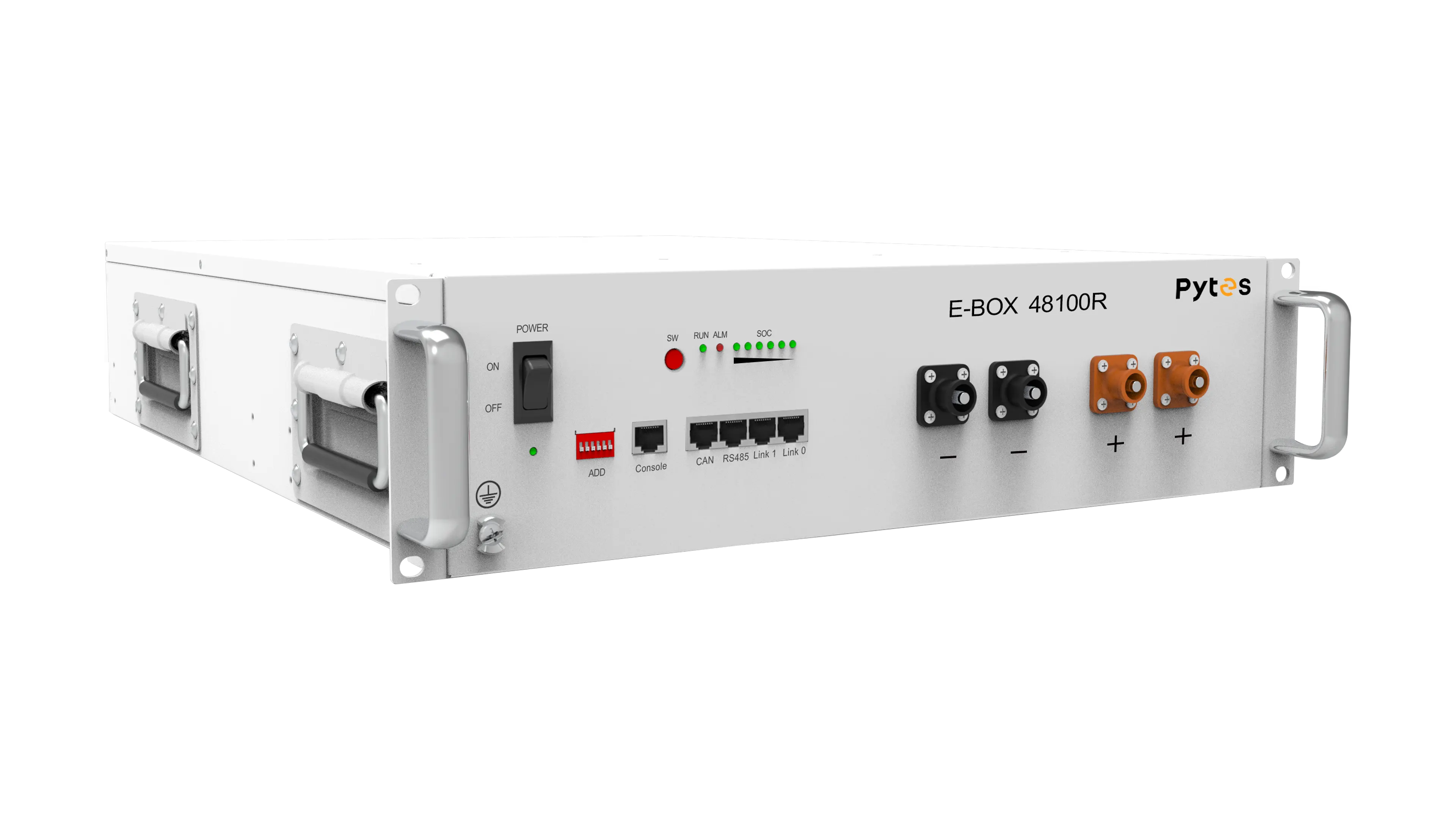

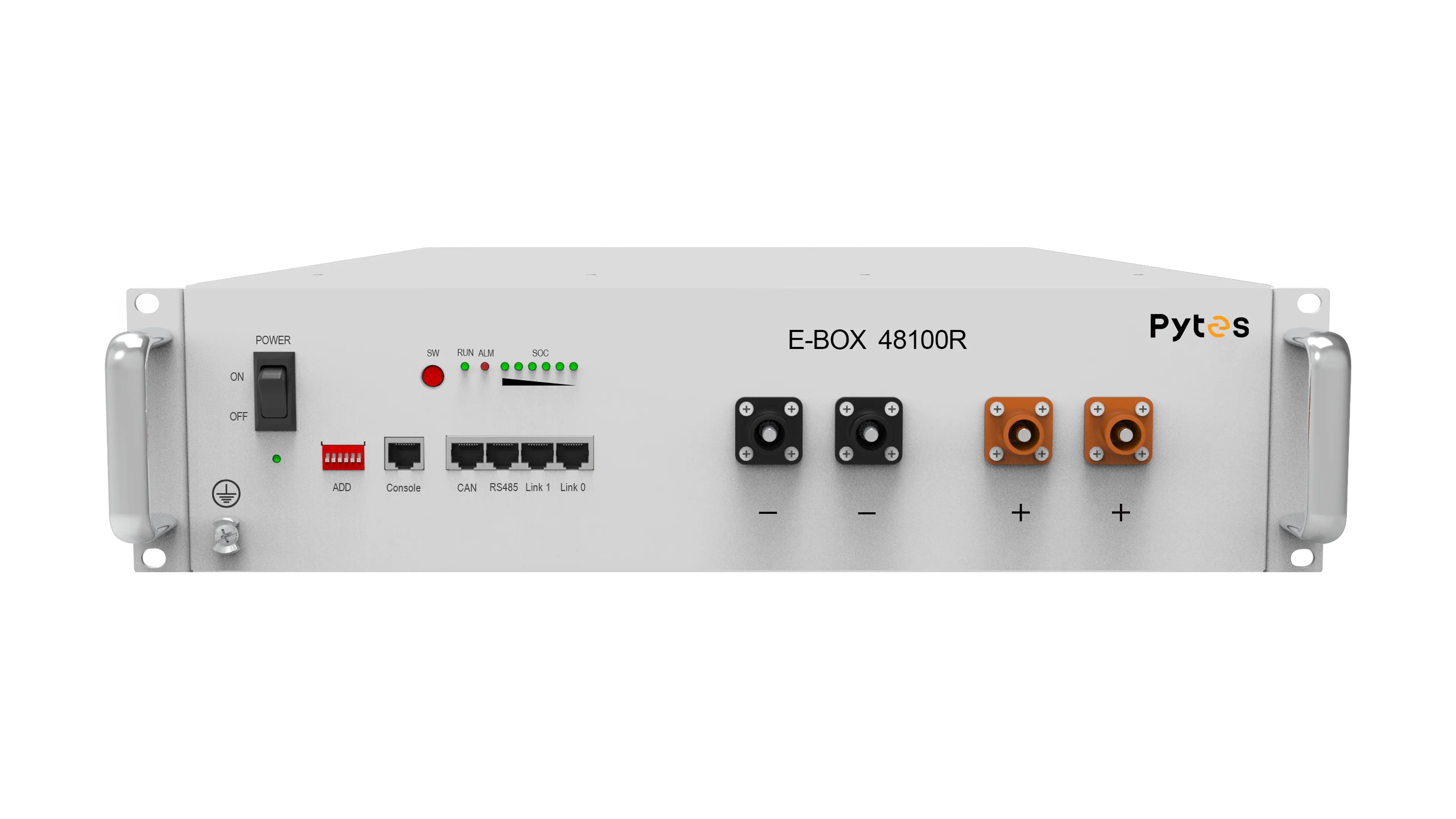

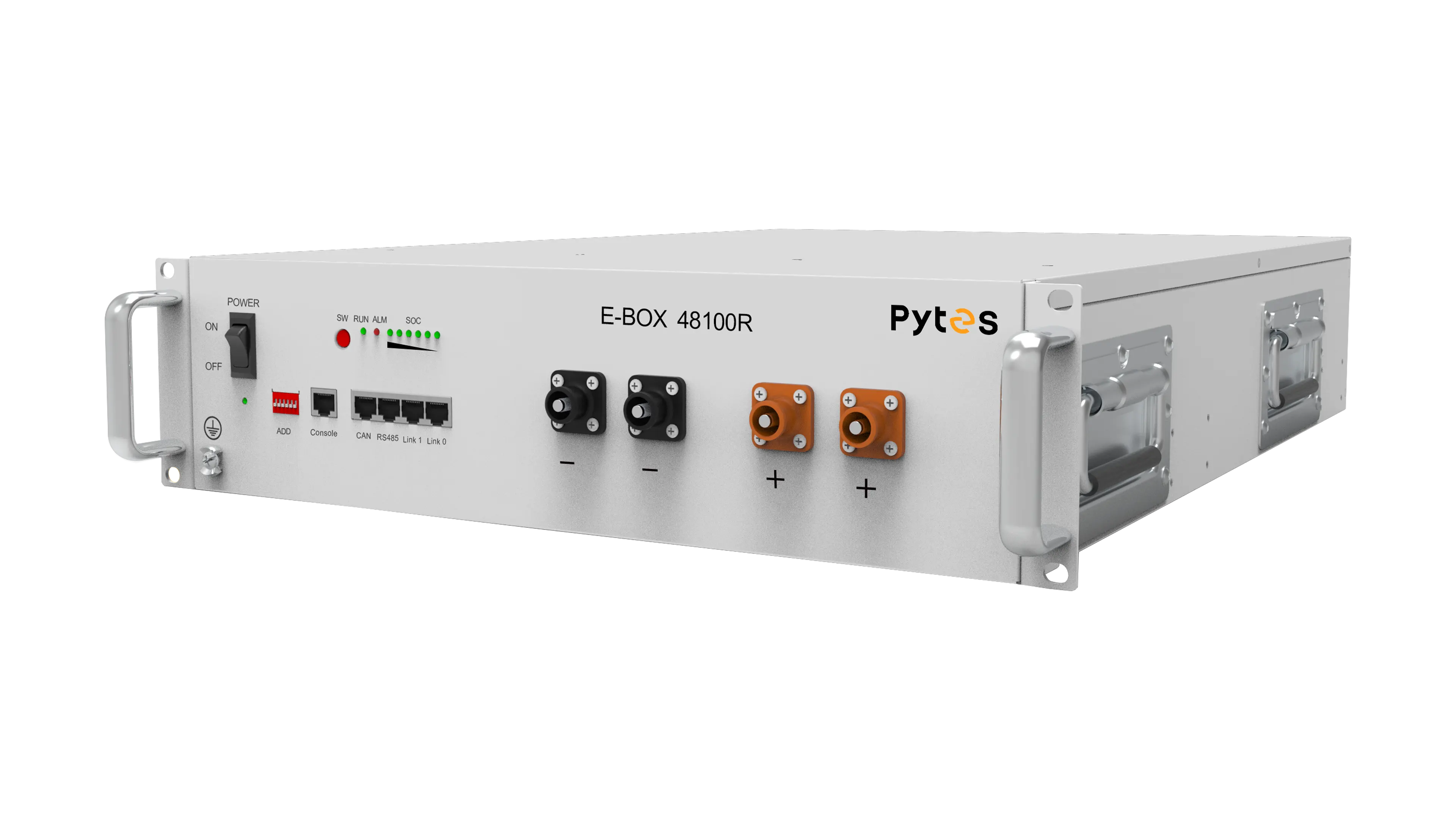

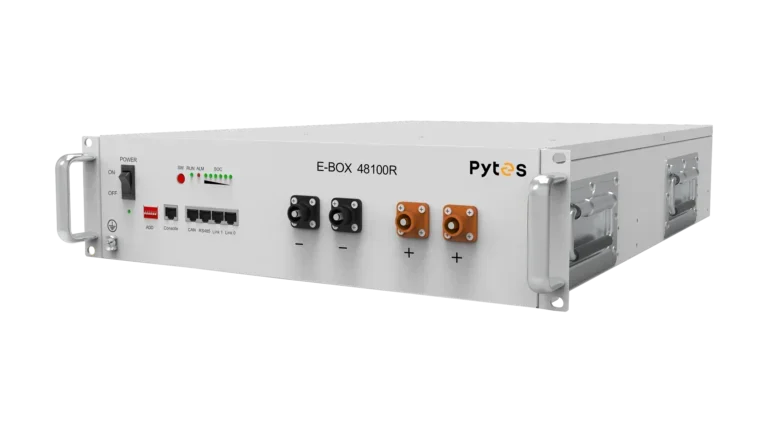

Pytes E-Box 48100R 100Ah 5.12kWh Server Rack Battery, UL 1973 & UL 9540 Lithium Battery

SKU: PY-EBOX48100R

Need more than what's available?
Tell us what you need and we can source it for you.

See the Pytes V5 48V 100Ah 5.12kWh LiFePO4 Server Rack Battery, Heated UL 9540 Lithium Battery For ESS Systems

Specifications:

Capacity: 5.12kWh
Recommended charge/discharge current: 50A
Max. continuous charge/discharge current: 100A
Peak discharge current: 102A for 15s
Communication options: RS232, RS485, and CAN ports
Rated for 6000 cycles @ 0.5C or 10 years
UL 1973, UL 9540A tested, UL 9540
Weight: 112.5lb
Dimensions (H×W×D): 4.6×17.3×24.4in

Note that Current Connected is providing the Pytes E-Box-48100R battery with the C16 label which support communication across 16 batteries.

Downloads (3): Spec Sheet, Manual, Certifications

Current Connected is YOUR Pytes product specialist

Explore Lineup

Have a question about this product?+

Pytes E-Box 48100R batteries are LiFePO4 batteries with Amphenol Surlok terminals and 5.12kWh capacity. They have UL 9540 status with multiple inverters including the Sol-Ark 15K and Sol-Ark 12K, making them an exceptional choice for permitted installations. The batteries are also UL 1973 listed and UL 9540A tested as standalone products.

It’s possible to parallel up to 16 batteries as one group, and up to 6 groups of 16 batteries when using the Pytes Battery Hub. This results in a maximum capacity of 81.9kWh without a hub and 491.5kWh with a hub. This is enough to power residential or commercial energy systems.

The 48100R batteries come with vertical mounting hardware, but it’s also possible to stack them with Pytes racking brackets when it's not possible to mount them to the wall. The brackets can stack up to 6 batteries.

All Pytes batteries are made with a Pytes BMS (Battery Management System). Since the Pytes engineers create both the battery and the BMS, they know exactly what the battery needs from the BMS and design it to address those needs.

They also continually keep the battery and BMS compatible as technology advances, providing exceptional service throughout the product life and maintaining compatibility between older and newer models.

The Pytes E-Box 48100R batteries use LEDs to indicate SOC% (State of Charge %), and this information gets relayed to the inverter or charge controller through closed-loop communication. For systems needing additional monitoring, the Pytes V5 battery is an excellent option. It’s possible to monitor the V5 through the SOLARMAN app when paired with the Pytes V5 WiFi Stick.

Choose the reliable Pytes E-Box 48100R battery for a stackable and scalable system compatible with many inverters and UL listed with two Sol-Ark inverters.
