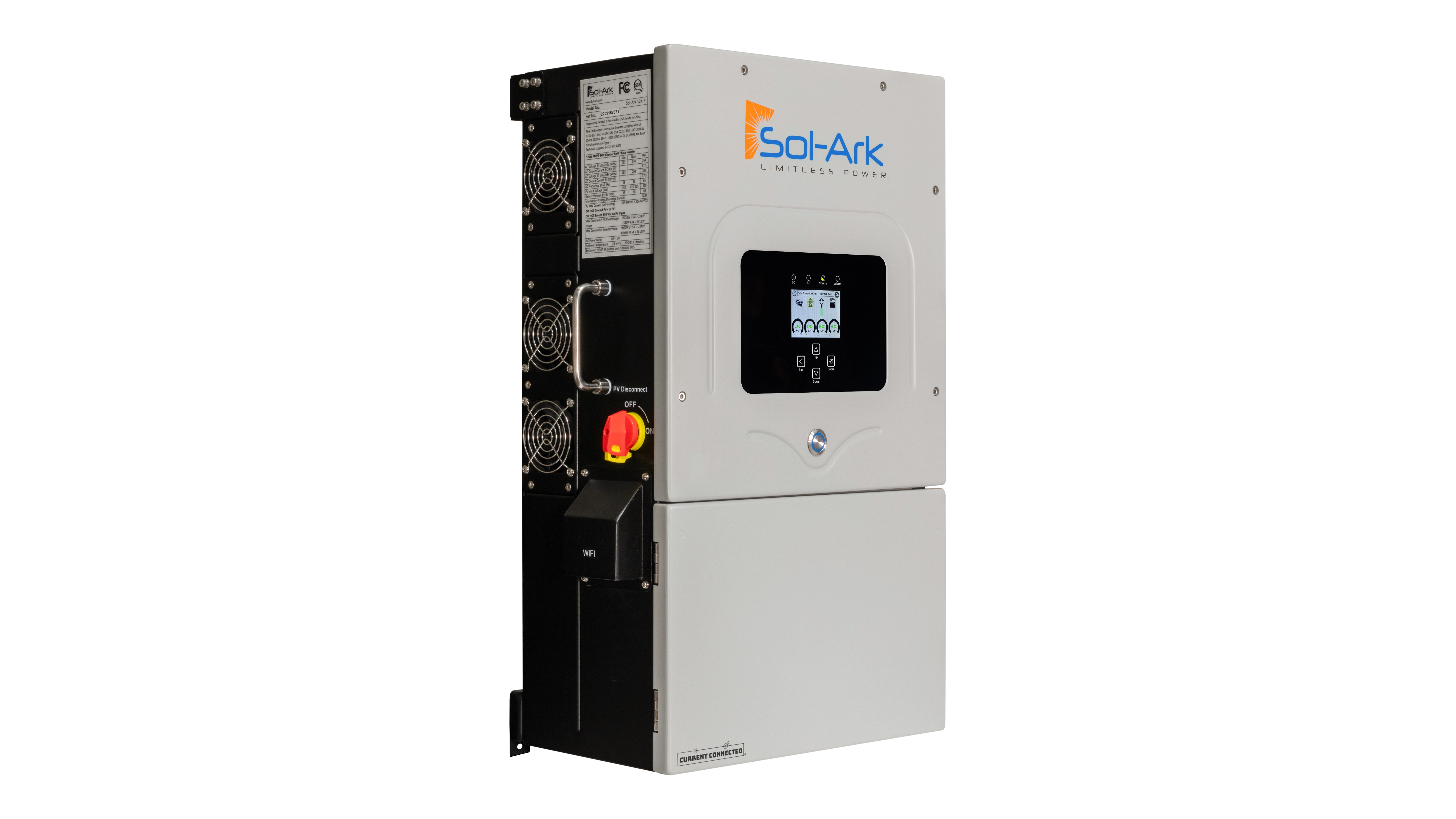

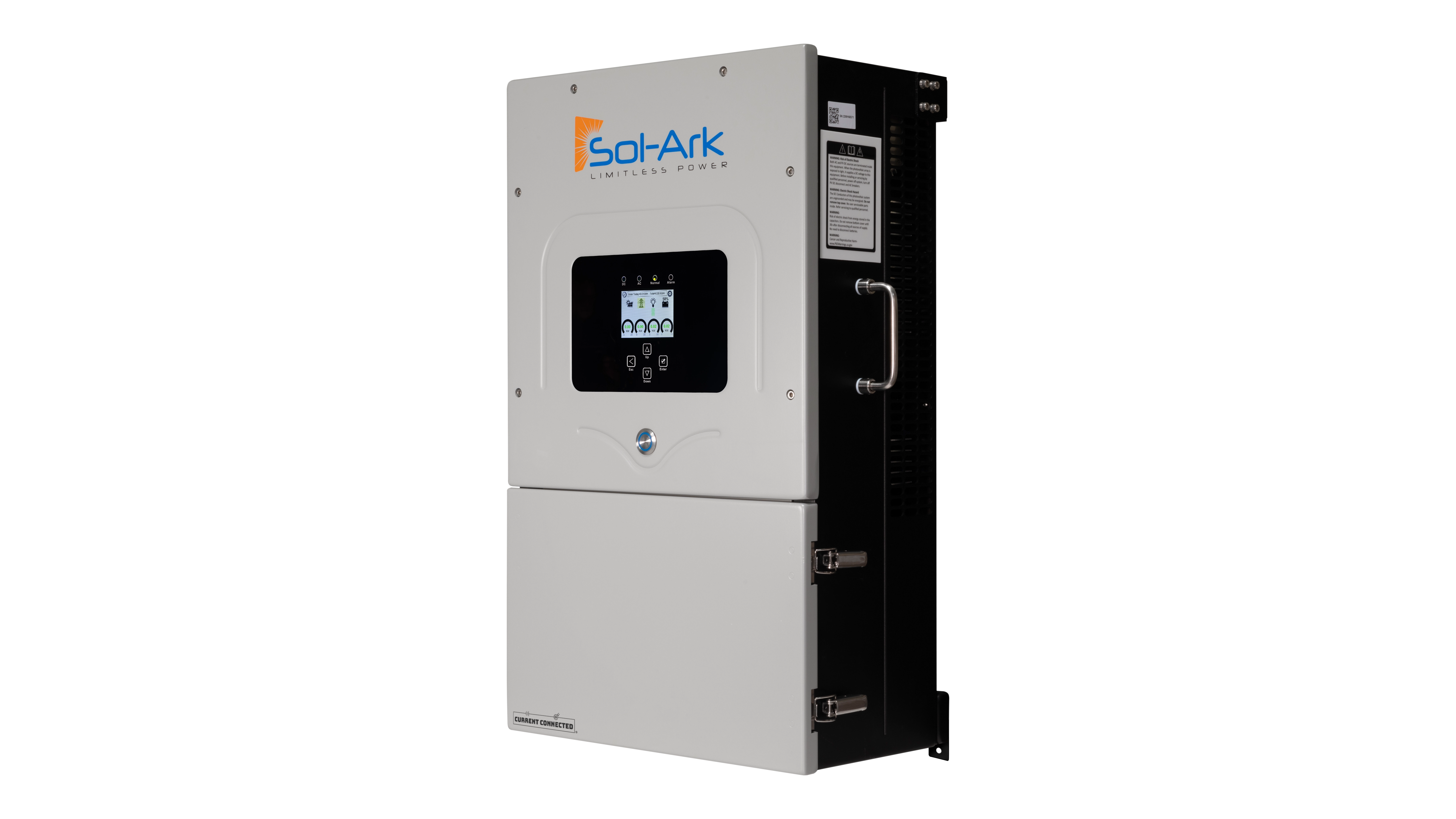

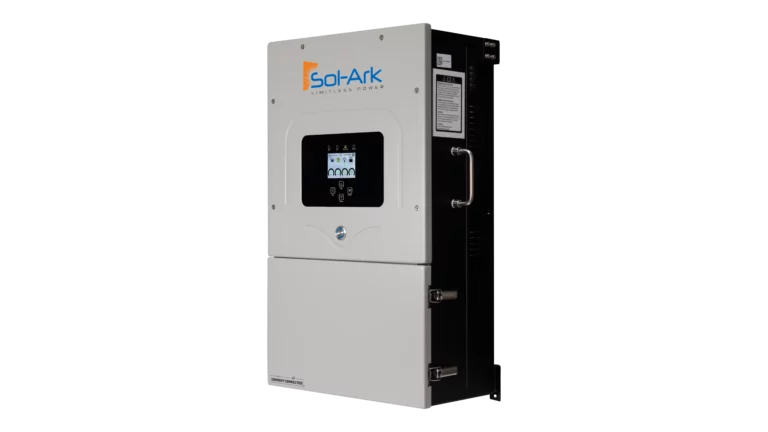

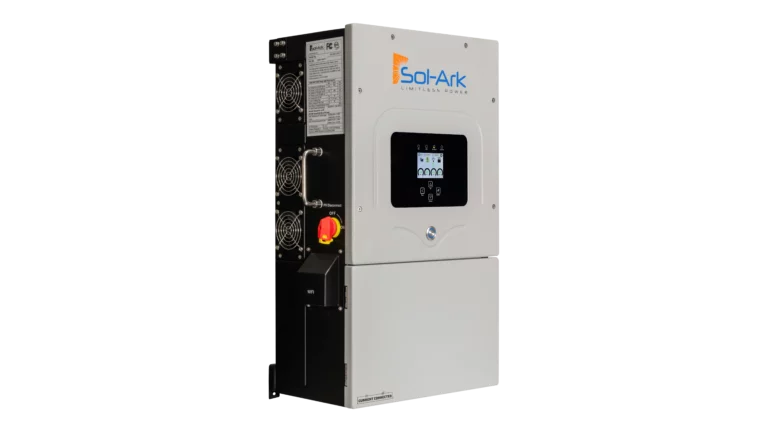

Sol-Ark 12K 9kW All-in-One Hybrid Inverter

SKU: Please select an option...

The Sol-Ark 12K All-in-One Hybrid delivers a continuous AC power output of up to 9,000W. When it comes to an All-in-One, the Sol-Ark 12K is perfect, as it does not need additional equipment. It has an integrated transfer switch, solar input, and remote monitoring capabilities. Being able to handle up to 500V of PV input, the Sol-Ark 12K is all you need to run a proper Solar System.

Specifications:

  • Max Allowed PV Power: 13000W
  • Max DC Voltage (Voc): 500V @ 26A
  • Startup Voltage: 125V
  • Number of MPPTs: 2
  • Connections: 120/208/240V Split-Phase
  • Zero Load Consumption: 60W
  • Nominal DC Input: 48V
  • Max Continuous Power From Batteries: 9,000W
  • Continuous Battery Charging Output: 185A
  • Weight: 78 lbs.
  • Dimensions (HxWxD): 31.8 x 18.3 x 10.9 inches
  • IP65 and NEMA 3R Certified

Buying multiple?  Contact us for the best pricing on these units!

-

Description

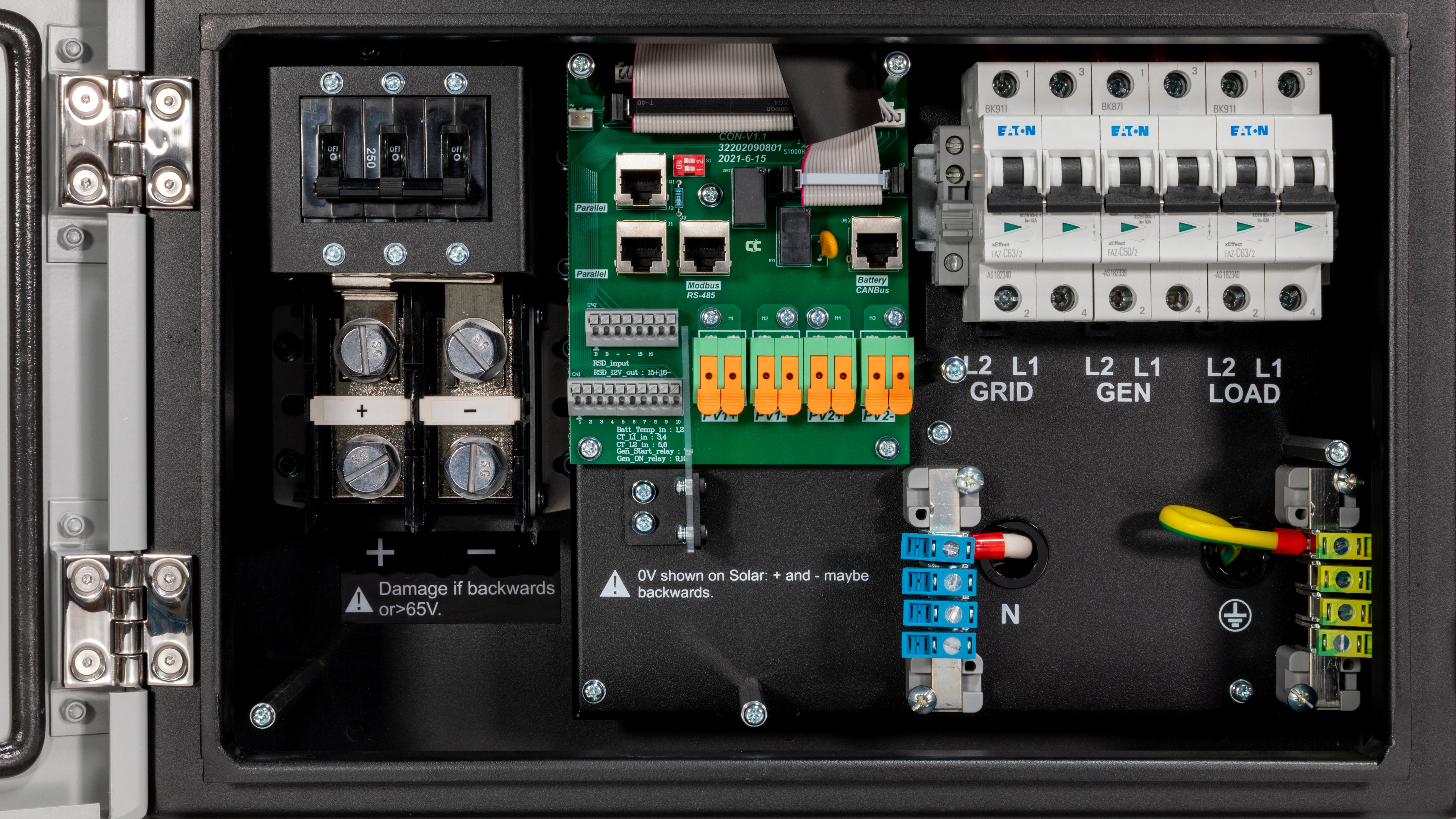

The Sol-Ark 12k 9kW does not need additional breakers, fuses, combiner boxes, or rapid shutdown equipment. This inverter comes fully equipped with these components, allowing for a much easier installation. These components make the inverter great for on or off-grid applications. It comes with preset modes for grid-sell, limited power to home, limited power to load, and time of use. Whether you want to install with, or without, batteries is no issue, as a backup bank can be installed at any time. Working with FLA, AGM, or Lithium batteries, this inverter can support a wide range of power backups. The Sol-Ark 12k 9kW comes with a 500V DC solar input, allowing for up to 13,000W solar.

Features:

  • 63A transfer switch
  • Able to stack up to 9 inverters in parallel
  • NEMA 3R rated, allowing outdoor installation
  • Has Closed-Loop Communication, able to work with any LiFePO4 batteries requiring communication
  • It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
  • 500V DC solar input, allowing for larger solar arrays
  • Built-in Rapid shutdown and emergency stop
  • Built-in remote monitoring system
  • Has a UL 1741 certification

Applications:

  • Continues AC power unit
  • Off-grid housing, on-grid housing
  • Grid sell capable

Recommended Accessories:

Additional information

Weight 98 lbs
Dimensions 35 × 23 × 15 in
