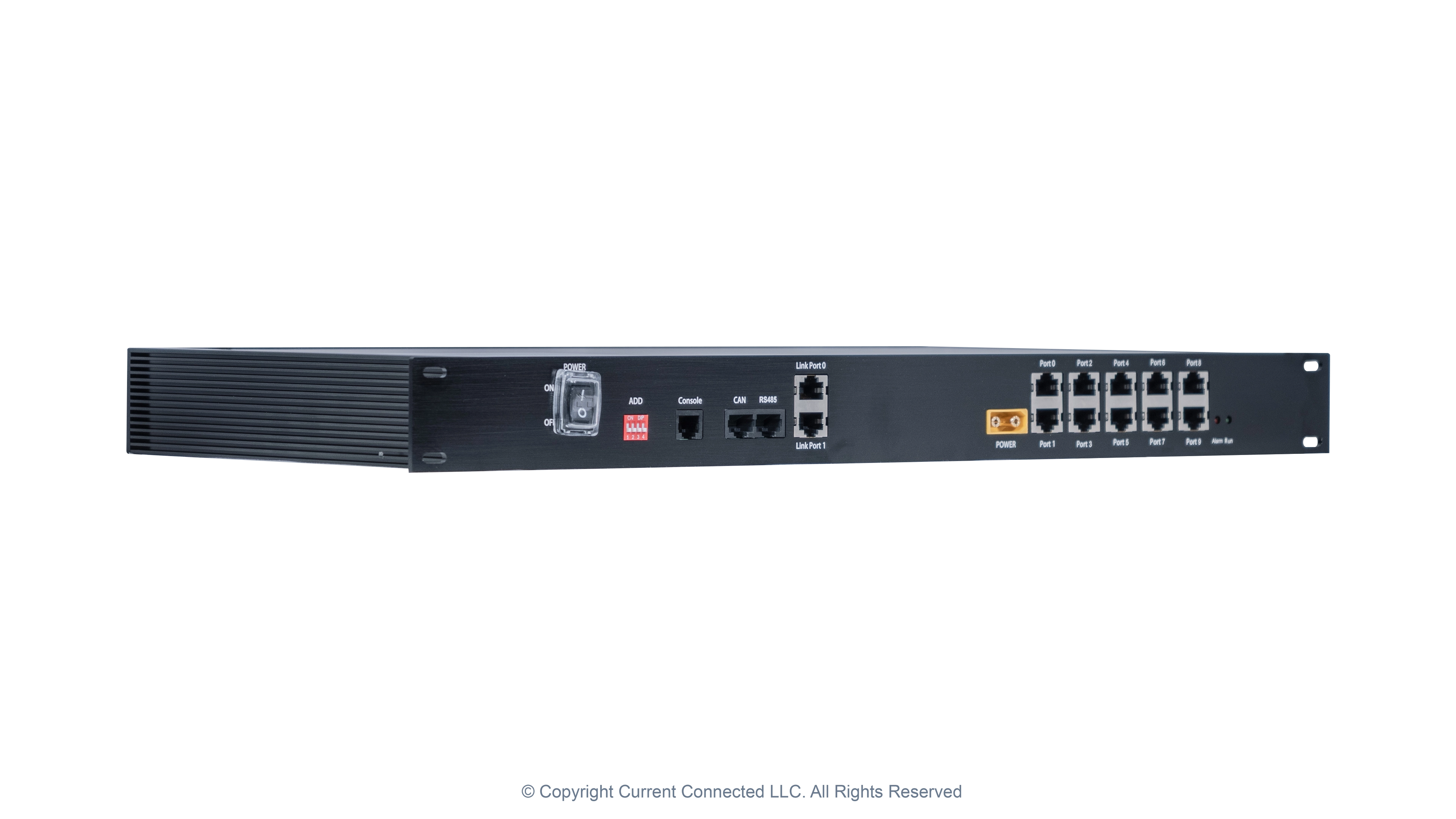

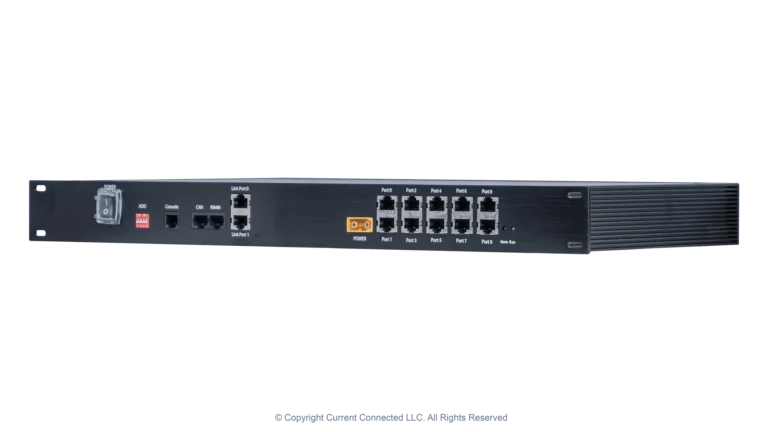

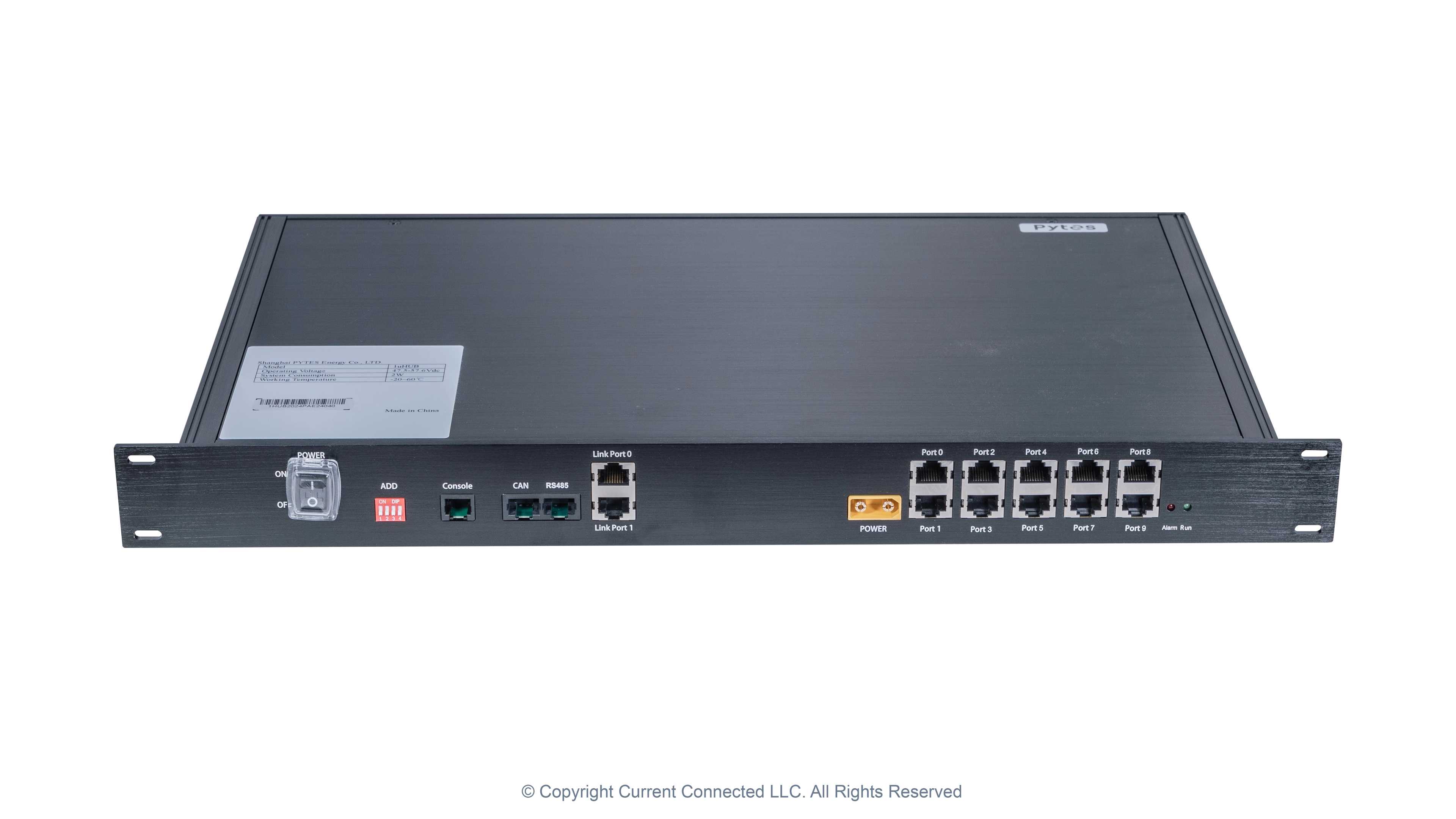

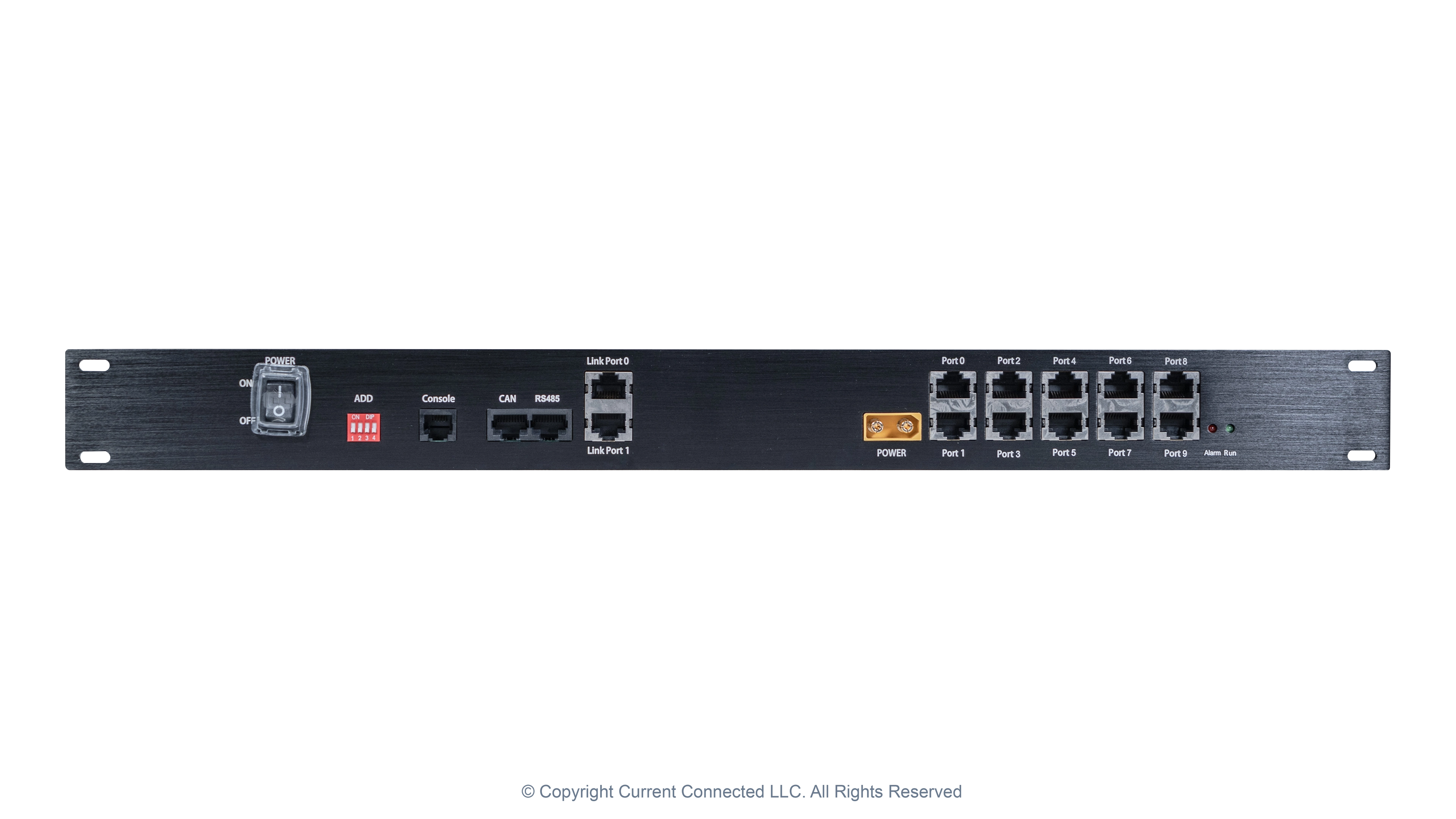

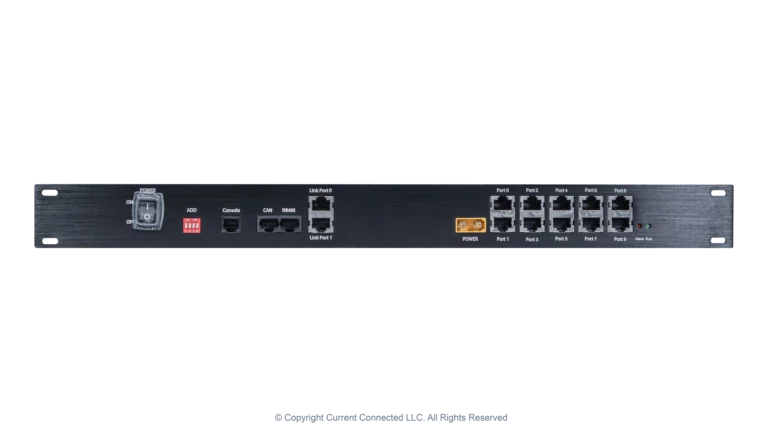

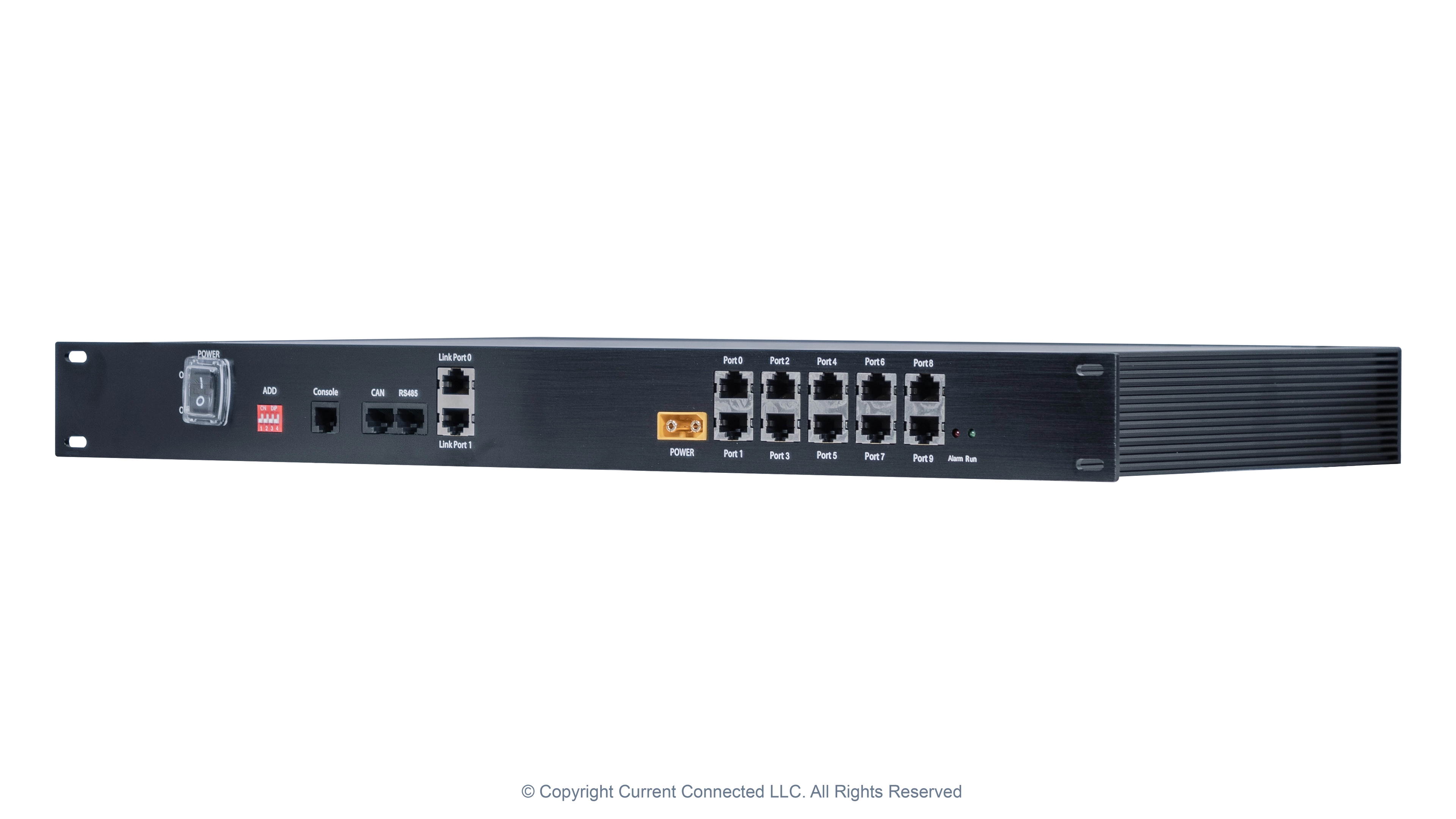

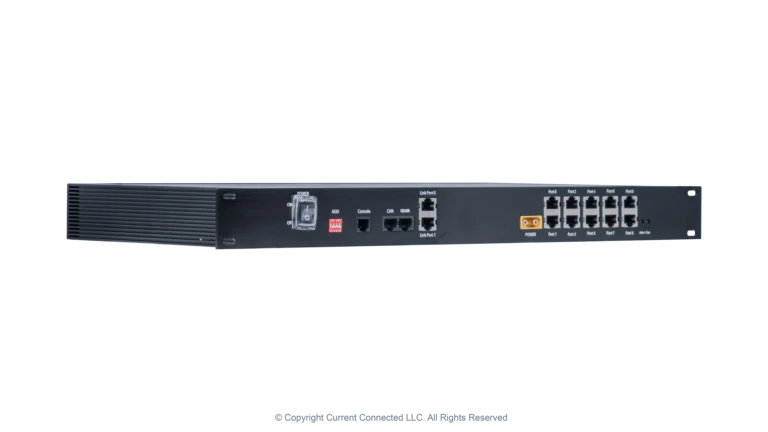

Pytes Battery Communication Hub (1U HUB), Links up to 7 Battery Clusters for E-Box-48100R and V5, CAN and RS485 Inverter Communication, Rack Mount
SKU: PY-HUB




Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Product Summary
The Pytes Battery Communication Hub connects up to seven clusters of Pytes batteries to one inverter over CAN or RS485. Add it when your storage outgrows a single cluster, and the inverter keeps communicating with the whole bank.
Specifications:
-
Links up to 7 E-Box-48100R clusters of 8 batteries, or up to 6 V5 groups of 16 (491.52kWh)
-
Connects to the inverter over CAN or RS485, selected with the ADD DIP switch for your inverter brand
-
Built for Pytes E-Box-48100R and V5 batteries; other brands can't join the hub
-
Runs on 48V DC from the battery bank's outlet port or a 48V mains adapter
-
Mounts in 1U of rack space on guide rails, secured with four screws
-
Power button with green power and red running indicators
-
Includes the hub, power cable, network cable and four screws with nuts; battery-to-hub communication cables sold separately

Current Connected is YOUR Pytes product specialist
About the Pytes Battery Communication Hub
Every Pytes cluster has a parallel limit, and once your bank needs more batteries than one cluster holds, the clusters need a common link to the inverter. The hub is that link. The primary battery in each cluster reports to the hub, and the hub talks to the inverter over CAN or RS485, so several clusters run as one bank.

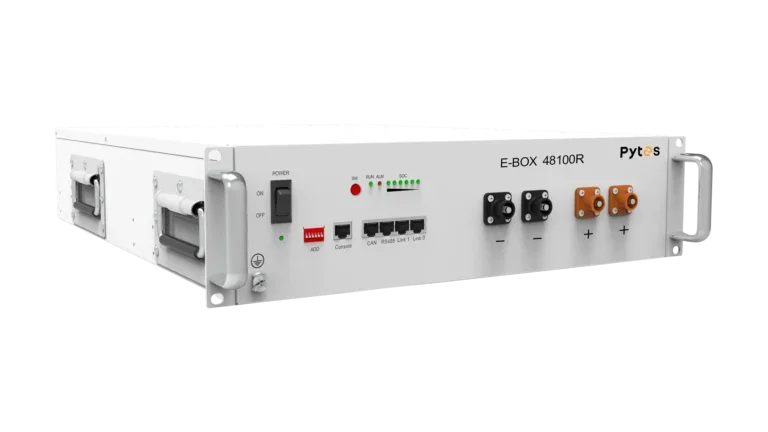

Pytes builds the hub for the E-Box-48100R, with up to eight batteries in each cluster.
It also covers larger V5 banks. The Pytes V5 manual calls for a hub once a bank passes 16 batteries or spreads across more than one rack, and Pytes rates a hub-linked V5 system for up to six groups of 16, 491.52kWh in all.
Setting Up the Hub: DIP Switches, Power and Cables
Set the hub's ADD DIP switch to your inverter brand, then set the primary battery in each cluster to the matching code from Pytes' table in the hub manual. Power comes from the battery bank's outlet port or a 48V mains adapter, and the hub mounts in 1U of rack space on guide rails.
The package includes the power cable and one network cable. Communication cables from each cluster to the hub are sold separately, and the manual gives the pinout if you prefer to make your own. If you're planning how to split a large bank into clusters, our team is happy to help with sizing.
Recommended Accessories
Frequently Asked Questions
Pytes' V10 and V16 documents don't mention the hub, and Pytes rates the V16 for up to 16 batteries in parallel on its own. If you're planning a bigger V10 or V16 bank, contact our team and we'll confirm the setup with Pytes before you order.
No. Pytes says the V5 can't be connected with the E-Box-48100R, so build each system from one battery line.
