ECO-WORTHY Cubix100 48V 100Ah LiFePO4 Server Rack Battery, UL 1973 Listed, UL 9540A Tested, Off-Grid or On-Grid Lithium Battery

SKU: GW-L12L100ACUB100-1

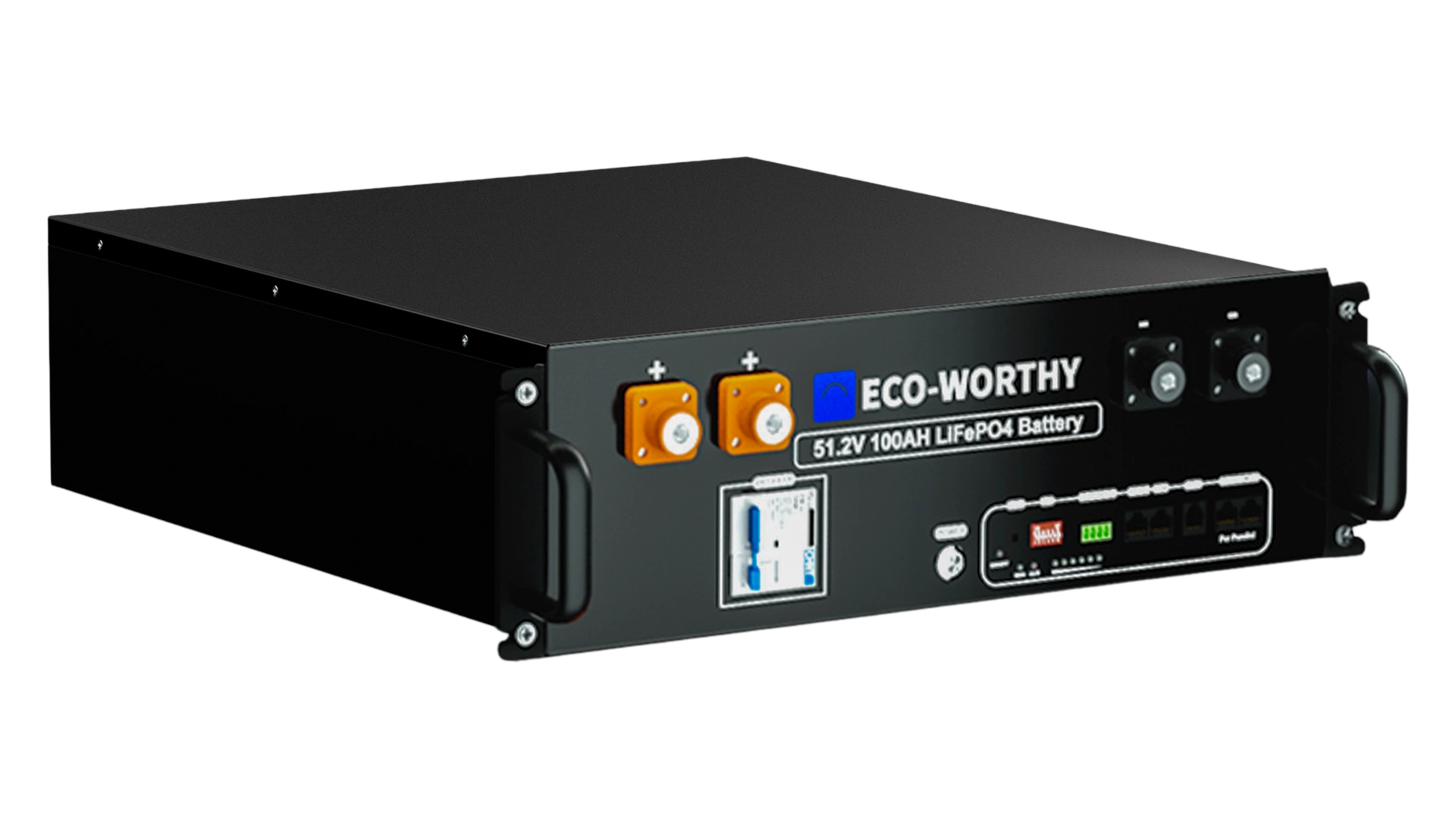

High quality photo of the ECO-WORTHY Cubix 100 Front Right View. Photo sourced by Current Connected from ECO-WORTHY.
$889.99

Log in to check member price and detailed stock information.

Need more than what's available?
Tell us what you need and we can source it for you.

Product Summary

ECO-WORTHY’s Cubix100 is a 48V 100Ah server rack battery that provides 5.12kWh power for grid-tied, off-grid, or home backup installations to support solar systems or other alternative energy solutions. With massive paralleling capabilities, it's possible to parallel up to 32 batteries for a maximum storage capacity of 164kWh.

Specifications:

  • Capacity: 5.12kWh

  • Absorption Voltage: 58.4V

  • Recommended charge/discharge current: 50A

  • Max. continuous charge/discharge current: 100A

  • Peak discharge current: 120A for <2s

  • Communication options: RS232, RS485, and CAN ports

  • Rated for 6,000 cycles at 80% DOD

  • 10 year warranty

  • Certifications: UL 1973 and UL 9540A tested

  • Weight: 103lb

  • Dimensions (H×W×D): 5.63×19.02×22.09in

Downloads (2): Manual, Certifications
Current Connected
×
ECO-WORTHY

Current Connected is YOUR ECO-WORTHY product specialist

Explore Lineup

ECO-WORTHY Cubix100 48V 100Ah LiFePO4 Battery

ECO-WORTHY’s Cubix100 48V 100Ah server rack battery provides up to 5.12kWh of power and is suited for grid-tied, off-grid, or home backup installations. It’s ideal for stationary applications, and it’s possible to wire up to 32 batteries in parallel for a maximum of 164kWh. Most homes use 40-70kWh each day, so this is enough storage to power large scale energy needs.

ECO-WORTHY designed these batteries with grade A cells able to last 6,000 cycles at 80% DOD (Depth of Discharge). The integrated BMS (Battery Management System) continuously monitors battery health to prolong its life. It includes protections against over charging and over discharging, temperature protection, and short circuit protection.

UL 9540A testing shows how these batteries behave in a thermal runaway fire. UL 9540A testing includes tests at the cell level, the module level, and the installation level. Individual batteries are safe for home use, and it’s possible to stack up to six batteries in the ECO-WORTHY server rack. This gives a total storage capacity of 30kWh.

The eco-worthy app allows for system monitoring. Information on the app includes battery SOC (State of Charge %), remaining capacity, and cycle count. The app also shows cell information such as individual cell temperature, individual cell voltage, and the average voltage of all cells. Access the app with any smart device. Bluetooth connection enables local monitoring, and WiFi connection enables remote monitoring.

Several items come with the Cubix100 to expedite installation. Each battery includes a user manual, battery paralleling cables, a communication cable, and a grounding cable. The batteries also include optional handles. These are especially useful when mounting the CUBIX-100 in a rack.

Choose ECO-WORTHY’s 48V Cubix100 for a small or scalable energy system. It uses the Pylontech protocol which is compatible with nearly any inverter, including Victron, Sol-Ark, and EG4.
