EG4 Electronics WallMount 314Ah Indoor Battery, 16kWh Lithium Battery Storage for Residential Energy Systems, UL 1973

SKU: EG448V314AIDWMB
Spec SheetQuick Start GuideCertifications

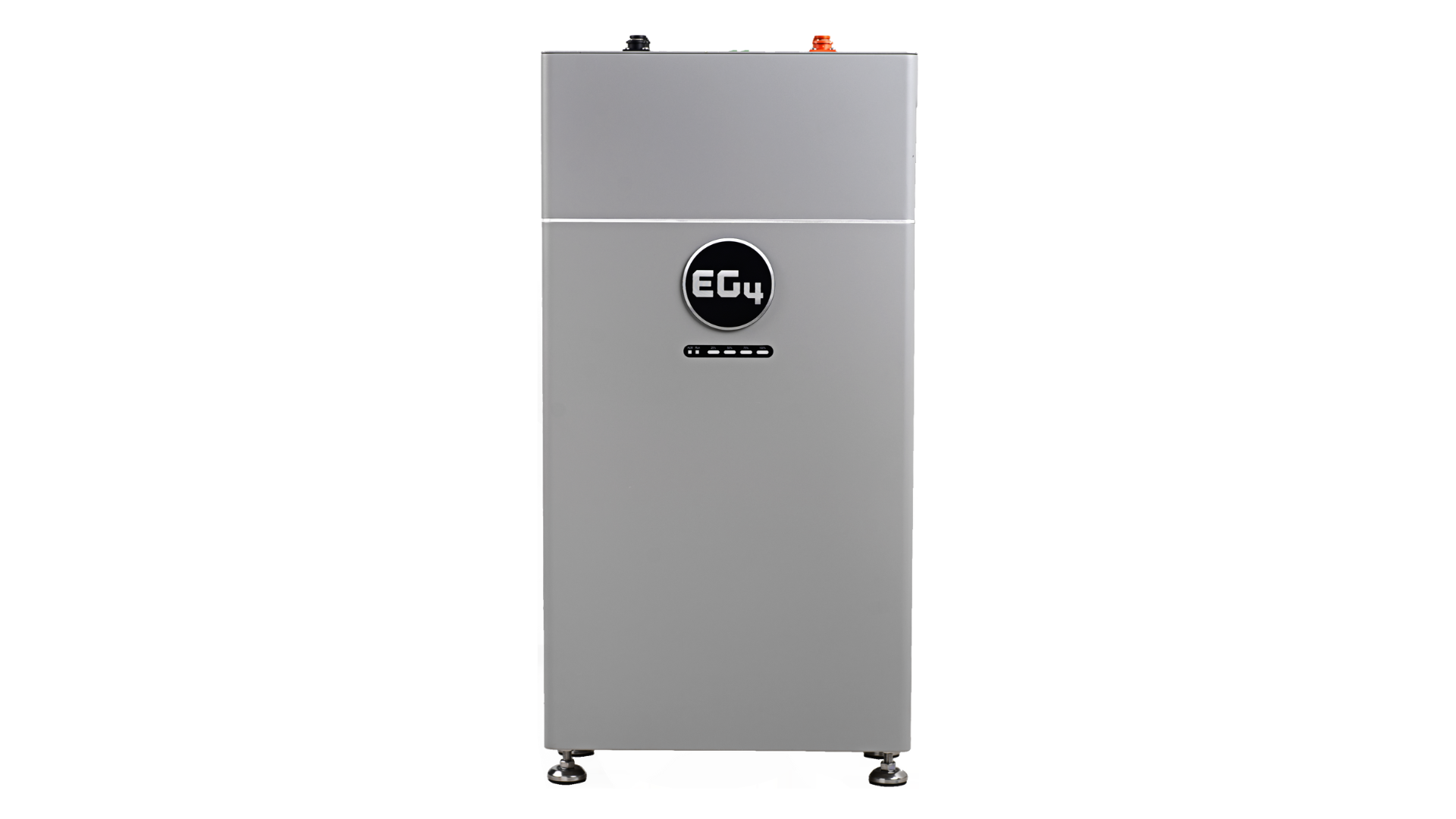

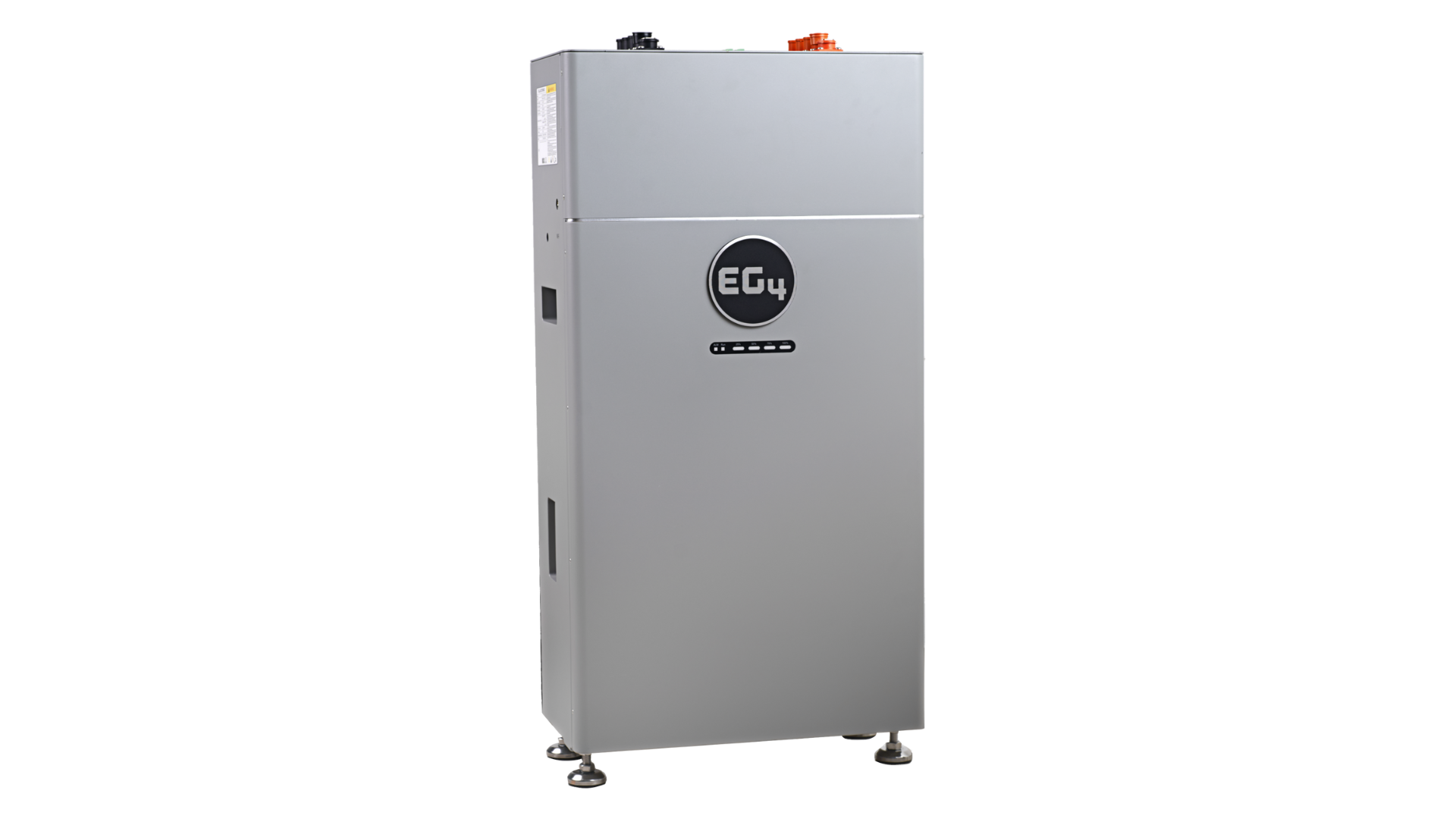

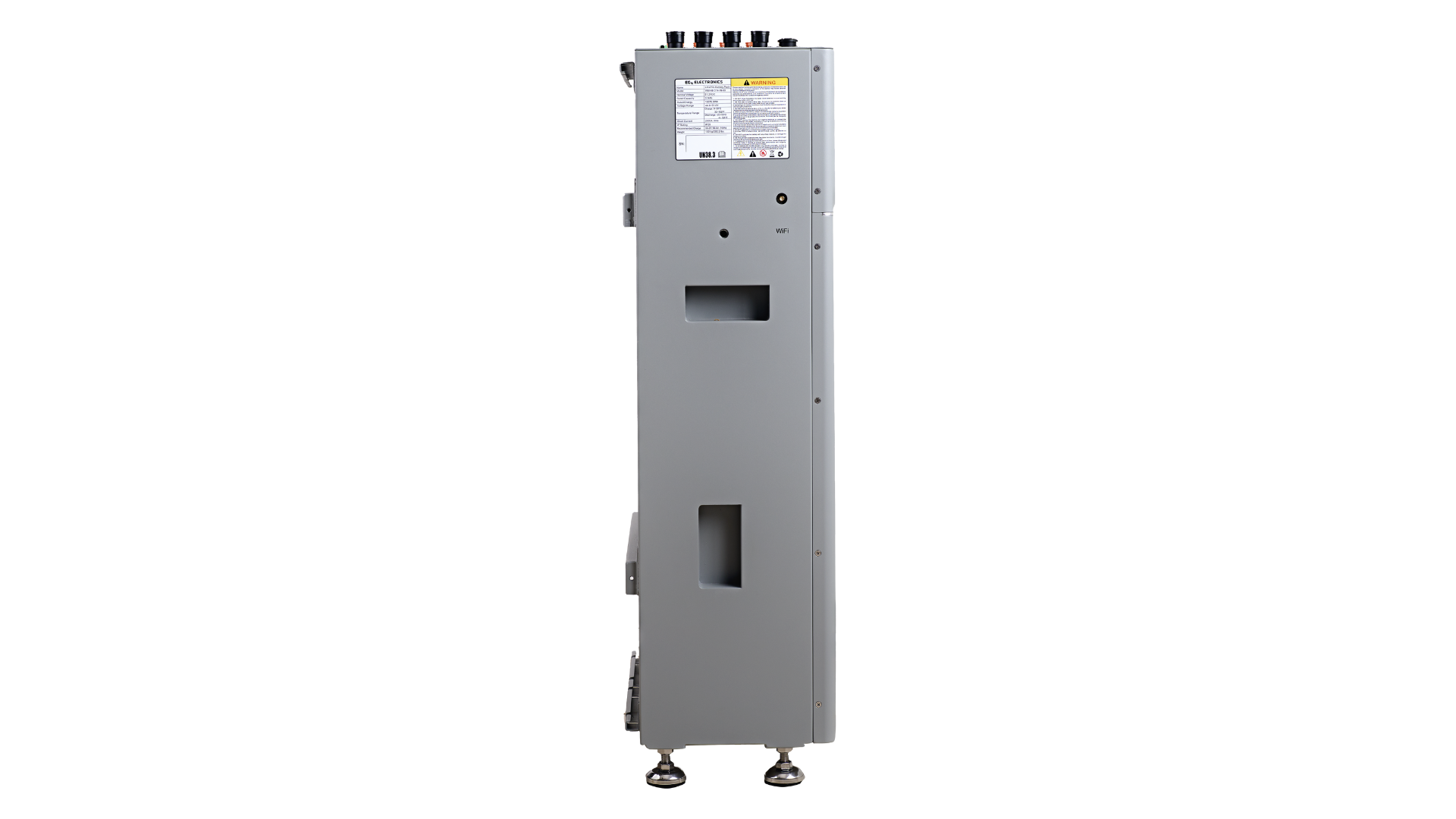

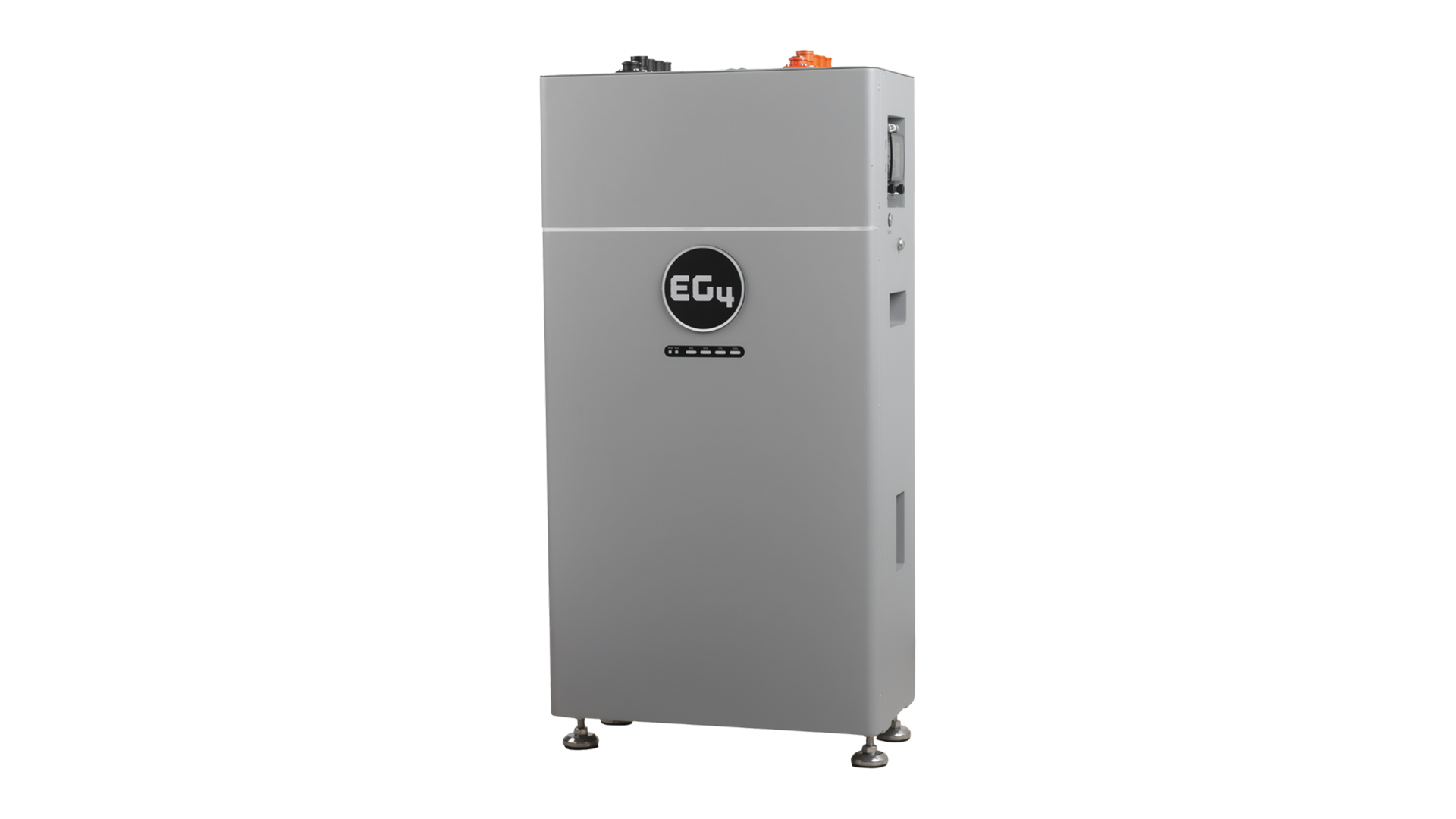

EG4’s 314Ah Indoor WallMount battery provides up to 16kWh of energy storage for a residential or commercial alternative energy system that is off-grid or grid-tied.

Specifications:

  • Capacity: 16kWh
  • Recommended charge/discharge current: 157A
  • Max. continuous charge/discharge current: 157/200A
  • Peak discharge current: 250A for 3s

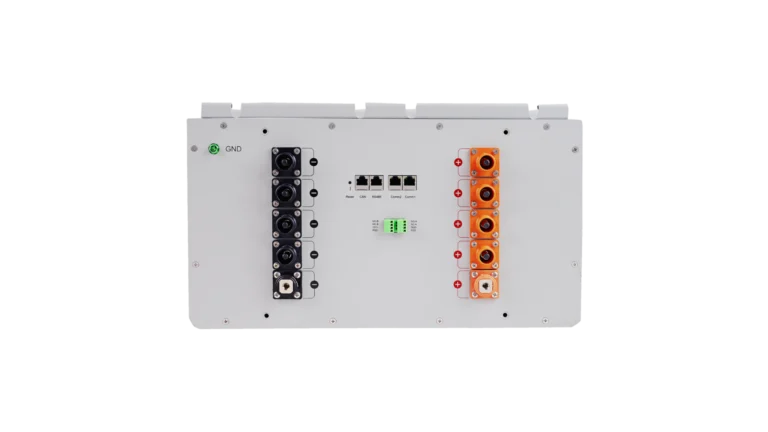

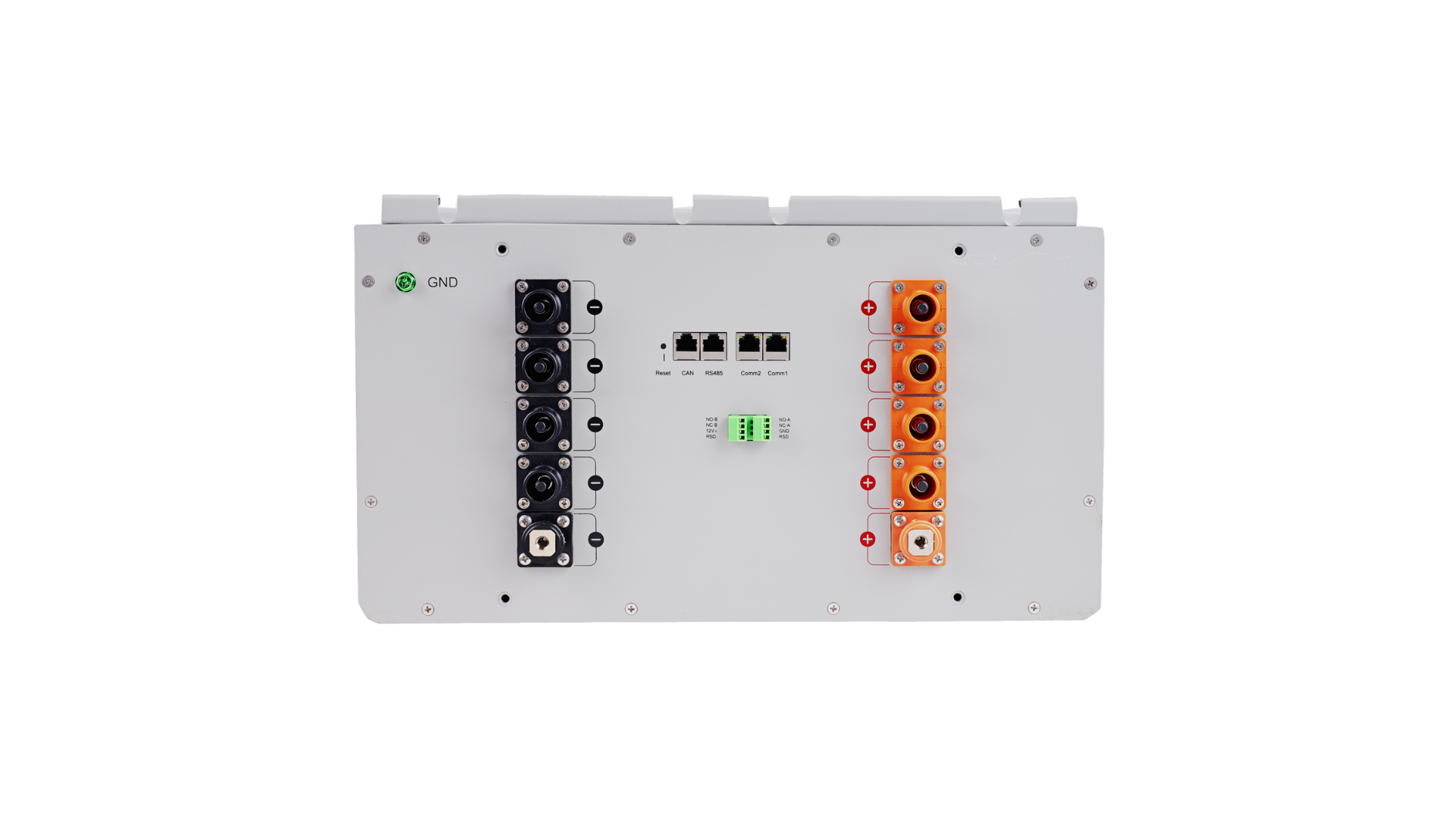

  • Communication options: RS485 and CAN ports
  • Rated for 10,000 cycles @ 0.5C or 10 years
  • Certifications: UL 1973, UL 9540 (with FlexBOSS18 and FlexBOSS21)
  • Weight: 314lbs
  • Dimensions (H×W×D): 36.4×18.1×9.6in

$3,700.00

to check member price and detailed stock information.

Temporarily out of stock
We are working on restocking this item
Log in to see additional stock details

Description

EG4’s 314Ah Indoor WallMount battery can provide up to 16kWh of backup power in an off-grid or grid-tied energy system. It’s possible to connect up to 16 batteries in parallel for a maximum storage capacity of 256kWh. This is enough to power residential or commercial applications either on-grid or off-grid.

The integrated BMS (Battery Management System) provides critical battery support. It continuously monitors the battery voltage, current, temperature, and other metrics to make sure the 314Ah Indoor WallMount battery operates within safe limits.

Further safety features include UL 1973 certification. To achieve this status, the battery is tested in various conditions to verify safe operation. This battery is designed to work with EG4’s FlexBOSS 21 and 18kPV, though it is compatible with many other inverters and connects through RS485 or CAN ports.

EG4 designed this battery to last. It’s rated for 10,000 cycles at 80% DOD (Depth of Discharge), and it has a 10 year warranty.

Read more about EG4’s 314Ah battery here!

Recommended Accessories:

Additional information

Weight 340 lbs
Brand

EG4 Electronics
Battery Voltage

48 Volts DC
Capacity (Amp-Hours)

314Ah
Form Factor

Wall Mount
