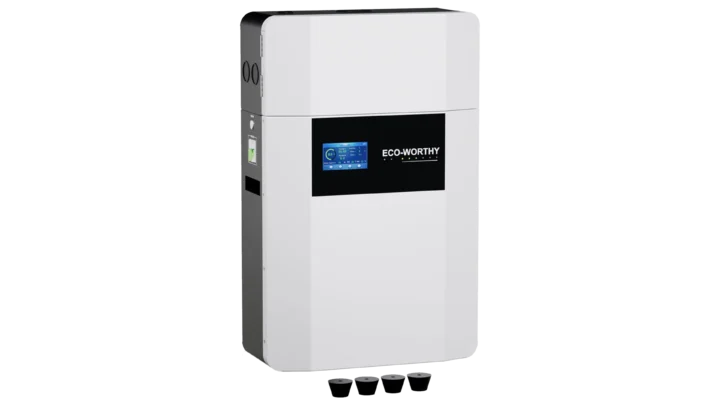

ECO-WORTHY 48V 100Ah Wall-Mount Lithium Battery with Conduit Box, Bluetooth and WiFi, Internal Fire Extinguisher, LiFePO4 Energy Storage

LiFePO4 (lithium iron phosphate) batteries are the gold standard for energy storage. They are more resistant to thermal runaway than other lithium chemistries, they comply with international safety and transportation standards, and they are well-suited for daily deep-cycling in an off-grid solar system or grid-tied backup installation. ECO-WORTHY’s 48V wall mounted battery provides 51.2V nominal voltage, 100Ah capacity, and a maximum charge voltage of 58.4V.

The battery includes a wall-mounting template and mounting hardware. You can mount it to a brick or concrete wall off the floor for increased floor space, or you can mount it on the floor next to the wall. The included brackets make it possible to attach the battery to the wall even when mounted on the floor to keep it upright.

ECO-WORTHY designed a detachable conduit box for the 48V 100Ah wall-mounted battery. This box keeps wire connections hidden to provide a clean installation and additional security.

The built-in BMS (Battery Management System) protects against over-charge, over-discharge, over-current, short circuit, high temperature, low temperature, and more. If the battery reaches a dangerous level, the BMS automatically stops charging or discharging until the battery returns to a safe level. The BMS also sends information to the LCD screen for easy monitoring.

While LiFePO4 batteries are some of the safest in the market, ECO-WORTHY designed this battery with an internal fire suppression system. Should the internal temperature reach a dangerous level, the fire suppression system activates to protect the battery, the energy system, and your home.

The front-panel LCD displays average SOC (State of Charge %), cell voltages, pack temperatures, pack voltage, system current, remaining capacity, operating power, and charge/discharge status. The LCD screen also provides a simple way to adjust battery address configurations and other settings.

The battery supports both CAN and RS485 communication so you can communicate with a wide range of inverters, including those from Victron via a GX device. ECO-WORTHY’s 48V wall mounted battery uses the Pylon protocol as the default for both ports, but you can change the communication protocol with the touchscreen or through the BMS Tools Windows software.

The ECO-WORTHY 48V 100Ah battery includes a port for RSD (Rapid Shutdown) connection. You can connect an RSD button to the primary battery’s port in your battery bank. Once activated, the RSD button sends a shutdown signal to all connected and compatible batteries and inverters. This protects firefighters and other emergency personnel in a crisis.

A single ECO-WORTHY 48V 100Ah battery delivers 5.12kWh, but you can combine up to 32 units in parallel for a maximum capacity of 163.84kWh. This empowers you to use the ECO-WORTHY 48V 100Ah battery in your residential or off-grid solar system, or to use it for a small commercial installation. It also allows you to start with a smaller system and grow as your power needs change.

The ECO-WORTHY 48V 100Ah battery maximizes your power capacity by allowing up to 95% DOD (Depth of Discharge). This is ideal for off-grid locations as you can use nearly the entire battery’s capacity for each cycle.

ECO-WORTHY provides a battery monitoring app which enables you to monitor your battery system remotely through bluetooth or Wi-Fi. Once downloaded and connected, you can view real time battery information like battery voltage, cell voltage, and temperature. The app also includes some battery configuration options.

You can parallel up to 32 units for a maximum system capacity of 163.84kWh. Once connected, you can use the BMS DIP switch to assign each battery a unique address.

ECO-WORTHY designed this battery to work with most hybrid inverters. It uses the Pylon protocol by default, but includes options for many other protocols over CAN and RS485.

Yes. You can use the included feet pads for a floor mounted installation. The shipment also includes a wall clip to attach your floor-mounted battery to the wall and prevent it from tipping.

• The battery
• User manual
• Drill template for wall mounting
• Mounting bracket and hardware
• Optional feet
• Battery parallel cables
• Battery communication cable
• Detachable conduit box
