Residential 10kVA 120/240V Off-Grid Power System Kit

Product Summary

Specifications:

  • 10,000VA Continuous output @25°C
  • 20,000VA Peak output
  • Preconfigured for 120/240V Split Phase Output
  • Modular – Additional inverters can be added later for increased output
  • Built-in generator transfer switch
  • 48V DC Battery Input works with any 48V battery system
  • PowerAssist – Prevent overloads and increase output when using limited generator input
  • Industry-leading ultra efficient transformer-based design, 96% efficient.
$4,254.42

Log in to check member price and detailed stock information.

$4,254.42

Configure Your System

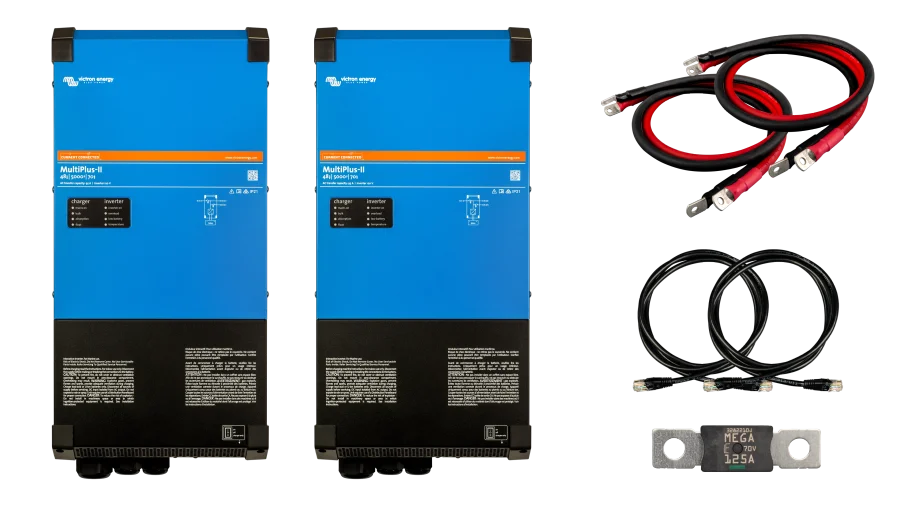

Inverter

Required

The inverter / charger is a combination unit that not only can turn the DC power generated by solar and stored in the battery bank into AC power, it can also converter power from external sources such as grid or generator to charge the batteries if the solar cannot keep up. The MultiPlus-II lineup from Victron has a reduced footprint from the legacy Quattro lineup, however, the Quattro's main advantage is that it has two AC inputs. Additional AC inputs are useful when you have multiple sources and want the system to automatically switch between them.

Choose Inverter*

Loading bundle items...

Component subtotal:
$3,015.28

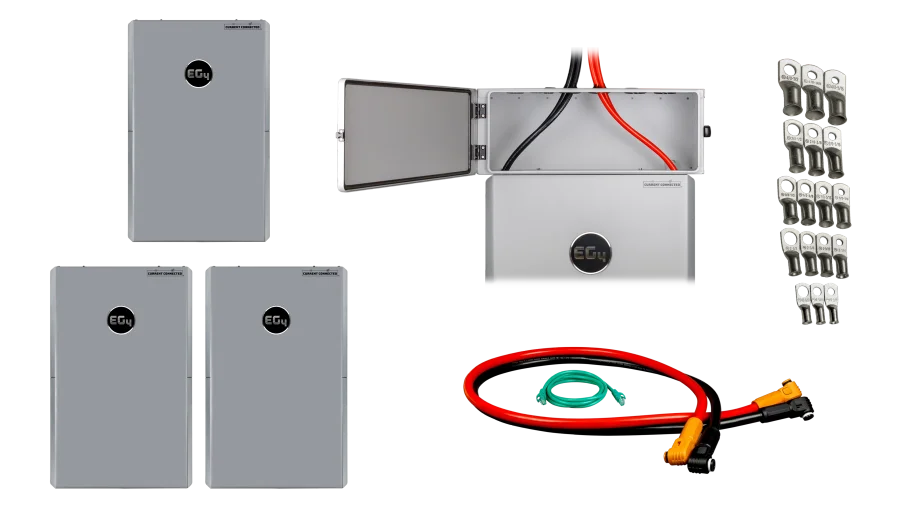

Battery Bank

Optional

We have selected our most popular and performant battery options - this system will need at absolute minimum 15kWh, however most off-grid systems demand significantly more than this minimum and are best sized with a 25-30 kWh battery bank. In this case, bigger is better, since you will have more reserve capacity for periods of bad weather or high demand.

Choose Battery Bank

Loading bundle items...

Component subtotal:
$6,362.45

GX System Controller

Required

Choose GX System Controller*

Loading bundle items...

Component subtotal:
$493.00

Lynx Power Distribution System

Required

Choose Lynx Power Distribution System*

Loading bundle items...

Component subtotal:
$781.84

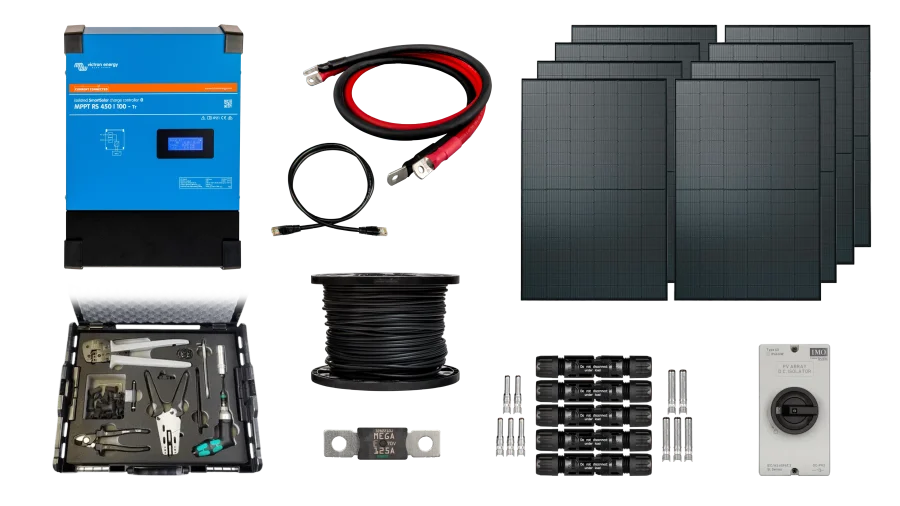

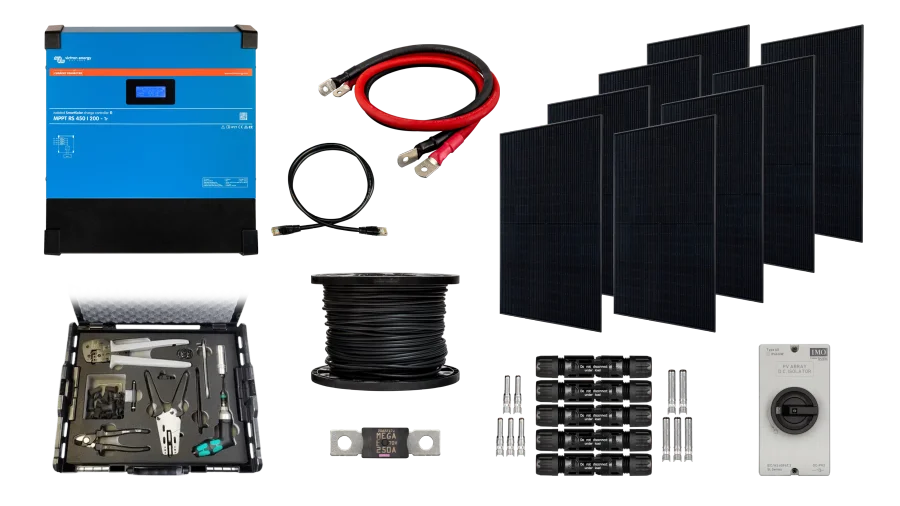

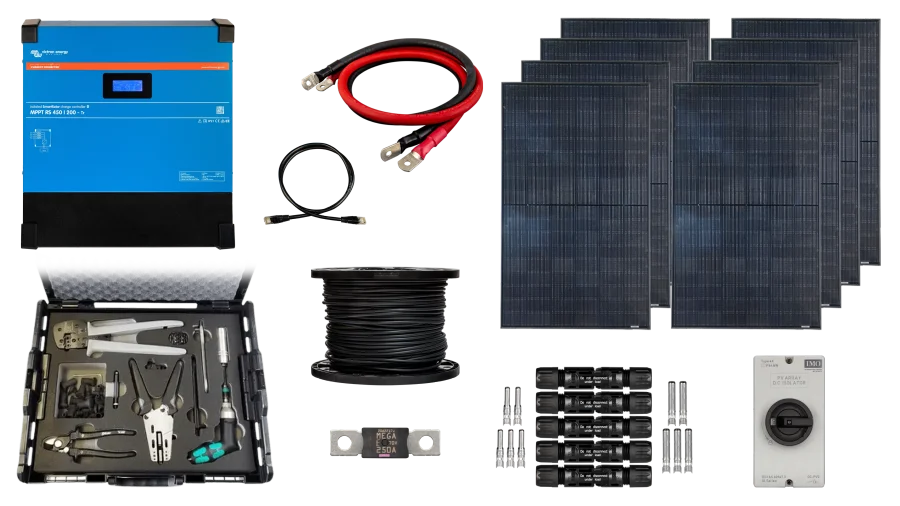

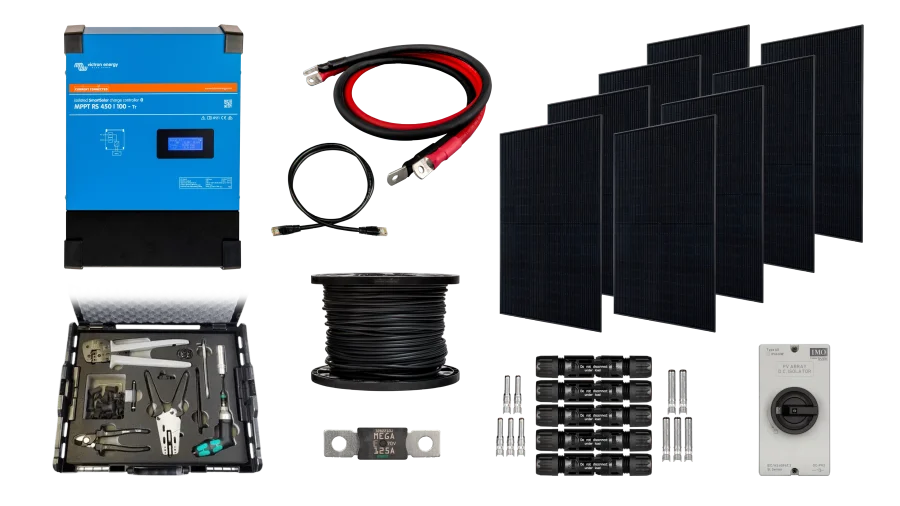

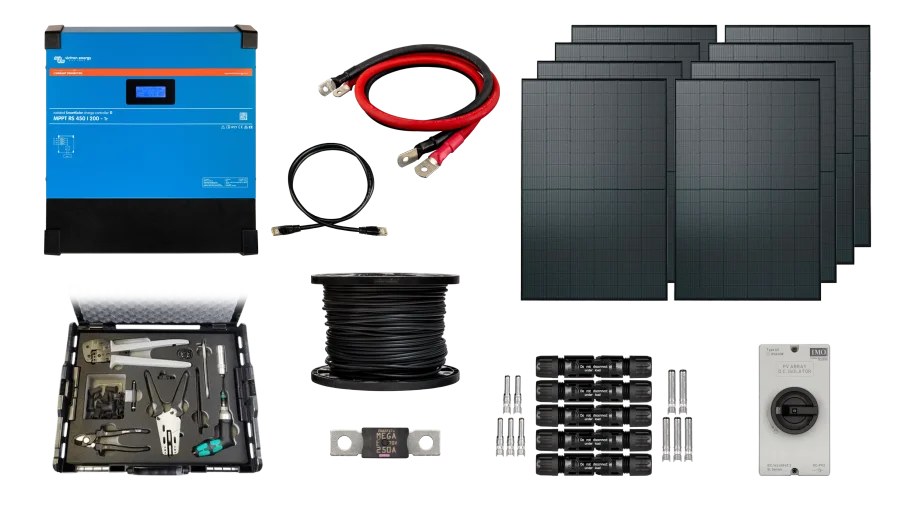

Solar Components

Optional

This section is solar charge controllers with the option of choosing a solar bundle which includes solar panels and other components.

Choose Solar Components

Loading bundle items...

Component subtotal:
$2,776.83

Kit Summary

—
0
$0.00
Not included
0
—
—
0
$0.00
—
0
$0.00
Not included
0
—
Total
$0.00

Log in to check member pricing and detailed stock information.

Customer Reviews

hvactechryan10 March 2025

Purchased this kit through CC and put it together myself with help from CC my buddy thats a electrician and Watched a bunch of videos and learned all I could and im still learning everyday. Shout out to channel names Will Prowse, Adam De Lay, Projects With Everyday Dave, Off-Grid Garage... no way in heck ide attempt this kit install without all the hard work you all did putting info out on these units. I cant say thanks enough to everyone. Turning the mains off and watching the watts flow into the batterys for the first time is a rush. Now im hooked.... wish I could post photos! Thanks CC Ill be calling for more addons and support for this masterpiece soon to get this system 100%
