Blue Sea Systems MRBF Terminal Fuse 30A-250A, Up to 58V DC, Ignition Protected IP66, for Marine and Mobile DC Systems

About the Blue Sea Systems MRBF Terminal Fuse

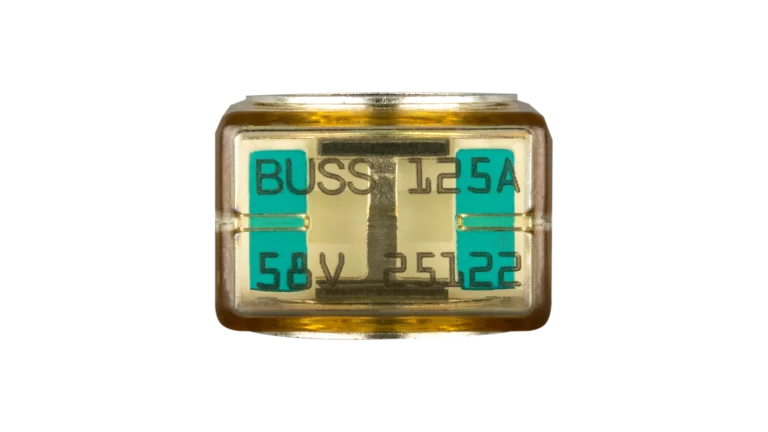

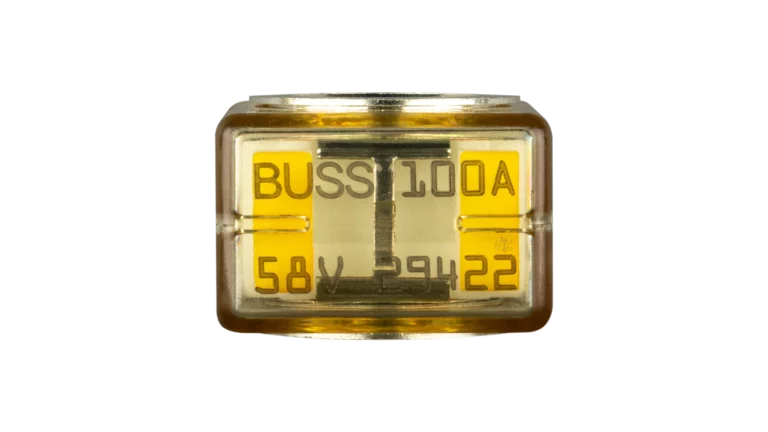

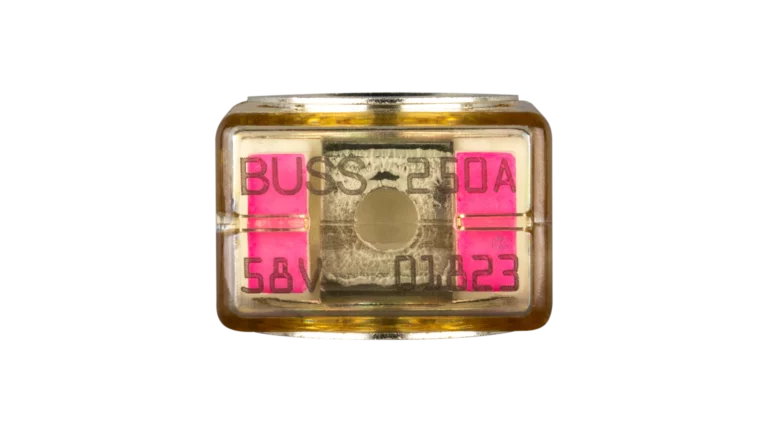

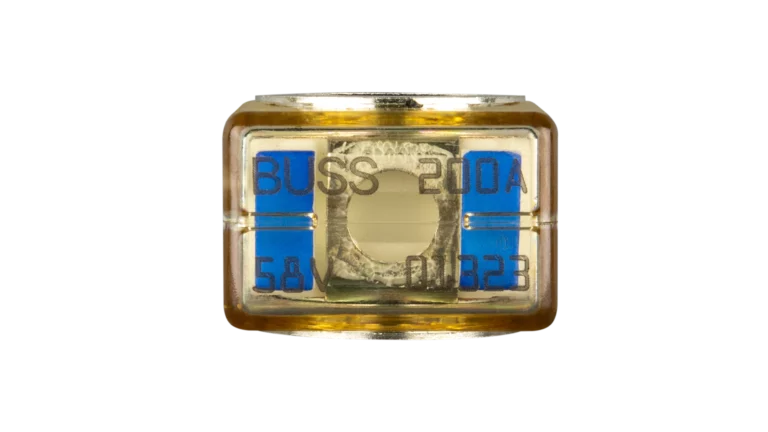

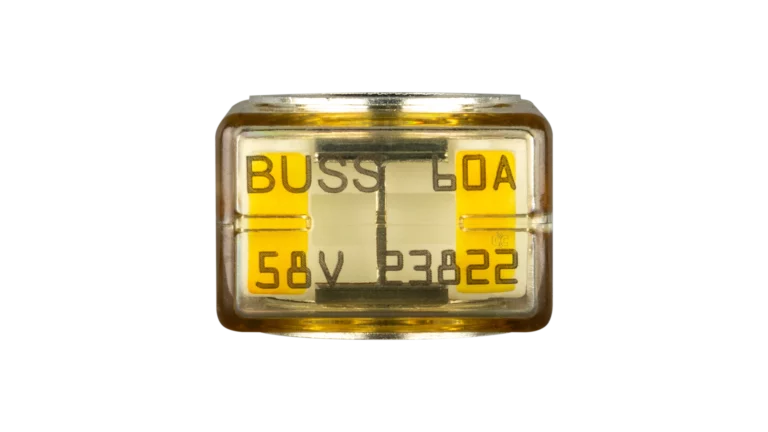

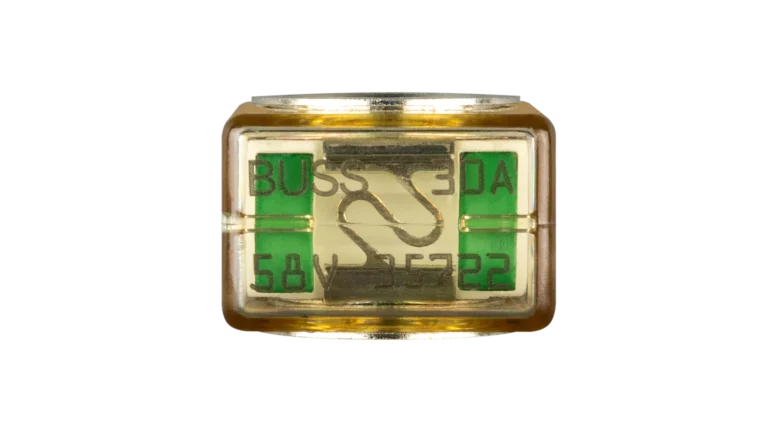

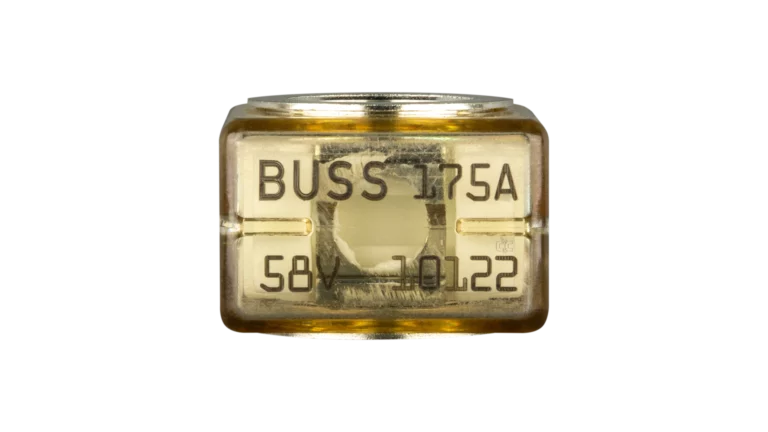

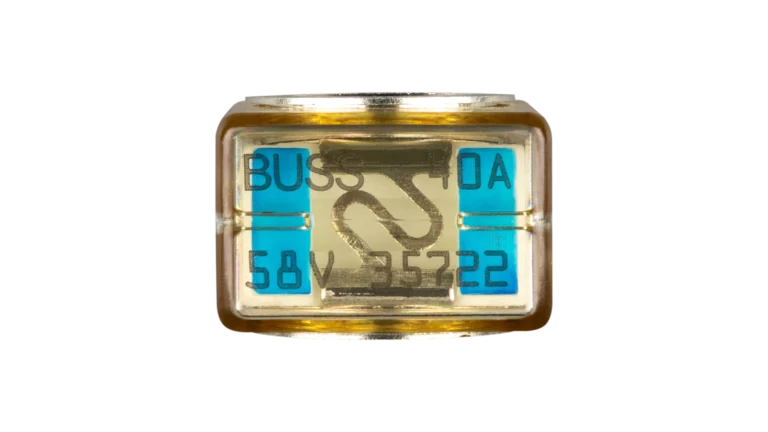

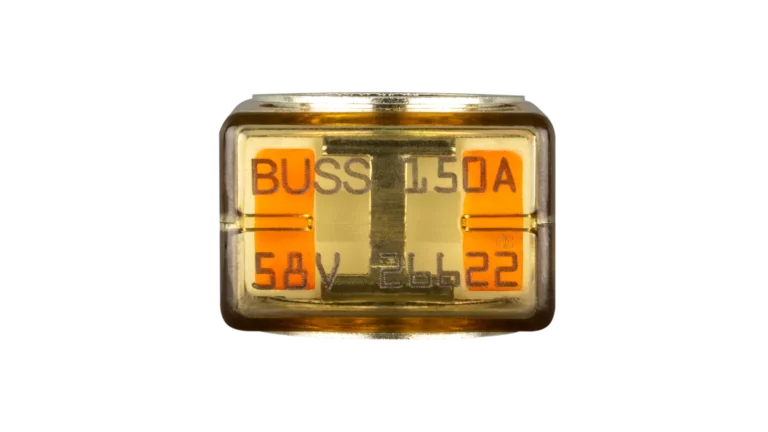

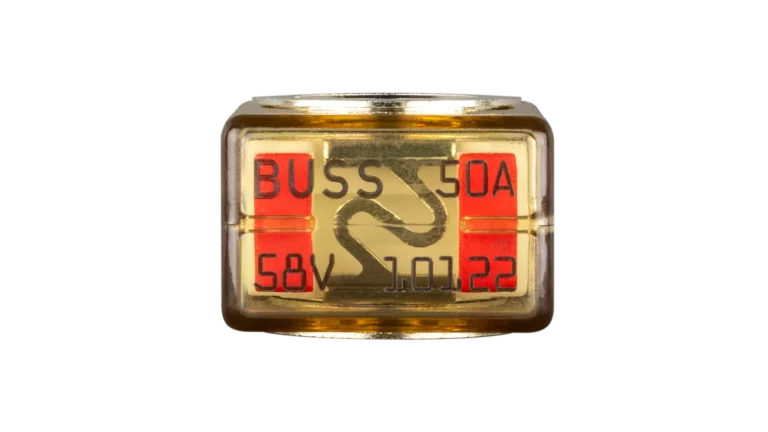

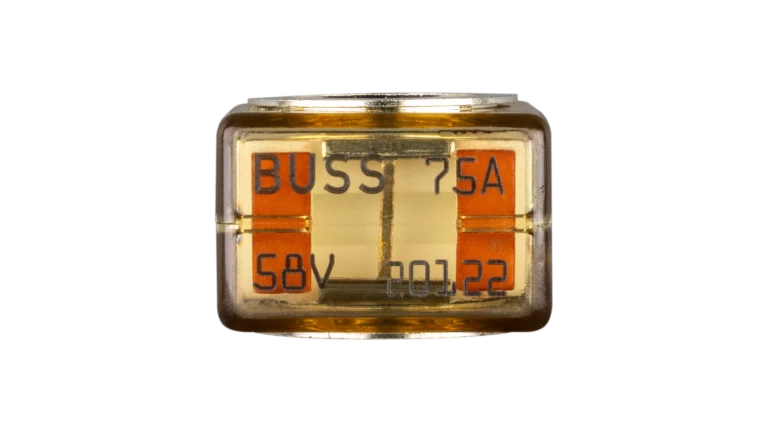

The MRBF (Marine Rated Battery Fuse) is a compact, high-amp fuse built for DC main circuit protection on boats, RVs, and other mobile applications. At roughly 1" x 1" x 1/2", it's significantly smaller than ANL or Class T fuses, which makes it particularly useful where space near the battery is tight. Each fuse is color coded by amperage rating and has a clear window so you can visually confirm whether it's blown without pulling it.

ABYC Compliance and the 7" Rule

ABYC E-11 requires overcurrent protection within 7 wire inches of the battery bank (or up to 72 inches if the conductor is in a protective sheath). Meeting that 7" requirement with a traditional ANL or Class T fuse holder can be difficult in cramped battery compartments. The MRBF solves this by mounting in a compact fuse block that sits directly on or very near the battery terminal, keeping protection within inches of the source. The tradeoff is that MRBF fuses max out at 300A (Current Connected stocks up to 250A), so larger engine cranking circuits or heavy inverter feeds may need a Class T or ANL instead.

Interrupt Capacity and Battery Bank Sizing

The MRBF's 10,000A interrupt capacity (AIC) at 14V DC is well above the ABYC minimum of 5,000A AIC for banks over 1,100 CCA. That makes it appropriate for most lead-acid and AGM battery banks, and for individual LiFePO4 batteries up to roughly 200Ah. Larger lithium banks can produce combined short-circuit currents that exceed 10,000A, which is where per-battery fusing with MRBFs becomes a practical advantage.

Instead of protecting an entire bank with one large (and expensive) Class T fuse, you can install an MRBF fuse on each battery individually. Each fuse only sees the short-circuit current of a single cell, keeping you within the MRBF's 10,000A AIC rating even on systems where the combined bank would exceed it. Per-battery fusing also means each cable run is protected right at its source, and several MRBF fuses plus fuse blocks typically cost less than a single high-amperage Class T setup. For banks where even individual batteries exceed 200Ah, Class T fuses (20,000A AIC) remain the safer choice.

Fuse Block Required

MRBF fuses cannot be used with just a bolt or mounted directly to a battery terminal. They require a dedicated fuse block that provides the correct mounting geometry and insulated current path through the fuse element. Without the fuse block, there's no guarantee current flows through the fusible link rather than around it.

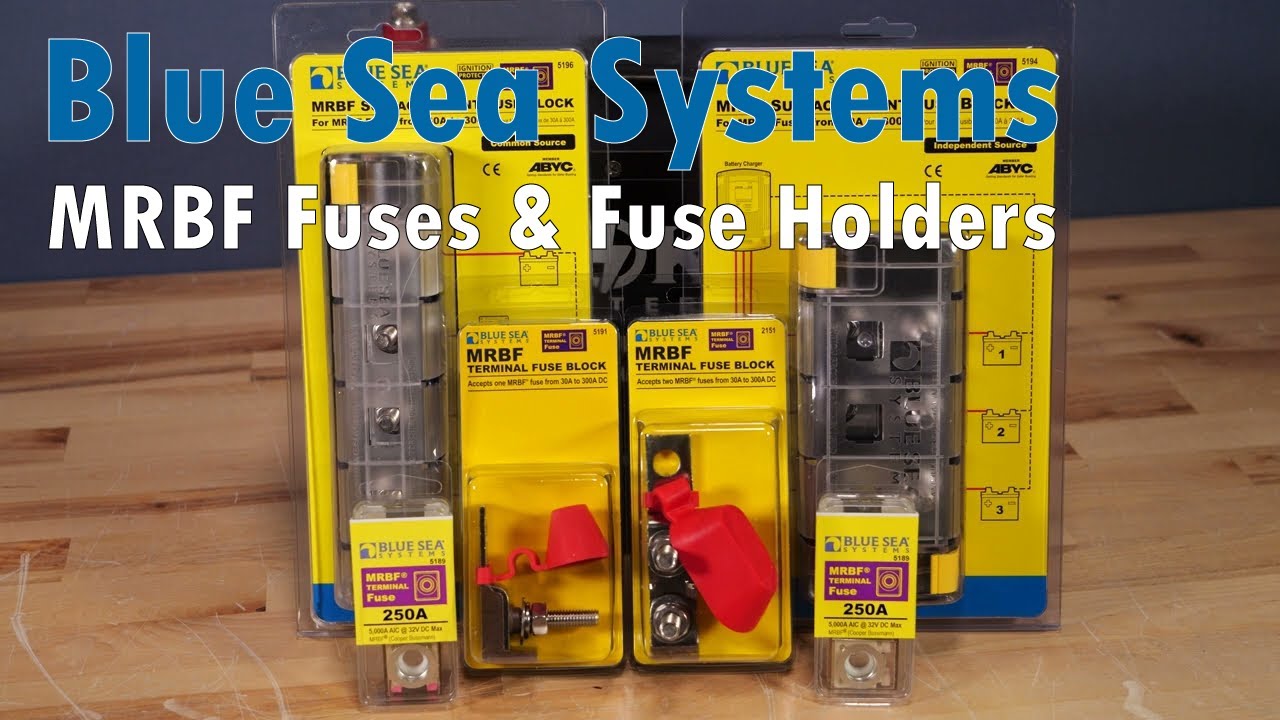

Current Connected carries four compatible MRBF fuse blocks:

• 5191 Single Terminal Fuse Block mounts on a 3/8" battery post, battery switch, or bus bar stud. One fuse position.
• 2151 Dual Terminal Fuse Block provides two fuse positions on a single terminal mount.
• 5196 Common Source Surface Mount Block distributes one source to three fused circuits.
• 5194 Independent Source Surface Mount Block provides three independently sourced fuse positions.

How to Size the Fuse

Size the fuse to the wire you're protecting, not to the expected load. If your battery cable is rated for 200A, a 200A fuse protects that conductor. Continuous load should not exceed 80% of the fuse rating. For motor loads like windlasses and thrusters, allow for inrush current. Blue Sea recommends sizing at 5x normal running current for inductive loads and 3x for resistive loads. MRBF fuses (like ANL and Class T) have a time-delay curve, meaning they won't blow on brief inrush spikes that exceed the face value as long as the duration is short enough.
