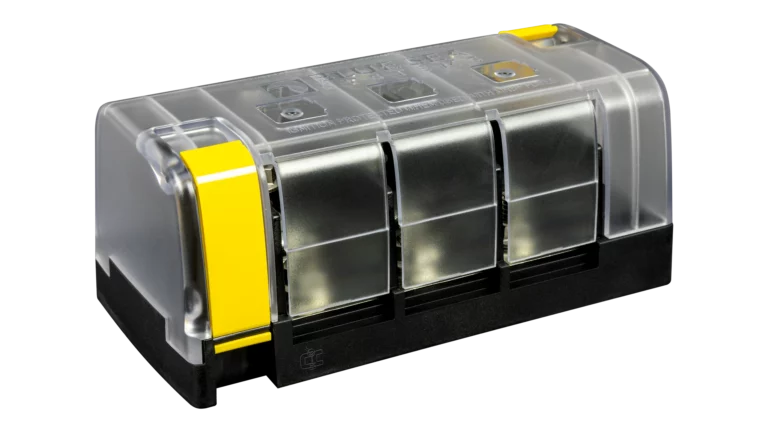

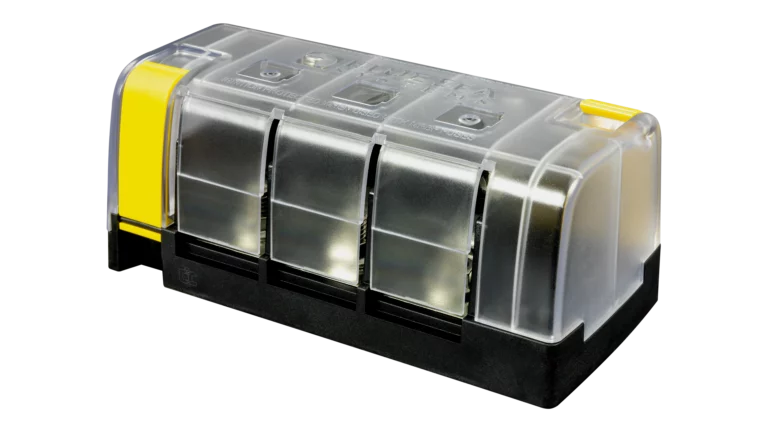

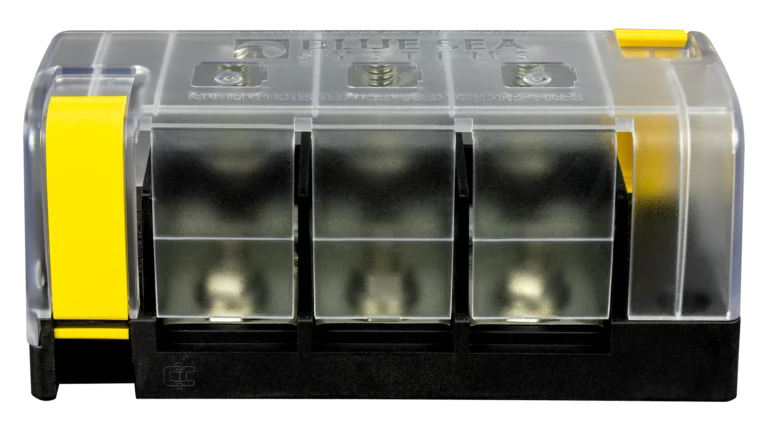

Blue Sea Systems 5194 MRBF 3-Circuit Independent Source Surface Mount Fuse Block
SKU: 5194-BSS
Product Summary
Three-position MRBF fuse block with independent input terminals, so each circuit has its own source connection. Rated for 240A per circuit at 58V DC, with ignition protection per SAE J1171.
Specifications:
- Circuits: 3
- Configuration: Independent source (separate input per circuit)
- Max amperage: 240A per circuit
- Max voltage: 58V DC
- Terminal stud size: M8 (5/16"-18)
- Mounting: Surface mount, M5 (#10) hardware
- Max torque: 100 in-lb (11.3 Nm)
- Ignition protected: Yes (SAE J1171)
- Insulating cover: Included (meets ABYC/USCG requirements)
- Weight: 1.2 lbs
- Fuses: MRBF terminal fuses, sold separately
Log in to check member price and detailed stock information.
Log in to see additional stock details
Current Connected is YOUR Blue Sea Systems product specialist
About the Blue Sea Systems 5194 MRBF Fuse Block
The 5194 gives each of its three fuse positions a dedicated input terminal. Each circuit is electrically isolated from the others, which makes it the go-to block for multi-output battery chargers where each output feeds a separate battery bank through its own fuse. It also works for any setup where three separate source circuits need individual overcurrent protection consolidated into one compact block.
Independent Source vs. Common Source
Because each circuit has its own input, the 5194 has no shared bus bar and no combined amperage limit. Each position handles up to 240A independently. If you need the opposite (one source distributed to multiple loads, like a single battery bank feeding an inverter, windlass, and thruster), the 5196 Common Source block is the right choice.
Wiring and Installation
All terminals can be oriented so wiring exits from a single side, which helps in tight engine compartments or battery boxes. The M8 stud terminals accept standard 5/16"-18 ring terminals and allow stacking for parallel connections. One-piece stainless steel flange nuts keep connections secure without needing a separate washer.
The block is ignition protected to SAE J1171 and safe for installation in marine engine compartments and fuel tank spaces. The clip-on insulating cover meets ABYC and USCG insulation requirements. Label recesses on the cover accept Blue Sea Systems square format labels for circuit identification.
Compatible Fuses
This block accepts MRBF terminal fuses in ratings from 30A to 300A. MRBF fuses have a clear window for visual blown-fuse indication. Fuses are sold separately.
Recommended Accessories
Frequently Asked Questions
The 5194 has separate input terminals for each circuit, so three different sources can each feed their own fuse. That's the right block for a 3-output battery charger feeding three separate banks. The 5196 has a single shared input bus, so one source feeds all three fuse positions. Use the 5196 when distributing one battery bank to multiple loads.
Blue Sea recommends limiting continuous current to 80% of the fuse rating. Each circuit supports up to 240A with appropriately sized wire.
No. MRBF terminal fuses are sold separately in ratings from 30A to 300A.
