Victron Temperature Sensor ASS000001000 for Cerbo GX, MultiPlus-II and Quattro, Battery Temperature Compensation, Fits Ekrano GX, Venus GX and VE.Can MPPTs
SKU: ASS000001000


Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Product Summary

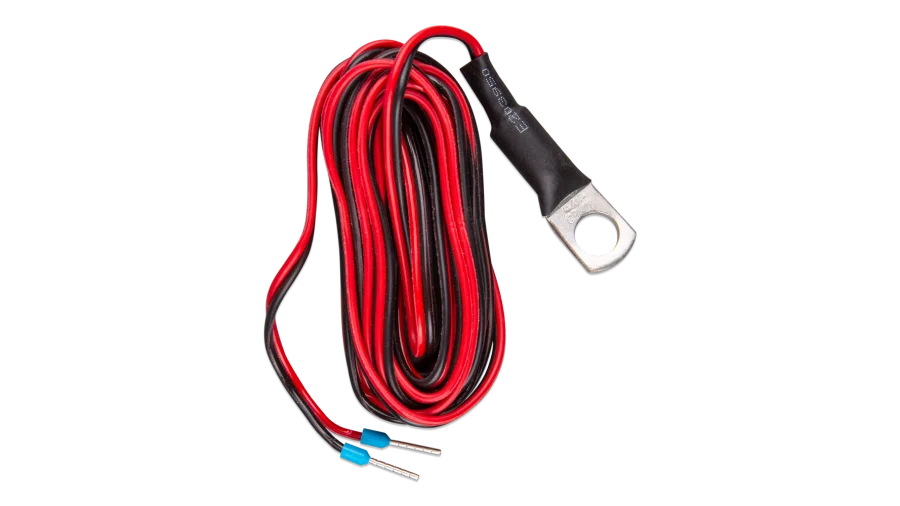

The Victron temperature sensor ASS000001000 bolts to your battery bank's negative terminal and tells a MultiPlus, MultiPlus-II or Quattro how warm the batteries are, so the charger lowers its voltage as the bank heats up. Wire one into a Cerbo GX instead and it reports battery, fridge or any other temperature, and it can trigger a relay to run a fan or heater.
Specifications:
-
Victron part ASS000001000, the temperature sensor for Quattro, MultiPlus and GX devices
-
Gives MultiPlus, MultiPlus-II and Quattro inverter chargers temperature-compensated charging
-
Plugs into the temperature inputs on a Cerbo GX (four inputs), Ekrano GX or Venus GX (two each)
-
Reads -40°F to 158°F (-40°C to 70°C) on a GX device
-

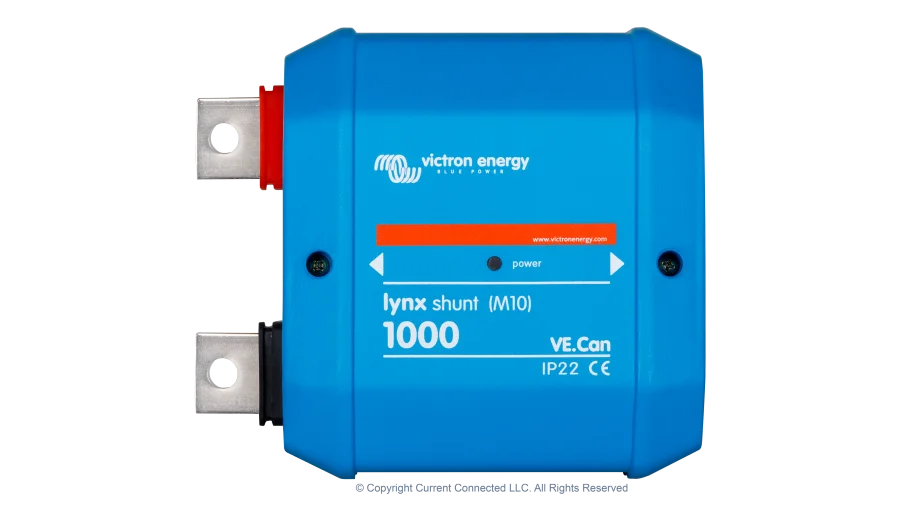

Also works with VE.Can MPPT solar chargers, the Lynx Shunt VE.Can and Skylla-S, Skylla-TG and Skylla-i chargers
-
Isolated sensor that mounts on the battery's negative terminal
-
Covered by Victron's 5-year warranty

Current Connected is YOUR Victron product specialist
About the Victron Temperature Sensor ASS000001000
This sensor gives your Victron charger the battery's actual temperature instead of a guess. As the bank warms up, the charger lowers its charge voltage, which protects maintenance-free lead-acid batteries that would otherwise dry out from overcharging. Fast charging heats a bank quickly, and this is the part that keeps a big charger in check.
One part number covers most of the Victron lineup: MultiPlus and Quattro inverter chargers, GX devices like the Cerbo GX, VE.Can MPPT solar chargers, the Lynx Shunt VE.Can and the Skylla battery chargers.
MultiPlus and Quattro Temperature Sensor for Compensated Charging

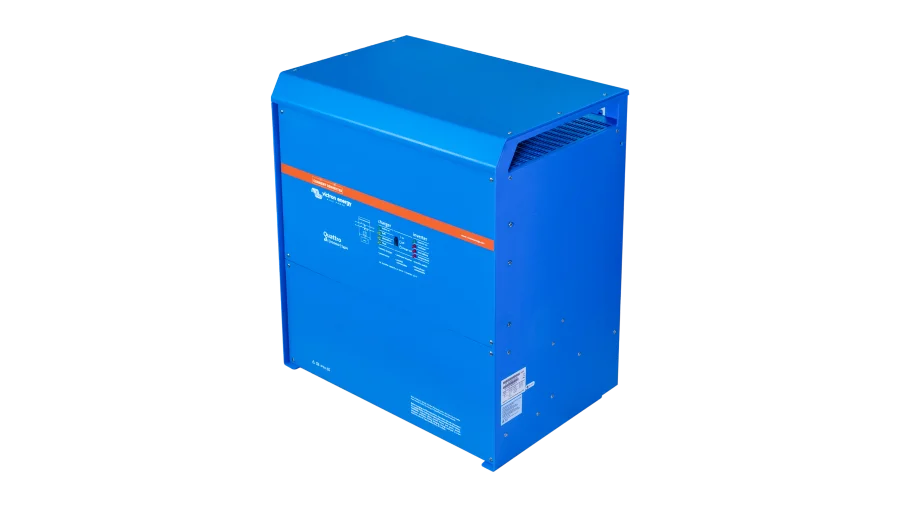

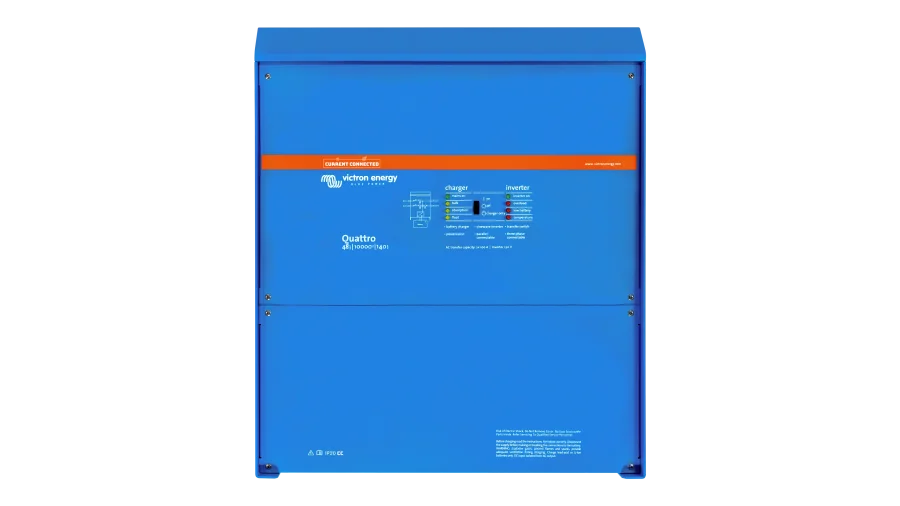

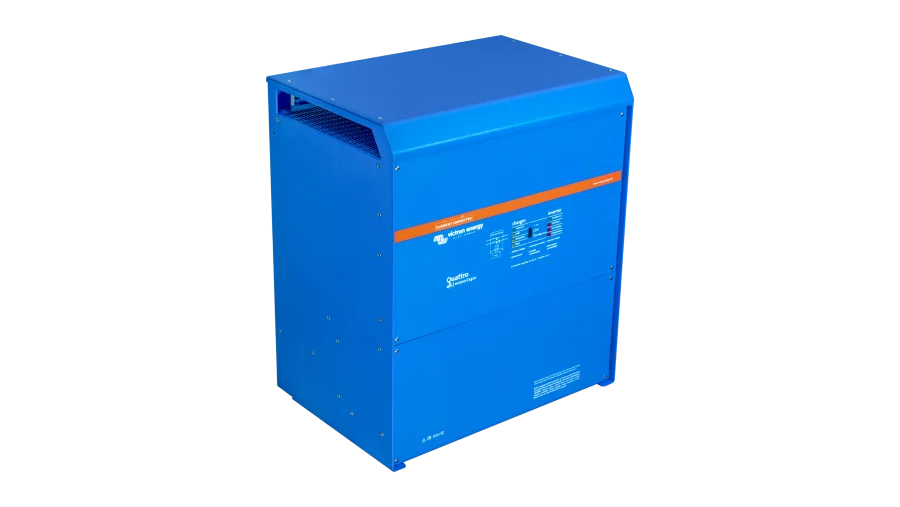

On a MultiPlus, MultiPlus-II or Quattro, the sensor mounts on the battery's negative terminal, and its two wires land on the inverter charger's temperature sense + and - terminals. Victron's sensor is isolated, and for fast charging Victron recommends fitting it right on the battery bank, since high currents can heat batteries considerably.
Some Victron inverter chargers include a sensor in the box and some don't. The 48V MultiPlus-II models ship without one, so add this sensor to your order with a MultiPlus-II 48/5000 if you want temperature-compensated charging.
Cerbo GX Temperature Sensor Installation and Setup

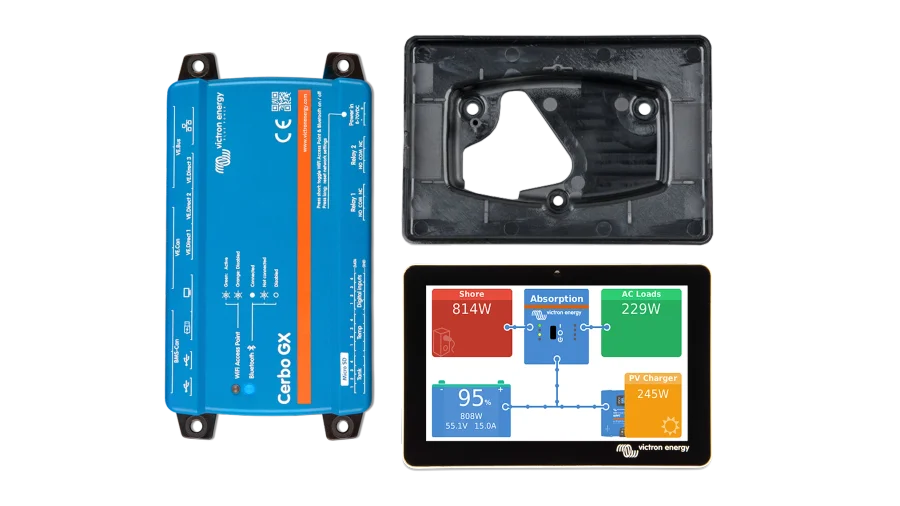

A Cerbo GX has four temperature inputs, and the Ekrano GX and Venus GX have two each. GX devices don't include sensors, so order one for each input you plan to use. Strip about 3/8 in (10 mm) of each wire or crimp on a ferrule, then land the red wire on the top terminal and the black wire on the bottom.
Turn each input on under Settings > Integrations > Tank and Temperature Sensors, and set it as a battery, fridge or generic sensor. An offset and a 1 to 10 multiplier let you correct the reading. From there, a Cerbo GX bundle can switch a relay on temperature to run a battery box fan or heater, which Victron covers in the GX manual under battery heating and cooling control.
Which Victron Temperature Sensor Do You Need?
Victron makes several temperature sensors, and they don't swap. This one, ASS000001000, is the sensor Victron specifies for GX temperature inputs and the one MultiPlus, Quattro, VE.Can MPPT, Lynx Shunt VE.Can and Skylla chargers use.
BMV-702 and BMV-712 battery monitors, the SmartShunt and the VE.Bus Smart Dongle take the Victron BMV and SmartShunt temperature sensor (ASS000100000) instead, and that one won't work on a GX temperature input.
Bluetooth VE.Direct MPPTs and Smart IP43 chargers use the Smart Battery Sense, and the Inverter RS and MPPT RS take Victron's Type C sensor.
Recommended Accessories
Frequently Asked Questions
Victron's Quattro manual calls for one sensor in a multi-unit system. If you fit more than one, temperature compensation follows whichever sensor reads the highest.
It depends on the model. Victron includes one with the 120V Quattro 5kVA and 10kVA models and with the 12V and 24V MultiPlus-II 120V models. The 48V MultiPlus-II models and GX devices like the Cerbo GX ship without one.
Unplug the sensor at the inverter charger. If charging works normally after about a minute, Victron says to replace the sensor. When the absorption and float LEDs flash together, the unit is reading an implausible battery temperature, which points to a failed or miswired sensor.
Yes. Victron says the cable can be shortened without any issue, so you can trim it to a clean run between the battery and the inverter charger or GX device.
Yes. Victron's GX manual lists supported Bluetooth temperature sensors for the Cerbo GX and other GX devices. For the wired temperature inputs on a GX device, and for temperature-compensated charging on a MultiPlus or Quattro, this ASS000001000 is the sensor Victron specifies.
