Victron Cerbo GX (MK2) Kit

SKU: Unassigned

The Cerbo GX and GX Touch combination sets a new standard for professional-grade control, allowing you to take control and monitor your system with confidence and efficiency. The Cerbo-GX is a pi-based computer that connects to each component of your system and monitors every single aspect. With the data collected, a complete power-flow chart is sent out to the GX Touch display for you to view and scroll through the various data points. The Cerbo-GX also facilitates connecting the system to the internet via WiFi, Ethernet or 4G (accessory required), giving you full monitoring and control from anywhere in the world.

From: $495.55

Victron Cerbo GX MK2 System Controller

The Cerbo-GX is a raspberry PI based computer extended with multiple communication ports for connections to the various components that make up a Victron power system.  Victron custom made a Linux based operating system for this device, known as Venus OS, which provides at-a-glance data locally and transmits this data to Victron's remote monitoring website known as VRM.  The Cerbo-GX can be connected to the internet with either a hardwired LAN connection, WiFi, or even a 4G LTE connection with the appropriate dongle.

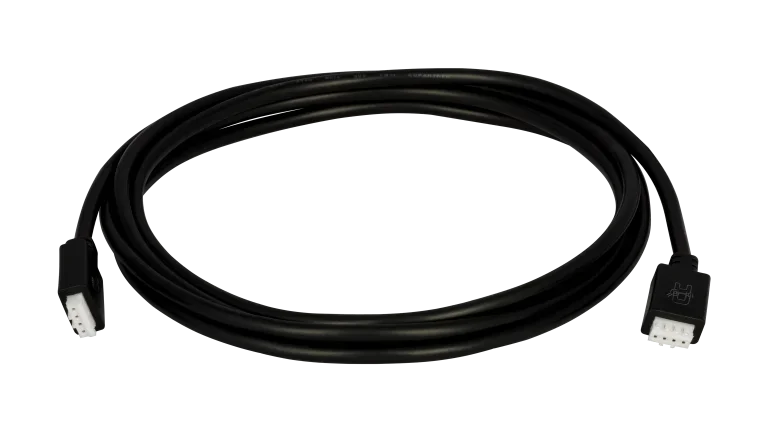

This device will require power from your battery bank and is compatible with any system from 9 to 70 volts.  For monitoring your system in person, you will need a screen such as the GX touch or a mobile device to use the WiFi direct functionality.  Inverters, solar controllers and shunts are connected with RJ45 Ethernet cables and/or their appropriate VE.Direct cable.  Additional functionality includes tank level sensing, auxiliary relays (such as alarm-out or auto generator start) and data logging to an SD card.

$275.40

7 in stock (Accepting backorders for additional units.)

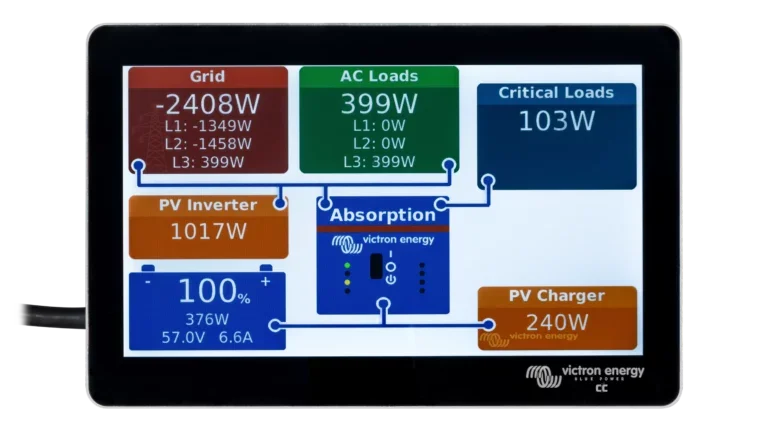

Victron GX Touch 50/70 Display for Cerbo GX

The Victron GX Touch Display is an accessory for the Cerbo GX allowing control and monitoring of the system right at the installation. The touch screen is hardwired into the Cerbo, meaning there is no need for wifi or Bluetooth connection to monitor the system. This touch screen allows real-time monitoring of all the Victron components, such as the flow of current, inverter state, and charge controller output. That being said this unit does not do this alone and must have the CerboGX to work.

Features:

  • Instant overview of your system's performance
  • Intuitive touchscreen interface for effortless control
  • Seamless integration with the Cerbo GX via a single cable
  • Super slim, waterproof design for flexibility in dashboard setup
  • Top-mountable installation for a clean and professional look
  • The streamlined installation process with no need for complex cut-outs
  • Achieve perfect control over your system through the VRM portal
  • Enhanced connectivity with Bluetooth capability



Bundle & Save with our Victron Cerbo GX Kit!

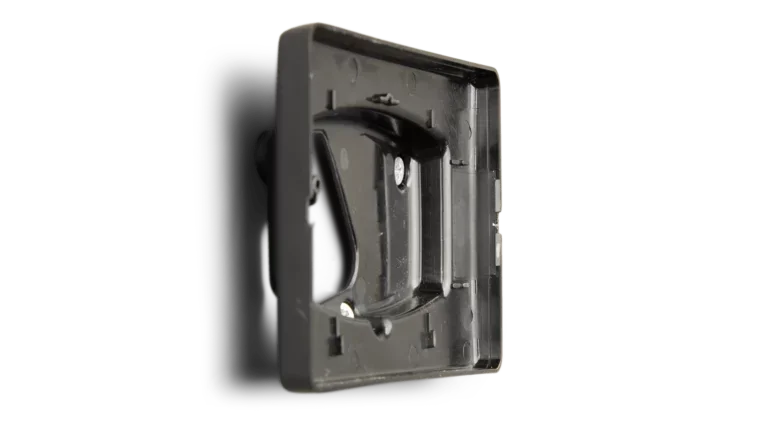

Victron GX Touch Wall Mount Bracket

The GX Touch Wall Mount Bracket is a mounting system for the GX Touch display. This mounting hardware is designed to allow the cabling of the GX Touch to have room to exit out of the bottom of the bracket. It comes in both 5-inch and 7-inch versions. It comes with the bracket itself and the screws to mount it to the wall. The GX Touch Display is NOT included.

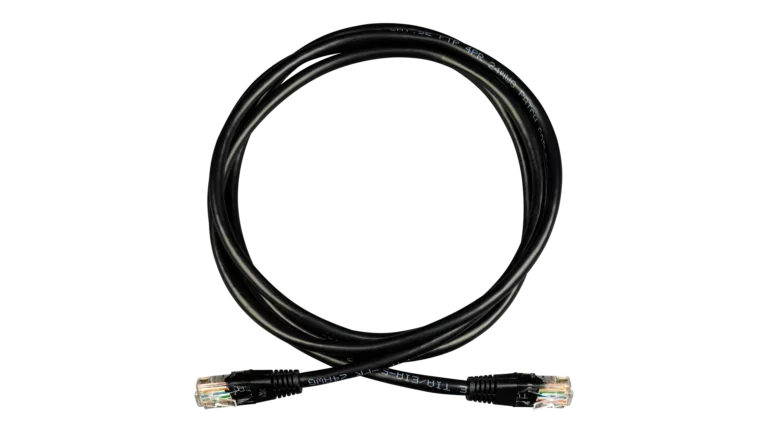

RJ45 / CAT5e Cables - For VE.BUS, VE.CAN and BMS.CAN ports

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with SOK 48V100Ah Server Rack Battery & Victron VE.BUS / VE.CAN products

Recommended Accessories:

Additional information

Brand

Victron

Victron Cerbo GX MK2 System Controller

Weight 3 lbs

Victron GX Touch 50/70 Display for Cerbo GX

Weight 3 lbs

Victron GX Touch Wall Mount Bracket

Weight 2 lbs

RJ45 / CAT5e Cables - For VE.BUS, VE.CAN and BMS.CAN ports

Weight N/A
