Pytes V-Box-IC Stackable Indoor 3-Slot Battery Rack for Pytes V5 Lithium Batteries, Galvanized Steel
SKU: PY-VBOX-IC
Product Summary
The Pytes V-Box-IC stores up to three Pytes V5 batteries in a single rack with wheels. It stores up to 15.36kWh and can stack with one additional rack for a total storage capacity of up to 30.72kWh.
Specifications:
- Holds up to three Pytes V5 batteries
- Floor mount
- Galvanized steel
- Weight: 93lbs
- Dimensions (H×W×D): 25.6×21×24.3in
Log in to check member price and detailed stock information.
Log in to see additional stock details
Current Connected is YOUR Pytes product specialist
About the Pytes V-Box-IC Indoor Battery Rack

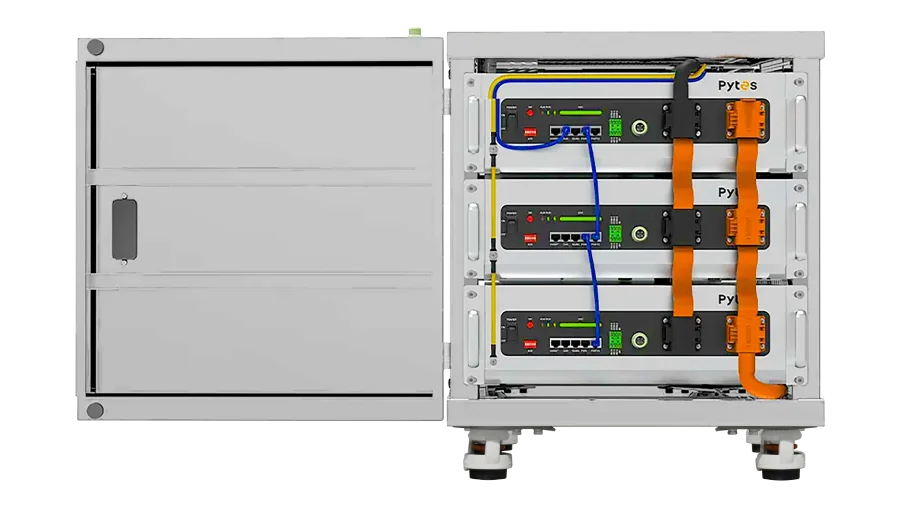

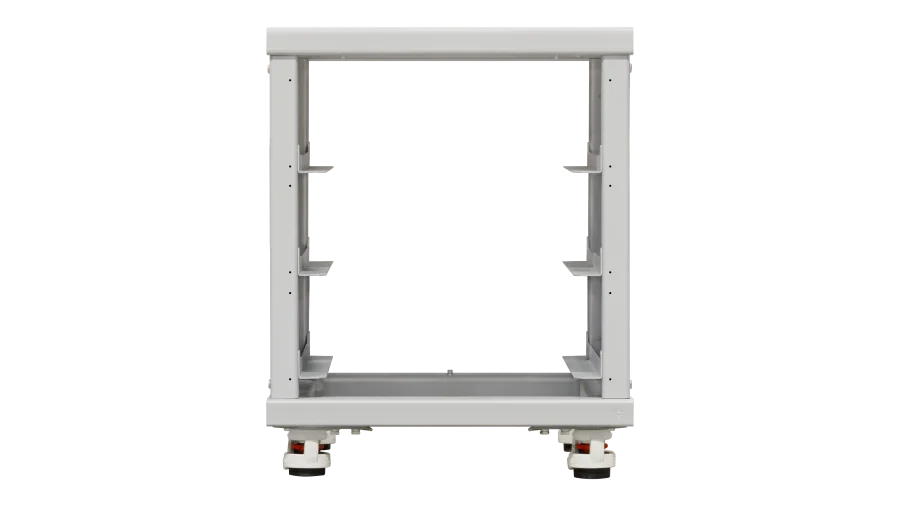

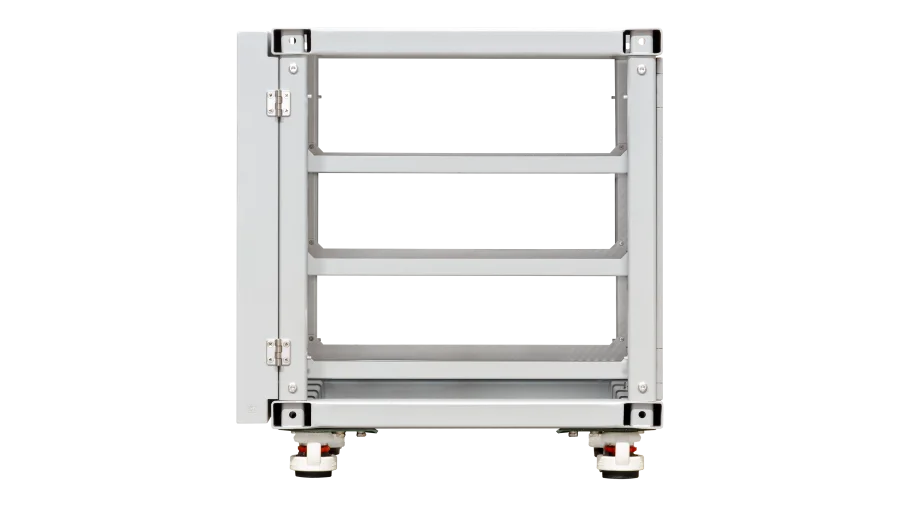

The Pytes V-Box-IC indoor battery rack provides a convenient storage location for up to three Pytes V5 batteries. Each cabinet comes with wheels, making it easy to relocate as needed. Each V5 battery stores 5.12kWh, so a full cabinet can have up to 15.36kWh. With a few steps, it's possible to stack two cabinets for a total storage capacity of 30.72kWh.
Capacity and Use
A single V-Box-IC with three V5 batteries can power small home loads like lights, a refrigerator, and device charging during emergency backup. Depending on the loads powered, 15.36kWh can run these devices for a day or two. Large loads like air conditioners, washing machines, or heaters can run from this same amount for several hours.
Expandability
While the rack holds three batteries, it's possible to use it with only one or two batteries. As system needs grow, the rack provides additional space to meet those needs, and the possibility of adding a second rack means the system can continue expanding over time.
Recommended Accessories
Frequently Asked Questions
Yes. The V-Box-IC is designed specifically for the Pytes V5 form factor. The rail spacing and securing hardware are built around the V5 dimensions. EG4, BigBattery, or other server rack batteries will not fit correctly.
No. Pytes rates the V-Box-IC for a maximum stack of two cabinets (six batteries, 30.72kWh). Stacking beyond two exceeds the weight rating and is not supported.
No. The V-Box-IC is the rack only. Battery interconnects are generally included with the batteries and inverter cables are purchased separately. Pytes offers V-Box-IC 4/0 AWG battery to inverter cables as an accessory.
No. You can start with one or two batteries and add a third later as your storage needs grow.
No. The V-Box-IC is an indoor rack. For outdoor installations, you'll need a weatherproof enclosure or an indoor location.
The rack is 93 lbs empty. Each Pytes V5 battery weighs approximately 114 lbs. A full 3-battery rack weighs roughly 435 lbs. Make sure your floor can support the load, and use the wheels to position the rack before loading batteries.
