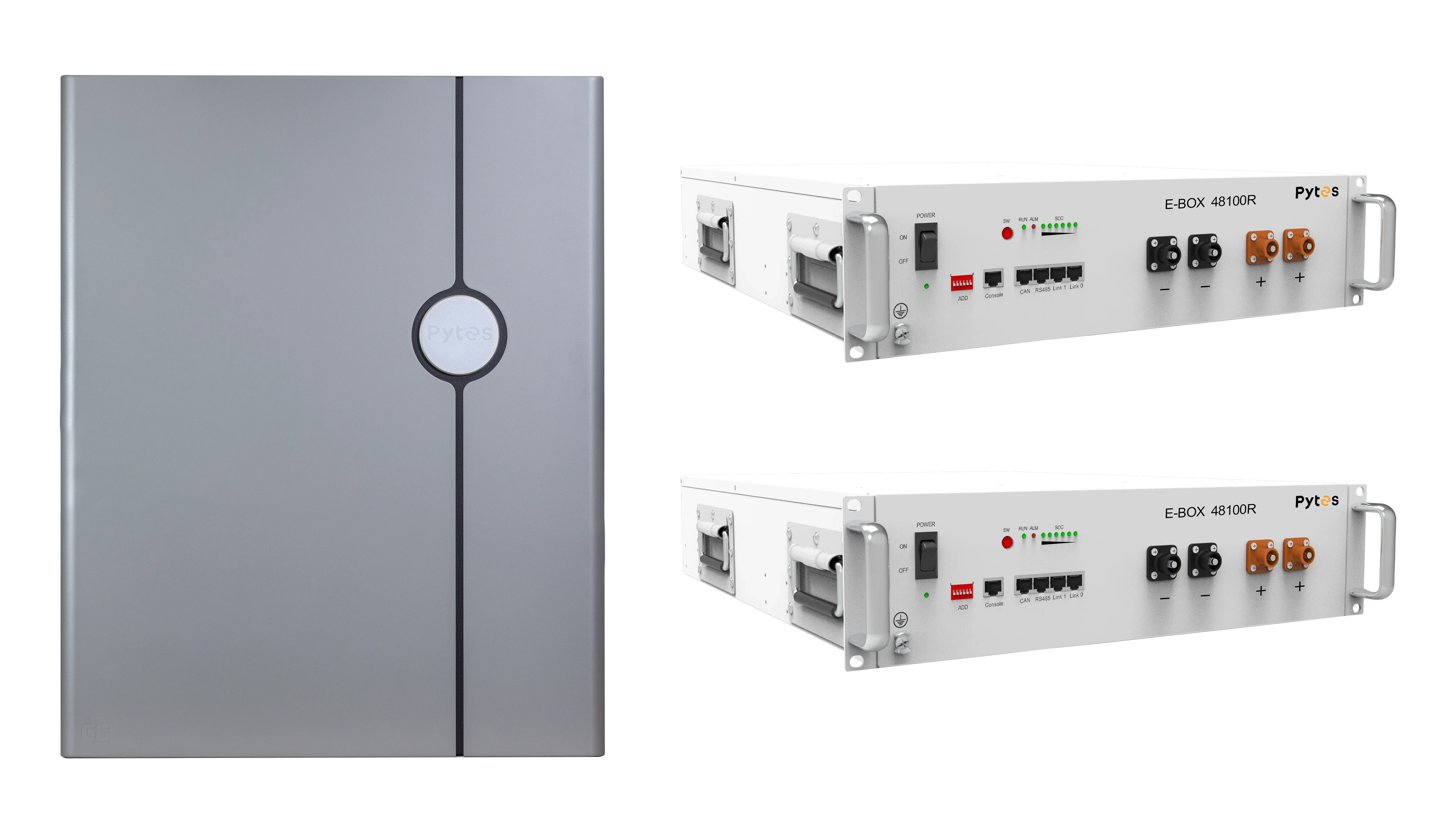

Pytes E-Box VR-BOX-IC Bundle, 10.24kWh of Storage for Partial Home Backup and Tiny Home Energy Storage

Specifications:

• Capacity: 5.12kWh
• Recommended charge/discharge current: 50A
• Max. continuous charge/discharge current: 100A
• Peak discharge current: 102A for 15s
• Communication options: RS232, RS485, and CAN ports
• Rated for 6000 cycles @ 0.5C or 10 years
• UL 1973, UL 9540A, UL 9540
• Weight: 112.5lb
• Dimensions (H×W×D): 4.6×17.3×24.4in

Note that Current Connected is providing the Pytes E-Box-48100R battery with the C16 label which support communication across 16 batteries.

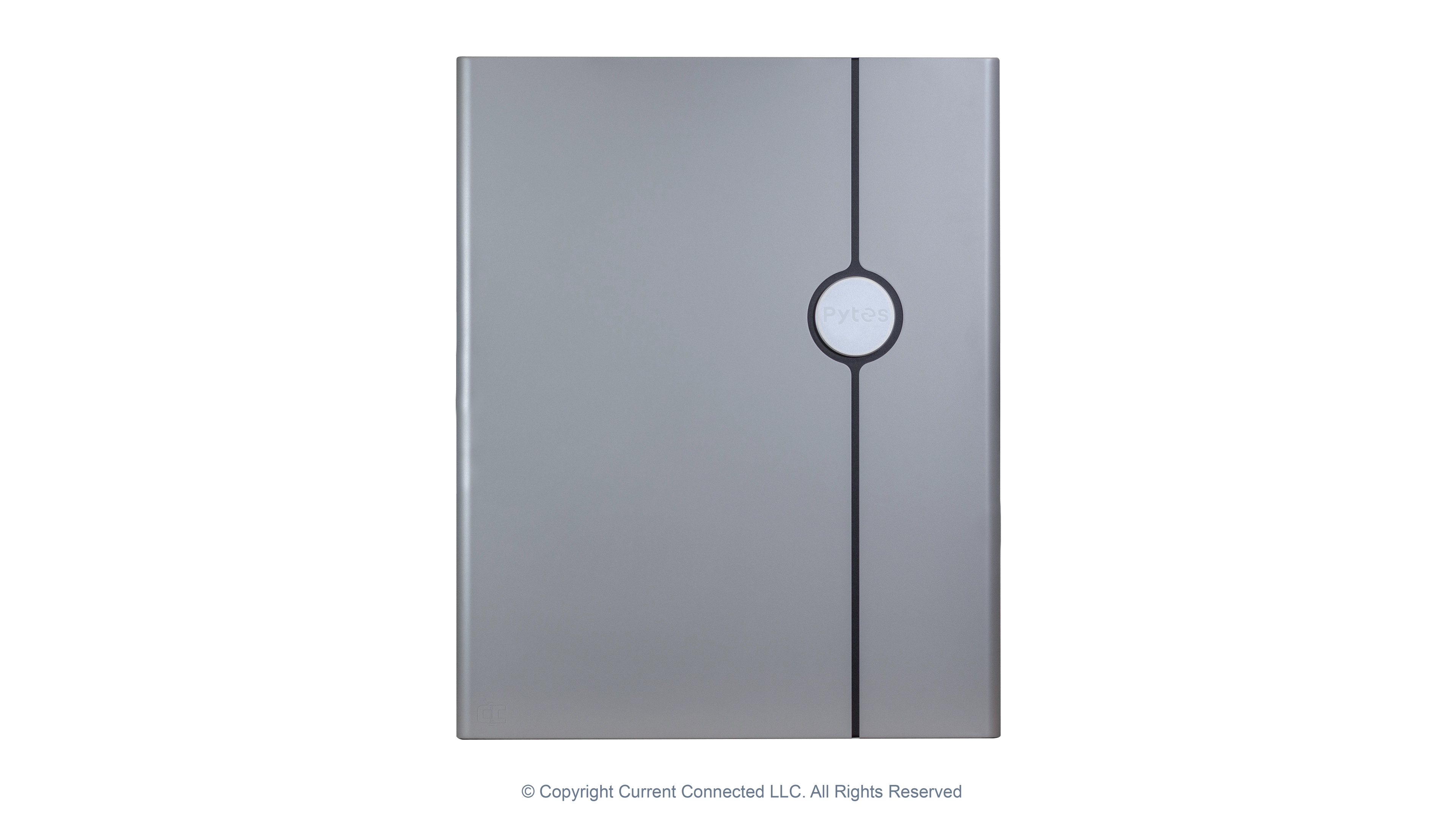

The Pytes VR-BOX-IC houses two Pytes V5 batteries or two Pytes E-Box 48100R batteries. It converts these two server rack batteries into a single wall mounted energy storage system with up to 10.24kWh of energy storage.

Specifications:

• Holds 2x V5 or 2x E-Box 48100R batteries
• Galvanized steel
• IP20
• Weight: 77.8lbs
• Dimensions (H×W×D): 33.5×26.8×13.4
