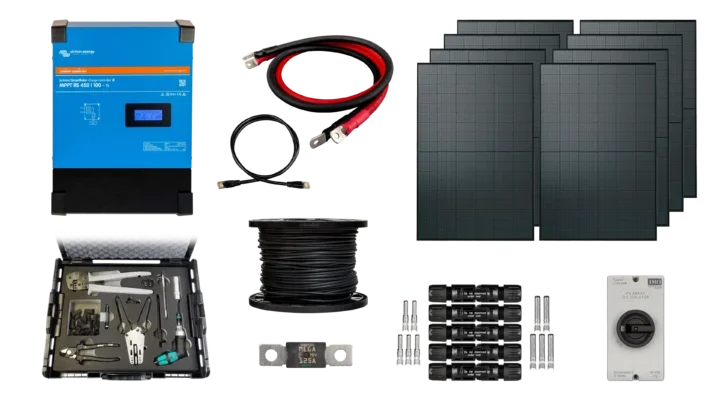

MPPT 450/100 + Axitec 440W Bundle

SKU: Unassigned
Placeholder

From: $2,640.53

High quality photo of the Victron - SmartSolar Charge Controller - Listing Image. Photographed by Current Connected

Victron MPPT RS 450V/100A SmartSolar Charge Controller

High-voltage solar charge controller for 48V battery systems with up to 450V DC PV input and independent MPPT trackers (2 on the 100A model, 4 on the 200A model). Each tracker supports up to 4,000W of PV, with MC4 connectors for direct solar string connection and full galvanic isolation between PV and battery.

Specifications:

  • Rated output: 100A (5,760W) or 200A (11,520W)
  • Max PV VOC: 450V DC, MPPT range 65V to 450V, 120V startup
  • Max PV per tracker: 4,000W / 16A operating / 20A short-circuit
  • Trackers: 2 (450/100) or 4 (450/200)
  • PV input: MC4 (one pair per tracker), battery: M8 studs
  • Communication: VE.Direct, VE.Can, Bluetooth
  • Parallel: Up to 25 units via VE.Can
  • Efficiency: 96% peak, operating temp -40°C to +60°C
No Background-02

Axitec 440W Bifacial Monocrystalline Solar Panels with N-type TOPCon Cells, Dual-Sided Solar Panels for Residential and Commercial Solar Installations

The Axitec 440W bifacial panels are designed with monocrystalline N-type cells and TOPCon technology. This makes them ideal for flat roofs or ground mount installations in snowy geographies.

Specifications:

  • Wattage: 440W
  • Open-Circuit Voltage (Voc): 39.83V
  • Short Circuit Current (Isc): 14.34A
  • Operating Voltage (Vmp): 32.24V
  • Operating Current (Imp): 13.65A
  • 108 Cells (Split cell technology)
  • Monocrystalline, bifacial
  • Efficiency: 22.53%
  • Temperature Rating: -40-185°F
  • Certifications: UL 1703, UL 790
  • Weight: 52.47lbs
  • Dimensions (H×W×D): 67.80×44.65×1.18in

These modules come on a pallet containing 36 units. We recommend purchasing a full pallet for optimal shipping rates. However, we will build a custom pallet for smaller orders, at a minimum of 8 units.

$224.20 each

216 in stock

1/0 AWG Battery Cables

1/0 AWG Pure Copper Battery Cables - Red and Black

  • Set includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Also available in: 6AWG, 2 AWG, 2/0 AWG, 4/0 AWG
  • Single Jumpers also available: 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG
LittelFuse MEGA Fuse

LittelFuse MEGA Fuse – 125A for 48V Systems – 2 Pack

Specifications:

  • Pack of two (2) fuses - always good to keep a spare
  • Rated for 70Vdc - compatible with 12V, 24V, and 48V systems
  • 60A to 350A options available
  • Compatible with the MEGA Fuse Holder and Victron Lynx Distributor.
  • Interruption rating: 2500A @ 70Vdc
  • 1MΩ open state resistance @ 100V
  • Manufactured by LittelFuse
Ethernet Cable 5

Solar to Cerbo-GX Communication Cable: CAT5e RJ45 Cable

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with Victron VE.Bus / VE.Can products
High quality photo of the IMO DC Disconnect Rooftop Isolator Switch 4 Pole - 2 String Front view. Photographed by Current Connected.

IMO 600V DC Disconnect Rooftop Isolator Switch, Solar Panel Disconnect for Rooftop or Ground Mount PV

The IMO SI32-PEL64R-X is a 600VDC / 32A rooftop DC disconnect switch for safely isolating solar panel strings during installation and maintenance. NEMA 4X rated with UV-resistant plastic, guaranteed arc suppression in 3ms, and available in 4-pole (2 string), 6-pole (3 string), and 8-pole (4 string) configurations.

Specifications:

  • Max current rating: 32A
  • Max voltage rating: 600VDC
  • Protection rating: NEMA 4X
  • Guaranteed arc suppression (3ms typical)
  • Operator independent switching mechanism
  • UV-resistant, self-extinguishing enclosure
  • Polarity independent
  • Available in 4, 6, and 8 pole configurations
PV-Wire Black Red Both Vertical

10 AWG Solar PV Cable, Bulk 500Ft Spool of 103 Strand Red or Black XLP PV Wire, RHW-2 and USE-2 Applications

500 feet of 10 AWG solar PV Cable works in most residential or commercial solar systems. The cable is black in this kit, though red is also an option when purchased separately.

  • Type XLP PV Cable
  • Suitable for use as RHW-2 or USE-2
  • 90°C wet or dry insulation rating
  • Suitable for direct burial
  • Sunlight resistant
  • UL4703 Listed
  • 600VDC rated
  • .26" outer diameter

Note: Spool occasionally varies from wood to plastic. The spool may arrive slightly different than the picture, however, the wire will be identical.

High quality photo of the Staubli - KITMC4-5PK - MC4 Connectors 5 Pack Full Kit View photographed by Current Connected

Stäubli Classic MC4 & MC4-Evo 2 Connectors, Rated for 1100V and 35A, 5 Pair Bundle, Options Support 4.7mm to 8.8mm Wire Jacket Diameter

Stäubli’s MC4 and MC4-Evo 2 connectors are critical for any solar installation. They are the industry standard for solar connections. The Stäubli MC4 tool kit enables capability for IP68 rating and UL certification.

Specifications:

  • Industry standard solar connector
  • Fits 12 AWG and 10 AWG PV wire with a total diameter (including insulation) between 4.7mm and 8.8mm depending on the model chosen
  • Package includes five plug ends and five socket ends
  • Stäubli Open-Ended Spanner necessary to unlock joined connectors
Staubli – 32.6128-64100 – MC4 and MC4-Evo 2 Connector Installation Tool Set (UL) – Case Open Bottom Only

Stäubli MC4 and MC4-Evo 2 Connector Installation Crimper Tool Set, Tools to Attain UL Rating for MC4 and MC4-Evo 2 Connectors

The Stäubli MC4 Tool Set includes every tool required to achieve UL certification and IP68 rating when installing MC4 and MC4-Evo 2 connectors. Includes crimping pliers, dies, stripping pliers, cable shears, assembly spanners, torque tool, test plug, and 20 sealing caps in a carrying case.

Specifications:

  • Only tool kit capable of achieving IP68 rating and UL certification for Stäubli’s MC4 and MC4-Evo 2 connectors
  • Includes 7 tools and 20 sealing caps
  • Includes two open-end spanners which double as unlocking tools
  • Comes with a carrying case

9 in stock (can be backordered)

Currently accepting backorders
We will ship your order as soon as stock arrives
Log in to see additional stock details

Additional information

Victron MPPT RS 450V/100A SmartSolar Charge Controller

Weight N/A
Dimensions 21 × 16 × 9 in

Axitec 440W Bifacial Monocrystalline Solar Panels with N-type TOPCon Cells, Dual-Sided Solar Panels for Residential and Commercial Solar Installations

Weight 55 lbs
Cell Type

Monocrystalline Half-Cut
Module Type

Bifacial (Double Sided)
Color

Black

1/0 AWG Pure Copper Battery Cables - Red and Black

Weight N/A

LittelFuse MEGA Fuse – 125A for 48V Systems – 2 Pack

Weight .25 lbs
Dimensions 2.75 × .75 × .25 in

Solar to Cerbo-GX Communication Cable: CAT5e RJ45 Cable

Weight N/A

IMO 600V DC Disconnect Rooftop Isolator Switch, Solar Panel Disconnect for Rooftop or Ground Mount PV

Weight N/A
Poles

4 Pole (2 String), 6 Pole (3 String), 8 Pole (4 String)

10 AWG Solar PV Cable, Bulk 500Ft Spool of 103 Strand Red or Black XLP PV Wire, RHW-2 and USE-2 Applications

Weight 30 lbs
Color

Black

Stäubli Classic MC4 & MC4-Evo 2 Connectors, Rated for 1100V and 35A, 5 Pair Bundle, Options Support 4.7mm to 8.8mm Wire Jacket Diameter

Weight 1 lbs
Style & Wire Outer Diameter

Classic MC4: 5.5-7.4mm, Evo 2: 5.9-7.3mm, Evo 2: 6.4-8.4mm

Stäubli MC4 and MC4-Evo 2 Connector Installation Crimper Tool Set, Tools to Attain UL Rating for MC4 and MC4-Evo 2 Connectors

Weight 12 lbs
