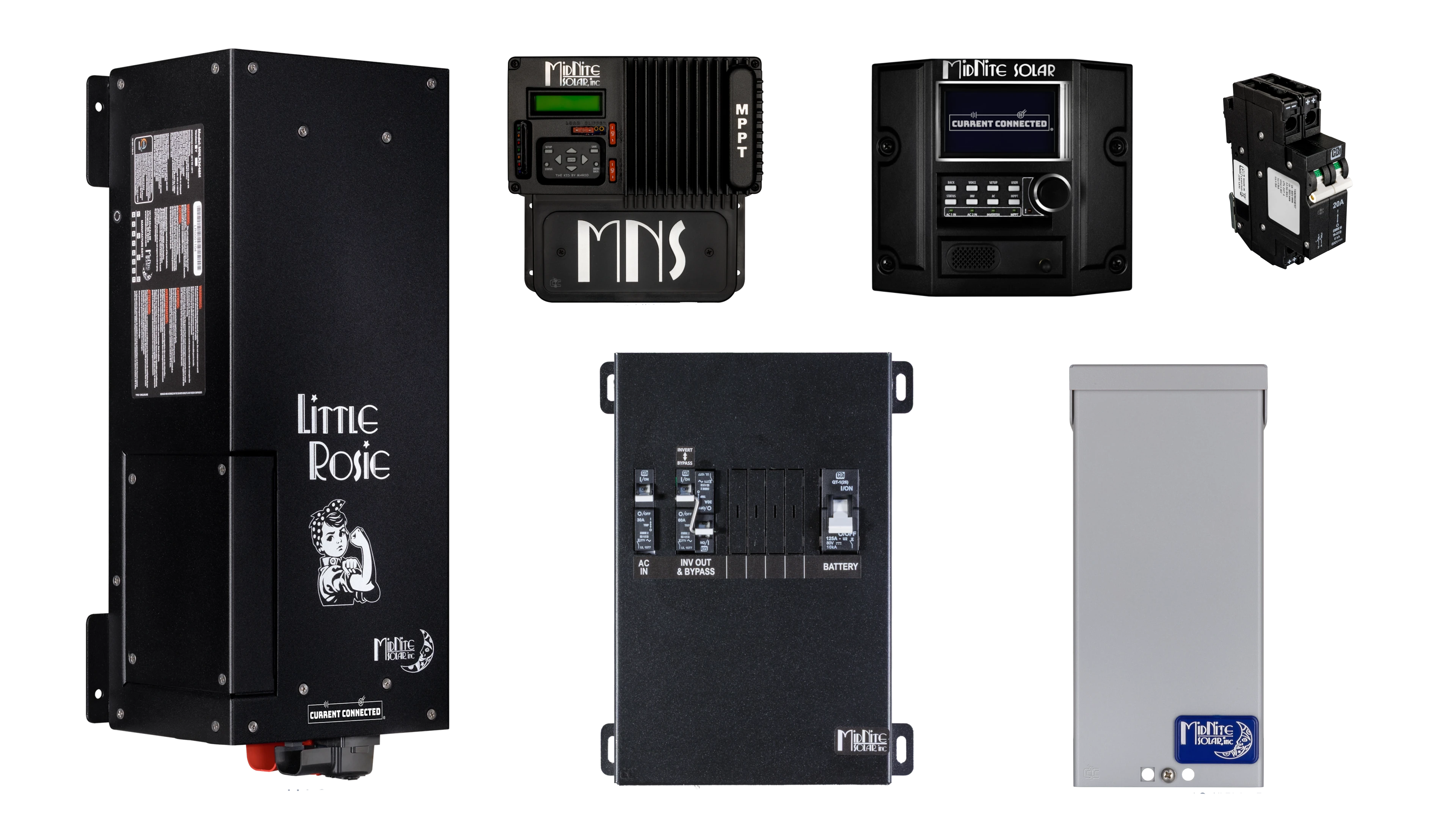

MidNite Solar Mobile Bundle, Includes Inverter, Solar Charge Controller, PV Breakers, and More!

The MidNite Little Rosie is a 3.6kW pure sine wave inverter and 60A battery charger combo for 48V battery systems. Its dynamic neutral-ground bond relay makes it ideal for mobile power systems.

The Little Rosie is manufactured with one of the two same inverter boards as the Rosie 7048RE. This means the same impressive surge capacity that the Rosie is known for applies.

Key Specifications:

• 3.6kW off-grid inverter - 5.4kW surge capacity for 5 seconds
• 120V single phase, 60 Hz
• 60A battery charger
• 30A automatic transfer switch - transfers from AC input to inverter
• Made in the USA
• UL 458 certified
• Weight: 15lbs
• Dimensions (H×W×D): 6×20.25×9in

The Little Rosie E-Panel pairs with the Little Rosie RE or Little Rosie M to provide overcurrent protection, a DC disconnect, and additional breaker knockouts for an alternative energy system. Choose MidNite for American made products.

Specifications:

• Maximum battery input: 160Vdc
• Maximum PV input voltage (DC): 600Vdc
• Maximum DC input short circuit current (DC): 10kAIC
• AC operating voltage: 120Vac
• UL 1741
• Weight: 5.5lbs
• Dimensions (H×W×D): 12×9×6.25in

The MNGP2 is the central controller for MidNite Solar's current-generation product line. It aggregates data from every device on the CAN bus (inverters, charge controllers, battery BMS), processes system-wide current limits, and distributes those limits to individual devices. It also serves as the programming interface, monitoring display, and provides spoken voice alerts.

Specifications:

• Communication: CAN bus via dual RJ45 ports, Bluetooth for firmware updates
• Compatible devices: Rosie, Little Rosie, Barcelona, Hawke's Bay, WhizBang Jr.
• Navigation: Rotary dial with push button
• Display: LCD with graphical interface
• Voice alerts: Configurable (off, errors, warnings, menu, or all) with quiet hours
• Enclosure rating: Type 1 (indoor)
• Includes: One Cat5/Cat6 CAN cable
• Made in the USA, 5-year warranty

Specifications:

• LCD display plus status-indicating LEDs
• Takes in up to 150Vdc from solar panels
• Battery voltage range: 9V to 64V
• Charges up to 30Adc
• Works with Lithium, lead-acid, and other battery chemistries
• IP50 with conformal coating
• Fits up to 10 AWG cable in PV Input, load, and battery-out terminals
• Certified to UL 1741 and UL 458
• Designed and assembled in the USA
• Weight: 6lbs
• Dimensions (H×W×D): 5×9.25×3.3in

The MidNite MNEPV 600V Breaker is good for high-voltage systems that need a two-pole breaker. With two versions, the 15A and 20A, these are ideal for any 600VDC system.

Specifications:

• Width: 1 inch (26mm)
• Environmental Rating: Type 1 (Indoor)
• Listed for US & Canada
• Din Rail Mount
• 2-pole

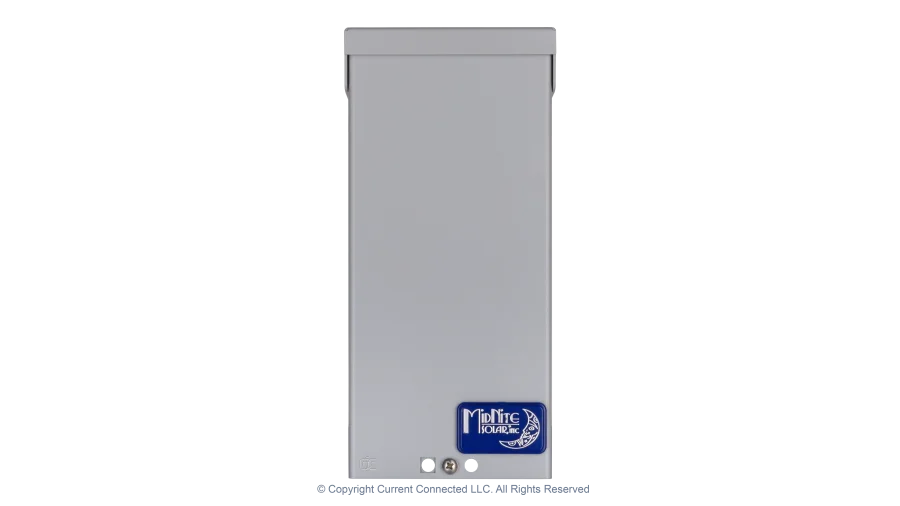

MidNite Solar's MNPV series of combiner boxes facilitate the flexibility and safety that solar arrays require.  Whether you have a small array with just a couple strings, or a large array of up to 12 strings, the MNPV series provides solutions to problems often overlooked.

Common Applications Include:

• Joins together multiple series strings in parallel to consolidate wiring to high-current MPPT solar controllers
• Houses circuit breakers to act as an overcurrent protection and disconnecting means, enabling proper shutdown of a PV array
• Convenient place to install a MidNite Surge Protector for lightning protection at the solar array
• Provides an easy entry point for future expansion of a PV system
• Encloses exposed raw PV wire into conduits running to your charge controller
