Configure Your System
Fuse Holder
RequiredChoose Fuse Holder*
Product Details

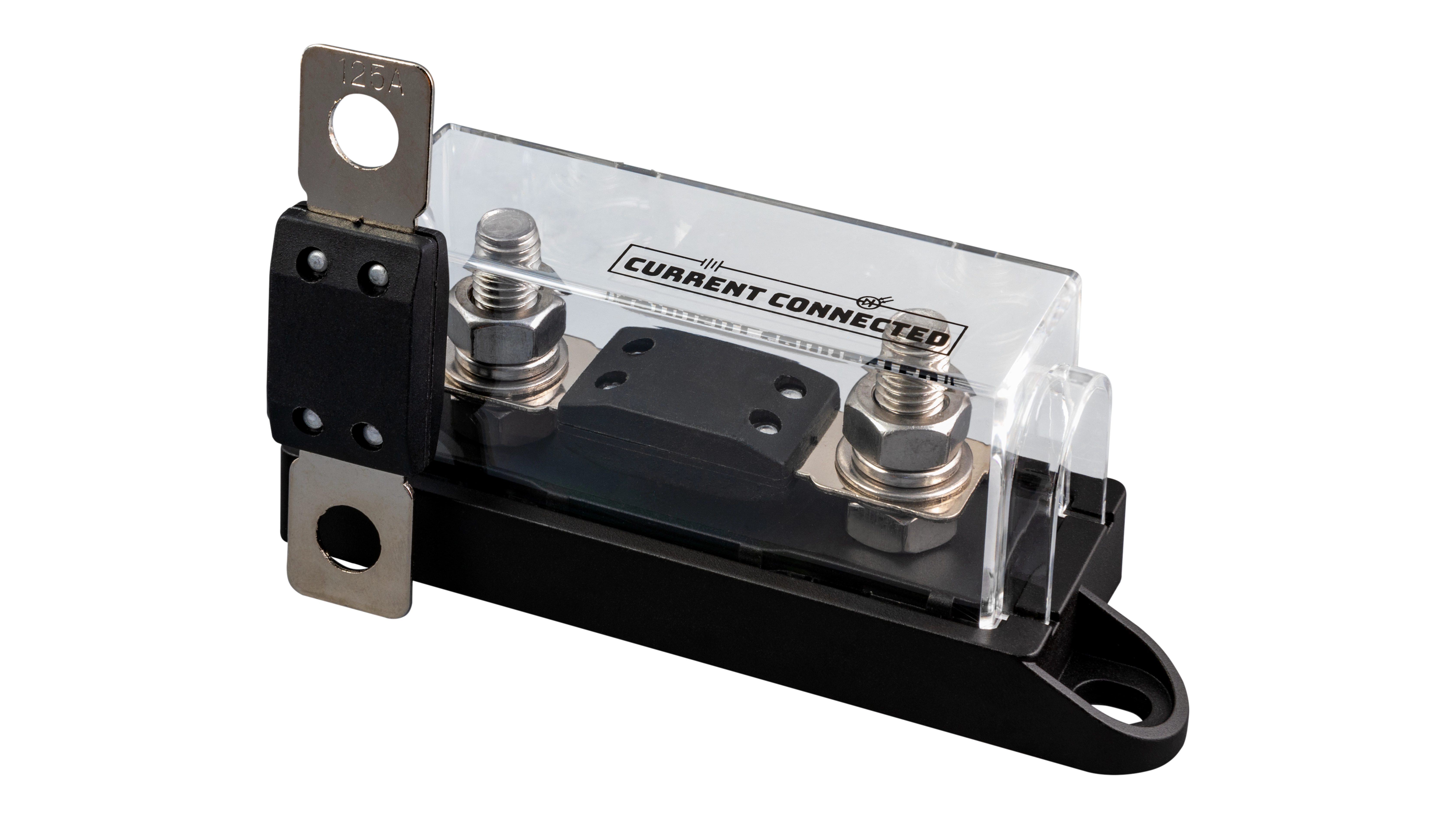

MEGA Fuse Holder, Fits MEGA and AMG Fuses, Up to 70Vdc, 5/16" Steel Studs, Accepts Lugs up to 1/0 AWG, Clear Cover, for 12V/24V/48V Energy Storage Systems
Single-fuse holder for MEGA and AMG fuses, used to protect inverter, charger, and DC distribution circuits in 12V, 24V, and 48V systems. Two 5/16″ steel studs accept lugs up to 1/0 AWG, and a clear cover insulates the live terminals while keeping the fuse visible.
Specifications:
-
Compatible fuses: MEGA and AMG format (sold separately)
-
Max voltage: 70V DC
-
Terminal stud size: 5/16″
-
Stud material: Steel
-
Max cable lug: 1/0 AWG
-
Recommended torque: 89 in-lb (10 Nm)
-
Cover: Clear insulating cover, included
-
Mounting: Two-hole tab mount
| Need more than what's available? Tell us what you need and we can source it for you. |
Fuses
RequiredChoose Fuses*
Product Details
Littelfuse MEGA Fuse 70V, 998 Series, 60A-350A, 2 Pack, for 12V/24V/48V Battery Systems, 2.5kAIC, M8 Bolt-Down
Littelfuse 998 Series MEGA fuses are rated for 70Vdc, more than double the 32V rating of the standard Littelfuse MEGA fuse, so they protect branch circuits on 48V battery systems as well as 12V and 24V. Each 2 pack bolts onto M8 studs in a MEGA fuse holder or a Victron Lynx Distributor.
Specifications:
-
2 pack of Littelfuse 998 Series fuses (0998xxx.UX-2M8), ISO 20934 Type SF51
-
Rated 70Vdc for 12V, 24V and 48V battery systems
-
Interrupting rating: 2,500A at 70Vdc
-
60A to 350A; the 300A carries 75% of its rating continuously, and the 350A is for short-circuit protection only
-
Time delay: opens in 1 to 15 seconds at 200% of rating
-
Two 0.34 in (8.6 mm) bolt holes for M8 studs; fits MEGA fuse holders and the Victron Lynx Distributor
-
Recommended ambient range: -40°F to 257°F (-40°C to 125°C)
-
Tin-plated copper alloy terminals and a PPA-GF33 housing with color-coded rating stamps
Loading options...
Kit Summary
| Component | Selection | Qty | Subtotal |
|---|---|---|---|
| – | $0.00 | ||
| – | $0.00 | ||
| Total | $0.00 | ||
Finish choosing your options above to continue.
Log in to check member pricing and detailed stock information.
Victron MEGA Fuse
The Victron MEGA Fuse is a versatile power protection solution for your 12/24V systems. It's engineered with precision and durability in mind, so you can be sure that your electrical circuits are protected against excessive current, even in the most demanding environments. With its robust design and reliable performance, the Victron MEGA Fuse is the perfect choice for any 12/24V system.
LittelFuse MEGA Fuse
The LittelFuse MEGA Fuse is the ultimate in circuit protection. Designed for high current applications up to 250 amperes, it features Diffusion Pill Technology for time delay characteristics. This makes it ideal for battery and alternator protection, as well as other heavy gauge cables requiring ultra-high current protection. The color coding makes it easy to identify the ampere rating, so you can be sure you're getting the right fuse for the job.
