Integra Rack IR-35A, adjustable frame (Individual Frame)

SKU: IR-35AF1000

A complete modular system for any size array. It’s simple and easy to expand with more mounts, just add another mount per panel.

  • No earth augers, no concrete, and no post ponding required
  • Only one main frame component is needed between each solar module to complete the entire ground mount system
  • It fits a wide variety of solar panel sizes
  • When purchasing these mounts, you will require one more mount than the solar panels you need (Ex: 4 panels, 5 mounts)
  • This is the individual frame

Available on pre-order

$139.99

-

Description

IntegraRack IR-35A BallastRack™ Solar Module Racking System

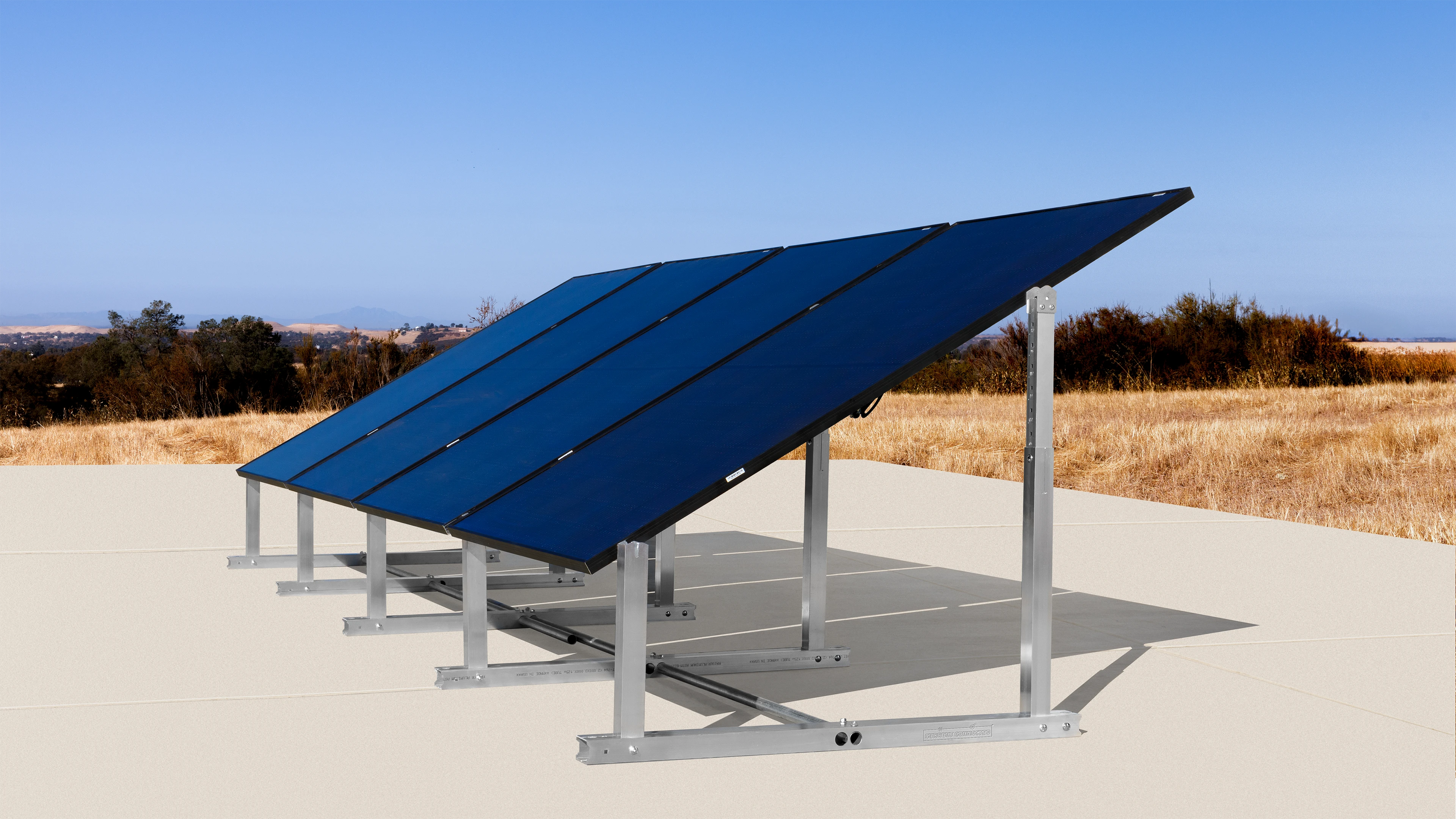

The IR-35A is the fastest and easiest ground mounting system available and allows for modules of any size to be racked at a fixed 35A° for optimal year-round energy production. This system can be mounted almost anywhere with its four available mounting options and is strong enough to withstand wind speeds of up to 150 miles per hour. The IR-35A is also the lowest cost per kW option on the market, with only one IR-35A Frame needed per solar module after starting the row, and no pouring of concrete footings required.

– Fast Assembly & Install

  • 2-minute assembly per IR-35A Frame
  • Installation as fast as 10 minutes per module
  • No earth augers, no concrete, and no post ponding required
  • Only one main frame component is required between each solar module to complete the entire ground mount system

– Universal Mounting

Four Mounting Options:

  • IR EarthBallast™ Kit – Uses fast-setting epoxy to adhere geotextile material to IR-35A Frames and earth fillover for a fast-ballasted system
  • IR AnchorSpike™ Kit – Mount IR-35A Frames by clamping the base tubes around specially designed anchor spikes that provide easy off-the-ground leveling
  • Concrete Lag Bolt Kit – Bolt the IR-35A Frames directly to any concrete surface (concrete pad, footings, or patios)
  • Base Ballasting – Hold IR-35A Frames in place using flat water tanks or concrete curb stops

– Most Cost Effective Ground Mounted Solar System

  • One of the lowest cost per kW ground mount racking systems on the market
  • Traditional ground mount solar racking systems take 6x longer to install and are much more labor-intensive
  • Capable of racking modules of up to 700 Watts

– High-Strength Engineered & Tested

  • Extensively engineered and outdoor lab tested with simulated real-world wind and snow load conditions
  • Build entirely from aircraft grade 6061 T6 aluminum with stainless steel mounting brackets
  • Capable of withstanding up to wind loads of up to 150 mph and snow loads of up to 100 pounds per sq ft (click manufacturers resources link below for detailed Datasheets)
  • A strong, simple “U” shaped design provides amazing strength

– Unprecedented Versatility

  • Fixed 35A° angle for optimal year-round energy production and excellent snow-shedding capabilities
  • Up to 2 feet of ground clearance

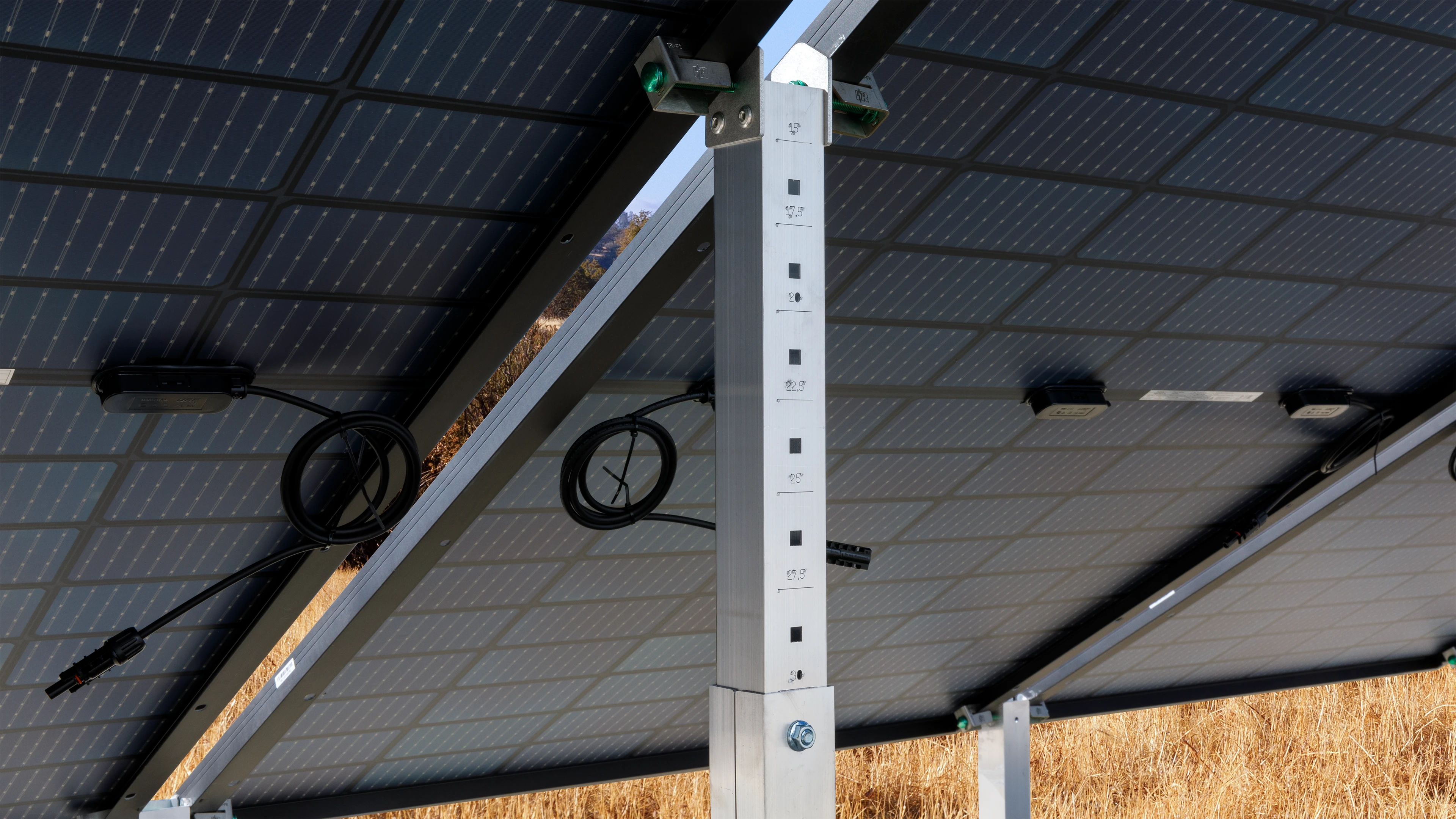

  • Adjustable solar module height

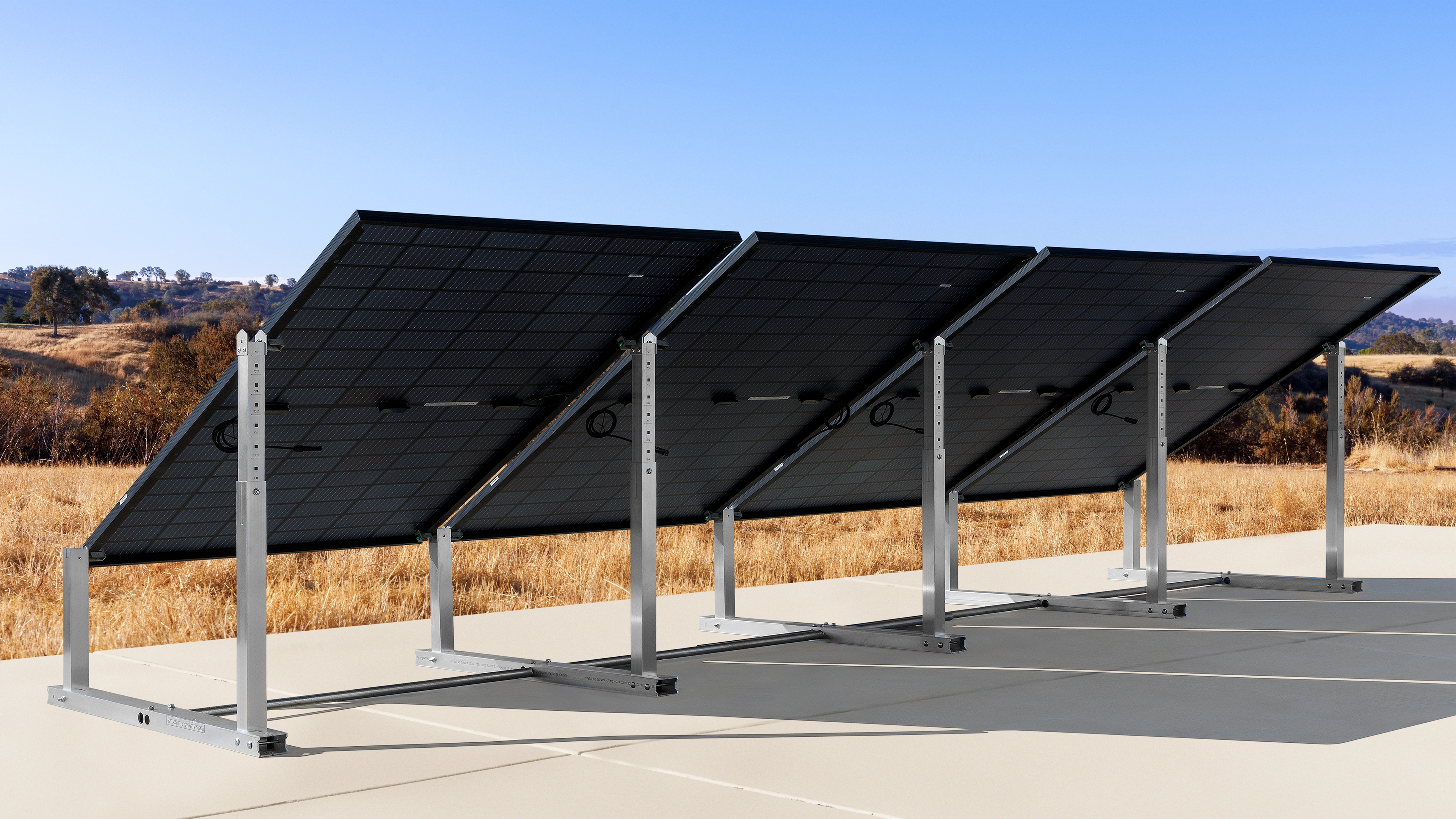

  • Portrait solar module mounting for easy wiring
  • The Base Tubes of each IR-35A Frame are designed to clamp around and bite into IR AnchorSpikes or concrete stakes for easy leveling and increased hold-down strength.

– Included Hardware:

  • (1) IR-35A Base Tube
  • (1) IR-35A Long Leg
  • (1) IR-35A Short Leg
  • (4) 5/16″-18 x 3.5″ Carriage Bolts
  • (4) IR-F2 Flange Clamp Bonding Brackets
  • (4) 5/16″-18 x 2.5″ Carriage Bolts
  • (8) 5/16″-18 Serrated Nuts
  • (4) 5/16″-18 x 5/8″ Thread Cutting Bolts

Additional Components Required For Some Mounting Configurations

1-inch EMT/Conduit Pipe (required for certain mounting options)

  • 1-inch EMT adds racking strength and helps with positioning for module spacing.
  • 10-foot-long Conduit Pipes can be sourced locally (Home Depot, Lowes, Electrical Hardware Store, Etc.).

Recommended Accessories:
