EG4 6-Slot Enclosed Battery Rack for Server Rack Batteries, Welded & Pre-Assembled Battery Storage
SKU: EG4EBR00V00A6SW
Product Summary
The EG4 6-slot enclosed battery rack is a pre-assembled, welded steel cabinet that holds up to six server rack batteries in a secure, ventilated enclosure. Ships fully assembled with 600A busbars, protective covers, and removable casters.
Specifications:
- Holds up to 6 standard 19-inch server rack batteries
- Heavy-duty welded steel with black powder-coated finish
- Included 600A busbars with protective covers
- Lockable, vented front door for security and passive airflow
- Top and bottom cable routing ports
- Removable casters
- Dimensions: 24 x 26 x 46 in
- Weight (empty): 100 lbs
Log in to check member price and detailed stock information.
We are working on restocking this item
Log in to see additional stock details
Current Connected is YOUR EG4 Electronics product specialist
About the EG4 6-Slot Enclosed Battery Rack

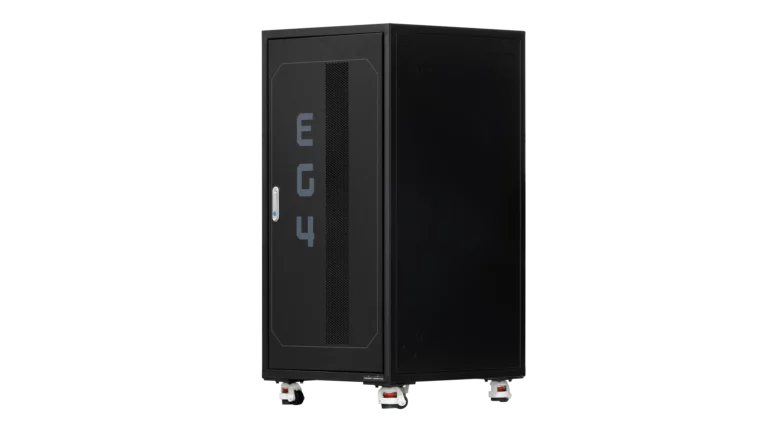

The EG4 enclosed battery rack holds up to six server rack batteries in a single freestanding steel cabinet. It ships fully welded and pre-assembled, so there's no frame to bolt together on site. Slide the batteries in, connect the included busbars, route your cables, and the installation is done. At 24 x 26 x 46 inches it fits in a garage, utility closet, or mechanical room without taking up more floor space than necessary.
What It Holds

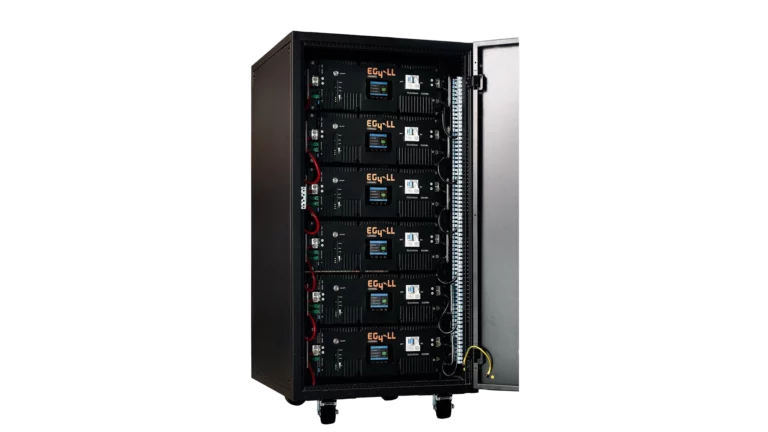

The rack accepts standard 19-inch server rack form factor batteries. Six slots means up to 30.72 kWh of storage with EG4 LL-S 48V 100Ah batteries, or equivalent capacity with other server rack batteries in 12V, 24V, or 48V configurations. The slots are spaced to allow airflow between batteries, and the vented front door promotes passive cooling without requiring fans.
Busbars and Wiring

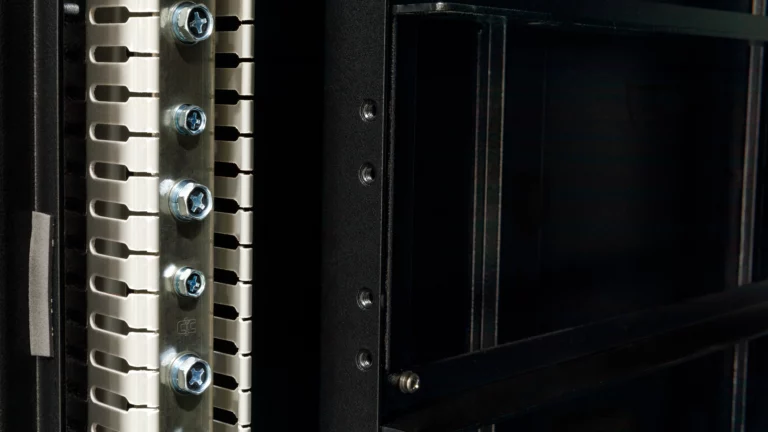

The rack includes 600A-rated heavy-duty busbars with protective covers for connecting batteries in parallel. That's enough headroom for six batteries at their full discharge rate without needing external busbar upgrades. Cable routing ports on the top and bottom of the enclosure keep wiring organized and out of the way.
Security and Access
The front door is hinged and lockable. This matters in shared spaces like garages, shops, and commercial buildings where you don't want someone opening a cabinet full of live DC connections. The lock is a basic keyed latch, not a high-security mechanism, but it prevents casual access and satisfies most installation requirements for battery enclosures.
Mobility
The rack comes with removable casters, so you can roll it into position during installation and then either leave the casters on or remove them for a permanent floor-mounted setup. At 100 lbs empty, you'll want the casters on until the rack is in its final location, because once you load six batteries it's not moving by hand.
Construction
Welded heavy-duty steel with a black powder-coated finish. The powder coat adds corrosion resistance for garage and basement environments where humidity can be a factor. The welded construction is noticeably more rigid than bolt-together rack alternatives, which matters when you're stacking several hundred pounds of batteries.
Recommended Accessories
Frequently Asked Questions

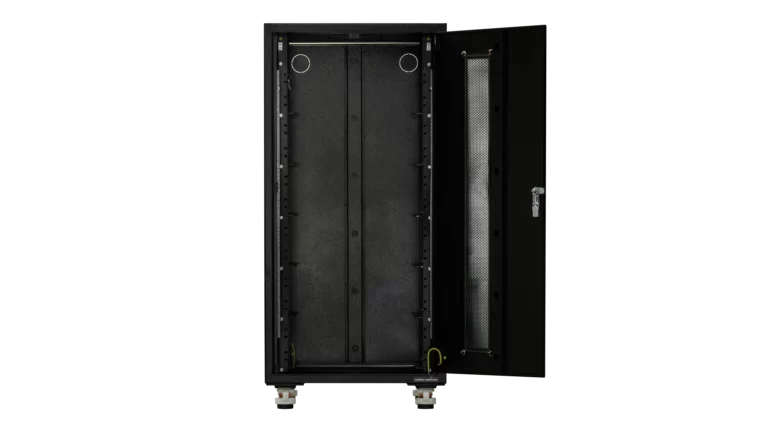

Each slot has approximately 6 inches of vertical clearance between rail pairs. Any 19-inch wide server rack battery that fits within that height will physically slide into the slots. The thing to be aware of is that the battery securing bolt holes in the rails are drilled for EG4 batteries, so a different brand will sit on the rails but the bolt holes likely won't line up for securing it. Measure your battery's height before ordering, and contact us if you're unsure.
You don't need to fill all six slots. The rack works fine with one battery and you can add more over time. Many installations start with two or three batteries and expand later as budget allows.
600A. That's enough for six EG4 48V 100Ah batteries at their full discharge rate in parallel without needing external busbar upgrades.
Yes. The casters are removable, and the flat top of the cabinet allows stacking. Remove the casters from the top cabinet and bolt it down for stability.
No. EG4 designates this as an indoor cabinet. Install it in a garage, utility closet, basement, or mechanical room. Keep it away from direct water exposure and high humidity environments (above 55%).

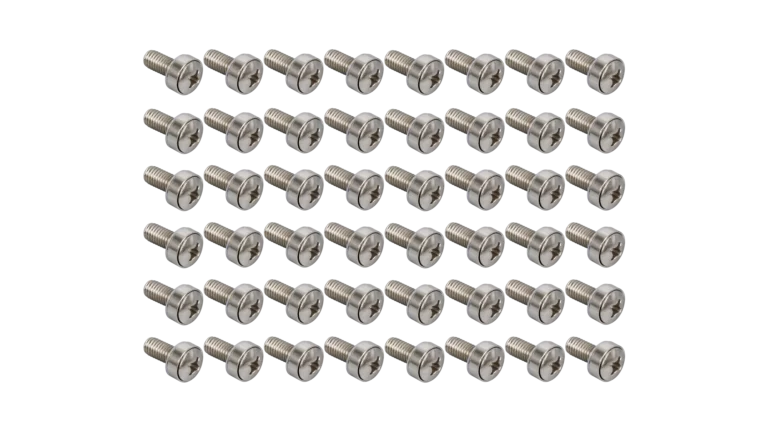

The cabinet includes the busbars, busbar covers, casters, battery securing bolts, and wire glands. The battery-to-busbar cables (6 AWG red and black) come with the EG4 batteries, not with the rack. You'll need to supply your own cables from the cabinet busbars to your inverter, sized appropriately for your system's current draw and cable run distance.
The cabinet weighs about 156 lbs empty with casters. Each EG4 48V 100Ah battery weighs approximately 106 lbs. A fully loaded 6-battery rack weighs roughly 792 lbs, so make sure your floor can handle the load and use the casters to position the rack before loading batteries.

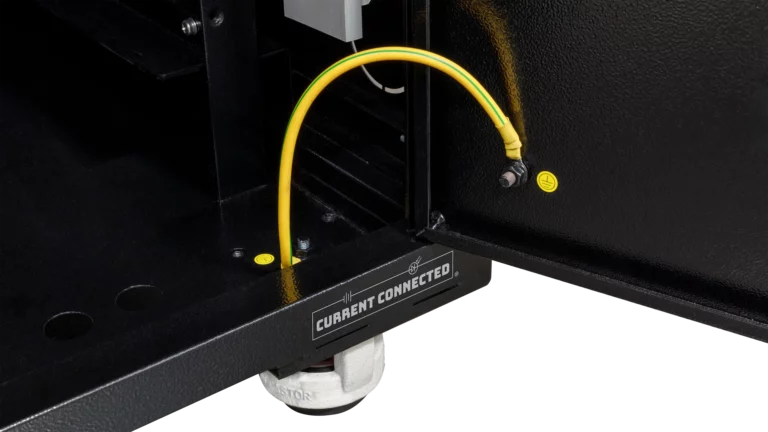

Yes. The cabinet includes grounding fasteners (M6 studs) on the floor of the enclosure with pre-installed grounding wires to the door and back panel. You need to connect an equipment grounding conductor from the cabinet's grounding fastener to your system's equipment grounding system before installing any batteries.
