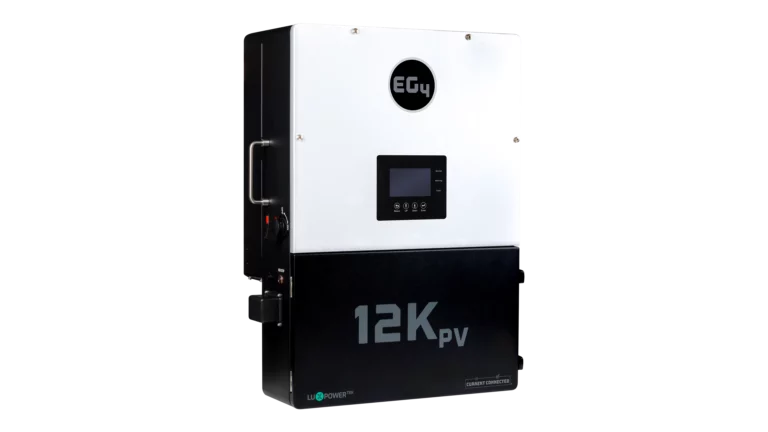

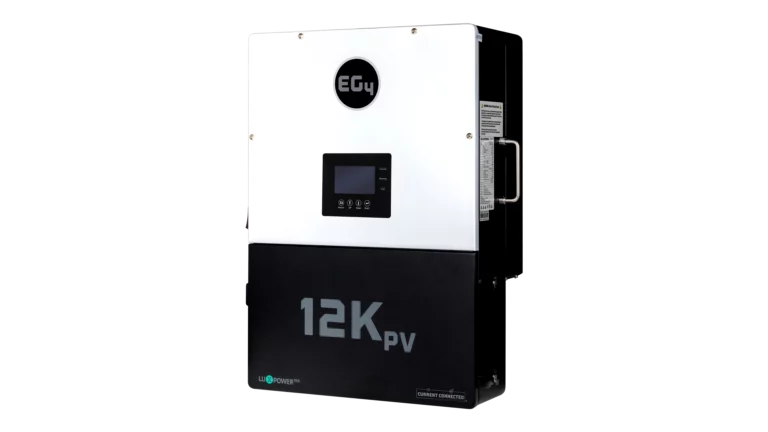

EG4 12kPV 48V 8kW Hybrid All-in-One Inverter, 12kW Solar Input, NEMA 4X, UL 1741 & UL 9540 Solar Inverter
SKU: EG4INV12KPV00V2
The EG4 12kPV is a compact hybrid inverter that works for any on-grid or off-grid application. It has a generator / smart load port, AC coupling, and off-grid functionality. This design makes it perfect for any system that needs large inverting power in a smaller design.
Specifications:
- 12,000W PV input
- 8,000W Max Continuous Wattage
- Stackable – Parallel up to 10 units together
- Closed loop communication with EG4 batteries
- Overload, short circuit, and over-temperature protection
- 120/240V split phase output with line balancing
- Weight: 110 lbs
- Dimensions (H x W x D): 29.5 x 20.5 x 11.2 inches
| Location & Stock | Fulfillment Options |
|---|---|
| Las Vegas, NV SW Distribution Center - Will Call Available 3 units available | ✓ Will call pickup available ✓ Ships within 1 business day |
| Hayden, ID Branch Office - Will Call Available Out of stock | ✗ Currently out of stock at this location |
Current Connected is YOUR EG4 Electronics product specialist
EG4 12kPV Hybrid Inverter Overview
The EG4 12kPV combines solar inverter, battery charger, and grid interaction capabilities into one streamlined design. Built for flexibility and performance, it can operate in grid-tied, off-grid, or hybrid solar systems.
Key Features of the EG4 12kPV Hybrid Inverter
All-in-One Hybrid Design
The EG4 12kPV integrates multiple system components into a single inverter, eliminating the need for separate charge controllers, transformers, or battery monitoring systems.
This simplifies installation while reducing overall system complexity.
High Solar Input Capacity
With 12kW of PV input, the inverter can support larger solar arrays and maximize solar energy production throughout the day.
This capacity makes it ideal for homes or systems looking to offset significant energy consumption.
AC Coupling for Existing Solar Systems
The built-in AC coupling capability allows the inverter to integrate with existing solar installations, including microinverter systems.
This makes it an excellent option for upgrading or expanding previously installed solar systems.
Generator and Smart Load Port
The inverter includes a dedicated generator and smart load port, giving installers additional flexibility when designing hybrid or backup power systems.
This allows systems to automatically manage backup power sources or prioritize certain loads.
Closed-Loop Battery Communication
The EG4 12kPV supports closed-loop communication with EG4 batteries, allowing the inverter to optimize charging and discharging behavior to extend battery lifespan and improve system efficiency.
Advanced System Protection
Built-in safety protections include:
- Overload protection
- Short-circuit protection
- Over-temperature protection
These features help ensure reliable operation and protect system components from potential damage.
Best Use for Hybrid Solar Inverters
The EG4 12kPV is designed for a wide range of solar energy installations, including:
- Grid-tied solar systems with battery backup
- Fully off-grid power systems
- Hybrid solar installations
- Solar retrofits using AC coupling
- Residential or small commercial solar systems
Its scalable design allows installers to parallel up to 10 units, making it suitable for larger systems that require increased power output.
Solar and Battery System Compatibility
The EG4 12kPV integrates directly with 48V battery systems and communicates seamlessly with EG4 batteries through closed-loop communication.
This inverter includes:
- Built-in solar charge functionality
- Grid interaction capabilities
- Battery charging and load powering simultaneously
Because these functions are integrated into one device, the system eliminates the need for additional external charge controllers, transformers, or battery monitoring.
Frequently Asked Questions About the EG4 12kPV
Can it connect to existing solar systems?
Yes. The inverter supports AC coupling, allowing it to integrate with existing micro-inverter or grid-tied systems.
How scalable is the system?
Up to 10 units can be connected in parallel, allowing larger systems to expand power capacity.
Does it require an external solar charge controller?
No. The inverter includes integrated solar charging functionality, eliminating the need for separate charge controllers.
