5.7 kW Victron Solar Kit – Aptos 440W Monofacial Panels

SKU: Unassigned
Awaiting product image

From: $3,794.38

Victron MPPT RS 450V/100A, 450V/200A SmartSolar Charge Controller

Product photo of Aptos 440 Watt all-black solar panel

Aptos DNA Series 440W Monocrystalline Solar Panel × 14

For this bundle, we recommend 14 panels, split up into two strings of 7 panels per MPPT input of the charge controller.

$182.00 each

251 in stock

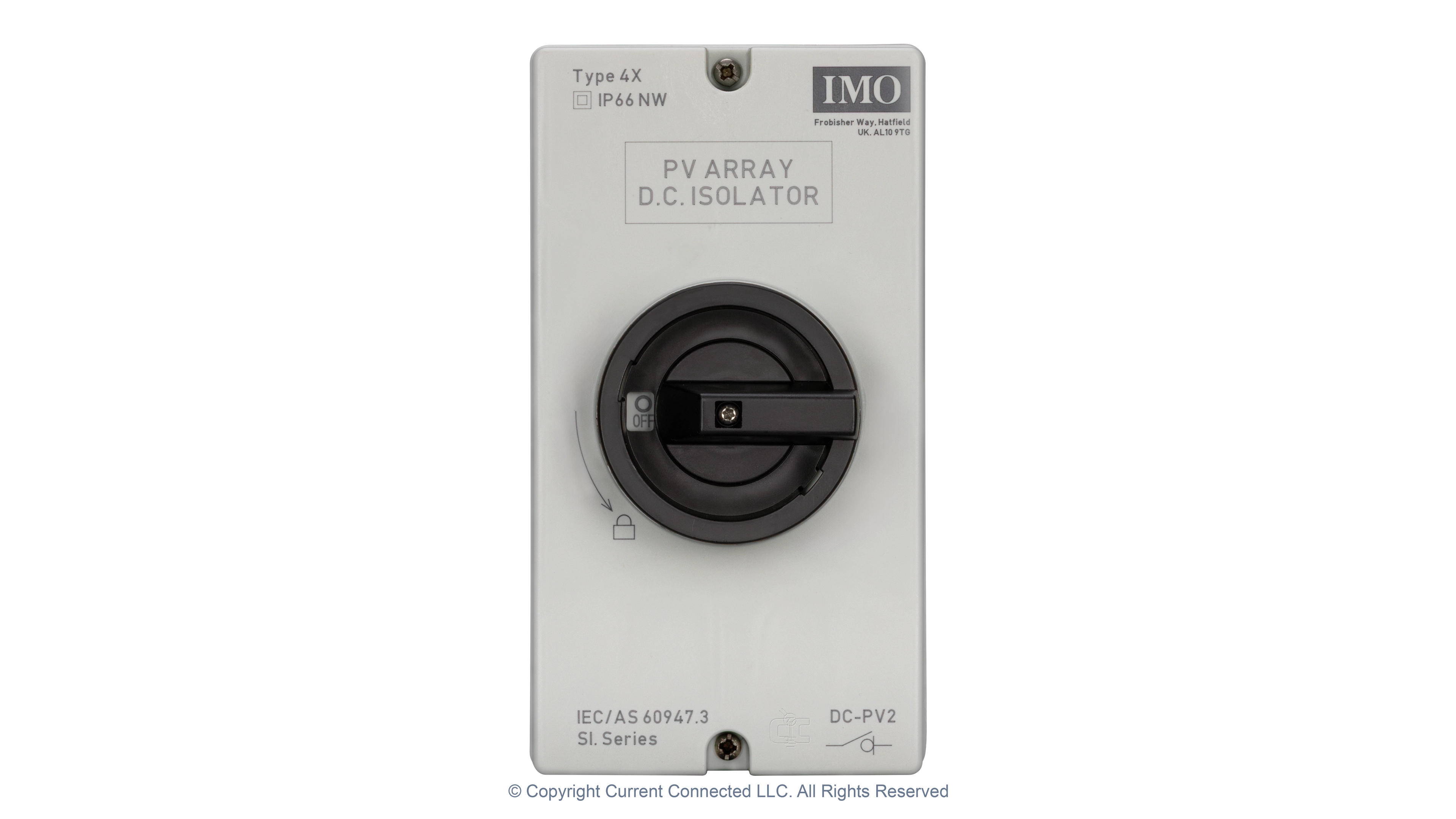

High quality photo of the IMO DC Disconnect Rooftop Isolator Switch 4 Pole - 2 String Front view. Photographed by Current Connected.

IMO 600V DC Disconnect Rooftop Isolator Switch - 4 Pole (2 String)

Disconnect solar panels at the twist of a switch with the IMO SI32-PEL64R-4 DC Disconnect Switch. Rated for 600Vdc and up to 32Adc, this disconnect switch is ideal for all weather conditions and for up to 2 strings (2 positive and 2 negative wires).

This device allows for safe and fast disconnection in a PV wire circuit and equally safe and fast connection in the circuit. It offers guaranteed arc suppression at 3ms (typically).

Add this to any rooftop or ground-mount solar installation.

Specifications:

  • Max Current Rating: 32A
  • Max Voltage Rating: 600VDC
  • Dimensions (HxWxD): 7.37 x 3.86 x 4.21in
  • Protection Rating: NEMA 4X
  • Guaranteed arc suppression (3ms typical)
  • Operator independent switching mechanism
  • Also available in: 3 string (6 pole) and 4 string (8 pole) versions
$89.50

54 in stock (Accepting backorders for additional units.)

10 AWG Solar PV Cable - 103 Strand - Bulk 500Ft Spool

500 feet of 10 AWG solar PV Cable works in most residential or commercial solar systems. This cable comes in both red and black, allowing for easy distinction and different situations.

  • Type XLP PV Cable
  • Suitable for use as RHW-2 or USE-2
  • 90°C wet or dry insulation rating
  • Suitable for direct burial
  • Sunlight resistant
  • UL4703 Listed
  • 600VDC rated
  • .26" outer diameter
  • Note: Spool occasionally varies from wood to plastic.  The spool may arrive slightly different than the picture, however, the wire will be identical.

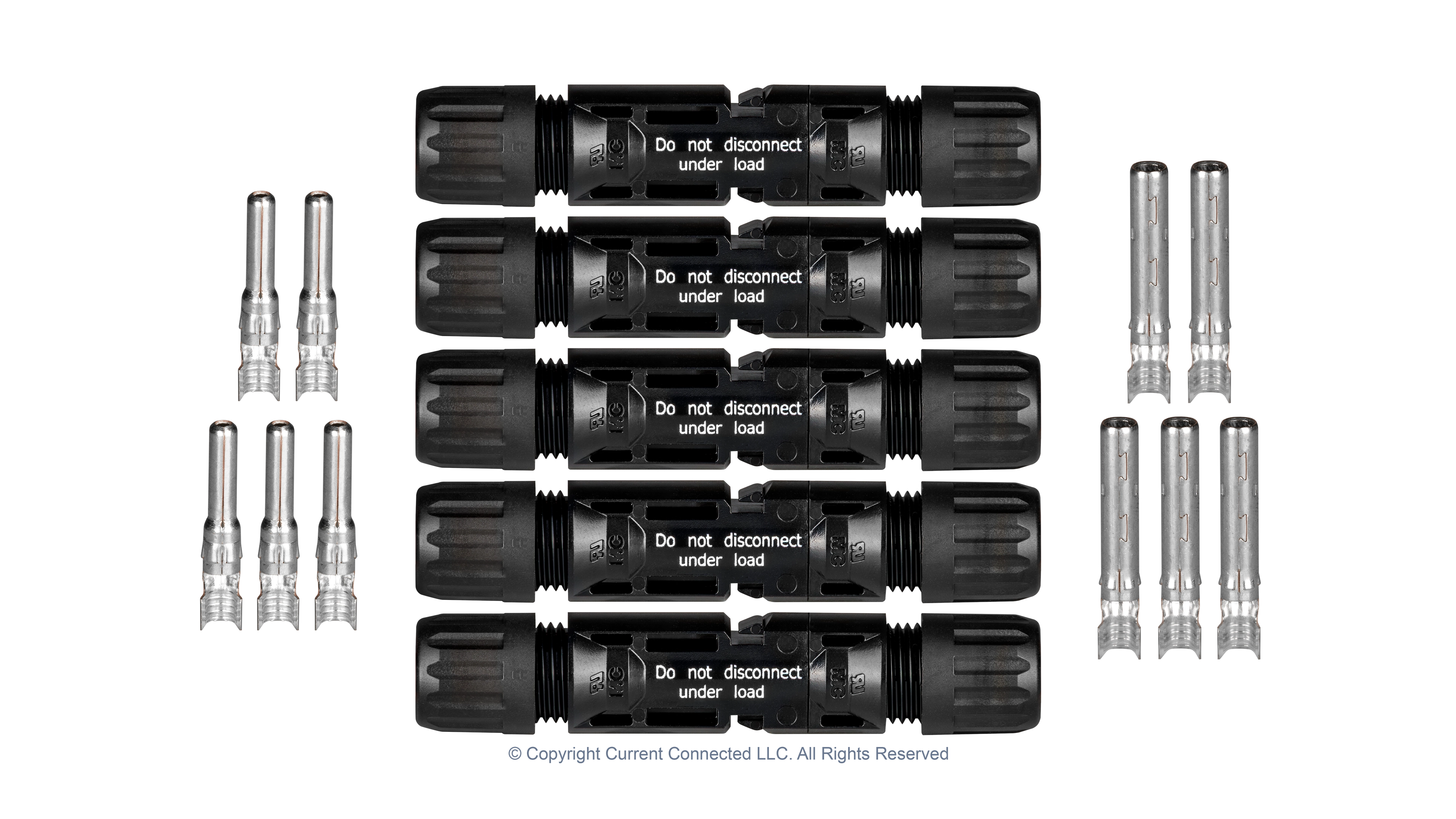

High quality photo of the Staubli - KITMC4-5PK - MC4 Connectors 5 Pack Full Kit View photographed by Current Connected

Stäubli MC4 Connectors 1100V/35A Rated - 5 Pack

  • Industry standard solar connector
  • Fits 12 AWG and 10 AWG PV wire with a total diameter (including insulation) between 5.5mm and 7.4mm
  • Rated for 1100Vdc at up to 35A
  • Package includes eight male ends and eight female ends
  • Stäubli Open-Ended Spanner necessary to unlock joined connectors
1/0 AWG Battery Cables

1/0 AWG Pure Copper Battery Cables - Red and Black

  • Set includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Also available in: 6AWG, 2 AWG, 2/0 AWG, 4/0 AWG
  • Single Jumpers also available: 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG

Solar to Cerbo-GX Communication Cable: CAT5e RJ45 Cable

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with Victron VE.Bus / VE.Can products

In stock

Additional information

Brand

Aptos, IMO, Victron

Victron MPPT RS 450V/100A, 450V/200A SmartSolar Charge Controller

Weight N/A
Dimensions 21 × 16 × 9 in

Aptos DNA Series 440W Monocrystalline Solar Panel

Weight 53 lbs

IMO 600V DC Disconnect Rooftop Isolator Switch - 4 Pole (2 String)

Brand

IMO

10 AWG Solar PV Cable - 103 Strand - Bulk 500Ft Spool

Color

Black

Stäubli MC4 Connectors 1100V/35A Rated - 5 Pack

Weight N/A
Wire Outer Diameter

5.0~6.0mm, 5.5~7.4mm, 7.0~8.8mm

1/0 AWG Pure Copper Battery Cables - Red and Black

Weight N/A

Solar to Cerbo-GX Communication Cable: CAT5e RJ45 Cable

Weight N/A
