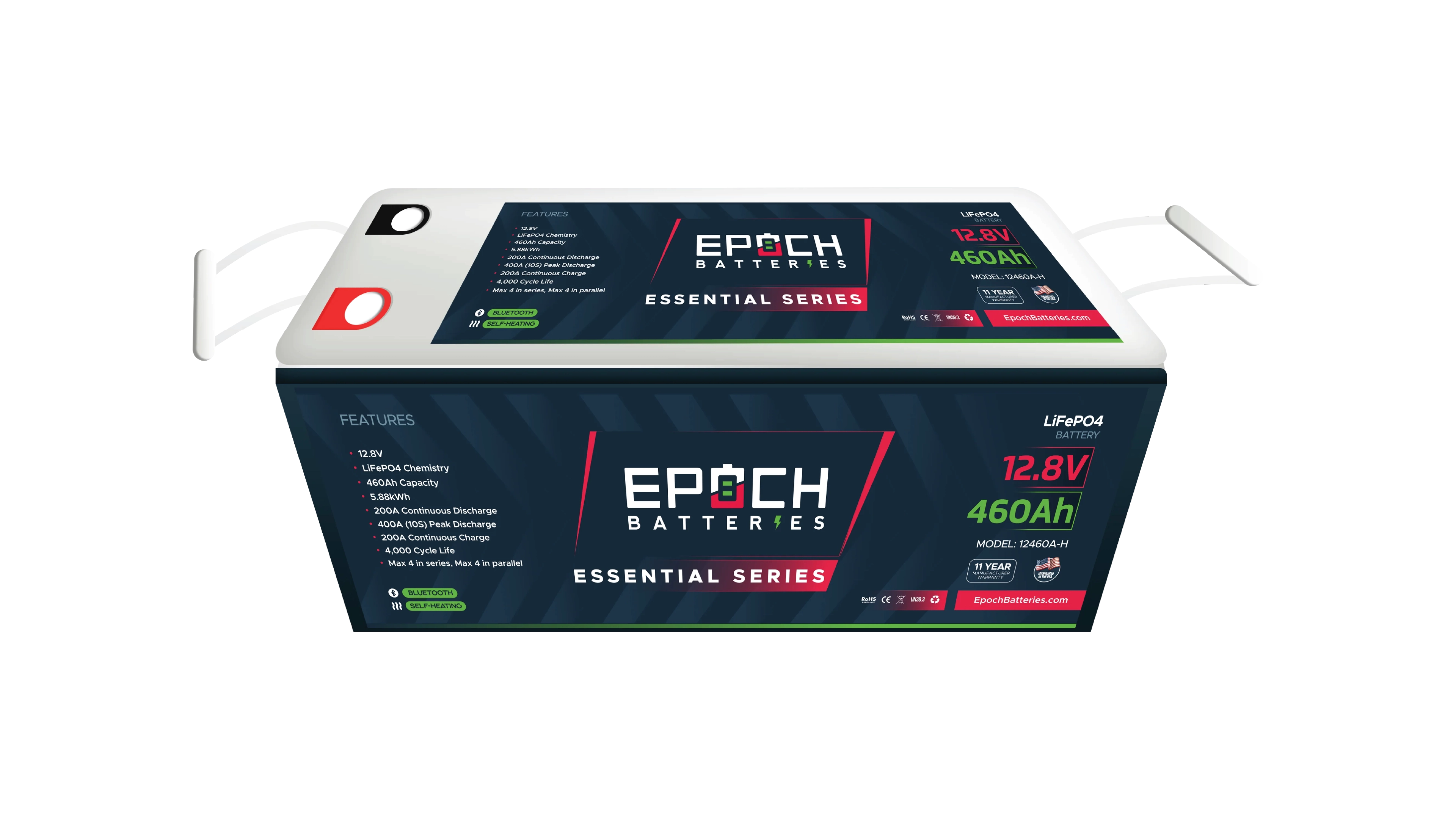

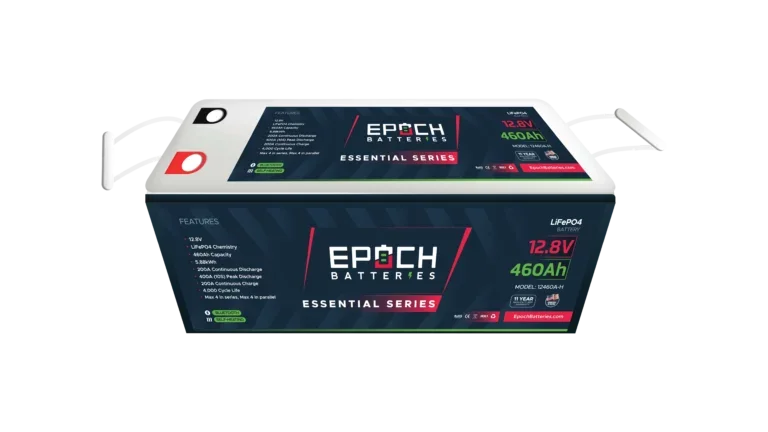

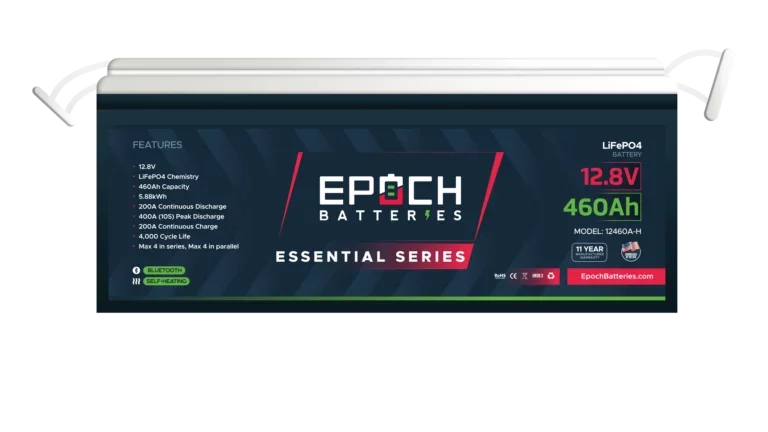

Epoch Essentials 12V 460Ah Lithium Battery, 12460A-H, Heated, Bluetooth, Group 8D, 5.89kWh LiFePO4 RV Battery
SKU: 12460A-H



Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Product Summary
The Epoch Essentials 460Ah trades a rack of smaller batteries in your RV, van, boat or cabin for one Group 8D case, with 5.89kWh behind a single pair of terminals. It runs 200A continuous for 12V inverters in the 2,000W to 2,500W class, warms its own cells before charging in the cold, and reports to your phone over Bluetooth.
Specifications:
- 460Ah at 12.8V nominal, 5.89kWh (5,888Wh) of stored energy
- 200A continuous discharge with a 400A peak for up to 10 seconds
- Accepts up to 200A continuous charge, with 138A recommended for both charge and discharge
- Rated for 4,000+ cycles
- Internal heater runs on charger current, so it charges from -4°F to 131°F (-20°C to 55°C)
- Bluetooth monitoring in the Epoch Li-Ion app, read from a BMS shunt accurate to 0.2A on discharge
- BCI Group 8D case, 8.6 x 9.45 x 20.55 in (H x W x D), 84 lb (38.1 kg), M8 female terminals
- IP54 rated, UL 1642 and IEC 62619 certified cells, up to 4S4P, 11-year limited warranty

Current Connected is YOUR Epoch Battery product specialist
About the Epoch Essentials 12V 460Ah Battery
A 460Ah lithium battery changes how you lay out a 12V system. Instead of four or five smaller batteries tied together with interconnects, the Essentials 460Ah gives you 5.89kWh in one case. That's one positive, one negative, one BMS running the cells and one Bluetooth readout for the whole bank. Fewer connections mean fewer lugs to torque, check and troubleshoot.
The case stands just 8.6 in tall, so measure those under-bed and under-bench spaces before you rule them out. A shunt built into the BMS reads current to within 0.2A on discharge. That gives the Epoch Li-Ion app a true state of charge, with no separate monitor to wire. It's all backed by an 11-year limited warranty.
Epoch Essentials 460Ah vs V2 Elite
Epoch's Essentials and V2 Elite 460Ah batteries store the same 5.89kWh. The Essentials is IP54 rated and talks to the Epoch app over Bluetooth. It runs 200A continuous and weighs 84 lb in an 8.6 in tall case. The V2 Elite steps up to an IP67 enclosure, 230A continuous and CAN communication with Victron GX devices. It weighs 97 lb in a case just over 12 in tall.
The Essentials makes sense when the battery lives in a dry compartment and the app covers your monitoring. On a Victron system with a GX device, a Victron SmartShunt puts the bank's state of charge on the GX display. Or you can step up to the V2 Elite, which reports to the GX directly over CAN.
Inverter Sizing for a 460Ah Lithium Battery
At 12.8V, the 200A continuous rating works out to about 2,560W of DC power before inverter losses. Epoch puts a single 460Ah in the 2,000W to 2,500W class of 12V inverter systems. Surges from a compressor start, a microwave or a small welder get up to 10 seconds at the 400A peak.
A 12V 3kVA inverter-charger like the Victron MultiPlus-II 12V 3kVA can pull close to 200A from the battery at full output. One 460Ah handles it with sensible load management. A second battery in parallel adds headroom for heavy, long-running loads.
Size every wire and fuse to the 200A continuous rating, not the 10-second peak. Planning a bigger inverter or a multi-battery bank? Our team is happy to help with sizing.
Building a 12V Parallel Bank up to 1,840Ah
Up to four 460Ah batteries run in parallel for 1,840Ah at 12V. You can also wire up to four in series for a 48V-class bank, with a 4S4P maximum of 16 batteries. Epoch requires every battery in the bank to match: same model, age, condition, firmware and state of charge. Charge each one fully before connecting, and make every connection with chargers, loads and disconnects off.
Parallel batteries share current evenly when each one sees the same cable resistance. That's why Epoch calls for equal cable lengths and gauges to common busbars, with each battery or branch fused. Our custom battery cables are made to order from 6 AWG to 4/0 AWG, so matched lengths are easy.
Fusing and Mounting a Group 8D Lithium Battery
Epoch calls for installation by someone who understands DC electrical systems. The job comes down to mounting, main fusing and torque. Secure the battery with a tray, strap or bracket rated for its 84 lb. Epoch sells a tray sized for the 12460A-H. Torque the M8 terminals to 71 to 106 in-lb (8 to 12 N·m).
The BMS doesn't replace external overcurrent protection. Put a fuse or DC-rated breaker as close as practical to the positive terminal. On a bank this size, main battery protection belongs on a Class-T fuse sized to your cable.
Recommended Accessories
Frequently Asked Questions
Use lithium-compatible equipment set to Epoch's LiFePO4 values. Bulk and absorption run at 14.2V to 14.4V. That stage ends when charge current drops to 23A or after 15 minutes, whichever comes first. Turn float off (preferred) or set it to 13.3V to 13.6V.
Re-bulk is 13.2V, temperature compensation is 0 mV/°C, equalization stays off, and maximum charge voltage is 14.6V. Don't use lead-acid, AGM or gel profiles.
Yes, as long as the combined current from every source stays within the 200A continuous charge rating. Epoch's recommended rate is 138A. Program the solar charge controller with the same LiFePO4 settings, and check that the array's open-circuit voltage suits the bank.
For the alternator, Epoch highly recommends a DC-DC charger programmed for LiFePO4 rather than a direct connection.
Yes, for marine house power where splash resistance is enough. The IP54 case keeps out dust and splashing water, but it isn't submersible. Mount it clear of bilge water, protect it from salt spray, and never pressure-wash it.
Install it upright. Epoch's manual calls for upright installation unless Epoch documents for this exact model allow another position, and the 12460A-H documents list none.
Charge it to about 50% or higher and disconnect loads and chargers. Store it clean and dry between 32°F and 95°F (0°C to 35°C), and check the state of charge at least every three months.
The heater only runs while a charger supplies at least 0.5A, so it won't keep a stored battery warm on its own.
No. Epoch builds it as a deep-cycle battery and doesn't rate it for cranking. Keep a cranking-rated battery on the starter unless Epoch confirms it works with your specific engine.
