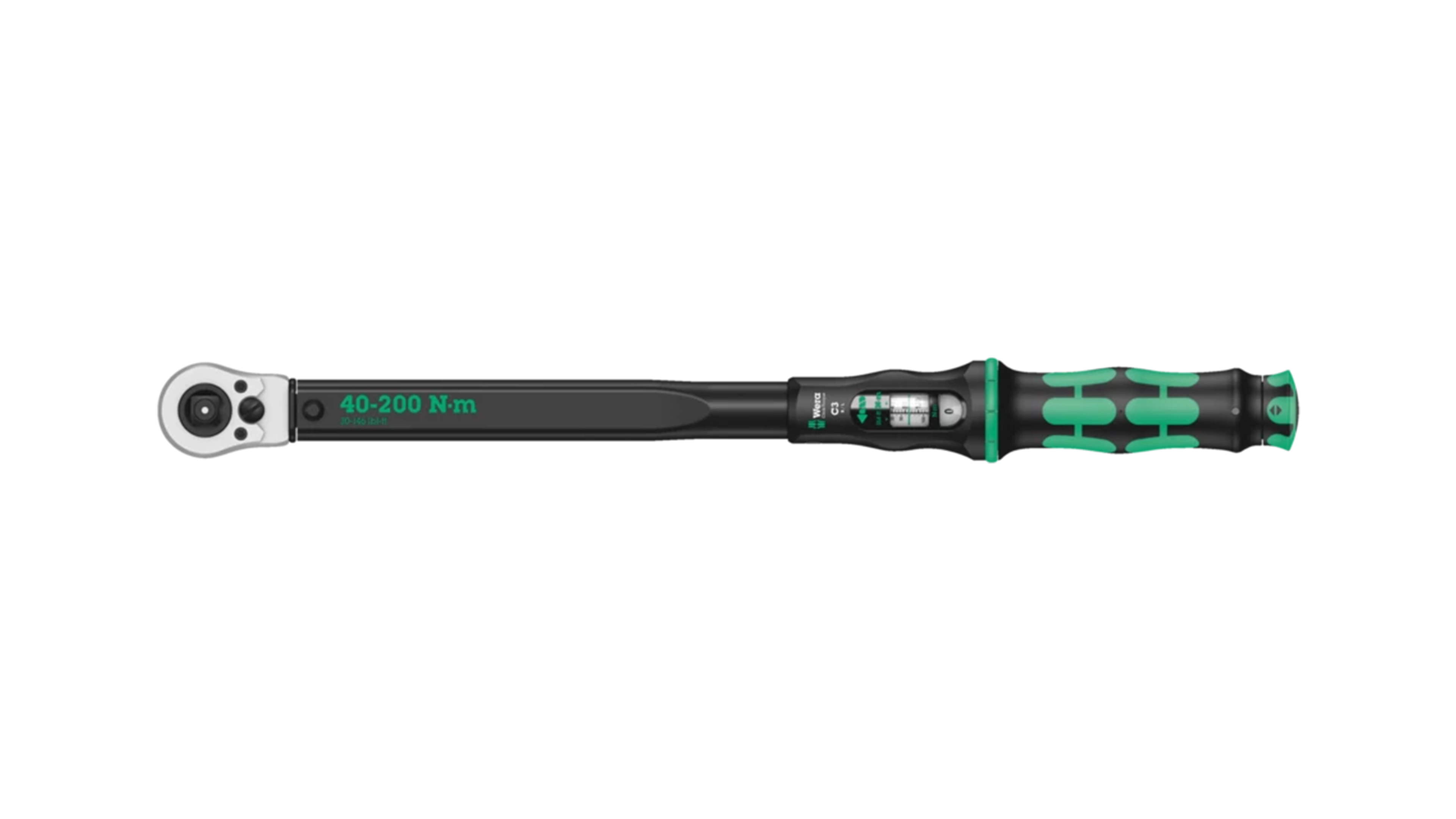

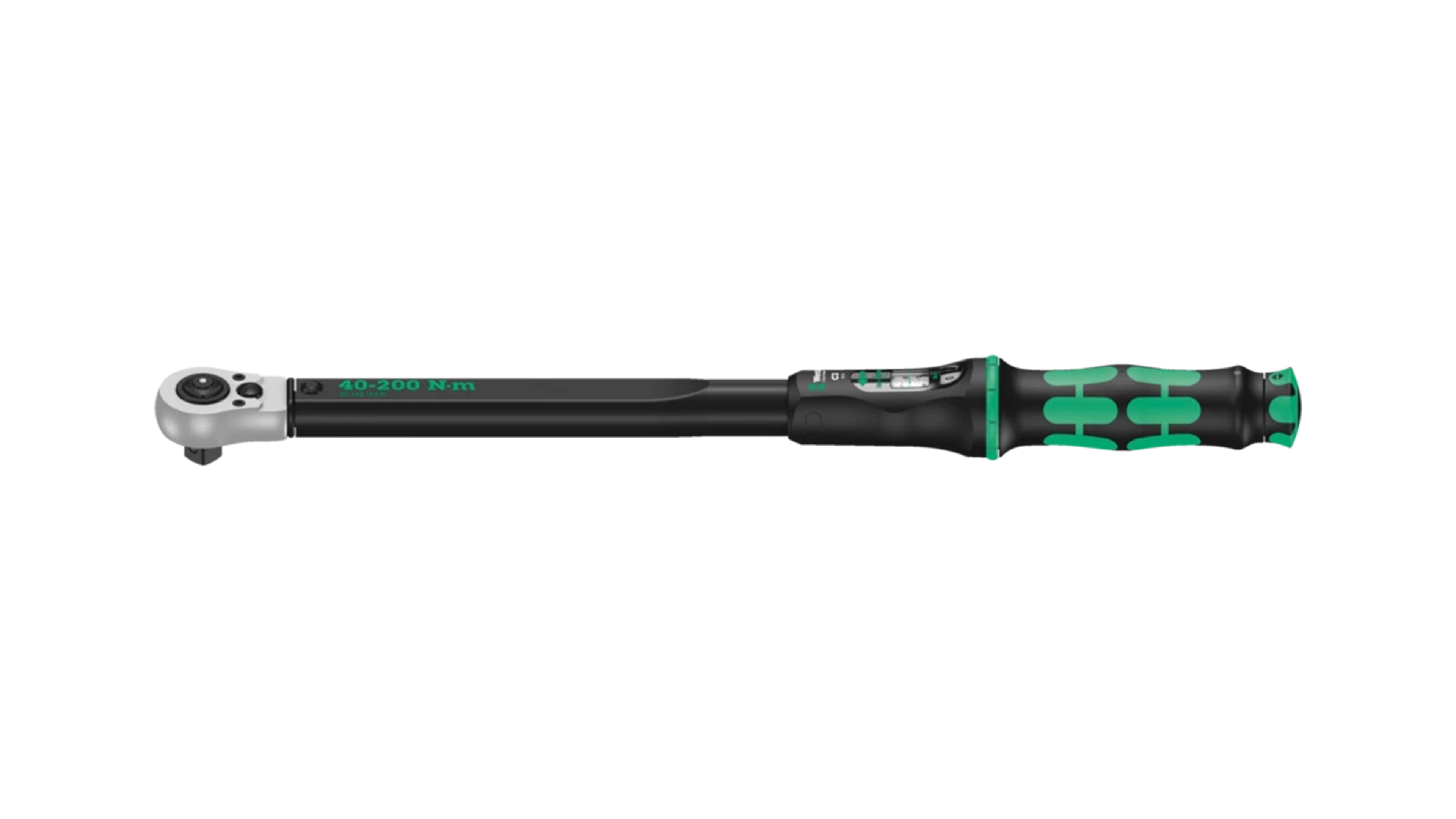

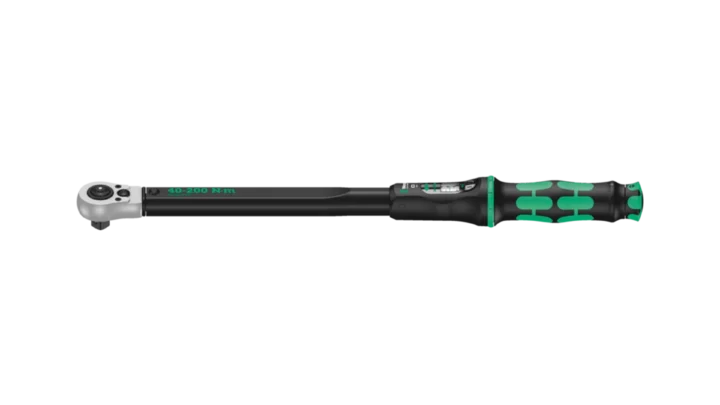

Wera Click-Torque C 3 Push R/L Adjustable Torque Wrench for Clockwise and Anti-Clockwise Torque Control, 40-200Nm, Audible and Tactile Stop Mechanism

Wera Click-Torque C 3 Adjustable Torque Wrench Overview

Wera designed the Click-Torque C 3 adjustable torque wrench with premium ergonomics and 3% accuracy. It covers a range of 40-200Nm and includes a 1/2" square head drive for maximum socket compatibility. It’s ideal for installing a home solar system or for professional installers needing a reliable and durable addition to their tool kit.

Key Features of the Wera Click-Torque C 3

±3% Accuracy to DIN EN ISO 6789-1:2017-07

This is the international standard for hand torque tools. It means you can always trust the reading.

Audible and Tactile Click Release Mechanism

The wrench clicks audibly and physically when you reach the set torque. This makes it ideal for noisy environments and hard to reach enclosures.

Easy Torque Setting with Audible Scale Clicks

Rotate the handle to set the torque. This wrench includes both coarse and fine adjustments, and the wrench clicks at each setting.

Reversible 1/2" Ratchet with Captive Square Head Insert

The wrench includes a push-button square head insert to reverse the direction. The socket can lock, and it includes 45 teeth for a working arc of 8° per stroke.

Robust Construction for Long-Term Field Use

Wera designed the Click-Torque C 3 for durability in professional environments. It maintains its calibration under regular use, and it’s robust enough for continuous field work. At 3.33lbs and 20in, it includes both heft and leverage.

Ideal Applications for the Click-Torque C 3 Adjustable Torque Wrench

• Solar panel racking and mounting hardware
• Inverter and inverter charger installation
• Solar battery terminal connections
• Busbar and distribution panel assembly
• Conduit and electrical fittings
• Portable generator maintenance
• Off-grid solar kit assembly
• Any application requiring counterclockwise torquing

Solar and Battery System Compatibility

The Wera Click-Torque C 3 works with any solar, battery, or electrical system component using 1/2" drive sockets and needing 40-200 Nm torque. These include the following:

• Solar panel racking and structural mounting
• Solar inverters and hybrid solar inverters
• Solar battery banks
• Off-grid solar systems and solar kits
• Portable generators

Frequently Asked Questions About the Wera Click-Torque C 3 Adjustable Torque Wrench

What is the torque range of the Click-Torque C 3?

The Click-Torque C 3 covers 40-200Nm (approximately 30-146 lbf-ft) on a 1/2" square drive. It’s a mid-to-heavy range adjustable torque wrench suited for structural fasteners, large battery terminals, conduit connections, and equipment mounting hardware.

How accurate is the Click-Torque C 3?

It’s calibrated to ±3% accuracy in compliance with DIN EN ISO 6789-1:2017-07, the internationally recognized standard for hand torque tools. This level of precision is appropriate for professional installation work where torque values are specified by equipment manufacturers and may be subject to inspection.

Can it apply torque in both directions?

Yes. The Click-Torque C 3 uses a captive square head insert that reverses the ratchet direction smoothly between clockwise and counterclockwise. This means it works with both left-handed threads and right-handed threads.

How do I know when I reach the set torque?

The release mechanism produces both an audible and physical click when it reaches the preset torque. This dual feedback works even in noisy environments.

Is this a suitable electrical torque wrench for solar battery terminal work?

Yes, with an important caveat. The Click-Torque C 3 is not VDE-rated or insulated, so it should only be used on de-energized or safely isolated systems. For battery terminal torquing, ensure the battery is disconnected from load and charge sources before maintenance. Always verify the torque spec prior to tightening the fastener.

What drive size does it use?

The Click-Torque C 3 uses a 1/2" square drive with an integrated socket locking feature, compatible with the broad range of 1/2" drive sockets available in most professional and home toolkits.
