Victron Lynx Distributor – Power Distribution System (M10)

SKU: LYN060102010

*REQUIRES LYNX SHUNT OR LYNX BMS FOR BLOWN FUSE NOTIFICATION TO WORK*

Features:

  • Modular busbar system
  • 1000A Rated
  • Incorporates DC connections, distribution, fusing, battery monitoring, and Lithium battery management
  • Positive busbar: 4 fuse-protected connections with fuse monitoring
  • Negative busbar: 4 connections and ground connection
  • Designed to hold MEGA Fuses
  • Compatibility: Works on 12V, 24V, and 48V systems
  • Fuse status communication with Lynx Smart BMS and the Lynx Shunt
  • Monitoring and setup with VictronConnect App when connected to Lynx Smart BMS
  • Up to 4 Lynx Distributors can be monitored with a GX Device
  • Fuse and operational status communication with Lynx Smart BMS
  • Distributor fuses are sold separately
  • M10 Interconnecting hardware

$201.45

Log in to check member price

18 in stock (Accepting backorders for additional units.)

Description

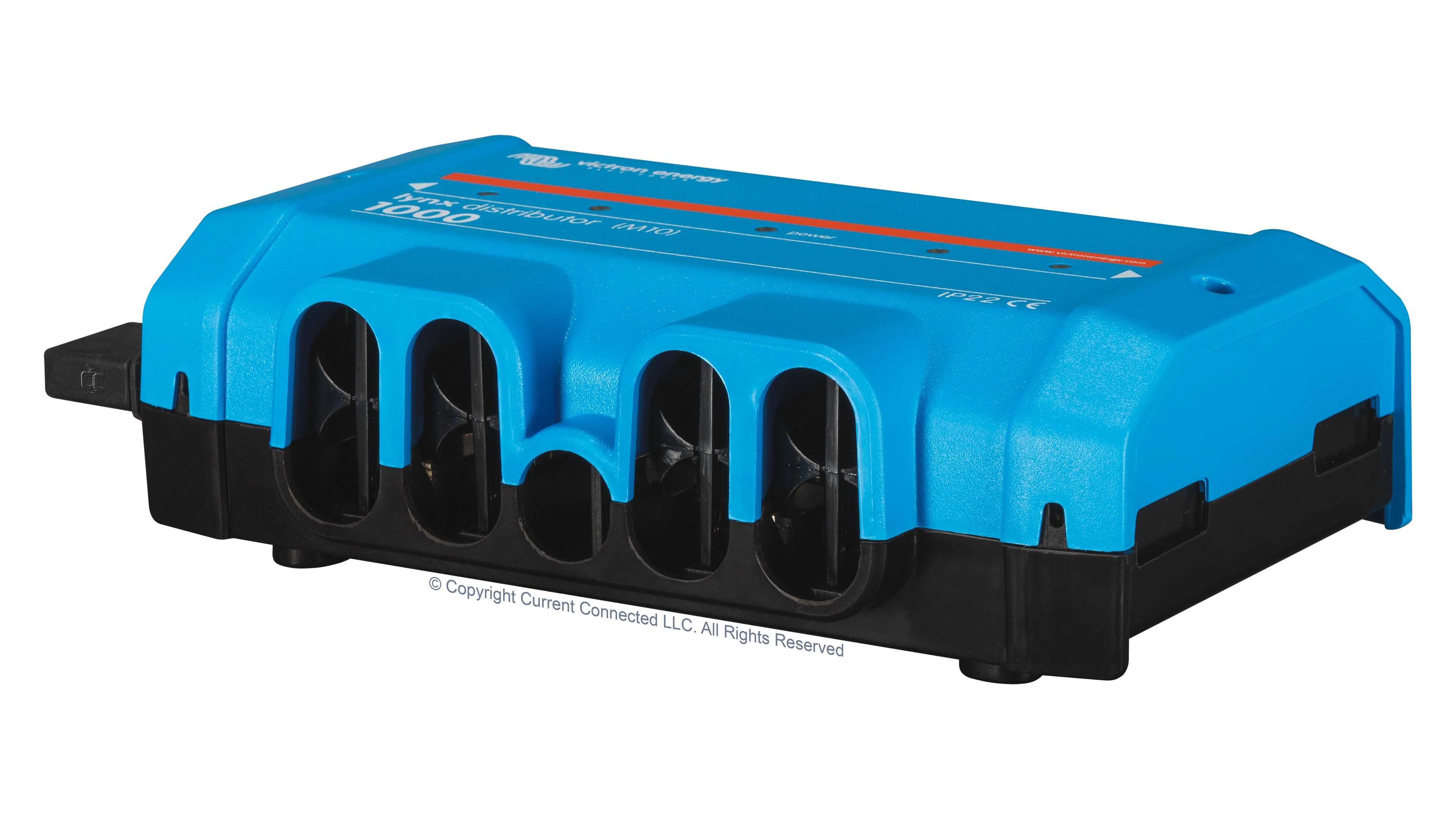

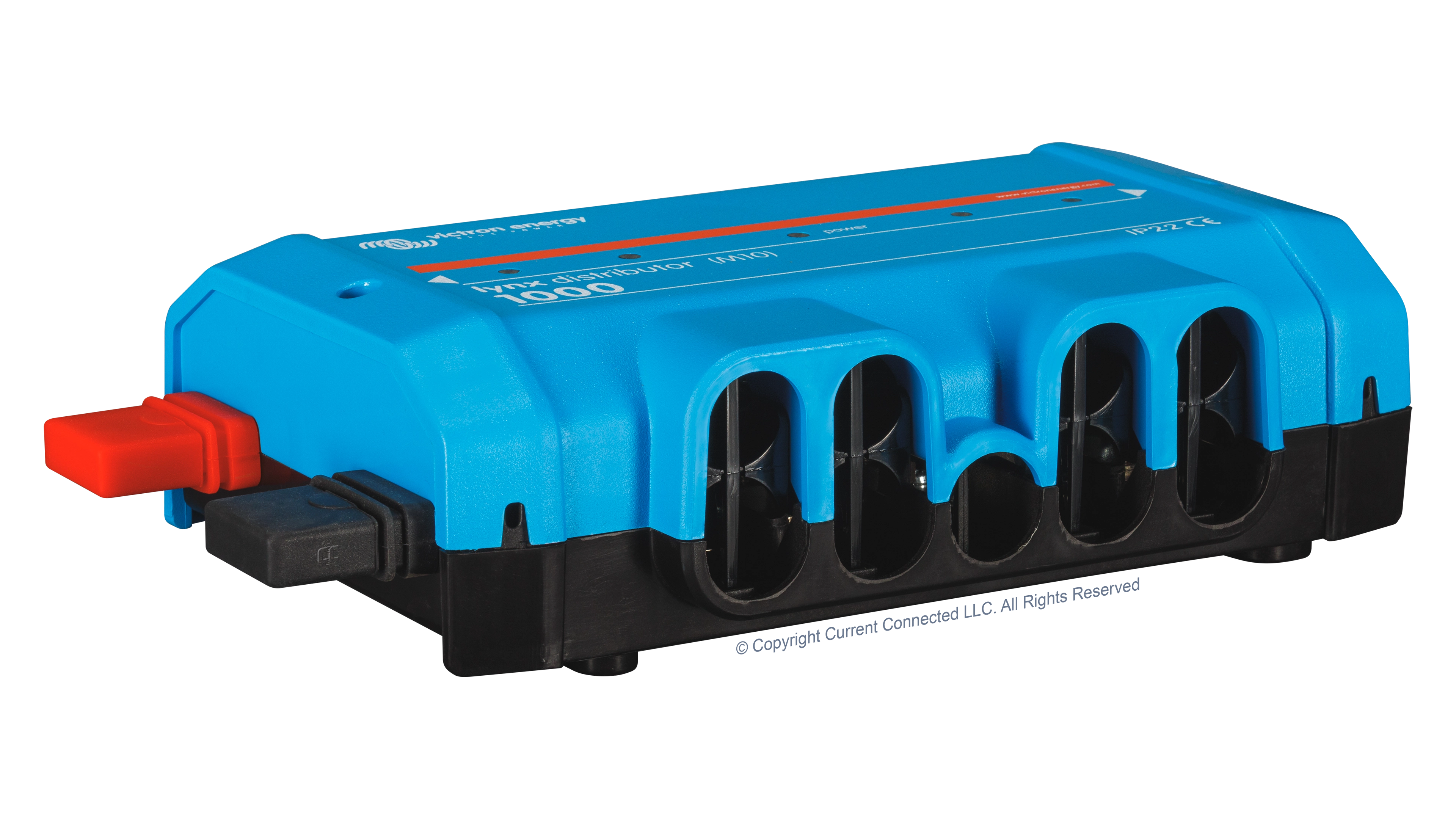

Victron Lynx Distributor

The Victron Lynx Distributor is a modular busbar system. Designed to integrate with the Lynx Power Distribution System and VictronConnect App for monitoring and control.

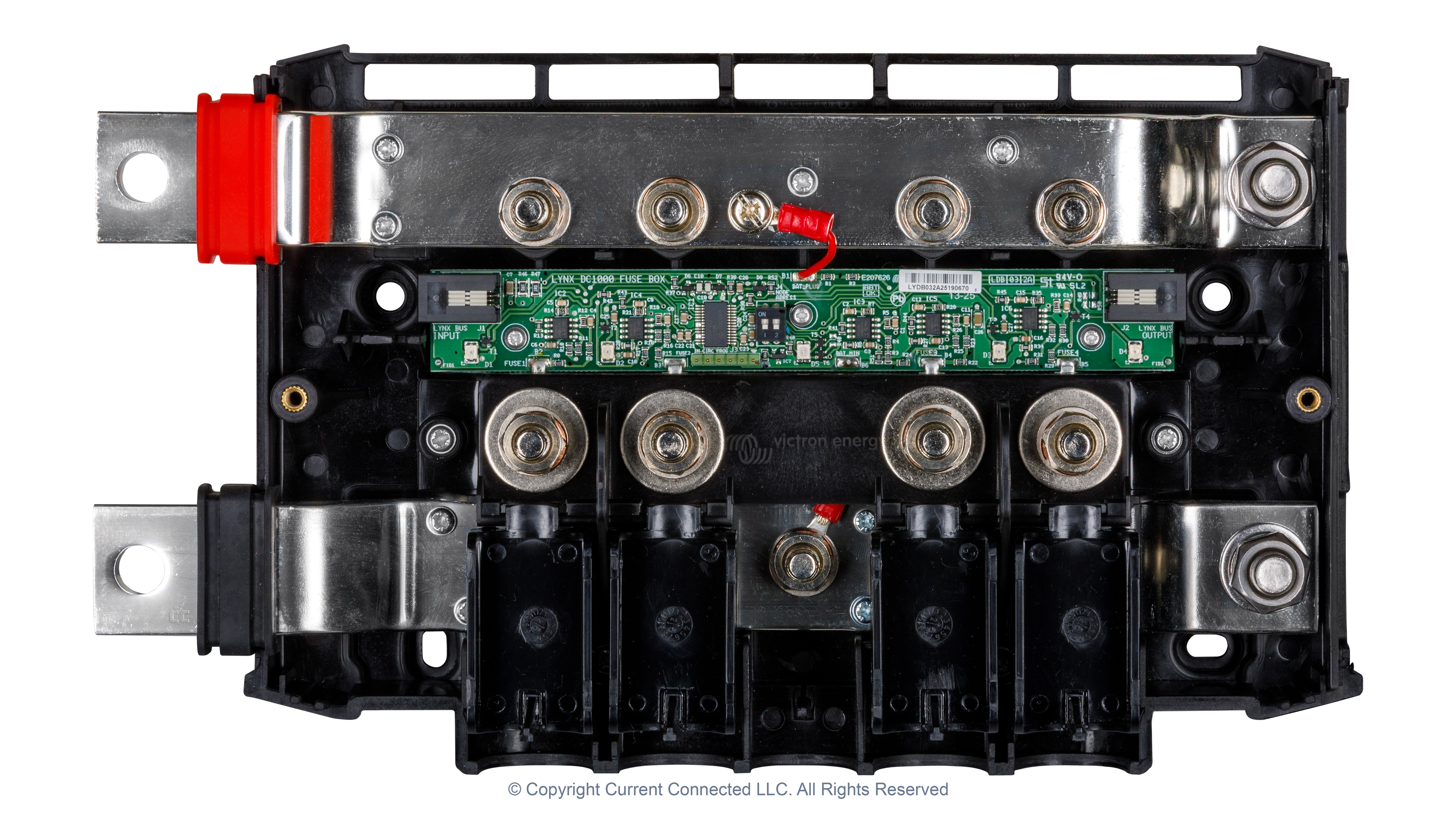

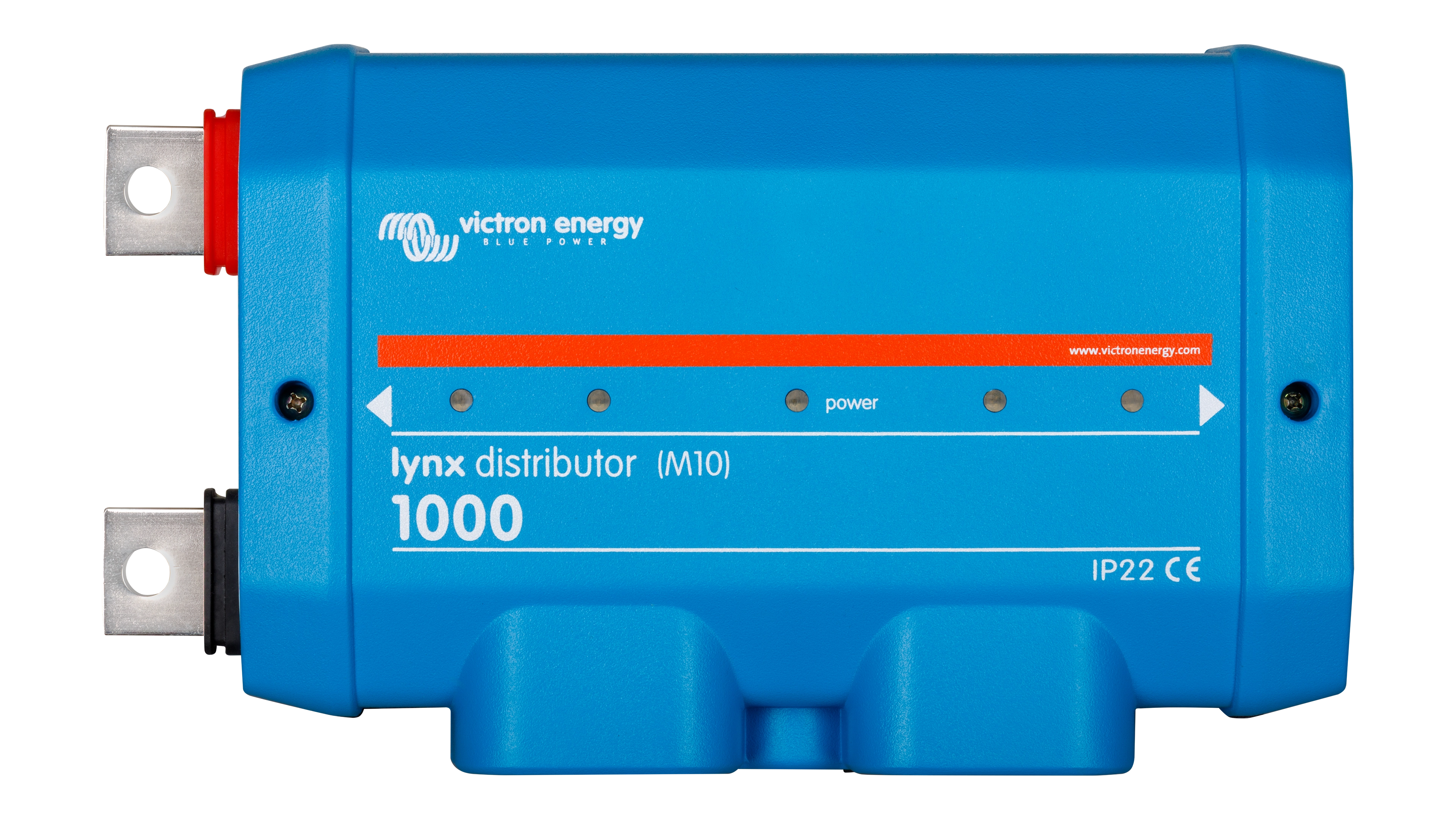

The Lynx Distributor has a positive and a negative busbar with multiple connections. The positive busbar has four fuse-protected connections. Each fuse is monitored, an LED indicator on the front provides real-time updates. The negative busbar has four connections and a ground connection.

You can use the VictronConnect App to monitor and configure your distribution setup. You can monitor up to four Lynx Distributors using a GX Device when connected to a Lynx Smart BMS. The Lynx Smart BMS, integrated with the Lynx Distributor, allows you to create alarms and receive notifications.

The proper torque spec is found in Victron’s Wiring Unlimited document. The M10 bolts that connect multiple components of a Lynx Distribution System have a maximum torque value of 17 ft-lbs, and the internal M8 bolts that connect fuses and cables have a maximum torque value of 106 in-lbs.

Recommended Accessories:

Additional information

Weight 5.5 lbs
Brand

Victron

Interconnection Bolt Size

M8, M10

FAQ

Q – There is a small 4-pin cable shipped with the Distributor – I can only assume that the cable interconnects between the Shunt and Distributor?

A – Yes, but this has only to power the LEDs on the distributor, there is no other function for this at the moment.

Q – The Distributor has a DIP switch. What are the settings?

A – That’s for manual settings, please don’t touch as the system will auto configure (up to 32 battery’s )

Q – The Distributor has a 6-pin header block. What is it for?

A – In the future, the read out of fuses, but this is not supported yet.

1 review for Victron Lynx Distributor – Power Distribution System (M10)

  1. KevinC_63559

    Love mine. Unit is invertable – they even included a front sticker to make it appear upside right.

    Fuse system simple needs a 5V power – you know, like a sacrificial USB cord connected to a USB socket somewhere (perhaps an unused Cerbo port)
