Victron Energy GlobalLink 520, 4G LTE-M Data for Connection to VRM, VictronConnect, Connects Up to 2 VE.Direct Devices, Supports RuuviTag Sensors
SKU: ASS030543020
Product Summary
The Victron GlobalLink 520 is a 4G LTE-M to remotely monitor the off-grid system. It requires an active 4G LTE-M SIM card through the carrier of your choice, but the unit comes with a SIM card that is active for the first 5 years.
- Supports handovers and roaming, making it suitable for use in moving vehicles like campervans.
- Includes 5 years of connectivity, eliminating the need for separate data bundles and SIM cards.
- Two communication ports for connecting VE.Direct enabled devices like a BMV Battery Monitor and/or an MPPT Solar Charge Controller directly to VRM.
- Two digital inputs that also act as pulse counters and a remote controllable relay for monitoring and controlling installations.
- Supports RuuviTag temperature sensors, which can be easily set up via VictronConnect.
- The VRM portal allows remote access to the installation, enabling users to check the status of connected products, view energy history graphs, generate analytical reports, and configure automatic alarms in case of issues.
Log in to check member price and detailed stock information.
Log in to see additional stock details
Current Connected is YOUR Victron product specialist
Stay Connected Off-Grid with the Victron GlobalLink 520
Victron believes that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so they have created the GlobalLink 520. This device brings 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years (after which a new SIM card and service will need to be purchased through the carrier of your choice).
Stay Connected on the Move
LTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology connects Internet of Things devices to existing 4G towers while using low energy. LTE-M supports handovers and roaming, so it is possible to use this device in a moving vehicle like a campervan.
Seamless Monitoring and Control

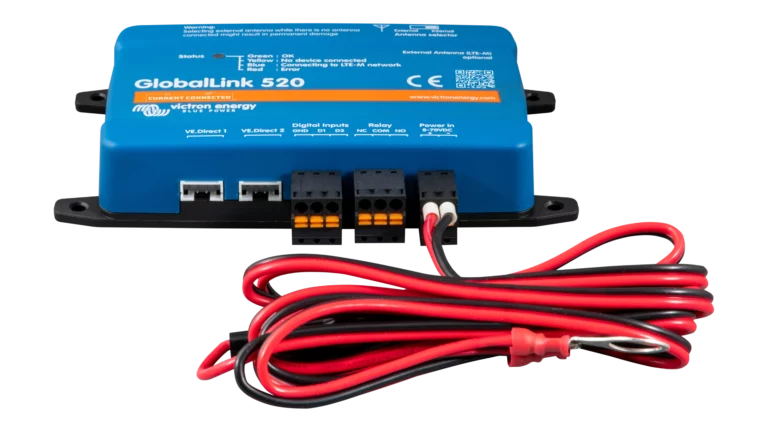

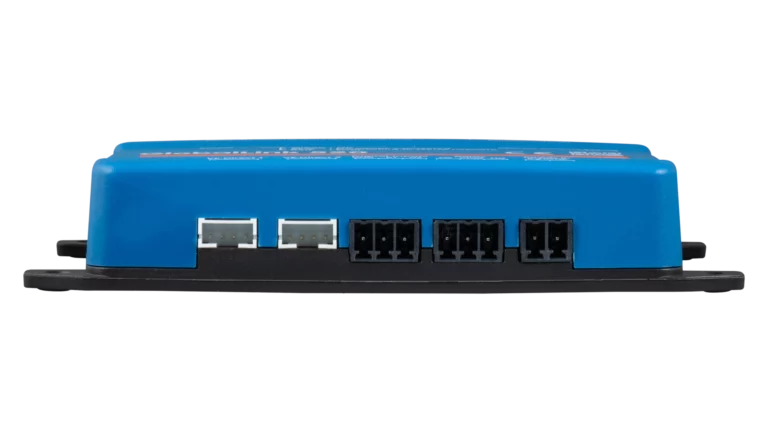

The Victron GlobalLink 520 comes with two communication ports. This allows you to connect of up to two VE.Direct devices, such as a BMV Battery Monitor or MPPT Solar Charge Controller, directly to the VRM. Two digital inputs that also act as pulse counters and a remote controllable relay allow you to monitor and control your system.
Global Coverage for Uninterrupted Connectivity

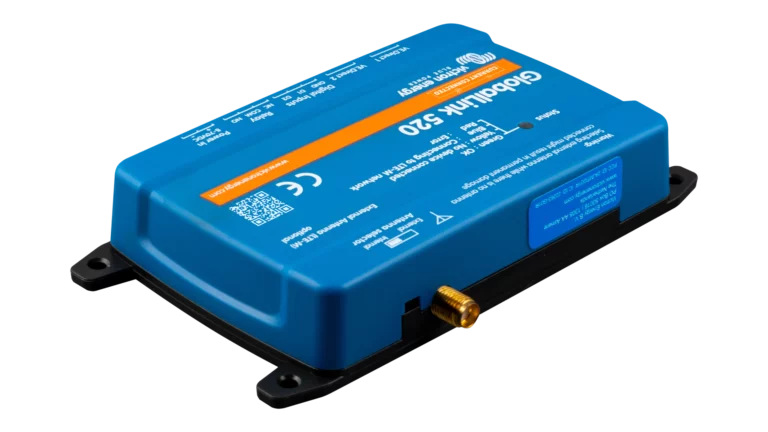

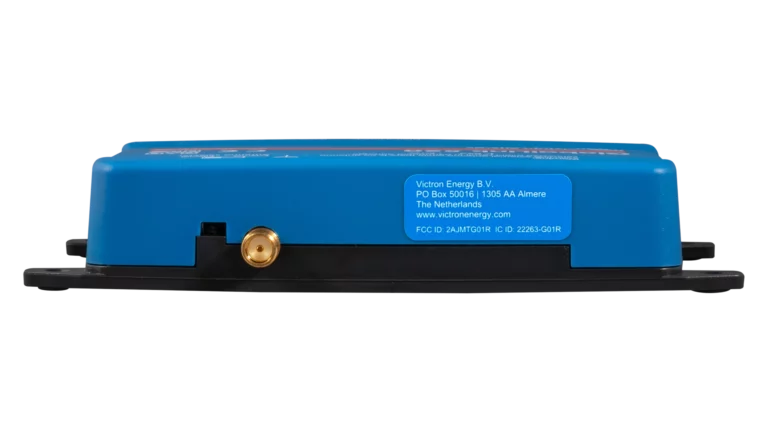

The GlobalLink 520 features a built-in antenna designed to provide global coverage, ensuring uninterrupted connectivity during your adventures. Additionally, for those seeking constant connectivity in even the most remote places, an optional external antenna is available for purchase.
Enhanced Monitoring via VictronConnect and VRM
The Victron GlobalLink 520 now supports the RuuviTag temperature sensors. These battery powered sensors connect via BLE and are easy to set up via VictronConnect. All the data, like temperature, humidity, and air pressure from the RuuviTag sensors, will directly be available in VRM.
Remote Access and Advanced Insights
The online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.
