Victron BMV-712 Smart Battery Monitor for Voltage and State of Charge on Lithium and Lead-Acid Battery Banks
SKU: BAM030712000R
Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Product Summary
The Victron BMV-712 Smart Battery Monitor has comprehensive monitoring capabilities, customizable alarms, and easy installation.
Features:
- Monitor battery voltage, current, power, ampere-hours consumed, and state of charge
- Programmable visual and audible alarms
- Programmable relay for non-critical load control or generator activation
- 500 Amp quick connect shunt and connection kit included
- Shunt selection capability of up to 10,000 Amps
- VE.Direct communication port
- Stores a wide range of historical events for usage pattern analysis and battery health evaluation
- Input voltage range: 6.5 – 70V
- High current measurement resolution: 10 mA (0.01 A)
Current Connected is YOUR Victron product specialist

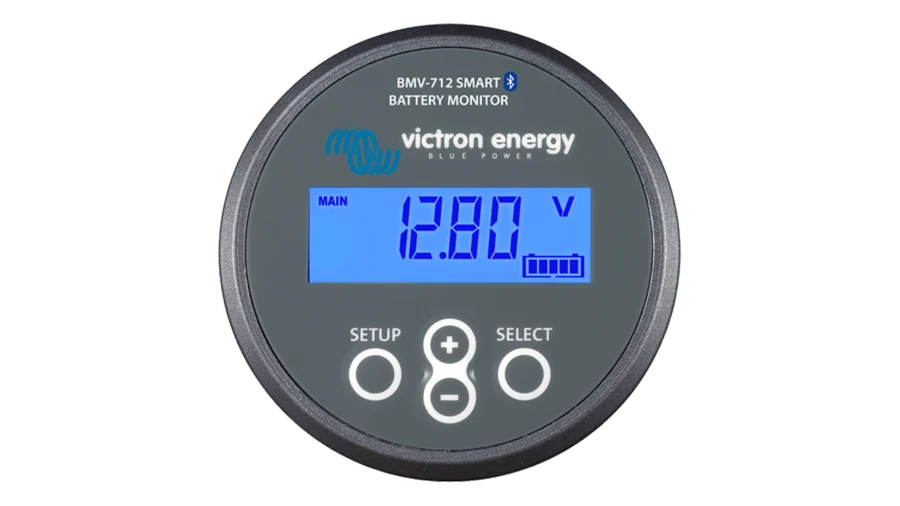

Victron BMV-712 Smart Battery Monitor
Connect the BMV-712 with other Victron products via Bluetooth and the VictronConnect app. Use your battery monitor with a smartphone or any other Bluetooth-enabled device. Use the app to customize settings, access all crucial data on a single screen, access historical information, and update the software.
All electrical connections are made to the quick connect PCB on the shunt. The package includes a separate front bezel for a square or round display appearance, a securing ring for rear mounting, screws for front mounting, a 10m RJ12 cable, and a 2m battery cable with fuse. The BMV-712 also has a low current draw, consuming only 0.7 Ah per month (1mA) at 12V, and 0.6Ah per month (0.8mA) at 24V.
