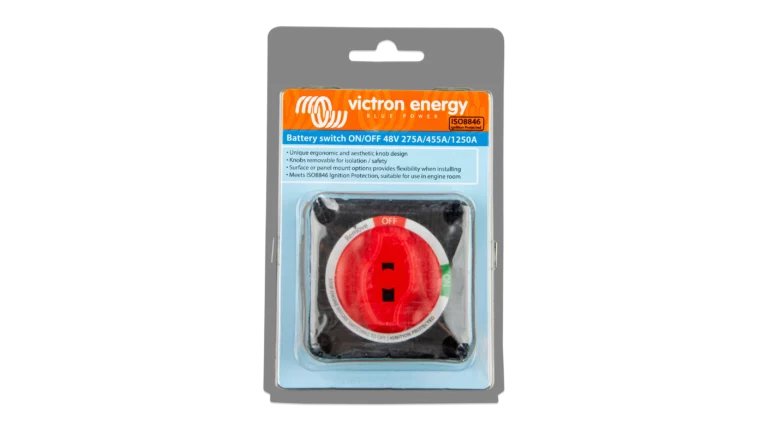

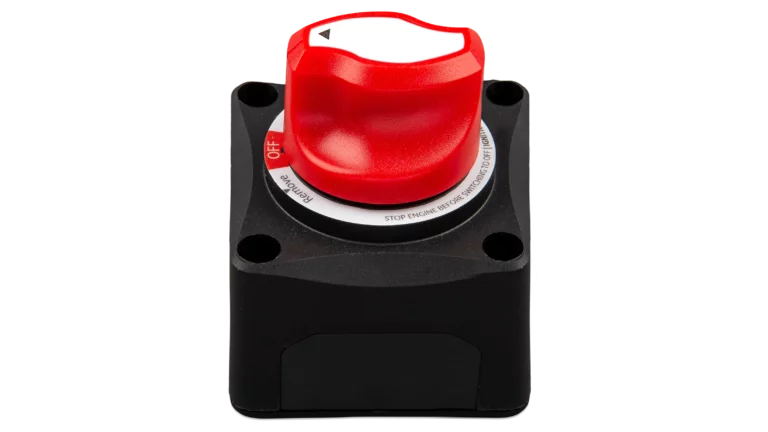

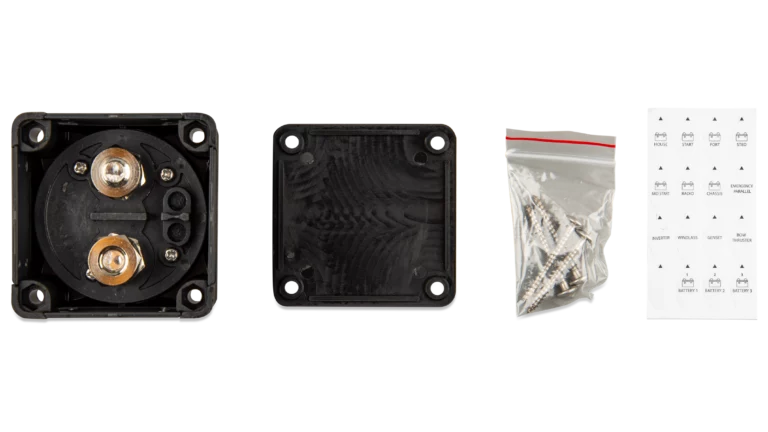

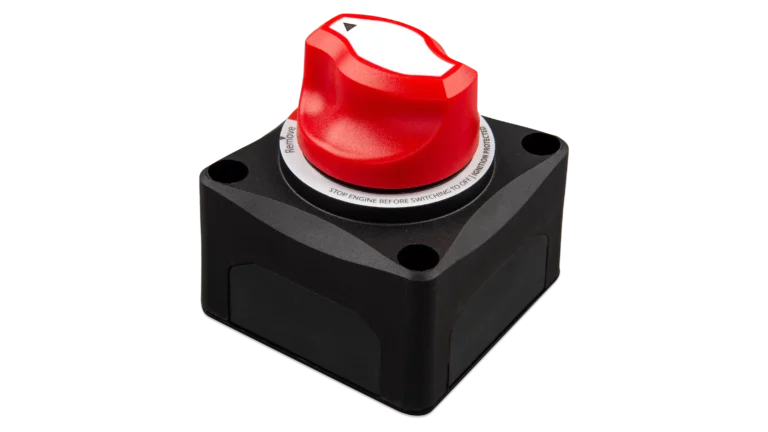

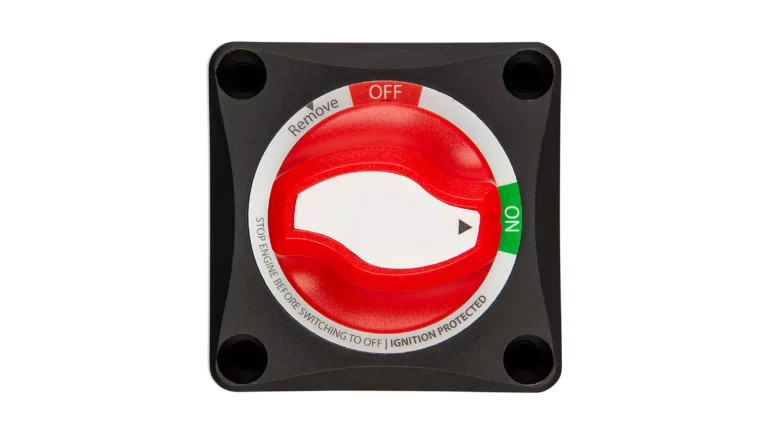

Victron Energy Battery Switch ON/OFF 275A, Suitable for Up to 48Vdc Energy Systems, Ignition Protected, Surface or Panel Mounted

The Victron Battery Switch is a simple battery disconnect switch. It can be used to quickly disconnect a battery bank from the inverter. This switch is a simple on/off switch that makes or breaks the connection on the positive line. It does so by a simple relay inside that either keeps the connection or breaks it depending on where the switch is turned to. The Victron Battery Switch is up to ISO8846 Ignition Protection standard, making it suitable for engine rooms and other heated environments. It is perfect for systems operating up to 60V and 275A.

Specifications:

• Max. Continuous Current: 275A
• One Minute Rating: 455A
• Cranking Rating: 1250A
• Voltage Rating: 60V MAX
• Terminal Material: Tin-plated Copper
• Hex Nut Material: Tin-plated Copper
• Terminal Diameter: 3/8 inch / 9.53 mm
• Recommended Torque: 70 in·lbf / 8 N·m
• Base Material: Glass Fiber Reinforced Nylon
• Weight: 0.4 lb / 0.2 kg
• Dimensions (LxWxH): 2.7 x 3.0 x 2.7 inches
