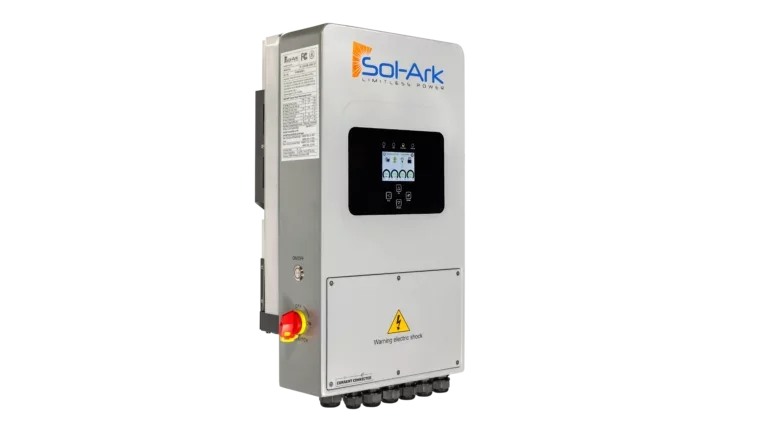

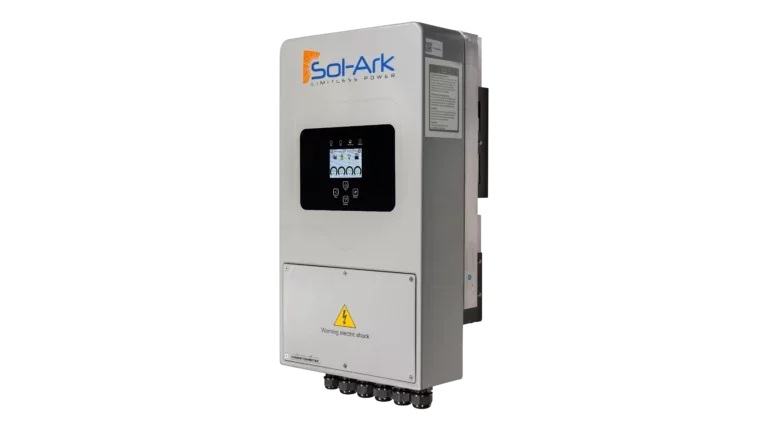

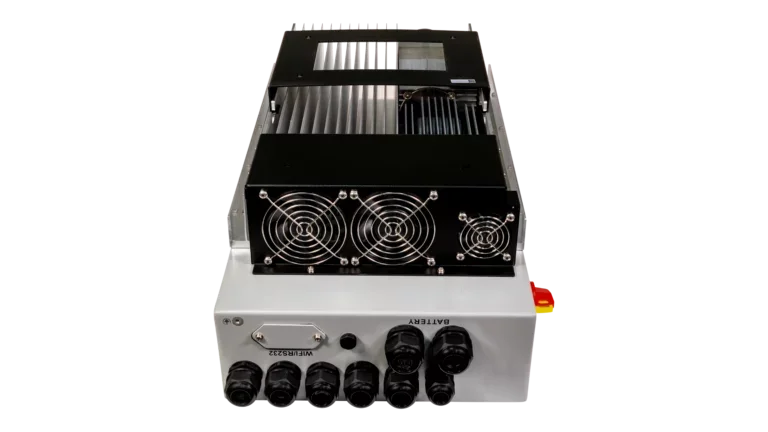

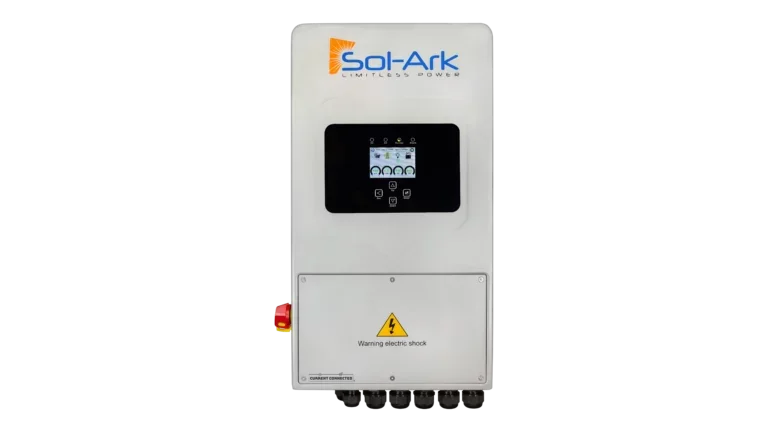

Sol-Ark 5K-1P All-In-One Hybrid Inverter
SKU: 5K-1P
Product Summary
The Sol-Ark 5K-1P All-in-One Hybrid delivers a continuous AC power output of up to 4,800W. When it comes to an All-in-One, the Sol-Ark 5K-1P is perfect, as it does not need additional equipment. It has an integrated transfer switch, solar input, and remote monitoring capabilities. Being able to handle up to 500V of PV input, the Sol-Ark 5K-1P is all you need to run a proper Solar System.
Specifications:
- Max Allowed PV Power: 10,400W
- Startup Voltage: 120V
- Number of MPPT: 2
- Max Continuous Power From Batteries: 4800W
- Max Output Current: 40A
- Zero Load Consumption: 60W
- Weight: 53 lbs.
- Dimensions (HxWxD): 23.6 x 13 x 9.3 inches
- NEMA 3R Certified
Buying multiple? Contact us for the best pricing on these units.
Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Current Connected is YOUR Sol-Ark product specialist
The Sol-Ark’s 5k-1P does not need extra breakers, fuses, combiner boxes, or rapid shutdown equipment. Having everything built in allows for an easy install that is code-compliant. With the Sol-Ark 5K-1P, batteries aren't needed when first set up, as the system can run with or without batteries. Sol-Ark’s 5K-1P allows for maximum optimization of your solar panels, with a nominal voltage range of 150-425V from PV. This allows you to set up your solar panels in series and get the maximum power out of them.
Features:
- 50A transfer switch
- Able to stack up to 8 inverters in parallel
- NEMA 3R rated, allowing outdoor installation
- Has Closed-Loop Communication, able to work with any LiFePO4 batteries requiring communication
- It has AC and DC coupling, allowing for a combination of DC-coupled and AC-coupled solar panels
- Battery Agnostic: You can use the Sol-Ark 15k Inverter without batteries initially and add them later without any restrictions.
- 500V DC solar input, allowing for larger solar arrays
- Built-in Rapid shutdown and emergency stop

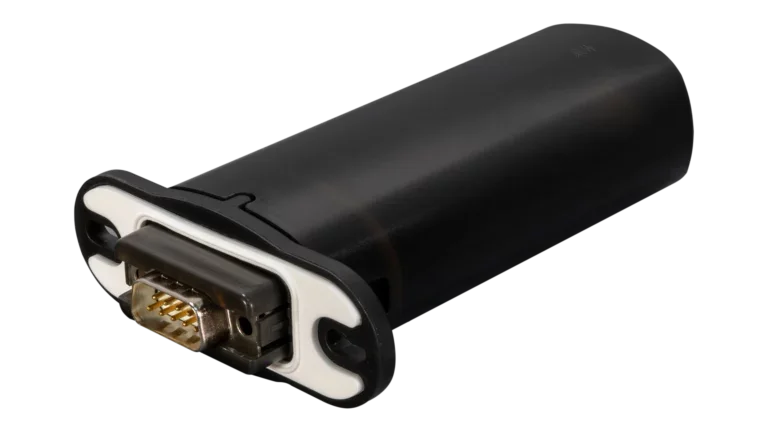

- Built-in remote monitoring system
- Has a UL1741-2010/2018 certification
Applications:
- 48V Lithium or Lead Acid charging
- Off-grid housing, on-grid housing
