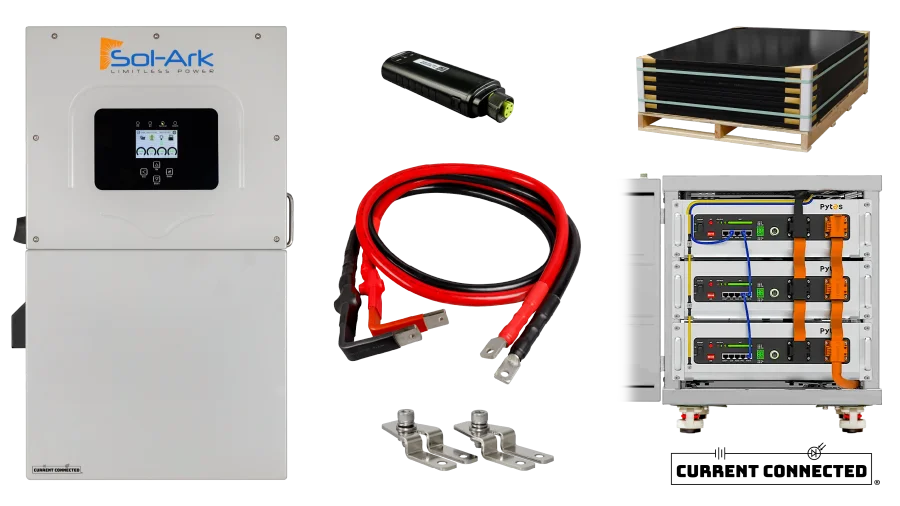

UL 9540 ESS Kit - Sol-Ark 15k + Pytes 15.36kWh
Product Summary
Be prepared for the next power outage with our UL Listed Kit – the perfect solution for securing your grid-tied power system. Whether you need to power your home during emergencies or want an extra layer of protection, this kit has got you covered. Stay connected, productive, and worry-free with our Ultimate Power Backup Bundle!
Log in to check member price and detailed stock information.
Configure Your System
Inverter
RequiredChoose Inverter*
Product Details

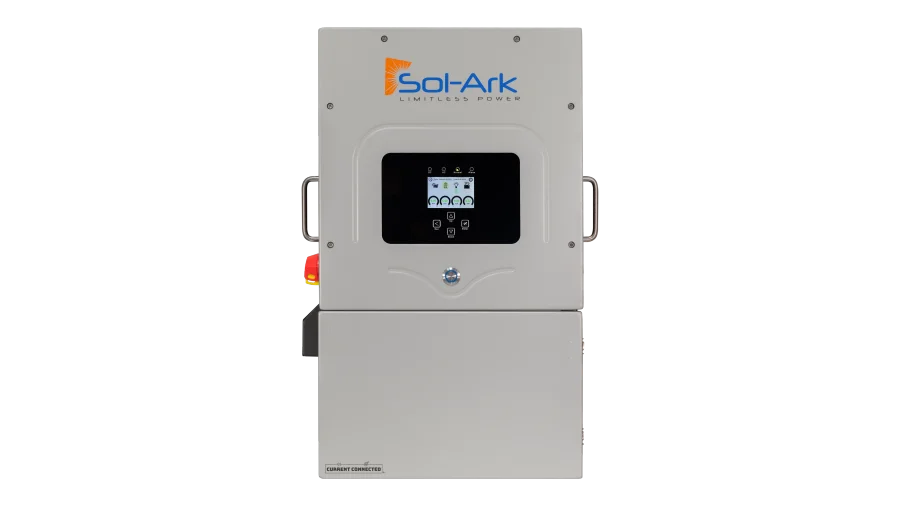

Sol-Ark 15K-2P 48V All-in-One Hybrid Inverter, 12kW-15kW AC Output, 19.5kW PV Input, UL 1741 & UL 9540 Lithium Battery Inverter
The Sol-Ark 15K is an all-in-one hybrid inverter that combines battery inverting, three MPPT solar charge controllers, grid passthrough, and grid sell-back in a single IP65 enclosure. It outputs up to 15kW continuous with solar, 12kW from batteries alone, and passes through up to 200A (48kW) from the grid. UL 1741 SB and IEEE 1547.1-2020 certified with integrated rapid shutdown, arc fault detection, and ground fault detection.
Specifications:
- Continuous output power: 15kW @ 120/240V
- 3x MPPTs, up to 500Vdc max
- 2 inputs per MPPT
- Rated MPPT operating voltage range: 175-425V
- Max. usable input current per MPPT: 26A
- Max. short circuit current per MPPT: 44A
- Max. utilized solar power: 19.5kW
- Max. charge/discharge current: 275A
- Certified to UL 1741 Standards
- Weight: 135lbs
- Dimensions (H×W×D): 31.8×19.4×12in
Loading options...
Batteries
RequiredChoose Batteries*
Loading bundle items...
Solar Panels
OptionalChoose Solar Panels
Product Details
YHSunpro 440W Bifacial Solar Panel, PV Module for Residential or Commercial Renewable Energy Systems, Monocrystalline Bifacial Panels
Specifications:
- Wattage: 440W
- Open-Circuit Voltage (Voc): 38.53V
- Short Circuit Current (Isc): 14.43A
- Operating Voltage (Vmp): 32.09V
- Operating Current (Imp): 13.72A
- 108 Cells (Half cell technology)
- Monocrystalline, bifacial
- TOPCon technology
- Efficiency: 22.53%
- 2.4kPA wind load and 5.4kPA snow load
- Weight: 51.37lbs
- Dimensions (H×W×D): 67.8×44.65×1.18in
These modules come on a pallet containing 36 units. We recommend purchasing a full pallet for optimal shipping rates. However, we will build a custom pallet for smaller orders, at a minimum of 8 units.
| Need more than what's available? Tell us what you need and we can source it for you. |
Solar Panel Racking
OptionalChoose Solar Panel Racking
Product Details
IntegraRack IR-40FSA BallastRack Adjustable Angle Solar Module Rack, 15-40 Degrees Fixed Angle Solar Panel Rack
Specifications:
- Adjustable from 15° to 40° (fixed notches every 2.5°)
- Great for adjusting the angle as the seasons change
- Two material options to choose from
- Allows for 8 inches of ground clearance
- Lowest cost per frame with adjustable angle
Loading options...
Solar Mounting Method
OptionalChoose Solar Mounting Method
Product Details
IntegraRack IR EarthBallast Mounting System, Geotextile Roll and Epoxy Kit for Securing IntegraRack IR Series Solar Panel Frames
This Earth Ballast Kit provides a 3′ x 50′ roll of geotextile material to secure the IR-30 to the ground. Each kit comes with the geotextile material and one caulk gun size tube of high-strength 5 minute epoxy. Perfect for any installation that needs easy and stable racking for solar panels.
Includes:
- 3′ x 50′ roll of geotextile material
- Caulk gun size tube of high-strength 5 minute Epoxy
| Need more than what's available? Tell us what you need and we can source it for you. |
Kit Summary
| Component | Selection | Qty | Subtotal |
|---|---|---|---|
| — | $0.00 | ||
| — | $0.00 | ||
| Excluded | Not included | 0 | — |
| Excluded | Not included | 0 | — |
| Excluded | Not included | 0 | — |
| Total | $0.00 | ||
Log in to check member pricing and detailed stock information.
