MidNite Solar Arc Fault Ground Fault Kit for Barcelona & Hawke’s Bay Solar Charge Controllers, Remote-Trip Breaker Activator

Name: MidNite Solar Arc Fault Ground Fault Kit for Barcelona &amp; Hawke’s Bay Solar Charge Controllers, Remote-Trip Breaker Activator
Brand: Midnite Solar
SKU: MNHBB-AFGF KIT
Availability: InStock

SKU: MNHBB-AFGF KIT

Spec Sheet

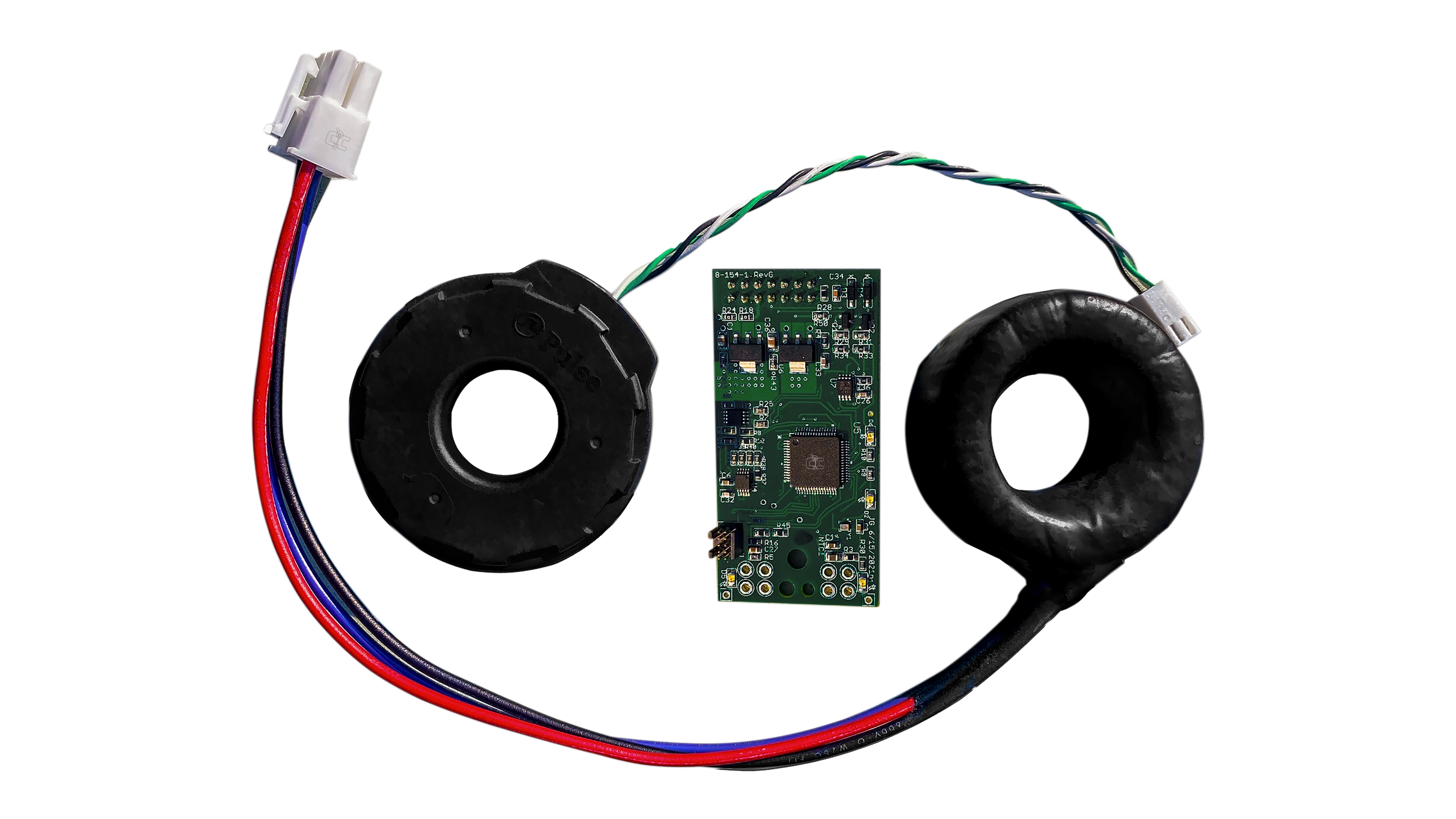

The AFCI Kit comes with an AF(Arc Fault)/GF(Ground Fault) circuit board, as well as an AF sensing toroid and a GF sensing toroid. It allows for the detection of Arc Faults or Ground Faults in your PV side of the system. Made to work with both the Barcelona and the Hawke’s Bay charge controllers.

Specifications:

Easy plug-in options board
Ground fault uses differential current between PV negative and PV positive
Ground fault sense toroid included
Arc fault sense toroid included
Reliable arc fault detection
Compatible with Barcelona and Hawke’s Bay charge controllers

$122.00

to check member price and detailed stock information.

Available to order - Ships directly from manufacturer
Drop-ship item - Ships directly to you
Log in to see additional stock details

Description

The Arc Fault/Ground Fault Kit monitors for arc-fault and ground-faults, activating the remote trip circuit breakers which disconnect PV and Battery breakers when a fault is detected. The arc-fault sensor monitors for specific noise on the PV wires that are only present when arcing is occuring. The GF sensor looks for a 0.5A current differential between the PV wires to identify current flowing to ground.

Installation is straightforward. The Hawke’s Bay and Barcelona controllers include a modular option board, which the circuit board included in this kit plugs onto. The wiring that runs to the PV array is route through the sensor cores for detection.
