Description

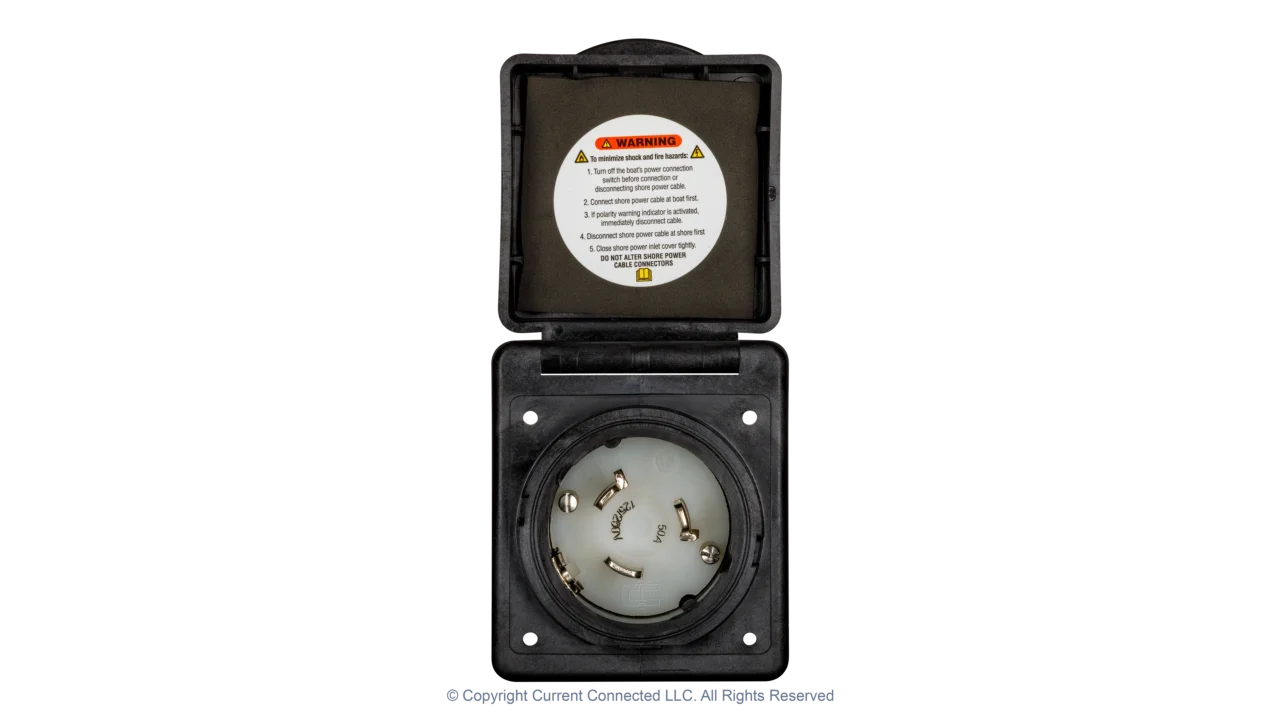

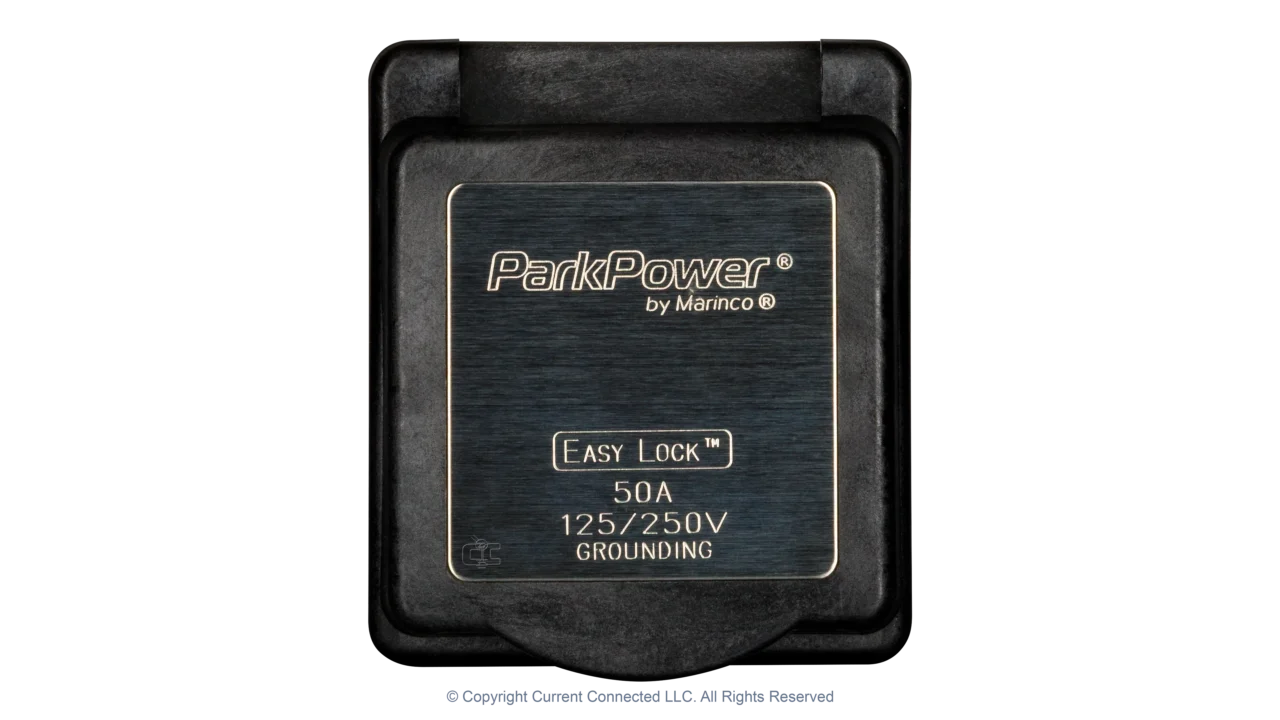

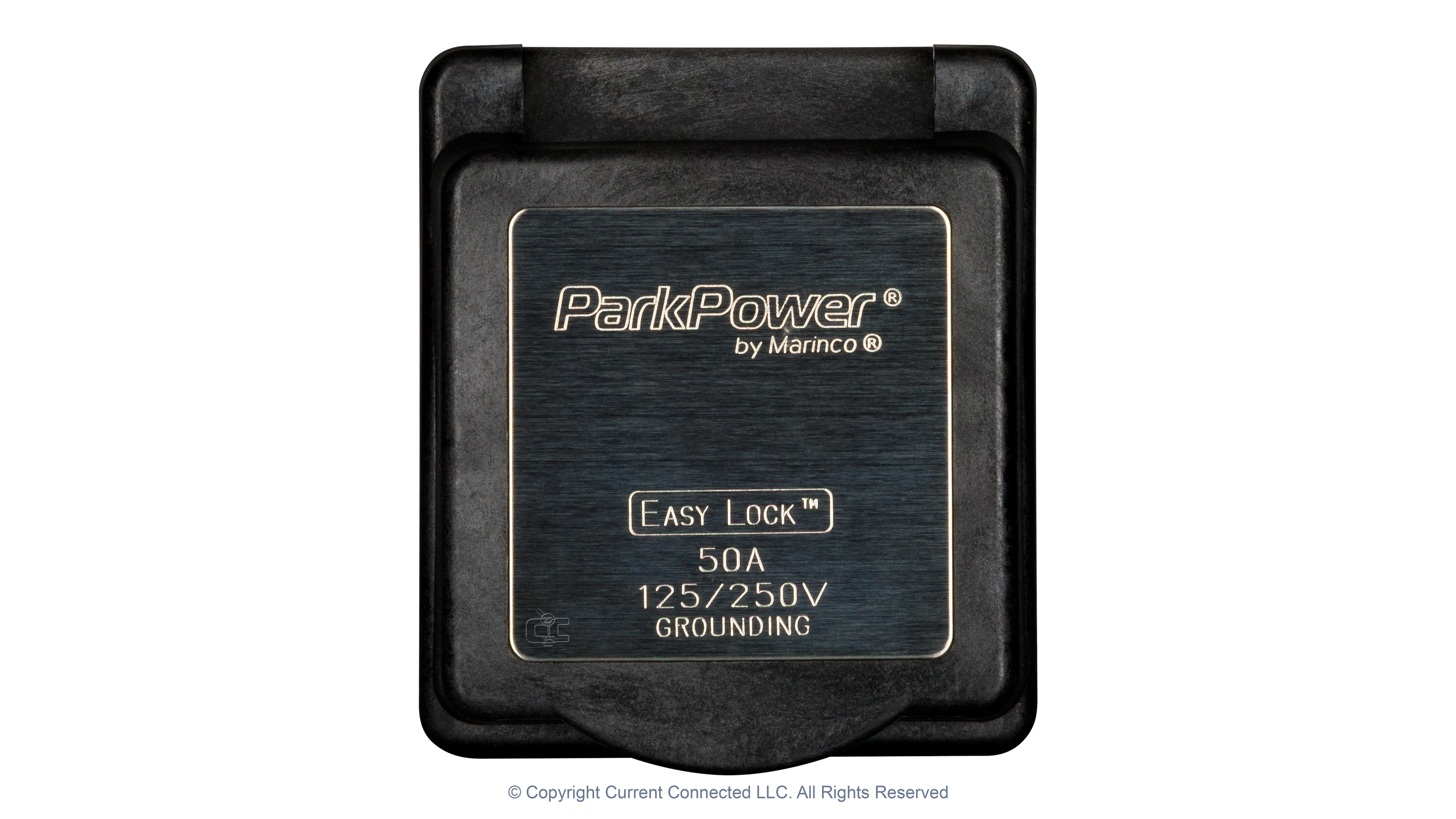

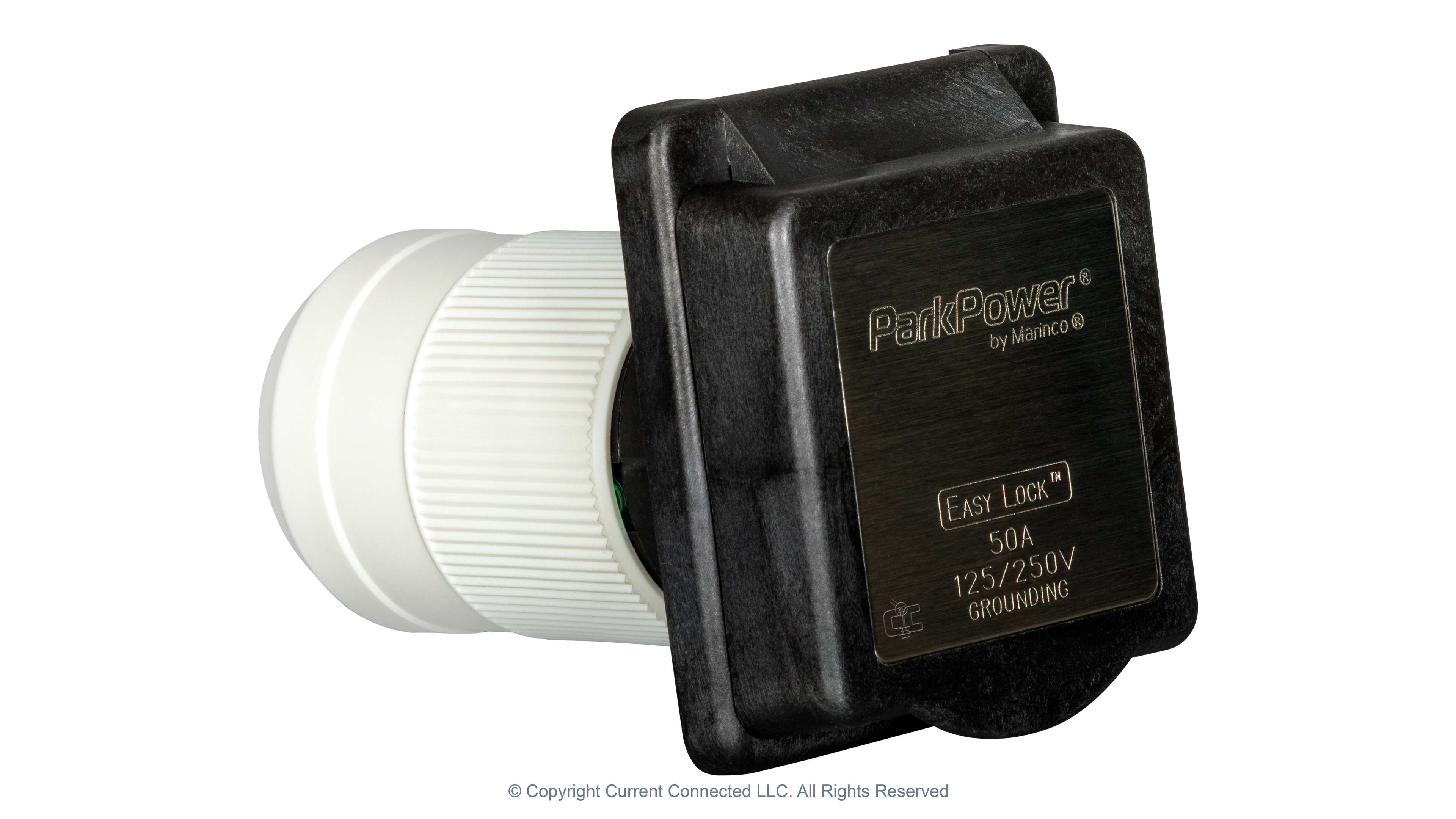

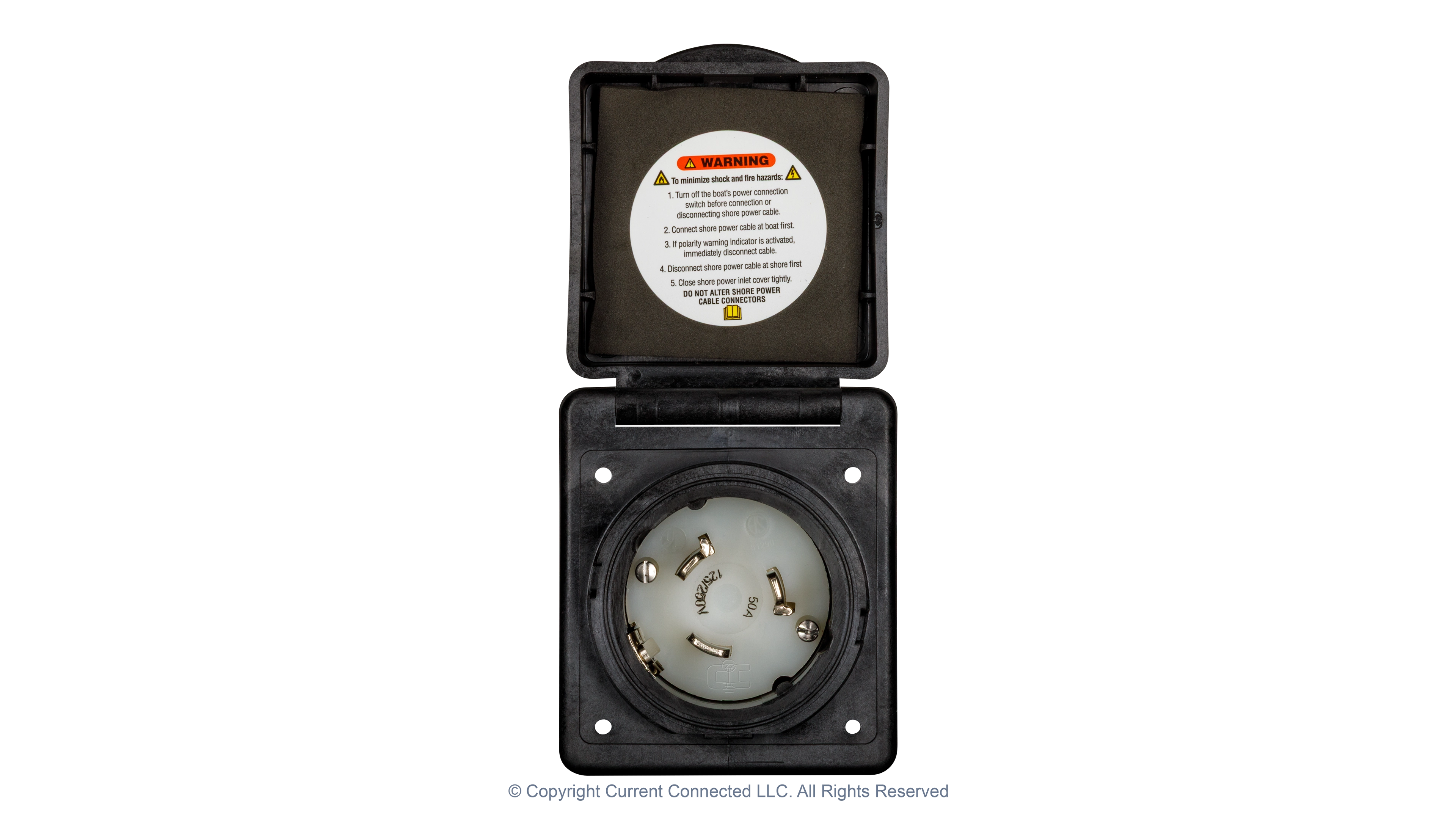

The ParkPower Easy Lock RV Power Inlet is a three-prong, twist-lock prong-plug for taking in 125/250V power up to 50A with a weatherproof cover. This unit works as a hardwired shore power or pedestal power connection in an RV, though it can also be used as a permanent fixture in a home or other mobile application.
The plug is intended to be used in larger RVs with higher energy demand. The twist-lock connection prevents the connected power supply from being disconnected accidentally. It connects to a three-prong, twist-lock socket plug frequently found with shore power connections with larger service.

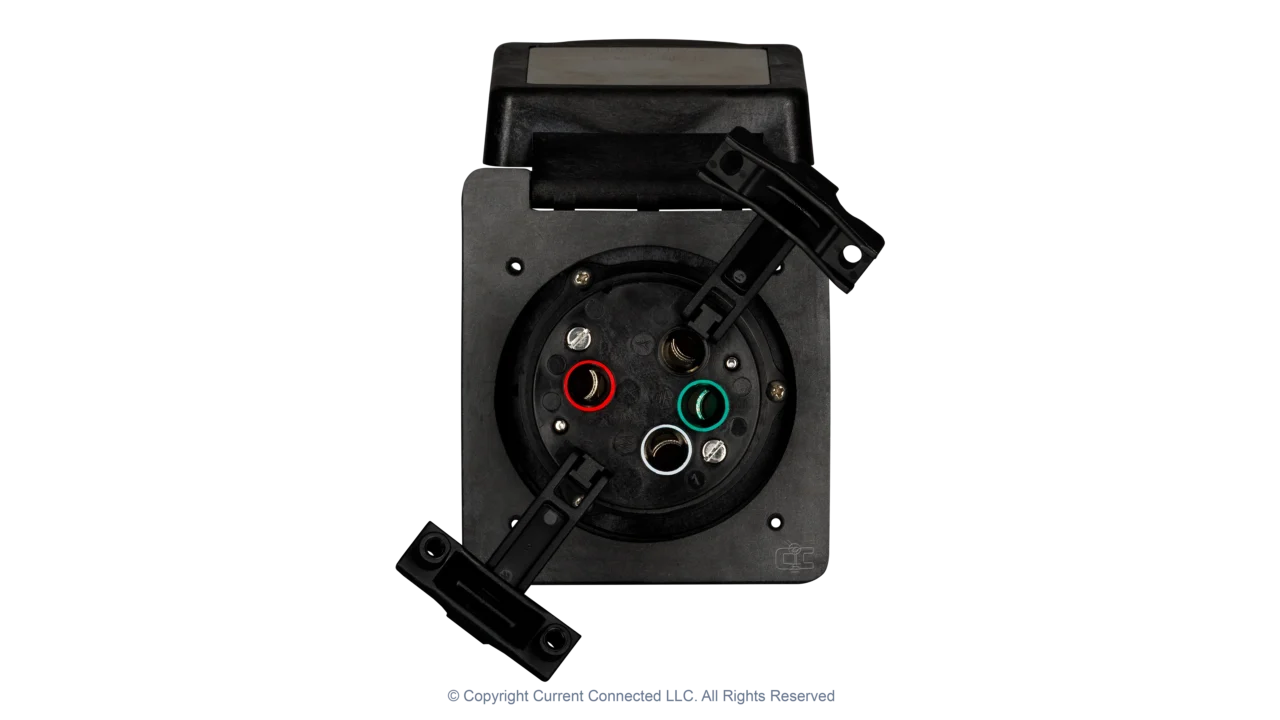

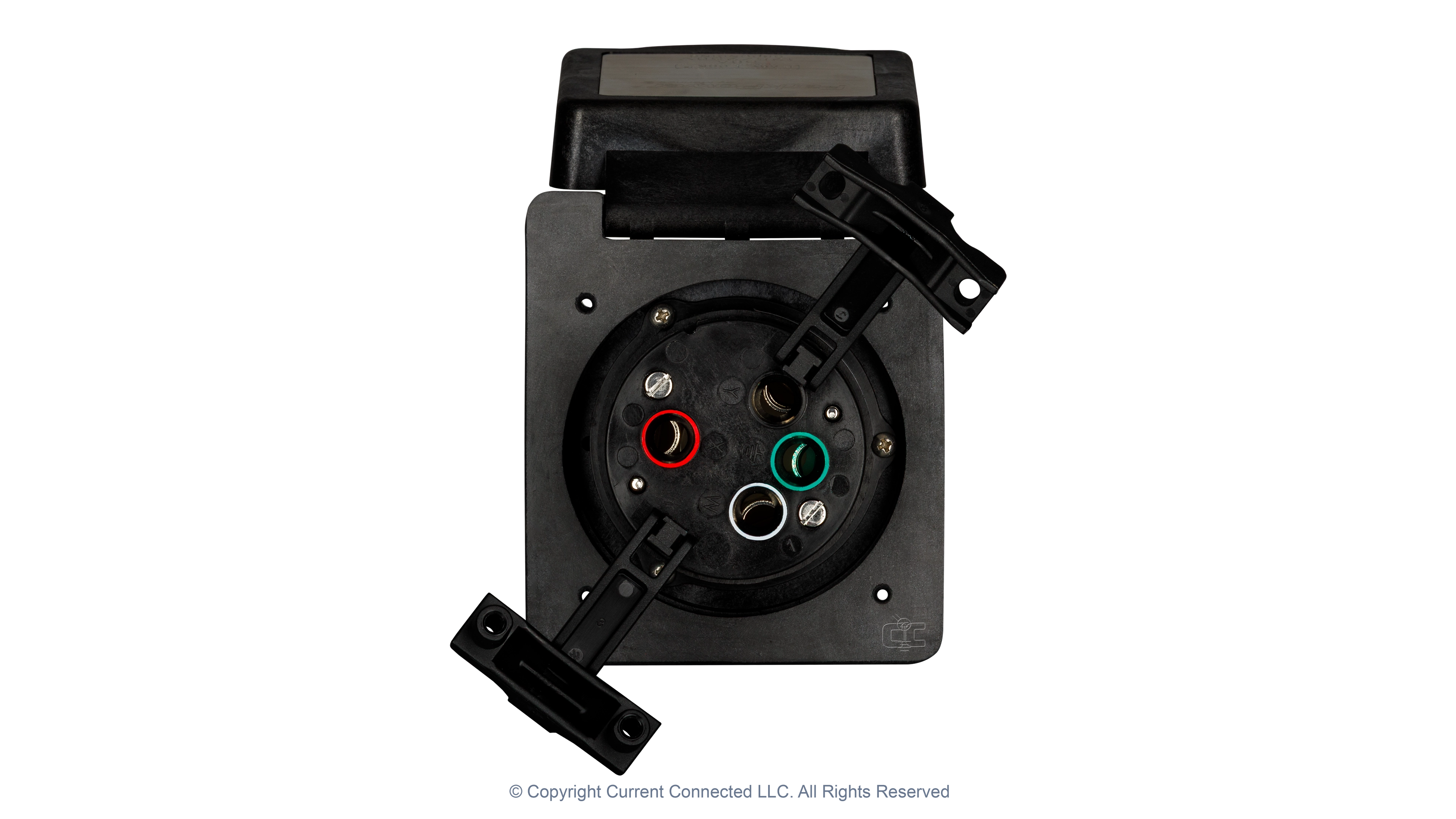

The outer shell of the housing covers the terminals within. Wire retaining screws are accessible on the side of the terminal housing beneath the shell. There are four terminals: red and black for the two legs of live power, white for neutral, and green for ground.

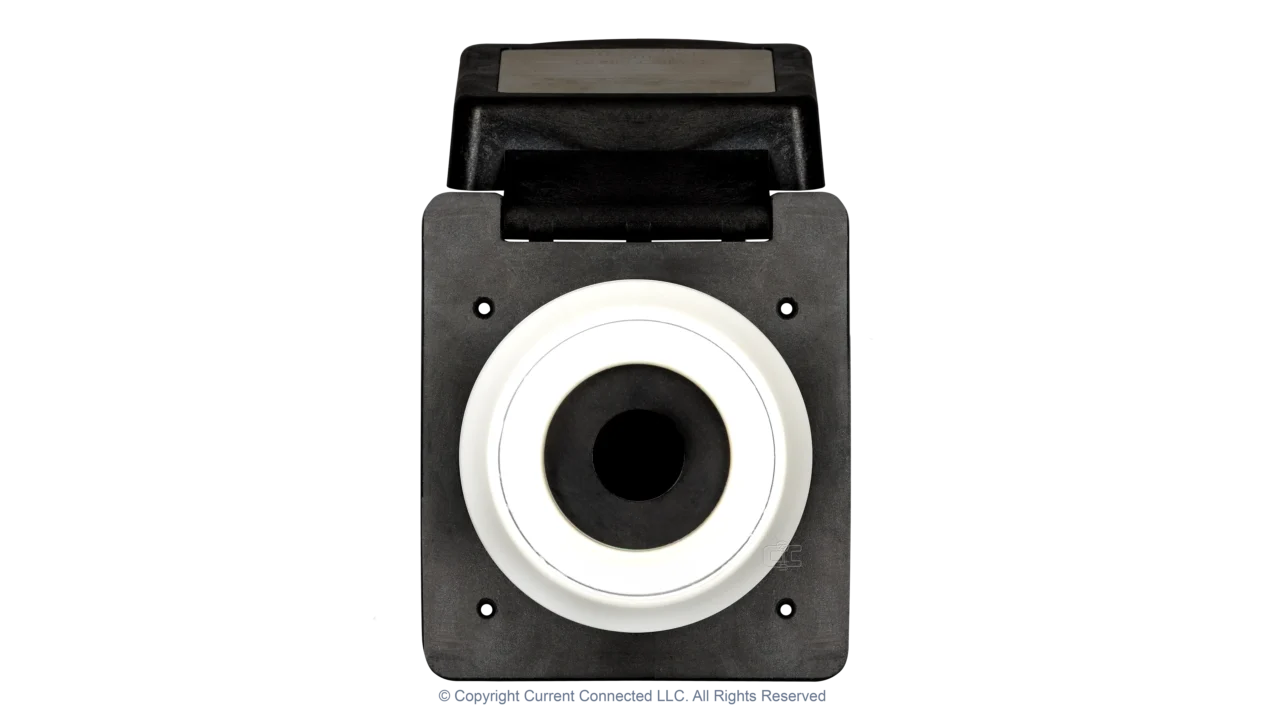

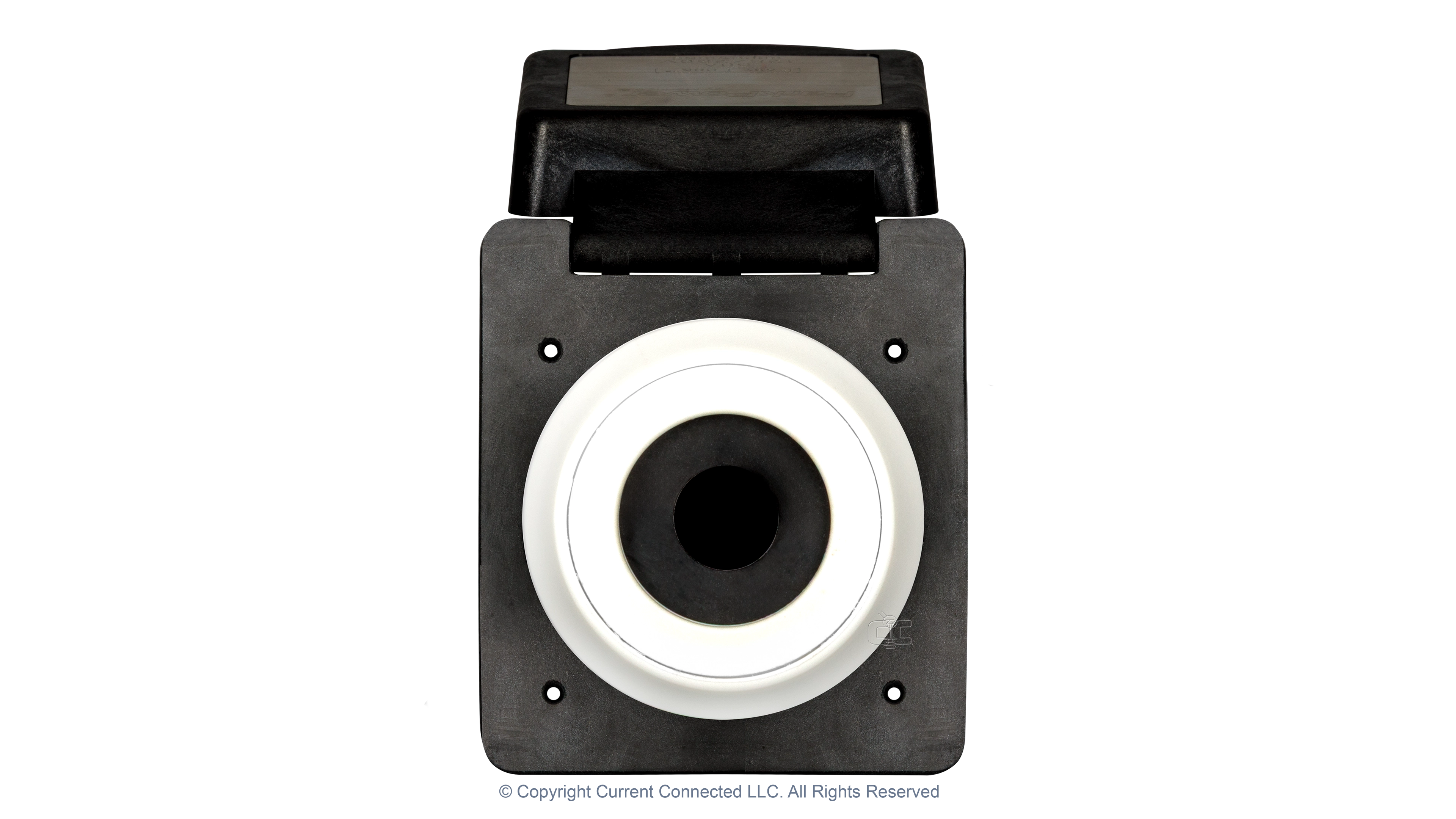

The outer shell can be reinstalled after the wires have been tightened into place. The outer shell and the components within will be hidden behind the wall in which it is installed. The housing for the prongs and the cover are still accessible after installation.
This is a four wire (L1/L2/N/GND) power inlet.
