IntegraRack MultiBallast Kit for Flat Roofs and Flat Ground Solar Panel Installations

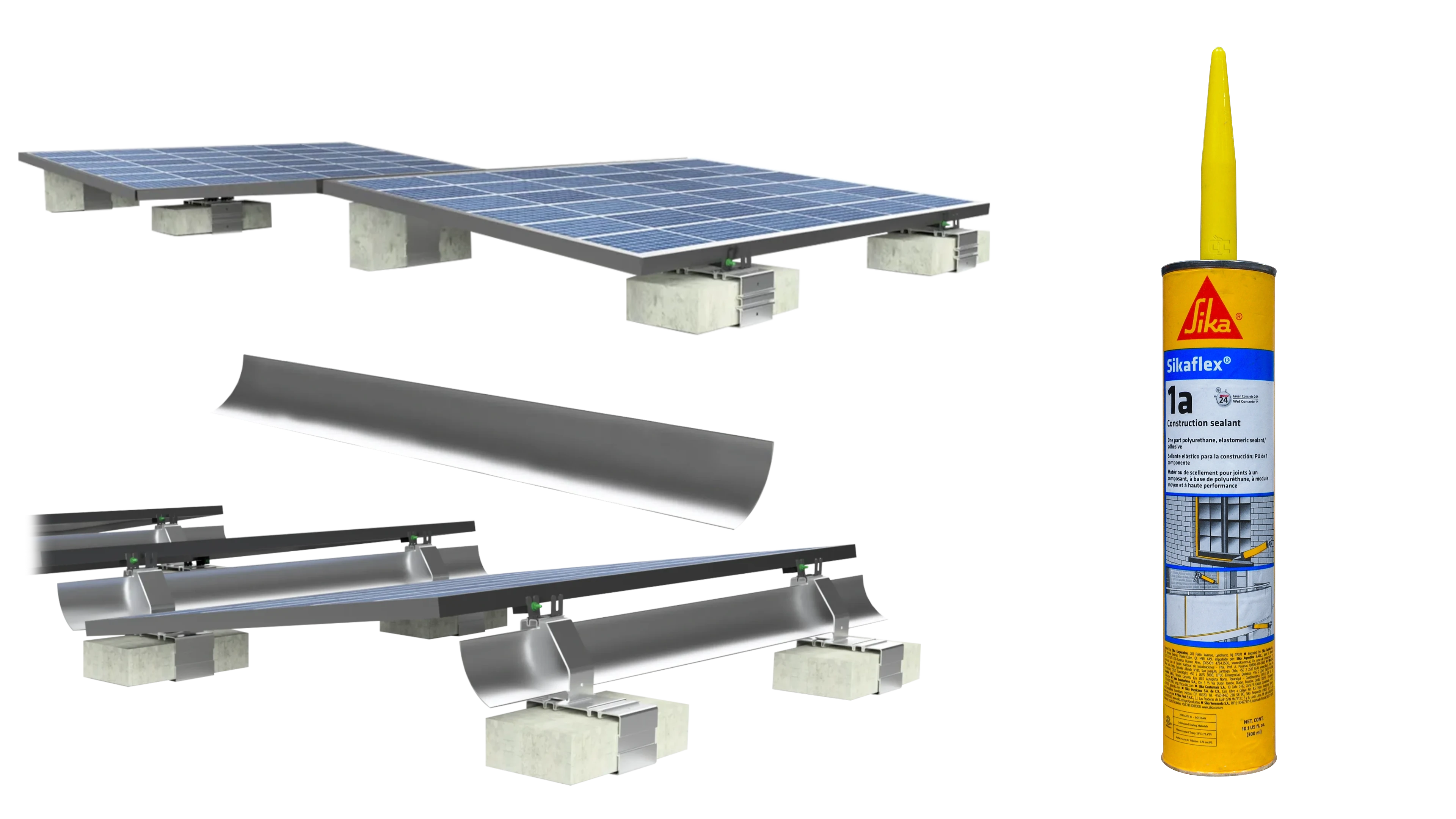

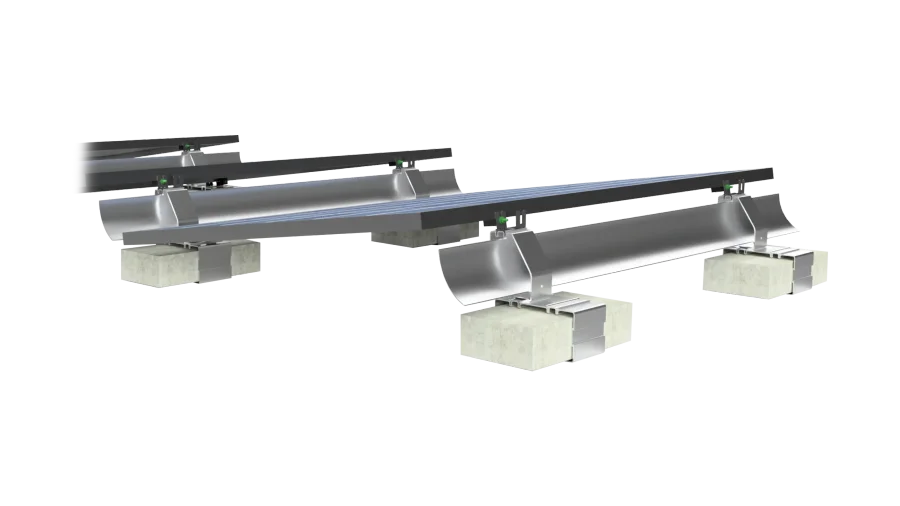

This IntegraRack IR MultiBallast kit mounts any size of solar panel at a low 8° tilt. It is ideal for a flat roof, patio, or open ground, and because the kit is small and lightweight, it ships and assembles with ease.

Specifications:

• Ballasted mount kit for flat roofs, patios, or flat ground
• 8° single-tilt (north/south) configuration
• Each kit includes 2x aluminum base mounts, 2x riser brackets, 2x H module brackets, 4x IR-F2 module bonding brackets, and 8x bolts
• 6061-T6 aircraft-grade aluminum
• Conforms to UL 2703 bonding and grounding requirements when correctly installed
• Secured with two standard 4×8×16in CMU cinder blocks per kit (not included), or bonded directly to the roof with polyurethane sealant
• Shipping weight: 8 lbs
• Shipping dimensions (H×W×D): 17×9×9 in

Important: Make sure the roof can support the added weight of the solar panel system.

Requires one MultiBallast Wind Spoiler behind each panel (sold separately).

Requires Sikaflex 1A Polyurethane Sealant for installation without cinder blocks.

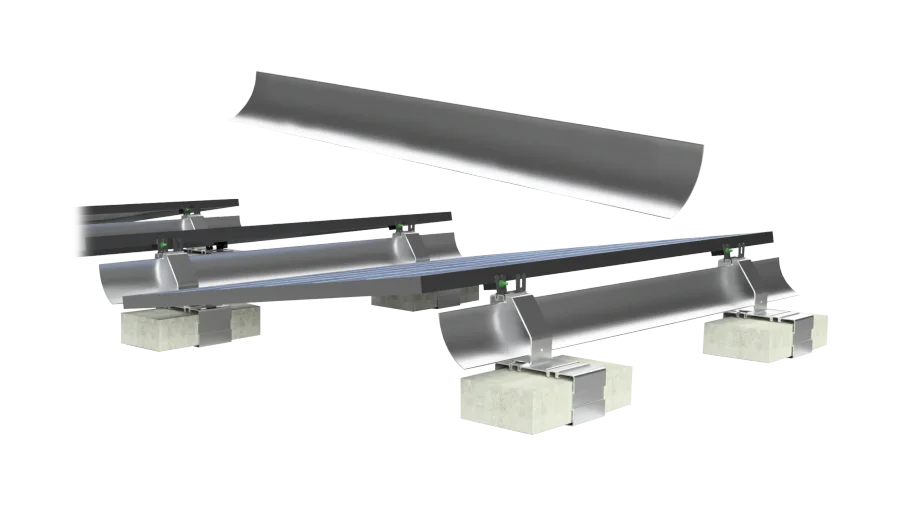

The IntegraRack MultiBallast Wind Spoiler is a companion product to the 8° MultiBallast solar panel mounting system. The Wind Spoiler reduces the uplift force from wind underneath solar panels installed on flat surfaces.

Specifications:

• Each package contains 10x wind spoilers
• Used in conjunction with other IntegraRack products in the MultiBallast line, such as the IR-08MBCB
• Weight: 24lb
• Dimensions (H×W×D): 67×6×2in

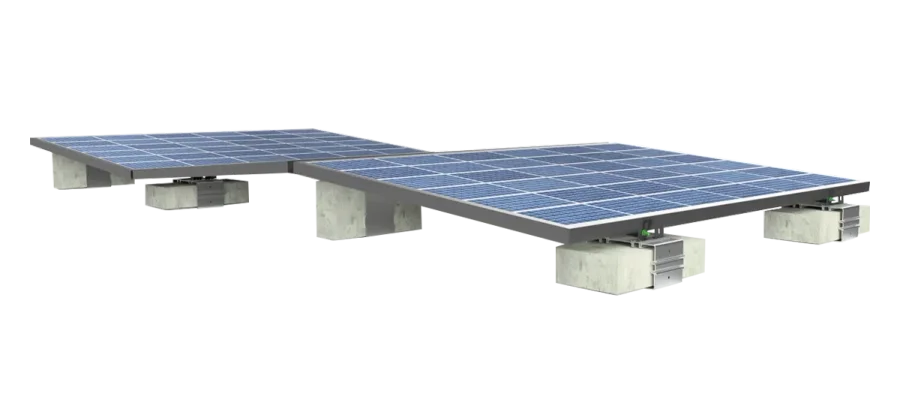

IntegraRack’s IR MultiBallast turns any flat surface into a productive solar field. Choose the IR-W5MBCB to mount modules flat at 0° or in a 5° east-west “W” configuration on a flat roof, a patio, or the ground, all without penetrating the surface below.

Specifications:

• Ballasted mount kit for flat roofs, patios, or flat ground
• 0° flat or 5° east-west “W” configuration
• Each kit includes 2x aluminum base mounts, 2x H module brackets, 4x IR-F2 module bonding brackets, and 4x bolts
• 6061-T6 aircraft-grade aluminum
• Conforms to UL 2703 bonding and grounding requirements when correctly installed
• Secured with two standard 4×8×16” CMU cinder blocks per kit (not included), or bonded directly to the roof with Sikaflex 1A Polyurethane Sealant
• Shipping weight: 6lbs
• Shipping dimensions (H×W×D): 17×9×9in

Important: Make sure the roof can support the added weight of the solar panel system.

Requires Sikaflex 1A Polyurethane Sealant for installation without cinder blocks.

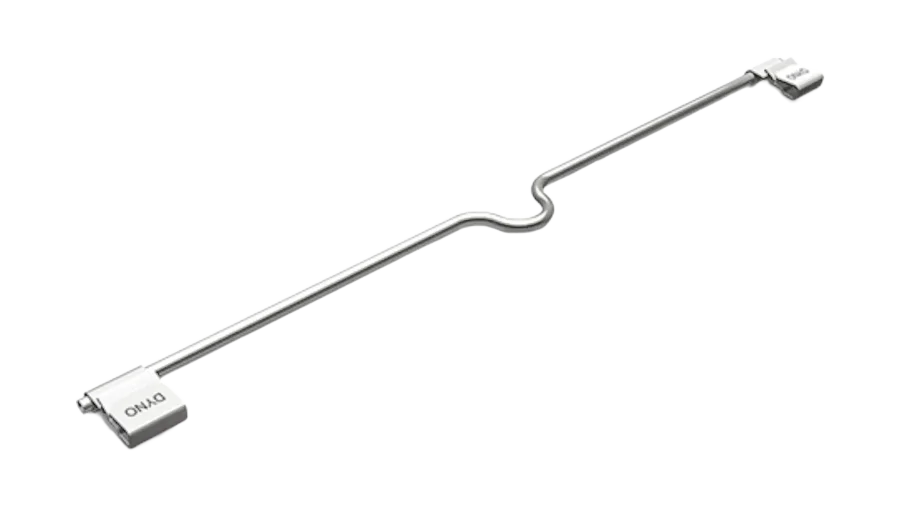

The IntegraRack IR-B1 is the DynoRaxx DynoBond bonding jumper, a UL-recognized clip that pushes onto the bottom flange of your module frames to carry the electrical bonding path between panels and across rows. It uses the frames themselves as the ground path, replacing the old routine of a ground lug on every module and a heavy run of 6-gauge copper, and it installs in seconds without tools.

Specifications:

• UL recognized to 467 and 2703 standards
• Available in 8-inch and 12-inch lengths
• 12 AWG tin-plated copper wire with stainless steel spring clips
• Factory-crimped connections for a reliable, low-resistance bond
• Installs with no tools by pushing onto the panel’s bottom flange
• Bonds panel-to-panel and row-to-row using the module frames as the ground path
• Compatible with IntegraRack BallastRack, MultiBallast, and BallastBase systems
• Made in the USA
• One jumper per unit

Sikaflex 1A Polyurethane Sealant is IntegraRack’s recommended sealant for securing their MultiBallast mounts onto flat surfaces, though this product may be used in various other applications.

Specifications:

• 10oz cartridge
• Shelf life: 15 months in original, unopened packaging
• Storage temperature: 40°-95°F
• ASTM C920, Type S, Grade NS, Class 35, Use T, NT, O, M, A, I
• Certified to NSF/ANSI/CAN 61 for potable water (meets applicable requirements of NSF/ANSI 600)
• 55lb/in tear strength (ASTM D-624)
• Resistance to water, diluted acids, and diluted alkalines
