IntegraRack IR-EW15 BallastRack East/West 15 degree Fixed Angle Double Solar Panel Rack Frame, Single Frame
SKU: IR-EW150017
Product Summary
The IR-EW15 BallastRack is an East/West, 15-degree fixed-angle frame that stands two solar panels back to back on a single 6061-T6 aluminum structure, with no rails, concrete footings, or earth augers. The opposing 15-degree faces spread generation into the morning and evening and let rows sit close together, while the ballasted design and IR mounting kits allow fast setup across a range of terrain and wind zones.
Specifications:
- Configuration: East/West layout, 15-degree fixed angle, double-module frame holding two large-format modules per frame, joined at the peak by Ridge Coupler Brackets
- Module compatibility: modules up to 34sqft; minimum module length 69 inches
- Quantity needed: one frame per two panels, plus one additional frame to start each row
- Code compliance: uses UL 2703 Recognized bonding components and meets UL 2703 electrical bonding requirements when installed as instructed; array grounding per NEC 250 and NEC 690 to be completed by a qualified professional
- Wind rating: up to 180mph (24sqft panels), up to 140mph (34sqft panels)
- Snow load: up to 60psf for modules up to 24sqft, up to 40psf for modules up to 34sqft
- Foundation: ballasted or anchored using an IR mounting kit (sold separately)
- Manufacturing: made in the USA
Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Current Connected is YOUR IntegraRack product specialist
Two Modules per Frame with the IntegraRack IR-EW15
The IR-EW15 BallastRack carries two large-format residential or commercial PV (Photovoltaic) modules on one frame, one facing east and one facing west, joined at the ridge by a pair of coupler brackets. Doubling the modules per structure lowers the cost per kilowatt, and because an East/West array does not need the wide inter-row gaps a south-facing array uses to avoid self-shading, you can fit more capacity into the same ground area. Each frame accepts modules up to 34 square feet, with a minimum module length of 69 inches, and weighs 16.5 pounds.
How East/West Changes the Production Curve
A south-facing array concentrates its output around solar noon. The IR-EW15's opposing 15-degree faces stretch that output toward the morning and the evening, filling in the shoulders of the day. IntegraRack also states the layout can improve output on overcast days, when light is diffused rather than directional, though real production depends on your latitude, module choice, and local weather.
Rail-Free Clamping and Bonding With the IR-F2
The IR-F2 Flange Clamp Bonding Bracket does the work of both a mid clamp and an end clamp, so there are no rails to buy or install. Each bracket is zinc-electroplated A1008 carbon steel and carries a 25A rating, with built-in sharp barbs piercing the module frame as the clamp is tightened, establishing the electrical bond in the same motion that secures the module. Eight brackets ship with each frame.
Grounding and Code Compliance
IntegraRack systems use UL 2703 Recognized bonding components and meet UL 2703 electrical bonding requirements when installed according to the instructions. The IR-F2 handles module-to-frame bonding, while grounding the completed array to NEC 250 and NEC 690, including any frame-to-frame bonding, should be carried out by a qualified professional such as a licensed electrician or solar contractor.
Installation Without Concrete or Augers
Because the frame is ballasted or anchored with a mounting kit rather than set in concrete, there are no footings to pour, no augers to drill, and no posts to pound. The basic sequence is to assemble the frames, space them apart, secure them with your chosen mounting kit, mount the modules, and install the Ridge Coupler Brackets that tie the two faces together at the peak. Frames connect to one another along a run of 1-inch EMT conduit, sourced separately at any hardware or electrical supplier.
Engineering, Testing, and Warranty
IntegraRack manufactures its racking in Las Vegas, Nevada. The IR-EW15 was validated through wind tunnel testing at the Kirsten Wind Tunnel at the University of Washington and through mechanical load testing by Phoenix National Laboratories, an ISO/IEC 17025 accredited lab, and the datasheet ratings are taken from that data. Every IntegraRack product carries a 25-year limited warranty that provides parts replacement for manufacturer defects.
Wind and Snow Load Ratings
The IR-EW15's wind rating depends on how it is anchored and on module size. The ratings below are pulled from Kirsten Wind Tunnel data and mechanical load testing.

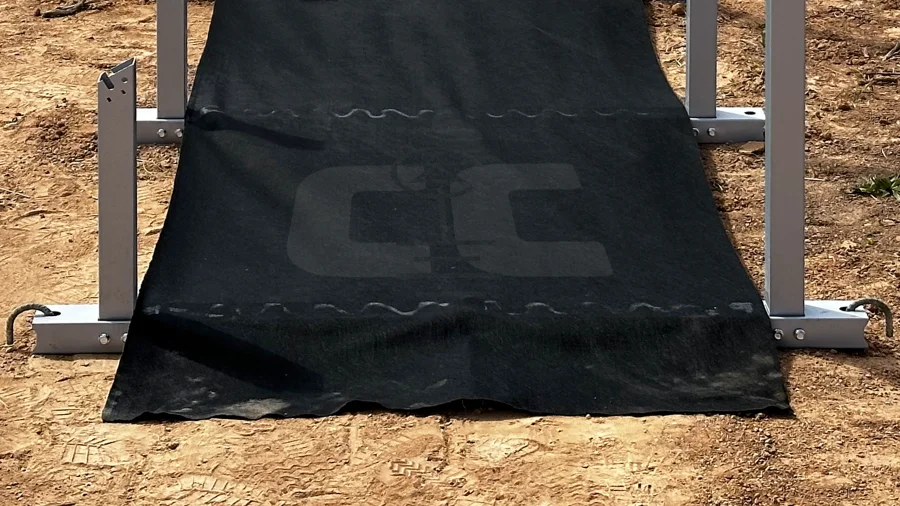

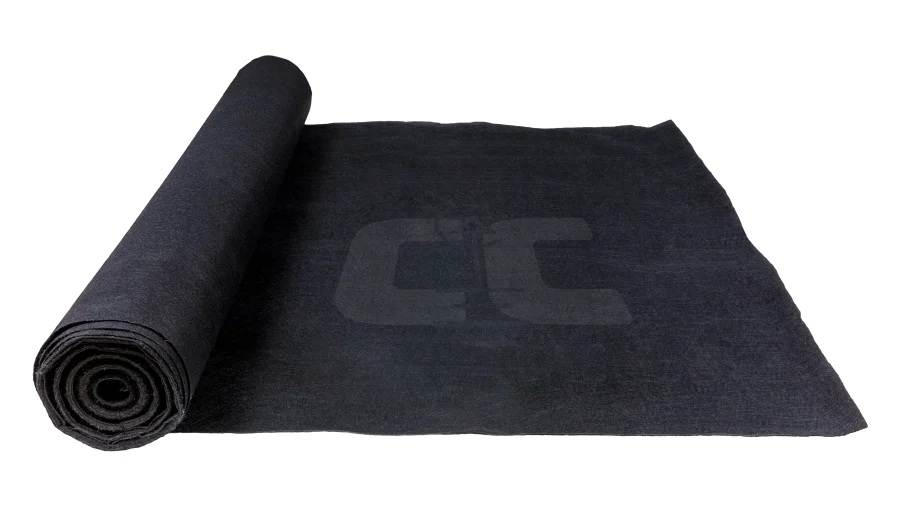

Check out the EarthScrews, EarthBallast, and SlabBallast.
Maximum snow load is 60psf for modules up to 24sqft and 40psf for modules up to 34sqft. In lateral load testing by Phoenix National Laboratories, the IR-EW15 frame itself showed no permanent deformation. However, when the load reached 1,540 pounds, the solar module's own frame began to yield while the IR-EW15 frame did not.

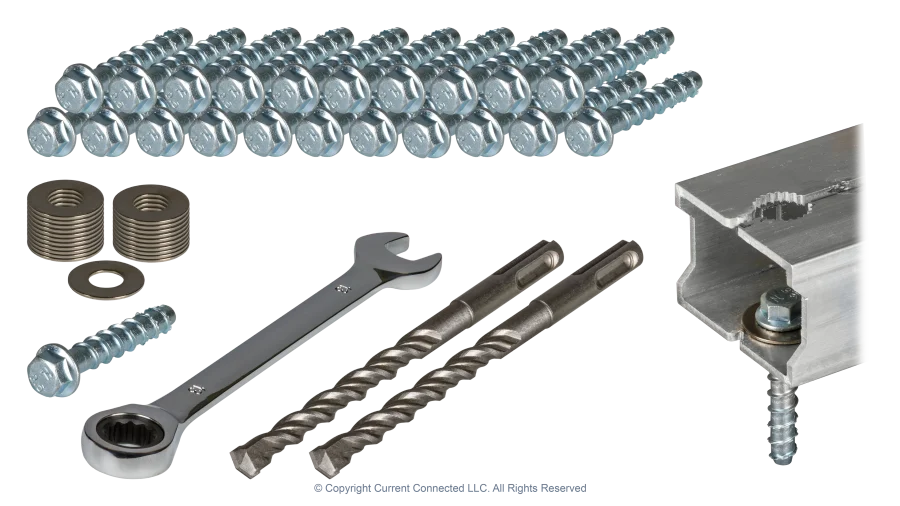

Recommended Accessories
Frequently Asked Questions
Two large-format residential or commercial solar panels, one on the east-facing side and one on the west-facing side, tied together at the peak by the Ridge Coupler Brackets. Each frame takes modules up to 34 square feet, with a minimum module length of 69 inches.
You’ll need one frame for two panels (one facing east, one facing west), plus an additional frame to start each row. For an array of 6 panels facing east and 6 panels facing west (12 panels total), you would need 7 frames.
It depends on how the frame is anchored and on module size, ranging from 100mph up to 180mph. The 180mph rating requires the bolted IR SlabBallast option at 2,000 pounds of hold-down per frame section with modules up to 24 square feet. See the ratings table in the description for the full breakdown.
No. The IR-F2 Flange Clamp Bonding Bracket clamps the module and bonds it in the same step, replacing separate mid and end clamps and removing the need for rails. Eight brackets come with each frame.
The IR-F2 bonds each module to the frame, but grounding the finished array to NEC 250 and NEC 690, including any bonding between frames, should be completed by a qualified professional such as a licensed electrician or solar contractor.
Not anywhere. EarthScrews need medium-to-high-density compacted soil, and they are not compatible in regions with frost depths greater than 20 inches. Each screw should be site-tested to hold at least 1,000 pounds of uplift. For loose, sandy, rocky, or deep-frost sites, the EarthBallast or SlabBallast options are the better fit.
Customer Reviews
No reviews yet. Be the first to review this product!
