Cummins Onan P4500i 50A Paralleling Kit, Parallel Cable for P2500i / P4500i / P4500iDF / P5000iDF EFI Inverter Generators, NEMA 14-50R Outlet, RV Ready, Double Your Power Output

About the Cummins Onan P4500i 50A Paralleling Kit

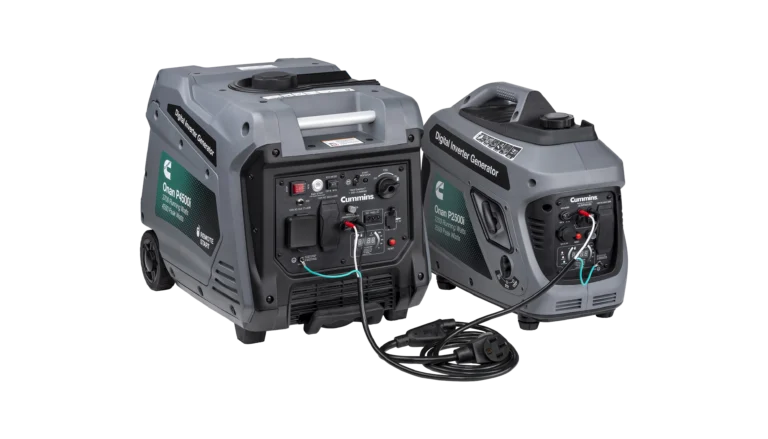

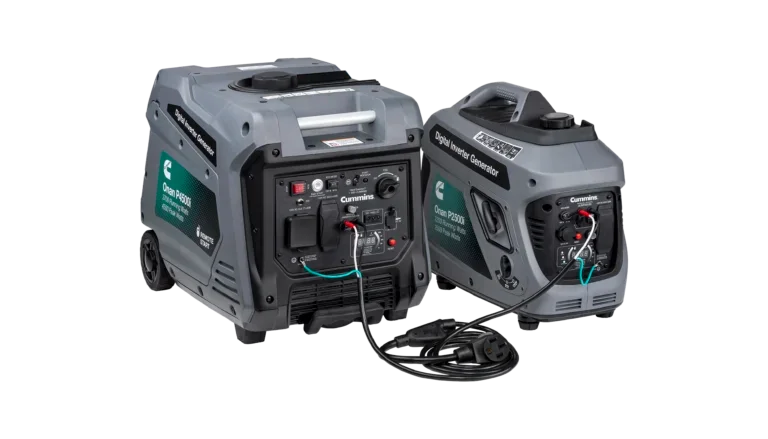

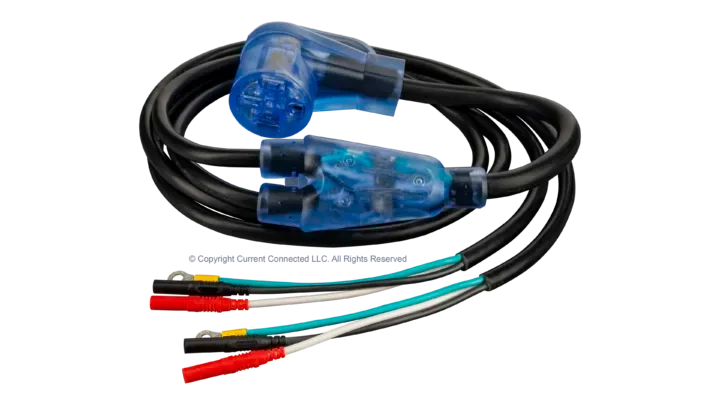

The Cummins Onan P4500i 50A Paralleling Kit is designed to connect two compatible Cummins generators for increased power and operating time. This simple device is easy to plug into the positive and negative terminals on the P2500i, P4500i, P4500iDF, and P5000iDF EFI. Once connected, the kit can receive any 50A plug from an RV, food truck, or other location that can plug into the NEMA 14-50R receptacle.

How It Works

This parallel kit internally connects the output of both generators and provides the combined 120V output to both pins of the receptacle.  Loads on either L1 or L2 are equally shared across both generators, preventing overloading.  This parallel kit does not create a 240V across the L1 and L2 connection.

Two Is Better Than One

Parallel generators can run large loads that a single generator could not power. Two generators can run twice as many loads as a single generator, and it’s easy to remove the parallel kit when needing less power. This makes the parallel kit ideal for people with fluctuating power needs.

Quieter Than One Large Generator

Two inverter generators running at 50% load are approximately half as loud as a single larger inverter generator running the same loads. This is because the paralleled generators each run at half the speed of the larger generator to maintain equal power output.

Easier to Transport

Two P4500iDF generators are easier to transport than a single P9500DF EFI. Each P4500iDF is only 104.7lbs with wheels, making them easy to team lift or roll. The P9500DF EFI, a generator with similar power output to the two P4500iDFs, weighs 211.6lbs, making it more difficult to move, even with a partner.
