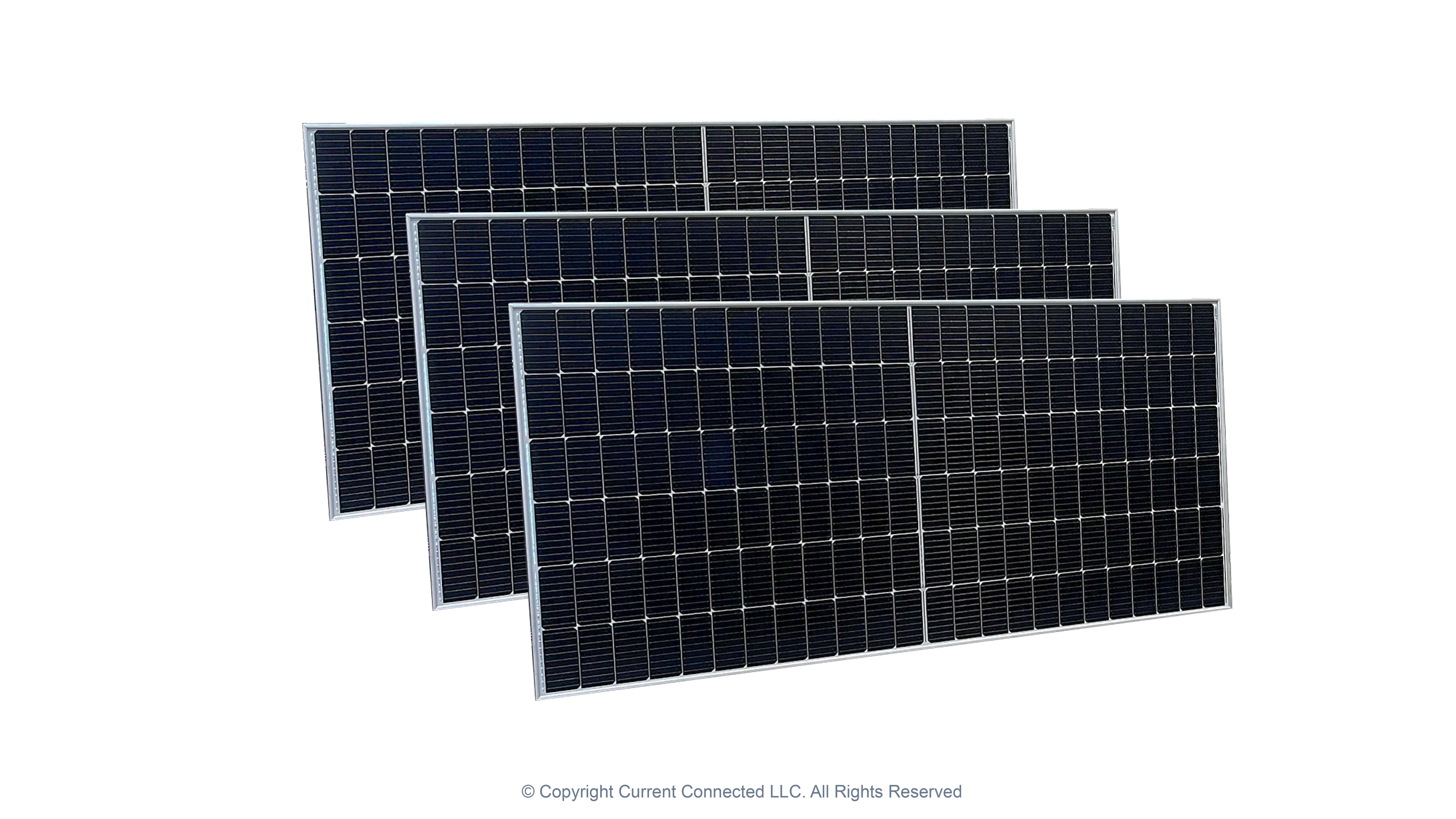

BlueSun Solar 460W Bifacial Monocrystalline Solar Panels with PERC Technology, 144 Half-Cut Cells with MC4-Evo 2 Connectors

SKU: BSM460M-72HBD

Need more than what's available?
Tell us what you need and we can source it for you.

Specifications:

Wattage: 460W
Open-Circuit Voltage (Voc): 50.8V
Short Circuit Current (Isc): 11.5A
Operating Voltage (Vmp): 42.4V
Operating Current (Imp): 10.86A
144 cells (half cell technology)
Monocrystalline, bifacial
Efficiency: 21.2%
5.4kPA snowload and 2.4kPA windload ratings
Temperature Rating: -40-185°F
Weight: 61.73lbs
Dimensions (H×W×D): 82.44×40.87×1.18in

Have a question about this product?+

BlueSun designed these 460W solar panels with monocrystalline half-cut cell technology which increases efficiency by reducing resistive losses and improving low-light performance. These 144 half-cut cells work together to create a panel with high output even in challenging conditions. This technology makes the panels more reliable than traditional full-cell configurations.

BlueSun engineered these panels with an anodized aluminum alloy frame and tempered glass construction to withstand harsh environmental conditions. This makes them ideal for residential rooftops or commercial installations. They are excellent in any climate, but they perform exceptionally well in locations with variable weather patterns and temperature fluctuations.

Each panel uses half-cut cell technology which further increases efficiency. Since the half cells are smaller than a single full cell, they generate less heat and experience lower resistance losses. Less heat also creates fewer opportunities for damage due to overheating, increasing both the panel’s performance and durability.

These bifacial panels absorb light from both sides. This makes them ideal for flat roofs or ground mounted installations. They are excellent in any geography, but they perform exceptionally well in locations with highly reflective surfaces such as snow cover.

BlueSun designed these panels to meet rigorous quality standards with 2.4kPA wind load and 5.4kPA snow load ratings. They come with a 15 year warranty on the materials and workmanship and a 30 year linear power warranty.

It’s important in any solar installation to properly connect the solar panels to eliminate potential fire hazards. These panels are designed to work with Staubli’s MC4 and MC4-Evo 2 connectors. When properly installed with the Staubli tools, these connectors provide both IP68 and UL certification.

Choose the BlueSun 460W solar panels for a reliable off-grid or grid-tied installation.
