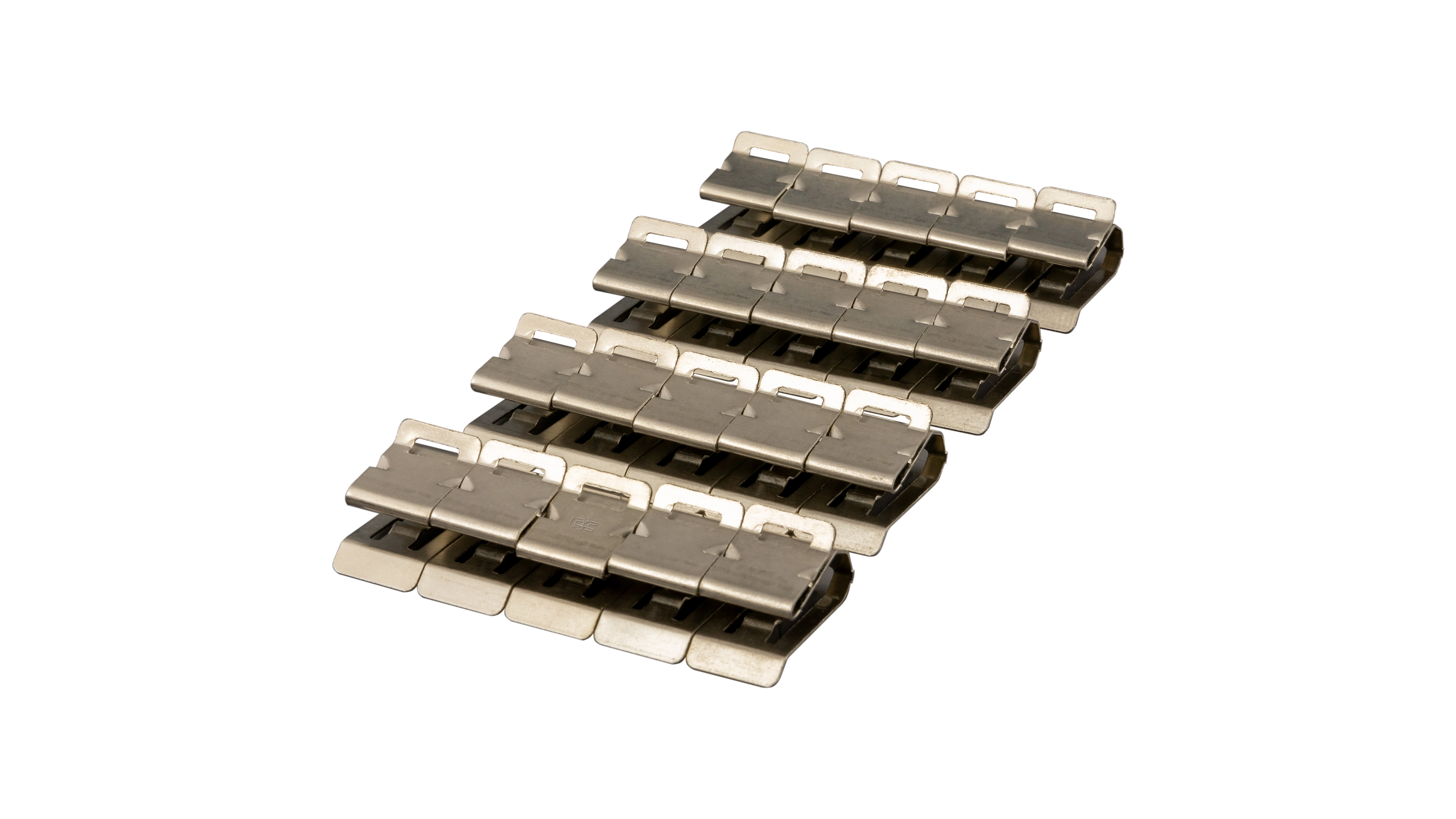

Stainless Steel Solar Panel Wire Clips, 20 Pack, Tool-Free PV Cable Management Clips for Module Frames, Hold 1 or 2 10-12 AWG PV Wires
SKU: CC-PVMC20

Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Product Summary
Snap these stainless steel clips onto the frames of your solar panels and your PV wire stays tucked tight under the array instead of sagging onto the roof or rubbing against the racking. Each clip holds one or two 10 or 12 AWG PV wires, and one 20 pack secures about 40 feet of wire run at the 24 inch support spacing called for in the NEC.
Specifications:
- Quantity: 20 clips per pack
- Material: Stainless steel
- Capacity: 1 or 2 PV wires per clip
- Wire size: 10 AWG to 12 AWG PV wire
- Mounting: Grips the back flange of the module frame by spring tension, no tools or fasteners
- Maximum support spacing: 24 in (NEC 690.31(C)(1), 2020)
- Coverage: About 40 ft of wire run per pack at 24 in spacing
Stainless Steel Wire Clips for Solar Panel Frames
Loose PV wire under an array causes problems that build slowly. Wire hanging below the modules can rest on hot roofing, trap leaves and debris, rub against the racking every time the wind moves it, and put steady strain on MC4 connections. These clips grip the back flange of a framed solar panel and hold one or two runs of 10 or 12 AWG PV wire tight against the module, so module leads, jumpers, and home runs stay exactly where you routed them.
How the Clips Install
Each clip presses onto the frame flange and holds by spring tension. There is nothing to drill, screw, or crimp, so they go on quickly whether you are clipping wire while the panels are being mounted or tidying up an existing array from behind. Route the wire along the frame, seat it in the clip, and work your way down the line. The clips are made for the back flange found on framed modules; frameless glass-on-glass panels have nothing for them to grab.
Spacing and How Many Clips You Need
The 2020 NEC (690.31(C)(1)) requires exposed PV wire in an array to be supported and secured at intervals of no more than 24 inches. Plan on one clip for every two feet of wire run, plus an extra wherever the wire changes direction or leaves the array. At that spacing a single 20 pack covers about 40 feet of wire. Where leads cross the short side of portrait-mounted panels, that usually works out to two clips per panel; runs along the long side of a panel take three or four.
Why Metal Clips Outlast Plastic Cable Ties
Plastic zip ties hold a lot of arrays together, but years of UV exposure and daily heat cycling make plastic brittle, even ties sold as UV resistant. When a tie snaps, the wire drops onto the roof, often without anyone noticing. Stainless steel does not break down in sunlight, keeps its spring tension through hot and cold cycles, and resists corrosion, so the wire stays secured season after season.
Installation Tips
Keep the wire snug against the frame without pulling it tight, and leave a little slack at every MC4 connector so the connection never carries the weight of the wire. Place a clip on each side of a connector to hold the joint up off the roof surface. Route the positive and negative conductors of each string together to keep loop area small, and steer wire away from sharp frame corners and rail ends where vibration can wear through the jacket over time.
Get everything you need to finish wiring your panels in our Solar Installation Kit!
Recommended Accessories
Frequently Asked Questions
Yes, on the sides that have one. A lot of newer bifacial and dual-glass modules keep a back flange on the long sides only, with no flange on the top and bottom frame members. Plan your wire route along the long-side flanges and clip it there at 24 inch spacing. Where the wire has to cross a flangeless top or bottom edge or jump to the next module, secure that short span to the racking rail with a stainless steel cable tie. On bifacial panels, keep the wire tight to the frame rather than letting it drape across the back glass, since anything crossing the rear face shades cells that would otherwise be producing power. If your panels have no back flange at all, these clips will not attach, and our support team is happy to help you find a clip that fits that frame.
No. They are wire management only and are not a bonding device, so your module frames still need to be bonded through your racking's bonding hardware or a grounding lug.
Sometimes. The clips are sized for module frame flanges, and rail profiles vary a lot between racking brands. If your rail has an exposed lip close to the thickness of a panel flange, test-fit one clip and give it a firm tug before committing to a whole run.
Stainless steel against anodized aluminum is the same pairing used throughout solar racking hardware, and the clip only touches the frame's anodized surface. In coastal installations with regular salt spray, look the clips over during routine maintenance the same way you would any other array hardware.
They are sized for 10 and 12 AWG PV wire. For 8 AWG or larger conductors, or jacketed microinverter trunk cable, use a clip or hanger rated for that cable size.
