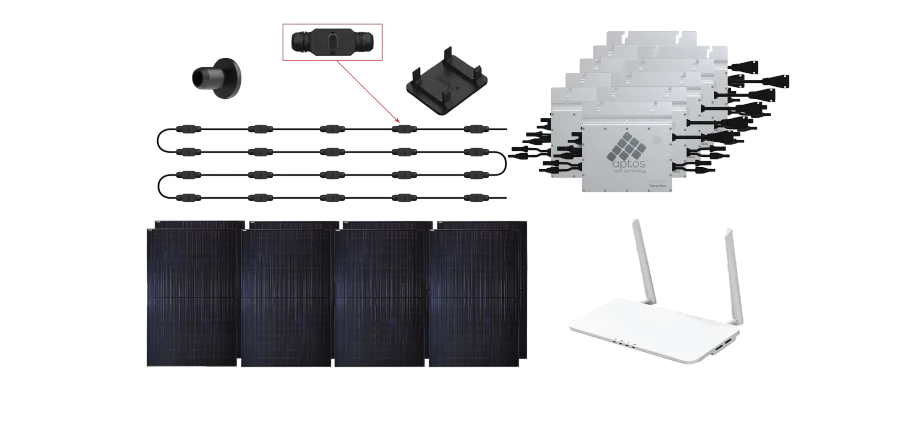

Aptos Grid Tie Microinverter Solar Panel Kit
Configure Your System
Solar Panels
RequiredChoose from our selection of solar panels from top leading manufacturers
Choose Solar Panels*
Product Details
YHSunpro 440W Bifacial Solar Panel, PV Module for Residential or Commercial Renewable Energy Systems, Monocrystalline Bifacial Panels
Specifications:
- Wattage: 440W
- Open-Circuit Voltage (Voc): 38.53V
- Short Circuit Current (Isc): 14.43A
- Operating Voltage (Vmp): 32.09V
- Operating Current (Imp): 13.72A
- 108 Cells (Half cell technology)
- N-Type monocrystalline, bifacial Panels
- TOPCon technology
- Efficiency: 22.53%
- 2.4kPA wind load and 5.4kPA snow load
- Weight: 51.37lbs
- Dimensions (H×W×D): 67.8×44.65×1.18in
These modules come on a pallet containing 36 units. We recommend purchasing a full pallet for optimal shipping rates. However, we will build a custom pallet for smaller orders, at a minimum of 8 units.
| Need more than what's available? Tell us what you need and we can source it for you. |
Aptos Microinverters

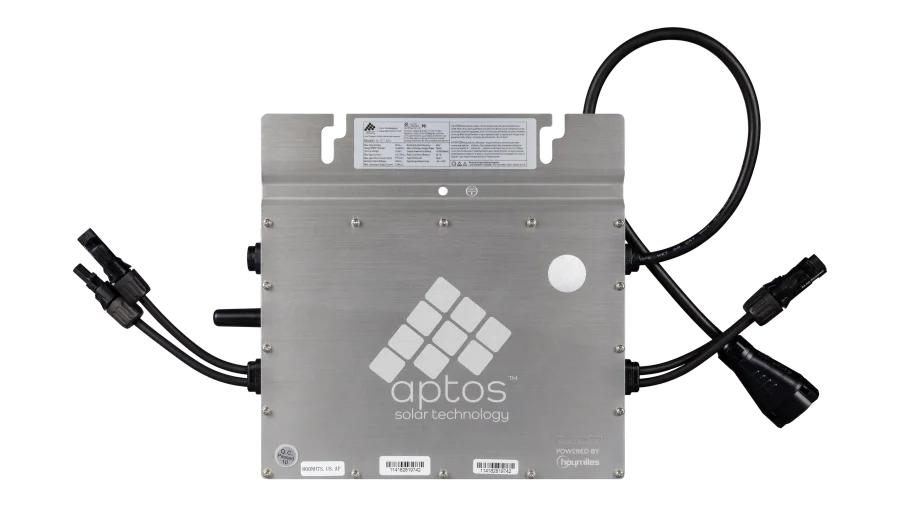

RequiredThe MAC-400 Microinverters are one per panel, whereas the MAC-800 Microinverters are one per two panels. Ensure you add the proper quantity to your order.
Choose Aptos Microinverters*
Product Details
Aptos MAC-400 Microinverter, UL 1741 Single Solar Panel Microinverter Module up to 400W, IP67 NEMA6
The Aptos MAC-400 microinverter connects to a single solar panel and converts generated DC power to AC power at the module level. Each microinverter includes MPPT technology to optimize panel efficiency, and they are compatible with residential or commercial systems.
Specifications:
- Up to 400W max output
- Maximum panel input voltage: 60V
- Built-in NEC-compliant rapid shut down
- 6,000V surge protection
- IP67-rated enclosure for extreme weather conditions
- Rated for: UL 1741, IEEE 1547, UL 1741 SA (240Vac), CA Rule 21 (240Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C
- Weight: 3.9lbs
| Need more than what's available? Tell us what you need and we can source it for you. |
Trunk Cable
RequiredProduct Details
Aptos AC Bus Cable 2.2m-4.2m 12G AWG Cable for Aptos MAC-400 and MAC-800 Microinverters
Specifications:
- 144ft cable
- 12AWG
- Connects to Aptos MAC-400 or MAC-800 microinverters
- Trunk cable connector snaps together with Aptos microinverter cable
Loading options...
AC Disconnect Tool
OptionalChoose AC Disconnect Tool
Product Details
Aptos AC Connector Unlock Tool for the Aptos AC Bus Cable and Aptos MAC Microinverters
Specifications:
- Safely disconnects the Aptos microinverters from the Aptos AC Bus Cable
- Durable black plastic
- Simplifies maintenance
| Need more than what's available? Tell us what you need and we can source it for you. |

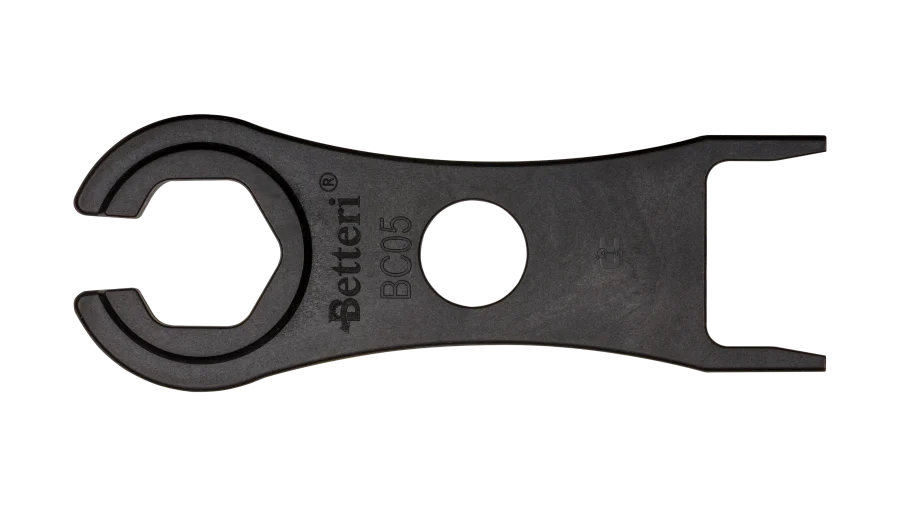

Trunk Connector Unlock Tool
OptionalChoose Trunk Connector Unlock Tool
Product Details
Aptos Bus Connector Unlock Tool for Aptos MAC-400 and MAC-800 Microinverters
Specifications:
- Required accessory for the Aptos AC Bus Cable
- Durable black plastic
- Simplifies maintenance and installation
- Small and lightweight
| Need more than what's available? Tell us what you need and we can source it for you. |
Trunk End Cap
OptionalChoose Trunk End Cap
Product Details
Aptos AC Bus End Cap, Sealing Cap for Aptos MAC-400 and MAC-800 Microinverters and Trunk Cable
Specifications:
- Seals the Aptos AC Bus Cable to IP67
- Waterproof and dustproof
- Simple installation
- Required for Aptos MAC-400 and MAC-800 microinverter installations
- Durable black plastic provides sleek aesthetic
| Need more than what's available? Tell us what you need and we can source it for you. |
Data Transfer / Monitoring Unit
OptionalChoose Data Transfer / Monitoring Unit
Product Details

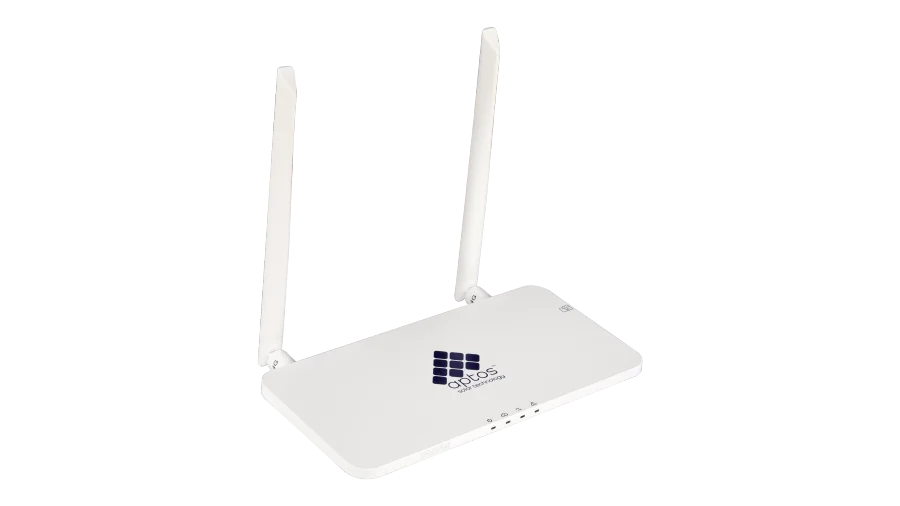

Aptos DTU-Pro WiFi Data Transfer Unit, 4G LTE, WiFi, and Ethernet Monitoring for Aptos MAC Microinverters up to 99 Panels
The Aptos Data Transfer unit is the central hub for an Aptos microinverter setup.
Specifications:
- RJ45 and Wifi Communications
- Maximum Distance (open space): 650 ft
| Need more than what's available? Tell us what you need and we can source it for you. |
Kit Summary
| Component | Selection | Qty | Subtotal |
|---|---|---|---|
| — | $0.00 | ||
| — | $0.00 | ||
| — | 0 | $0.00 | |
| Excluded | Not included | 0 | — |
| Excluded | Not included | 0 | — |
| Excluded | Not included | 0 | — |
| Excluded | Not included | 0 | — |
| Total | $0.00 | ||
Finish choosing your options above to continue.
