6kVA 48V MultiPlus-II 120/240Vac Bundle (UL)

SKU: Unassigned
Placeholder

From: $2,417.04

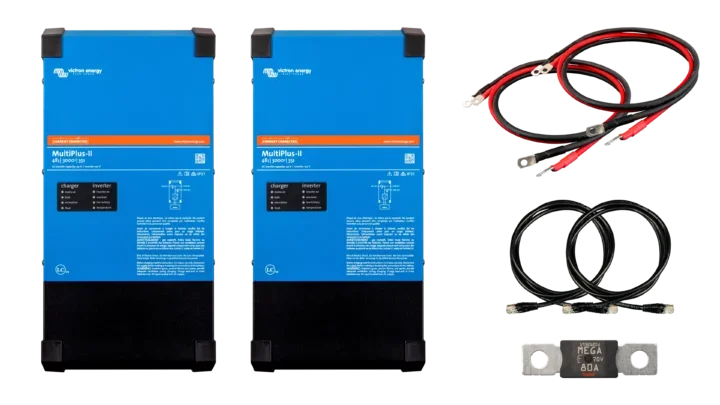

Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Front view display of the inverter by Victron Energy with no background.

Victron Energy MultiPlus-II 48V 3kVA 120V AC Output, 35A Battery Charger, UL 1741 Residential Low Frequency Inverter-Charger × 2

The MultiPlus-II 48V 3kVA is a pure sine wave inverter/charger that delivers 2400W continuous (5500W surge), charges batteries at up to 35A, and transfers to battery backup in under 20 milliseconds. UL 1741 certified for residential installations, it runs grid-tied ESS, off-grid, and backup configurations through a single unit. Two units pair for 120/240V split phase output, and up to six can be paralleled per phase. Systems purchased through Current Connected ship pre-programmed with your specified firmware and phase configuration.

Specifications:

  • Continuous Output: 2400W (3000VA) at 25°C
  • Surge Output: 5500W
  • Inverter Efficiency: 95%
  • Idle Consumption: 11W (7W in AES mode, 2W in search mode)
  • AC Input: 90-140V, 45-65 Hz, 50A transfer switch
  • AC Output: 120V, two outputs (main: uninterruptible, auxiliary: grid-only)
  • DC Input Range: 38-66V (48V nominal)
  • Battery Charger: 35A maximum, adaptive 4-stage
  • Transfer Time: <20 ms (uninterruptible for computers and electronics)
  • Certifications: UL 1741, CSA C22.2 No. 107.1, UL 458
$1,168.75 each

7 in stock (can be backordered)

6 AWG Battery Cables

4 AWG Pure Copper Battery Cables - Red & Black × 2

4 AWG Battery Cable Set

  • Includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Also available in: 4 AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG
  • Single Jumpers also available: 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG
  • Also available in: 6AWG, 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG
  • Single Jumpers also available:  2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG

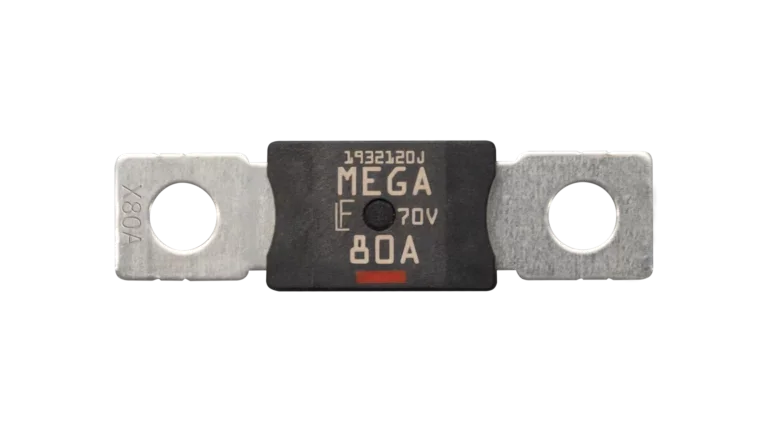

LittelFuse MEGA Fuse

LittelFuse MEGA Fuse - 80A for 48V Systems - 2 Pack

Specifications:

  • Pack of two (2) fuses - always good to keep a spare
  • Rated for 70Vdc - compatible with 12V, 24V, and 48V systems
  • 60A to 350A options available
  • Compatible with the MEGA Fuse Holder and Victron Lynx Distributor.
  • Interruption rating: 2500A @ 70Vdc
  • 1MΩ open state resistance @ 100V
  • Manufactured by LittelFuse
Ethernet Cable 5

RJ45/CAT5e Ethernet Patch Cables from 1ft to 25ft, Communication and Data Cables for Energy Systems

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with Victron VE.Bus / VE.Can products
Currently accepting backorders
We will ship your order as soon as stock arrives
Log in to see additional stock details

Additional information

Victron Energy MultiPlus-II 48V 3kVA 120V AC Output, 35A Battery Charger, UL 1741 Residential Low Frequency Inverter-Charger

Weight 50 lbs
Dimensions 23 × 14 × 10 in
Battery Voltage

48 Volts DC
Inverter Type

Inverter-Charger
Native AC Output Voltage

120 Volts AC (Single Phase)

LittelFuse MEGA Fuse - 80A for 48V Systems - 2 Pack

Weight .25 lbs
Dimensions 2.75 × .75 × .25 in

RJ45/CAT5e Ethernet Patch Cables from 1ft to 25ft, Communication and Data Cables for Energy Systems

Weight N/A
