6kVA 24V MultiPlus-II 120/240Vac Bundle (UL)

SKU: Unassigned
Awaiting product image

From: $2,092.18

Victron Energy 24V Multiplus-2 3kVA 120V Inverter - 70A Charger (UL). This is a Front view display of the inverter by Victron Energy with no background.

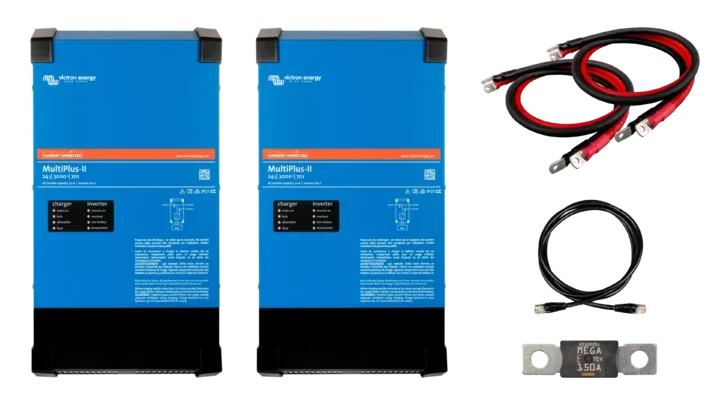

Victron Energy MultiPlus-II 24V 3kVA 120V AC Output Inverter, 70A Battery Charger, UL 458 Mobile Inverter × 2

Specifications:

  • Continuous output: 2.4kW
  • Max. surge output: 5.5kW
  • AC input range: 90-140V
  • DC input range: 19-33V
  • AC output: 120V @ 50Hz/60Hz configurable
  • Weight: 42lbs
  • Dimensions (H×W×D): 21.1×10.9×5.8in
  • One AC input and two AC outputs
  • Split phase and three phase capability
  • PowerControl and PowerAssist option
  • Configurable with remote monitoring from any smart device
  • UL 458 certified
$997.05 each

3 units in stock ready to ship
We can get an additional 44 units if needed
Log in to see additional stock details

1/0 AWG Battery Cables

1/0 AWG Pure Copper Battery Cables - Red and Black × 2

  • Set includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Also available in: 6AWG, 2 AWG, 2/0 AWG, 4/0 AWG
  • Single Jumpers also available: 2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG

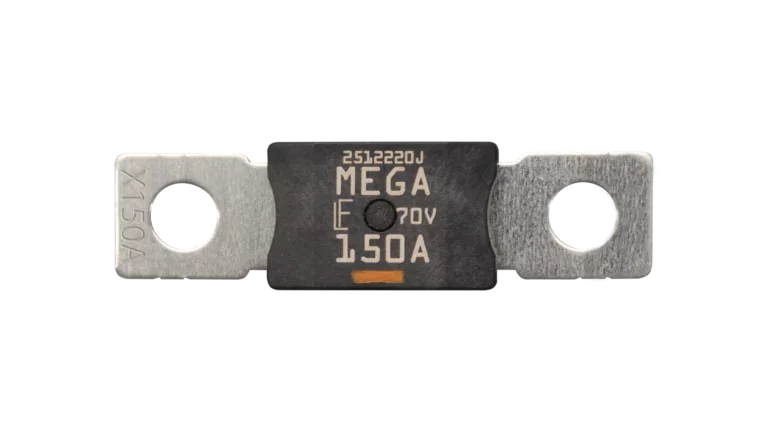

LittelFuse MEGA Fuse

LittelFuse MEGA Fuse - 150A for 24V Systems - 2 Pack

Specifications:

  • Pack of two (2) fuses - always good to keep a spare
  • Rated for 70Vdc - Compatible with 12, 24 and 48V systems
  • 60A to 300A Options available
  • Compatible with the MEGA Fuse Holder and Victron Lynx Distributor.
  • Interruption rating: 2500A @ 70Vdc
  • 1MΩ open state resistance @ 100V
  • Manufactured by LittelFuse
Ethernet Cable 5

RJ45/CAT5e Patch Cables from 1ft to 25ft, Communication and Data Cables for Energy Systems

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with Victron VE.Bus / VE.Can products

In stock

Additional information

Victron Energy MultiPlus-II 24V 3kVA 120V AC Output Inverter, 70A Battery Charger, UL 458 Mobile Inverter

Weight 48 lbs
Dimensions 23 × 14 × 10 in
Inverter Type

Inverter-Charger
Battery Voltage

24 Volts DC
Brand

Victron

1/0 AWG Pure Copper Battery Cables - Red and Black

Weight N/A

LittelFuse MEGA Fuse - 150A for 24V Systems - 2 Pack

Weight .25 lbs
Dimensions 2.75 × .75 × .25 in

RJ45/CAT5e Patch Cables from 1ft to 25ft, Communication and Data Cables for Energy Systems

Weight N/A
