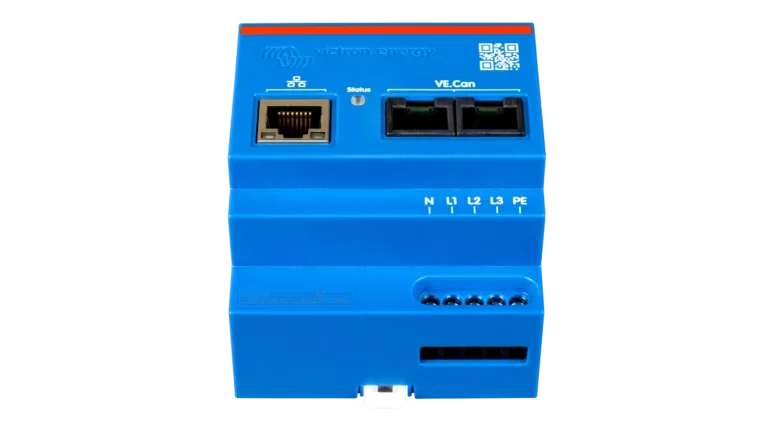

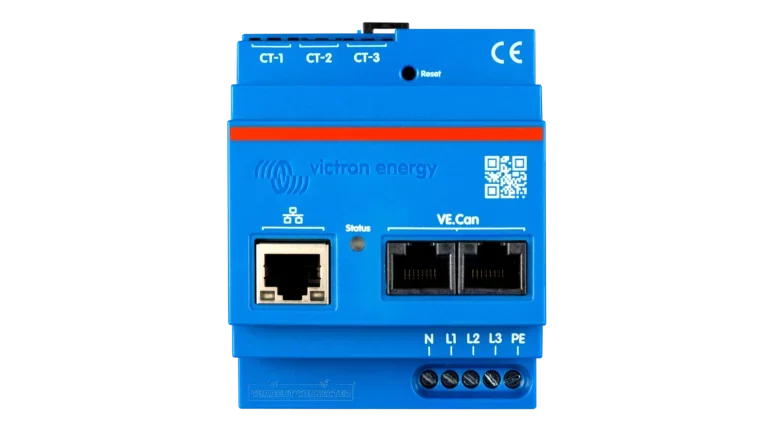

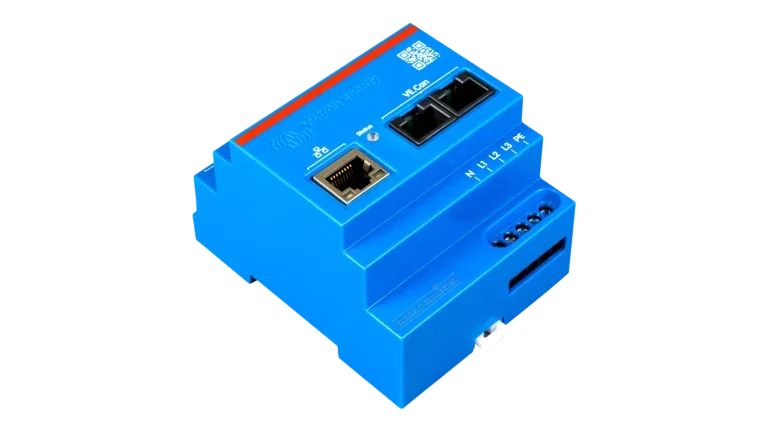

Victron Energy VM-3P75CT Energy Meter, Includes CTs, Connects to GX Devices and VictronConnect, Works with VRM
SKU: REL200300100
Product Summary
Specifications:
- Functions as a Grid Meter, PV Inverter, AC Genset or AC Load Meter
- Single and Three Phase applications
- Input voltage range L - N: 85 to 265VAC
- Input voltage range L - L: 150 to 460VAC
- Frequency 50/60Hz

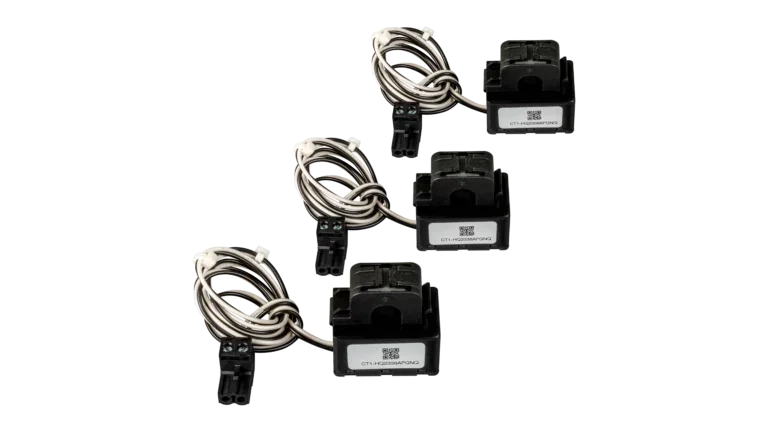

- Current inputs via transformers (included) rated for 75A
- Self-power supply via L1-N
- Consumption 1.45W / 3.1VA
- IP20
- Weight: 0.81lbs
- Dimensions (H×W×D): 3.5×2.8×2.3in
$171.70
Log in to check member price and detailed stock information.
| Need more than what's available? Tell us what you need and we can source it for you. |
Current Connected is YOUR Victron product specialist
The Victron VM-3P75CT energy meter is used to measure the power and energy of single and three phase applications including the outputs of inverter/chargers.
“Plug and play” The energy meter will work out of the box as a grid meter for most systems. Configuration via VictronConnect is only required for changing the role (Grid Meter, PV Inverter, AC Genset or AC Load Meter)
Data can be displayed on VictronConnect or a GX device or remotely from the VRM Portal.
