Victron 48V Quattro 3kVA 120V Inverter 35A Charger

SKU: QUA483021100

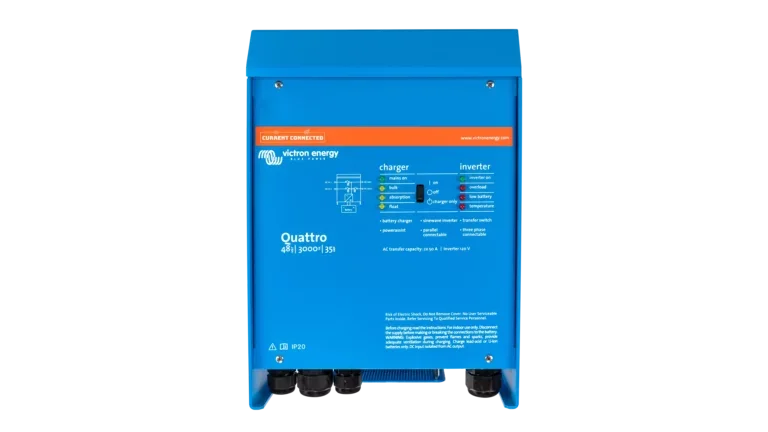

Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Front View display of the inverter by Victron Energy with no background.

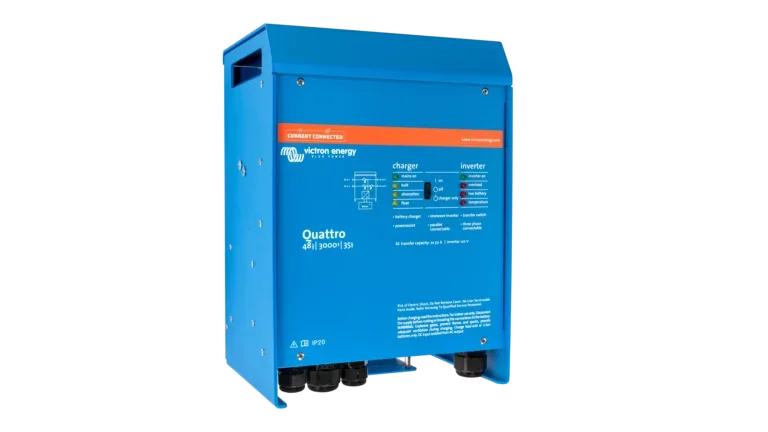

Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Left View display of the inverter by Victron Energy with no background.

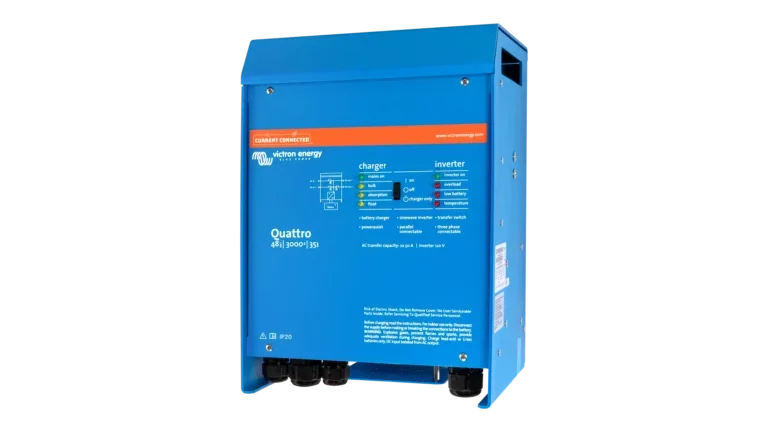

Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Right View display of the inverter by Victron Energy with no background.

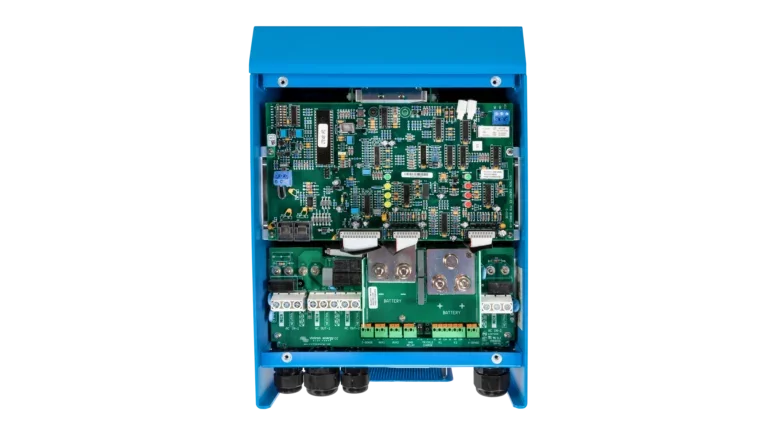

Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is an Internal View display of the inverter by Victron Energy with no background.

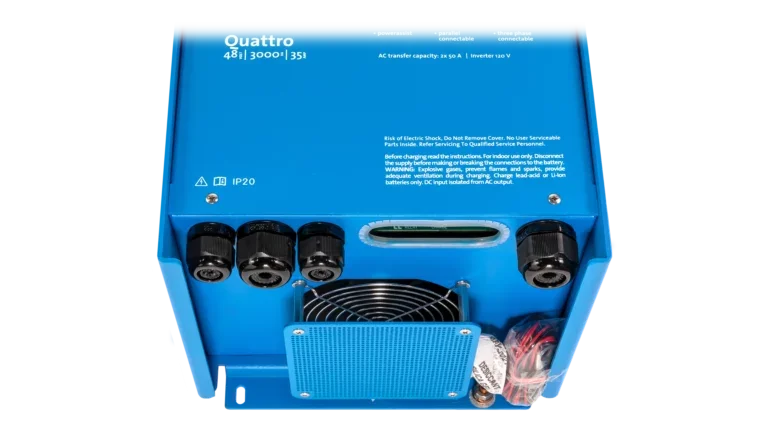

Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Bottom View display of the inverter by Victron Energy with no background.
Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Front View display of the inverter by Victron Energy with no background.
Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Left View display of the inverter by Victron Energy with no background.
Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Right View display of the inverter by Victron Energy with no background.
Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is an Internal View display of the inverter by Victron Energy with no background.
Victron Energy 48V Quattro 3kVA 120V Inverter 35A Charger. This is a Bottom View display of the inverter by Victron Energy with no background.
Spec SheetManual

The Victron Quattro 3kVA is a good choice for backup power if the grid fails. With the hybrid PowerAssist, the Quattro can provide power when the grid or generator begins to fail, drawing from the batteries and ensuring that the loads are always powered. With a less than 20 millisecond transfer time, the Quattro is a good solution for a UPS system.

Specifications:

  • Power Control
  • Max Feed Through Current: 2×50 Amps
  • Surge Power: 6000W
  • Input Voltage Range: 90-140 VAC
  • Output Voltage: 120VAC
  • Weight: 42 lbs.
  • Dimensions (HxWxD): 14.3 x 10.2 x 8.6 inches

5-Year Manufacturer Warranty

$1,389.75

Log in to check member price

Out of stock - currently accepting backorders that will ship when stock is replenished.

Description

The Victron Quattro 3kVA allows for supplementing generators or grid power by utilizing the battery bank, allowing for a constant flow of power. This inverter comes with 2 independent AC inputs, allowing for multiple AC sources, such as grid power and/or a generator. The Quattro can automatically connect to the active source, meaning there is no need to monitor or manage what sources are being used. In the event of a grid failure or shore/generator power disconnection, the Quattro takes over in less than 20 milliseconds.

The Quattro also features a secondary output, for loads that you don’t want to discharge the battery, as it is only available when AC power is available on the input. These Victron Quattro 3kVAs can be paralleled up to 6 times and are capable of both split-phase and three-phase operation. When paired with a GX device, this inverter can be remotely monitored and adjusted through a connected VRM (Victron Remote Monitoring).

Features:

  • 94% Efficiency Rating
  • Zero Load Power: 25W
  • Zero Load Power AES mode: 20W
  • Zero Load Power in Search mode: 12W
  • Integrated Transfer Switch
  • Able to be run in split-phase or 3-phase

Inverters purchased through Current Connected come custom programmed for LiFePO4 batteries (US customers only). For any additional config customization please let us know in your order notes.

Recommended Accessories:

Additional information

Weight 47 lbs
Brand

Victron
Battery Voltage

48 Volts DC
Inverter Type

Inverter-Charger

Why Choose Victron?

Victron Energy is a globally recognized leader in technical innovation. They are renowned for producing high-quality, reliable products crafted with meticulous attention and precision for superior performance and durability.

Established in the Netherlands in 1975, Victron Energy manufactures dependable off-grid battery inverter chargers and affordable solar controllers. In the mobile energy market, their commitment to continuous improvement and development of their products is unmatched. Victron frequently introduces innovative products and enhanced hardware/software through free updates, always staying on the forefront of independent energy systems.

With over 45 years of expertise in designing off-grid systems, Victron excels in delivering solutions that prioritize reliability. Their commitment is reinforced by cutting-edge software, user-friendly monitoring apps, a network of skilled professionals, and widespread repair centers, providing unparalleled support for their products. Victron equipment surpasses performance expectations and boasts an extended life cycle that goes beyond industry standards. They back their products with 5-year warranties and efficient repair policies, providing you with the assurance and protection necessary for your investment.

Choose Victron Energy for reliable, innovative, and long-term power solutions. Experience the difference that their industry-leading products and expertise can make for your energy needs.

Software

The following software requires a MK3-USB to change paramters within the inverter. Please refer to the “Recommended Accessories” section for reference. Download VE.Configure
