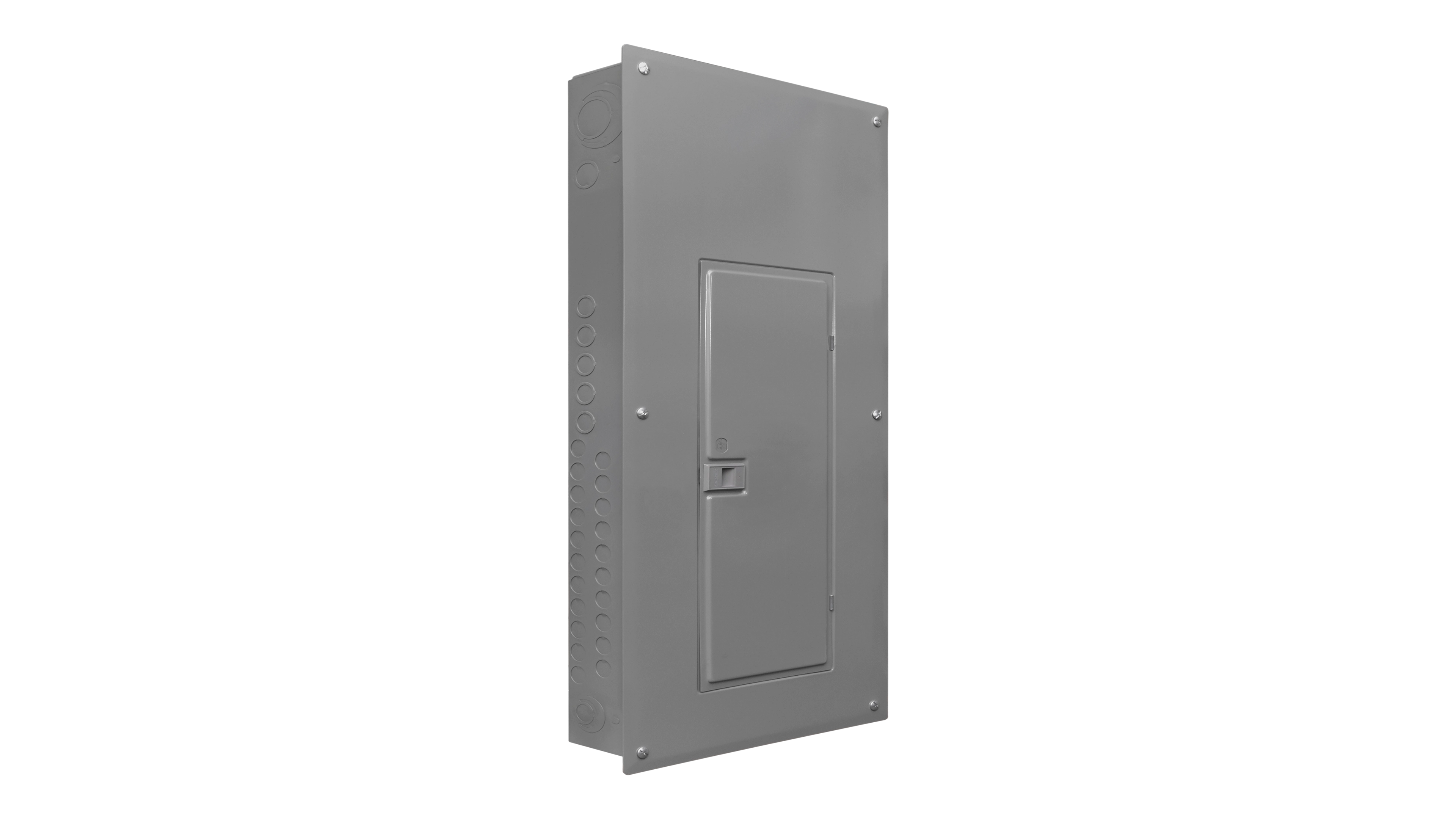

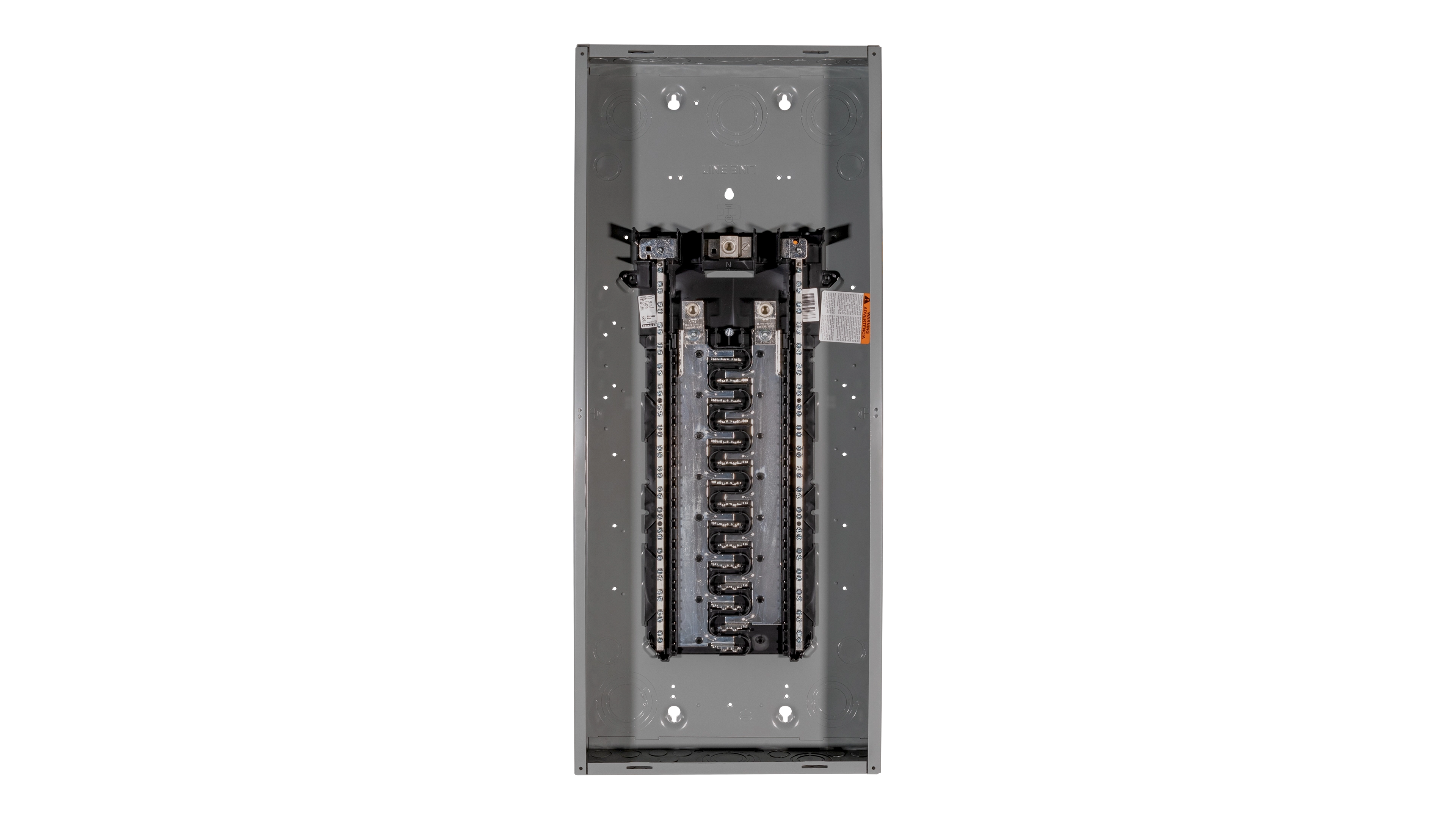

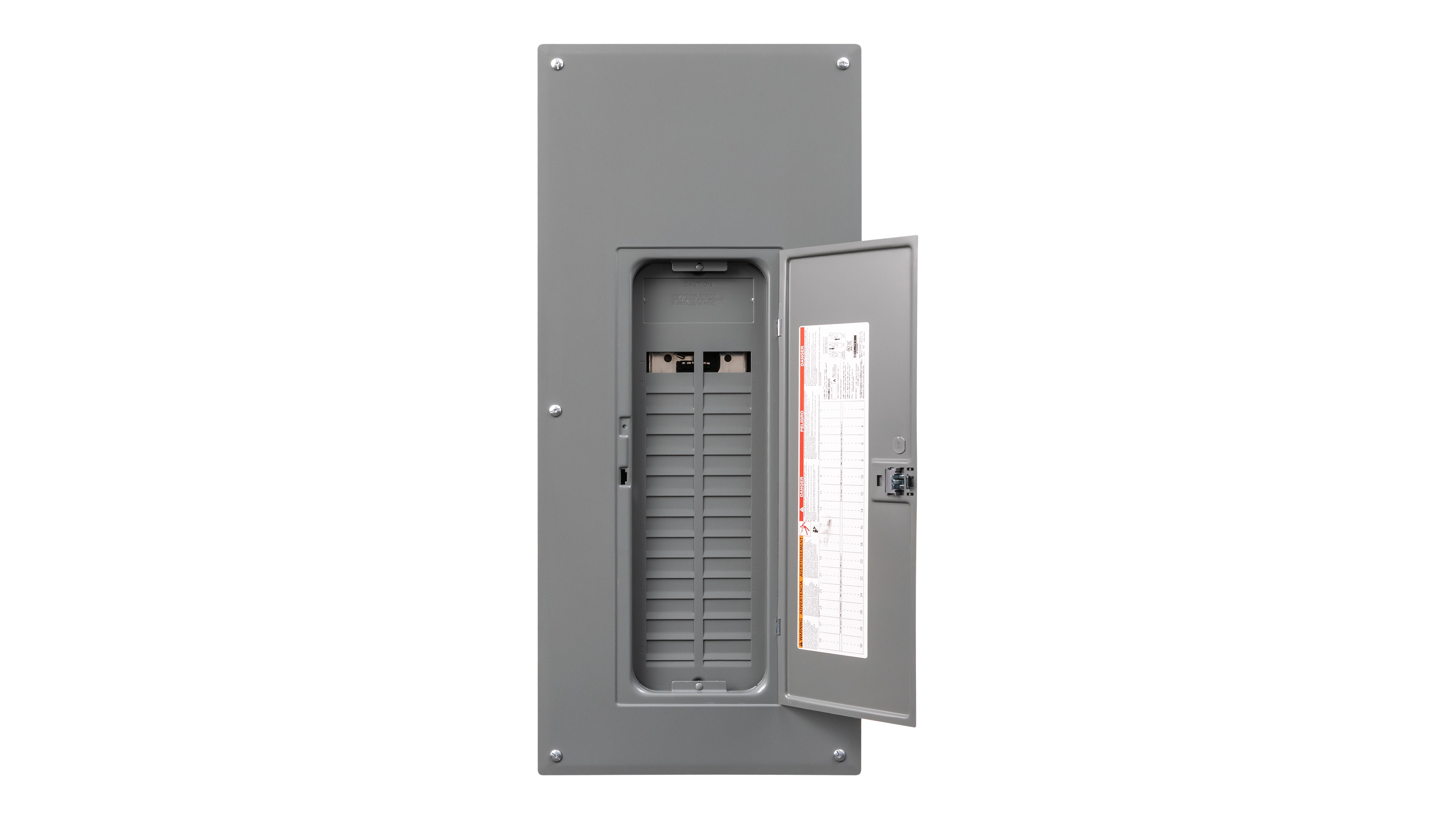

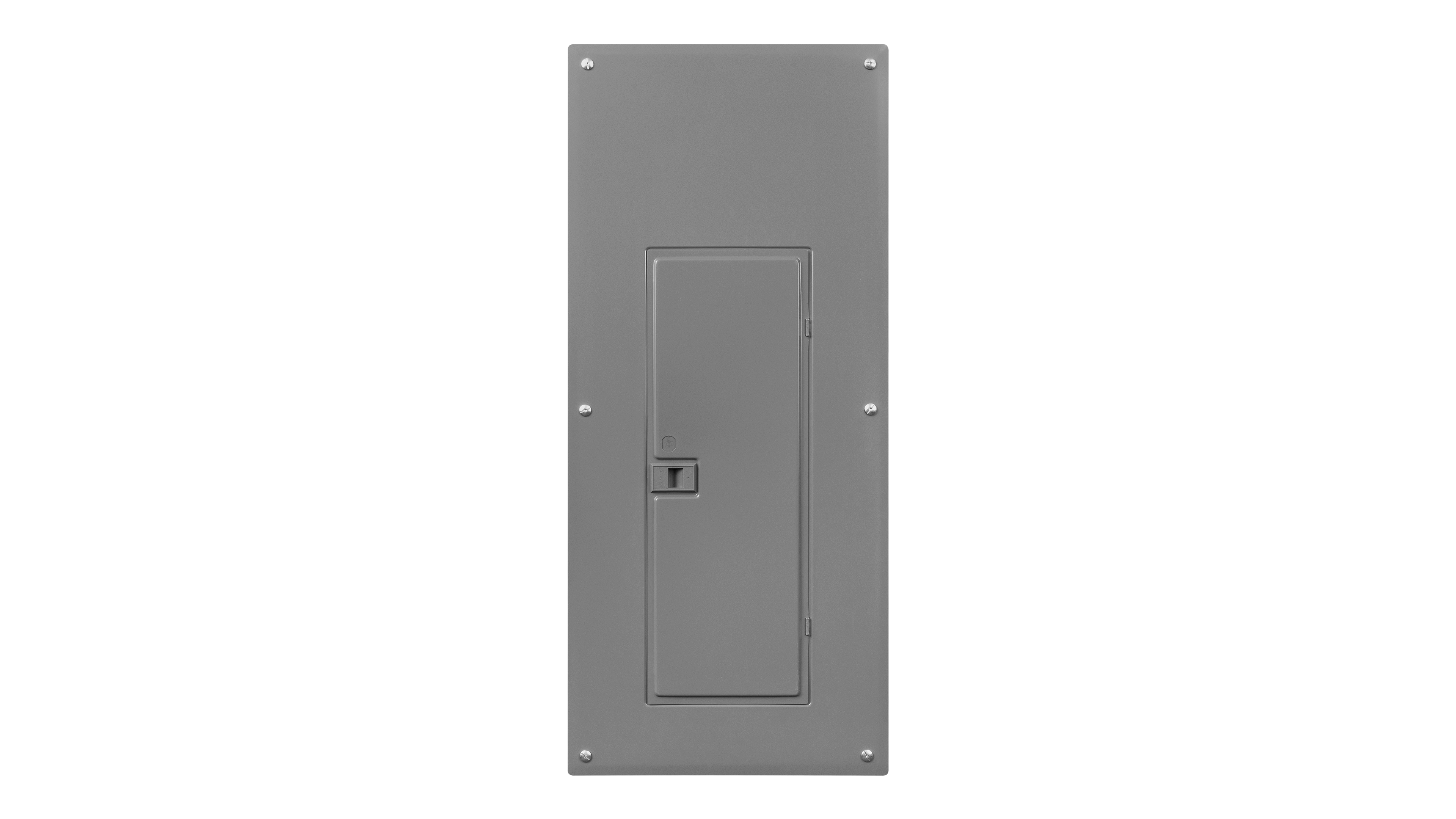

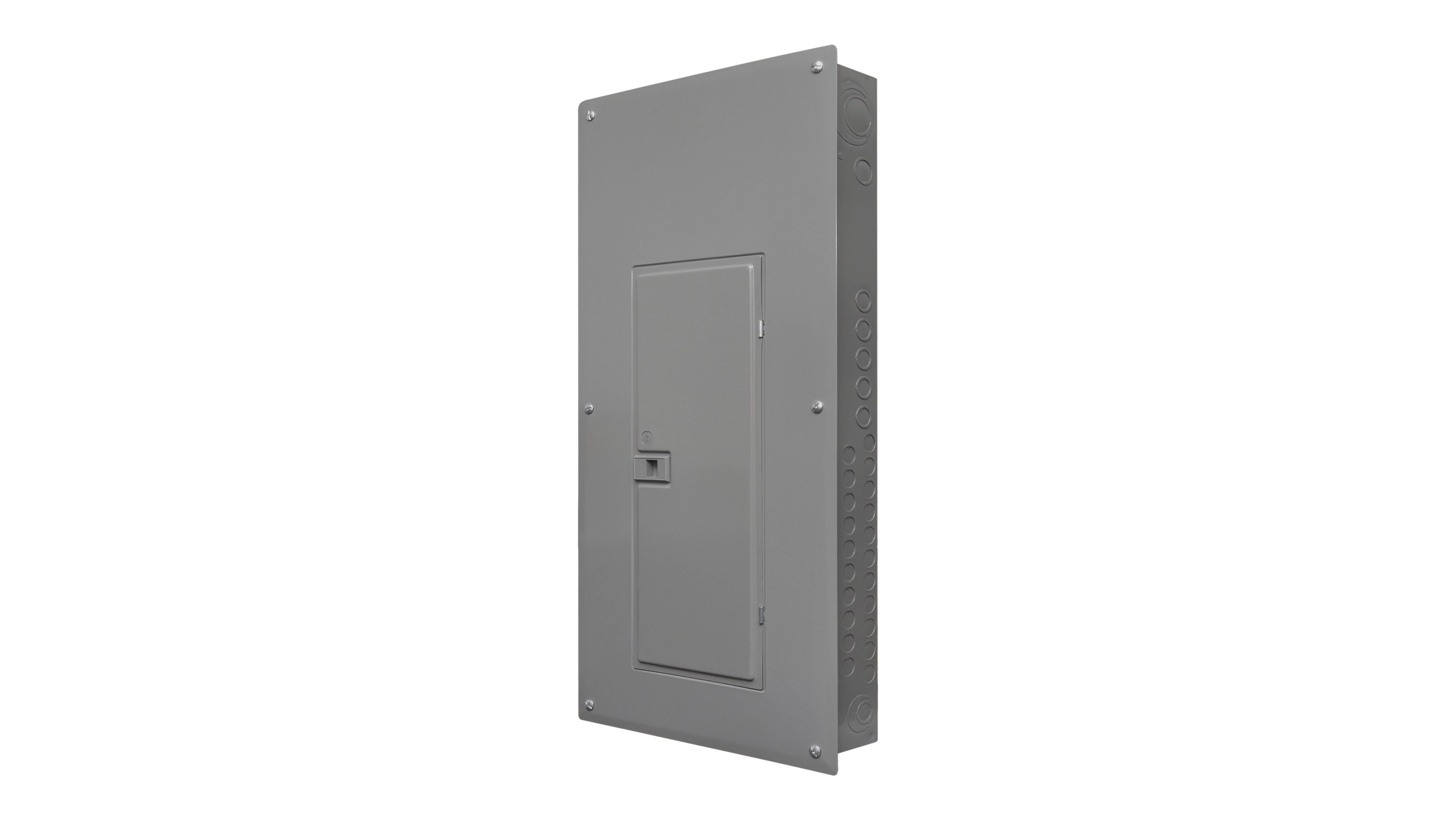

Square D Homeline 30-Space 225A Electrical Panel, Main Panel for Residential or Off-Grid Homes, Works with 200A Service

SKU: SQD-HOM225-3060

$154.80

Log in to check member price and detailed stock information.

Need more than what's available?
Tell us what you need and we can source it for you.

If you're looking for a reliable and versatile electrical panel, the Square-D Homeline 30-Space 225A Electrical Panel is the perfect solution. Designed by Square D, a trusted name in electrical equipment, this Homeline Main Lug Breaker Box is built to meet the power distribution needs of both residential and commercial settings.

Specifications:

Voltage: 120/240V Main Lug Only
Convertible: Main breaker can be added if needed
Maximum Amperage: 225A
Number of Spaces: 30
Number of Circuits: 60
Plug-on neutral

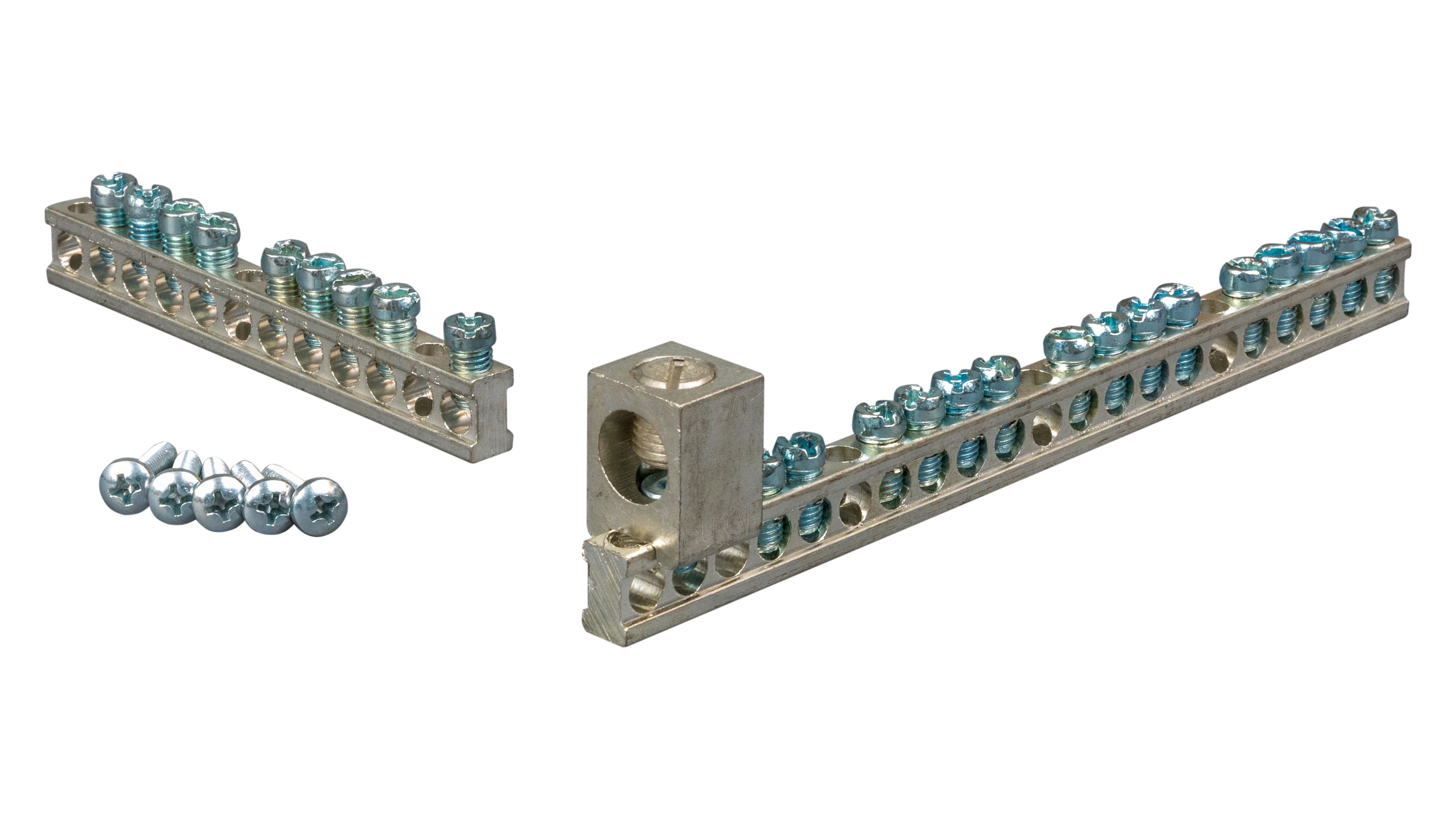

Bus Bars: Tin plated aluminum for enhanced durability
Weight: 33.16lbs
Cutout dimensions: 14.25 x 33.78 x 3.75 inches

Downloads (3): Spec Sheet, Manual, Dimensions
