10 AWG Solar MC4 Connector PV Installation Wiring Bundle

SKU: Unassigned

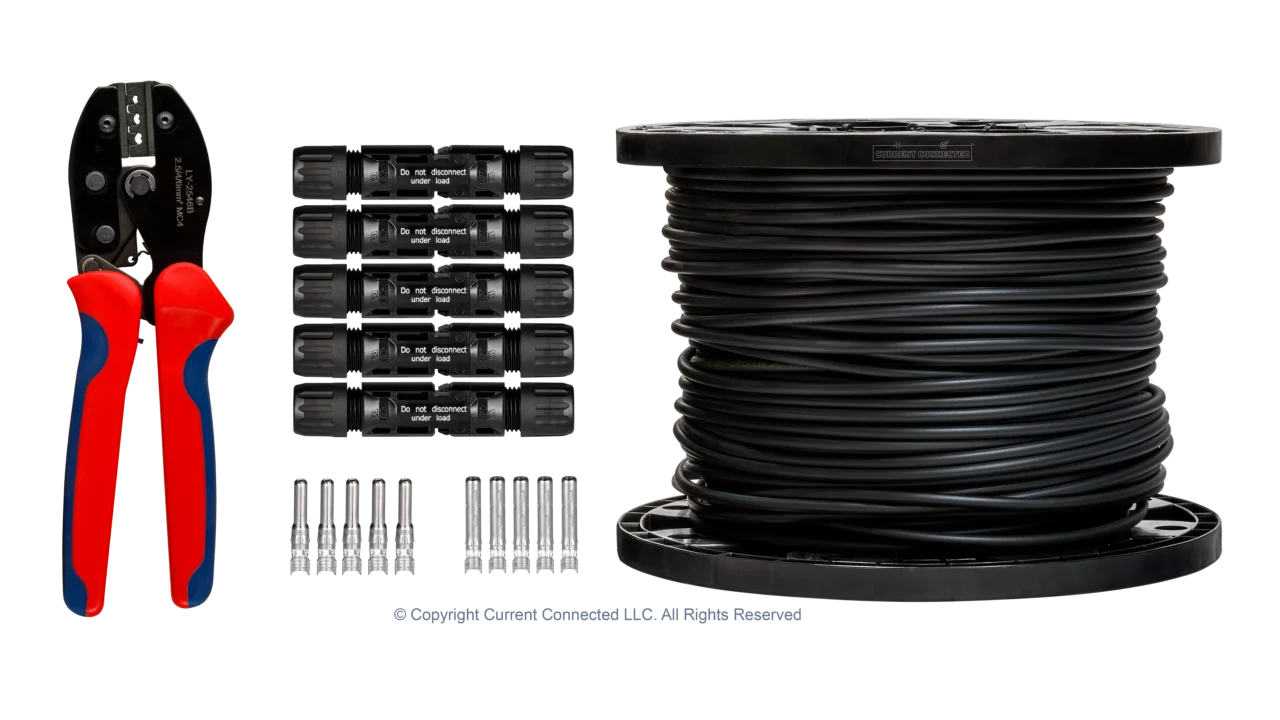

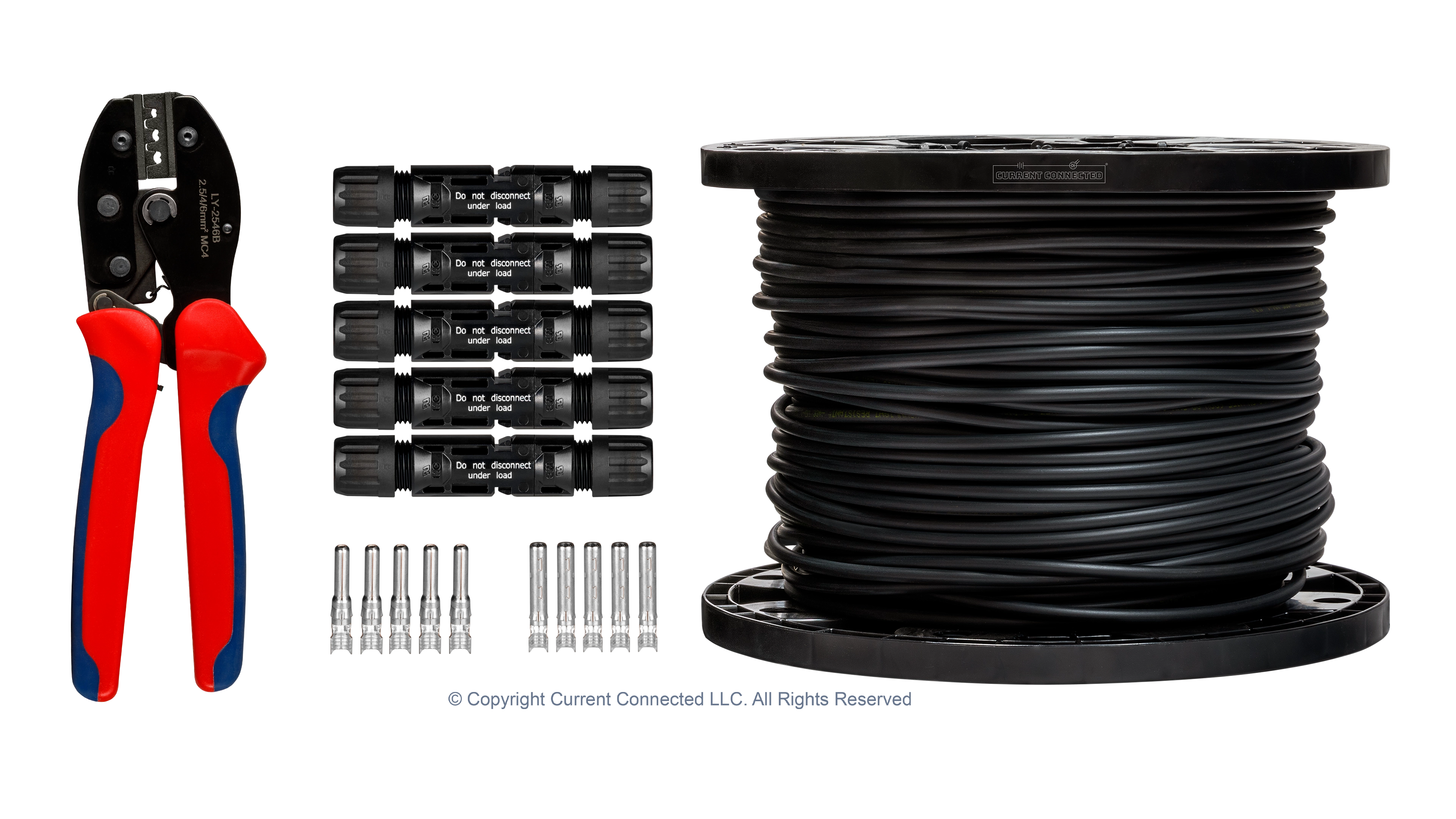

High quality photo of the 10 AWG Solar MC4 Connector PV Installation Wiring Kit. Photographed by Current Connected

This Quick Connect Solar Installation Wiring kit allows for an easy setup from the charge controller to the panels. This kit can be configured with 500 Ft spools of black and red PV wire and is good for any size system. Stäubli MC4 quick-connectors and a free crimping tool are included.

Don’t want to have to make your cables yourself? Don’t worry, we also have pre-made cables!

From: $351.33

PV-Wire Black Red Both Vertical

10 AWG Solar PV Cable - 103 Strand - Bulk 500Ft Spool

500 feet of 10 AWG solar PV Cable works in most residential or commercial solar systems. This cable comes in both red and black, allowing for easy distinction and different situations.

  • Type XLP PV Cable
  • Suitable for use as RHW-2 or USE-2
  • 90°C wet or dry insulation rating
  • Suitable for direct burial
  • Sunlight resistant
  • UL4703 Listed
  • 600VDC rated
  • .26" outer diameter
  • Note: Spool occasionally varies from wood to plastic.  The spool may arrive slightly different than the picture, however, the wire will be identical.
PV-Wire Black Red Both Vertical

10 AWG Solar PV Cable - 103 Strand - Bulk 500Ft Spool

500 feet of 10 AWG solar PV Cable works in most residential or commercial solar systems. This cable comes in both red and black, allowing for easy distinction and different situations.

  • Type XLP PV Cable
  • Suitable for use as RHW-2 or USE-2
  • 90°C wet or dry insulation rating
  • Suitable for direct burial
  • Sunlight resistant
  • UL4703 Listed
  • 600VDC rated
  • .26" outer diameter
  • Note: Spool occasionally varies from wood to plastic.  The spool may arrive slightly different than the picture, however, the wire will be identical.
High quality photo of the Staubli - KITMC4-5PK - MC4 Connectors 5 Pack Full Kit View photographed by Current Connected

Stäubli Classic MC4 & MC4-Evo 2 Connectors, Rated for 1100V and 35A, 5 Pair Bundle, Options Support 4.7mm to 8.8mm Wire Jacket Diameter

Specifications:

  • Industry standard solar connector
  • Fits 12 AWG and 10 AWG PV wire
  • Rated for 1100Vdc at up to 35A
  • Package includes five plug ends and five socket ends
  • Stäubli Open-Ended Spanner necessary to unlock joined connectors

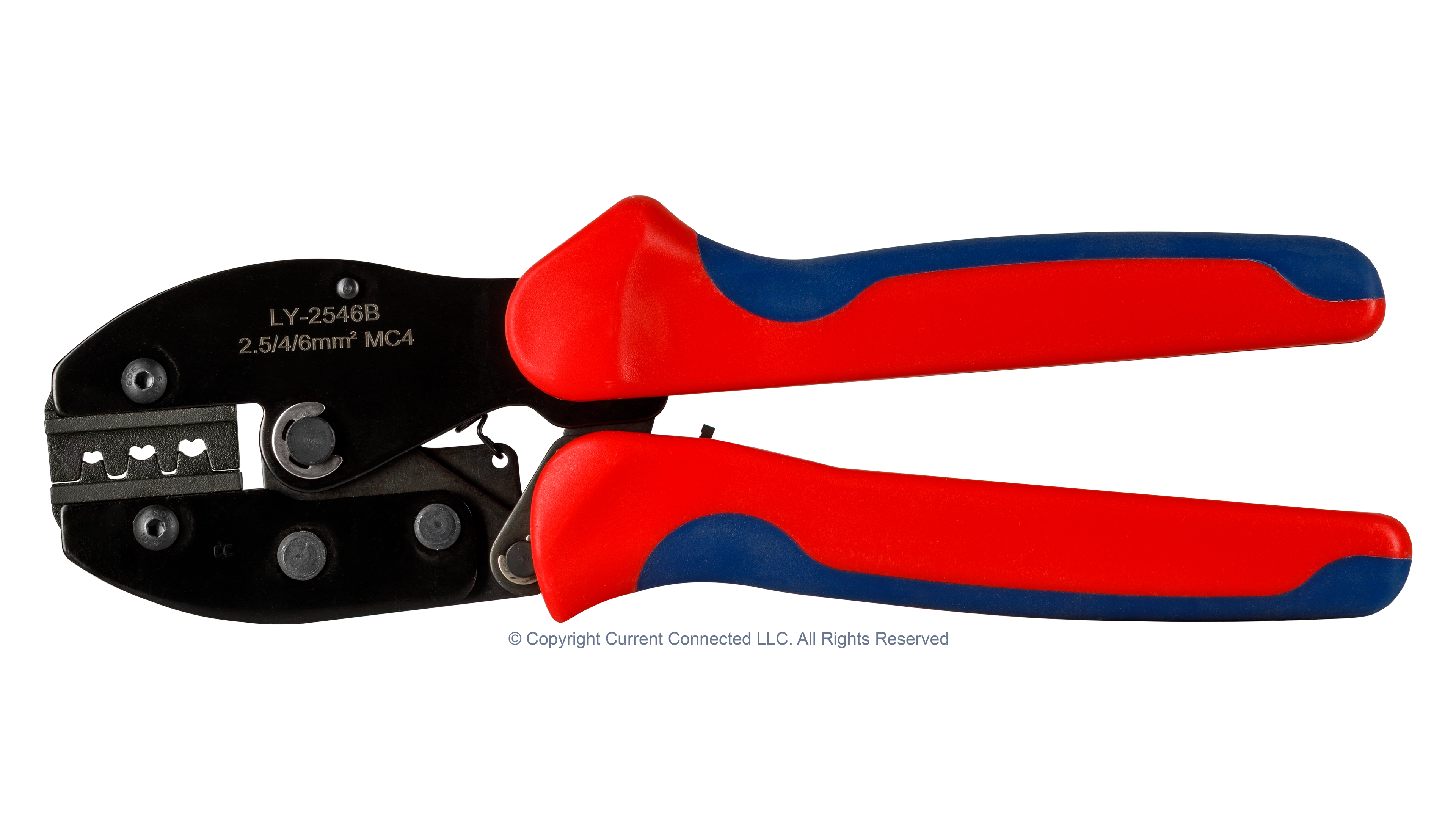

High quality photo of the Lekon - WCTOOL1 - MC4 Solar Quick Connector Crimping Tool - Side View Closed. Photographed by Current Connected.

MC4 / Solar Quick Connector Crimping Tool

This lightweight tool ensures that the crimp will be tight and secure. Can make crimps with most selections of connectors. See below for exceptions. Features:

  • Three different openings to accommodate wire sizes from 14 AWG to 10 AWG.
  • Compatible with all open-barrel MC-4 connectors, ensuring versatility and ease of use.

11 units in stock ready to ship

Log in to see additional stock details

Temporarily out of stock
We are working on restocking this item
Log in to see additional stock details

Recommended Accessories:

Additional information

10 AWG Solar PV Cable - 103 Strand - Bulk 500Ft Spool

Color

Black

10 AWG Solar PV Cable - 103 Strand - Bulk 500Ft Spool

Color

Red

Stäubli Classic MC4 & MC4-Evo 2 Connectors, Rated for 1100V and 35A, 5 Pair Bundle, Options Support 4.7mm to 8.8mm Wire Jacket Diameter

Weight N/A
Style & Wire Outer Diameter

Classic MC4: 5.5-7.4mm
Brand

Staubli

MC4 / Solar Quick Connector Crimping Tool

Weight 1.25 lbs
